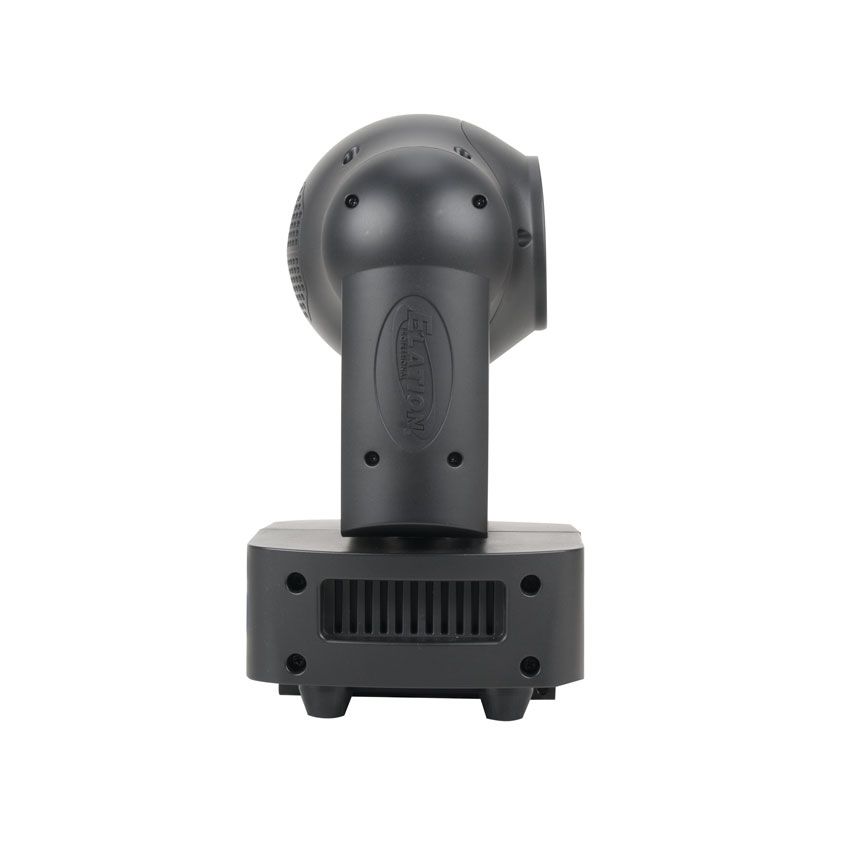

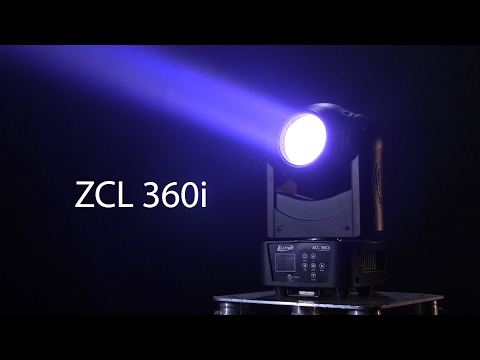

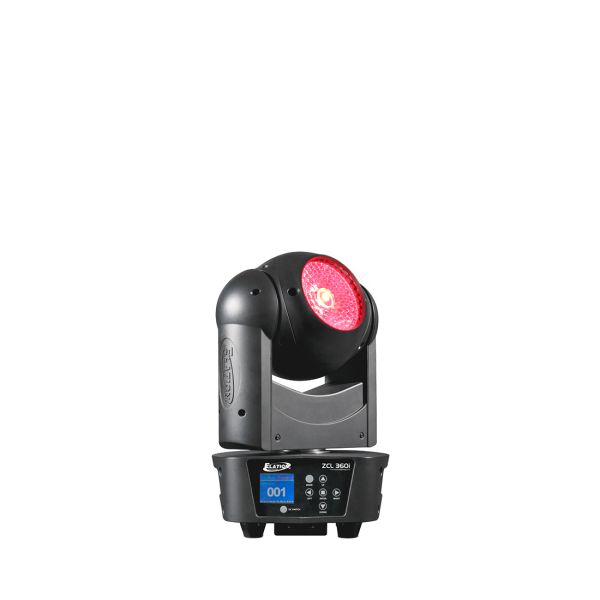

ZCL 360iOutlet
90W RGBW LED Beam Fixture with Zoom and Continuous Pan and Tilt
Code 1236100147
Code
1236100147
FEATURES
Versatile Single Beam Moving Effect Luminaire
Zooming Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Wide 4° To 44° Zoom Range
90W RGBW 4-in1 LED
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management
SOURCE
90W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
11,123 LUX 1,033 FC @3m (9.8’) (Min. Zoom)
483 LUX 45 FC @3m (9.8’) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 21)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

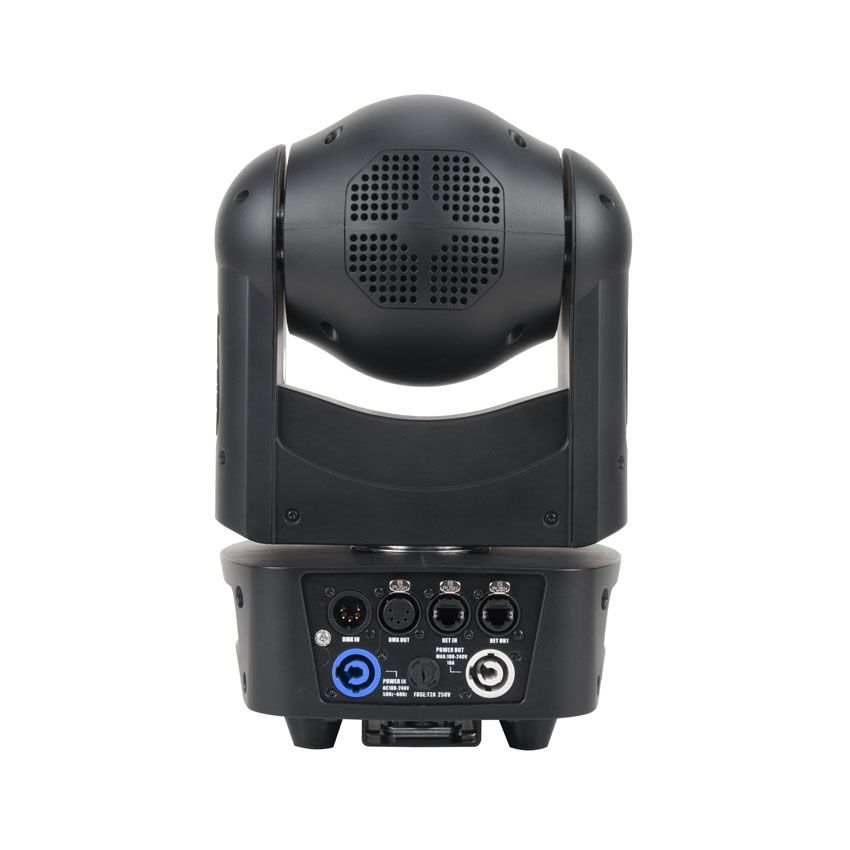

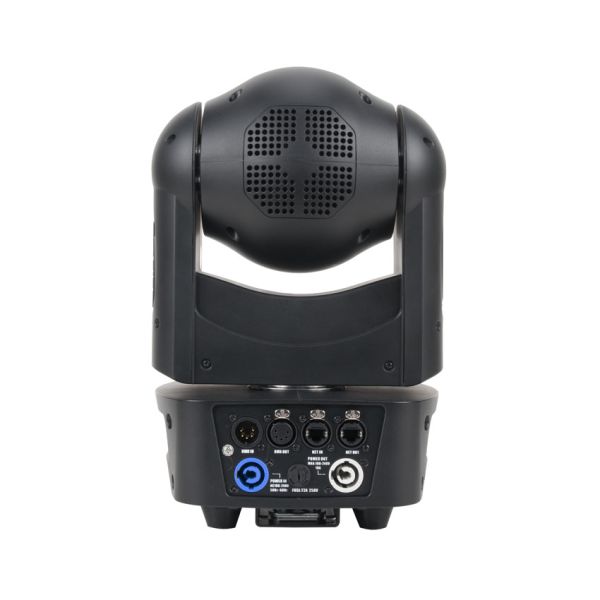

5pin XLR DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power Cable In/Out
SIZE / WEIGHT
Length: 222mm (8.7”)
Width: 186mm (7.3”)
Vertical Height: 336mm (13.2”)
Weight: 5.9 kg (13.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
101W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
OPTIONAL ACCESSORIES

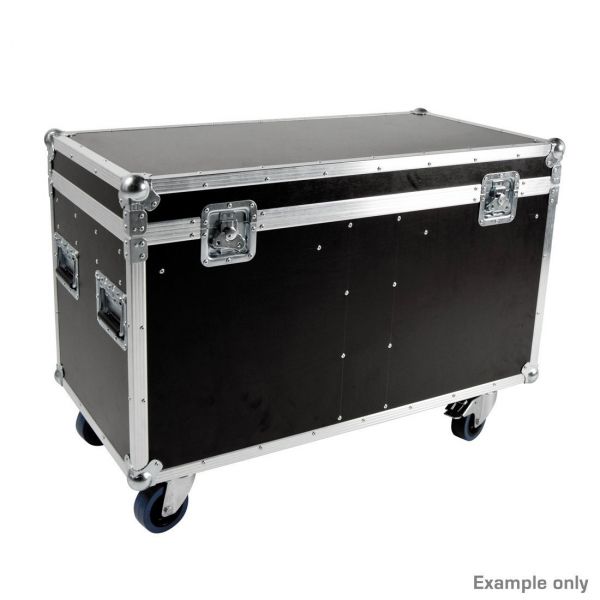

1521000301 Touring Case 4x ZCL 360i
1521000302 PRO Case 4x ZCL 360i
1521000303 Touring Case 6x ZCL 360i
1521000304 PRO Case 6x ZCL 360i
1322000060 C-Loader II
FIRMWARE UPDATES
Current firmware can be found here (login required)*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
