WW Profile (no lens)

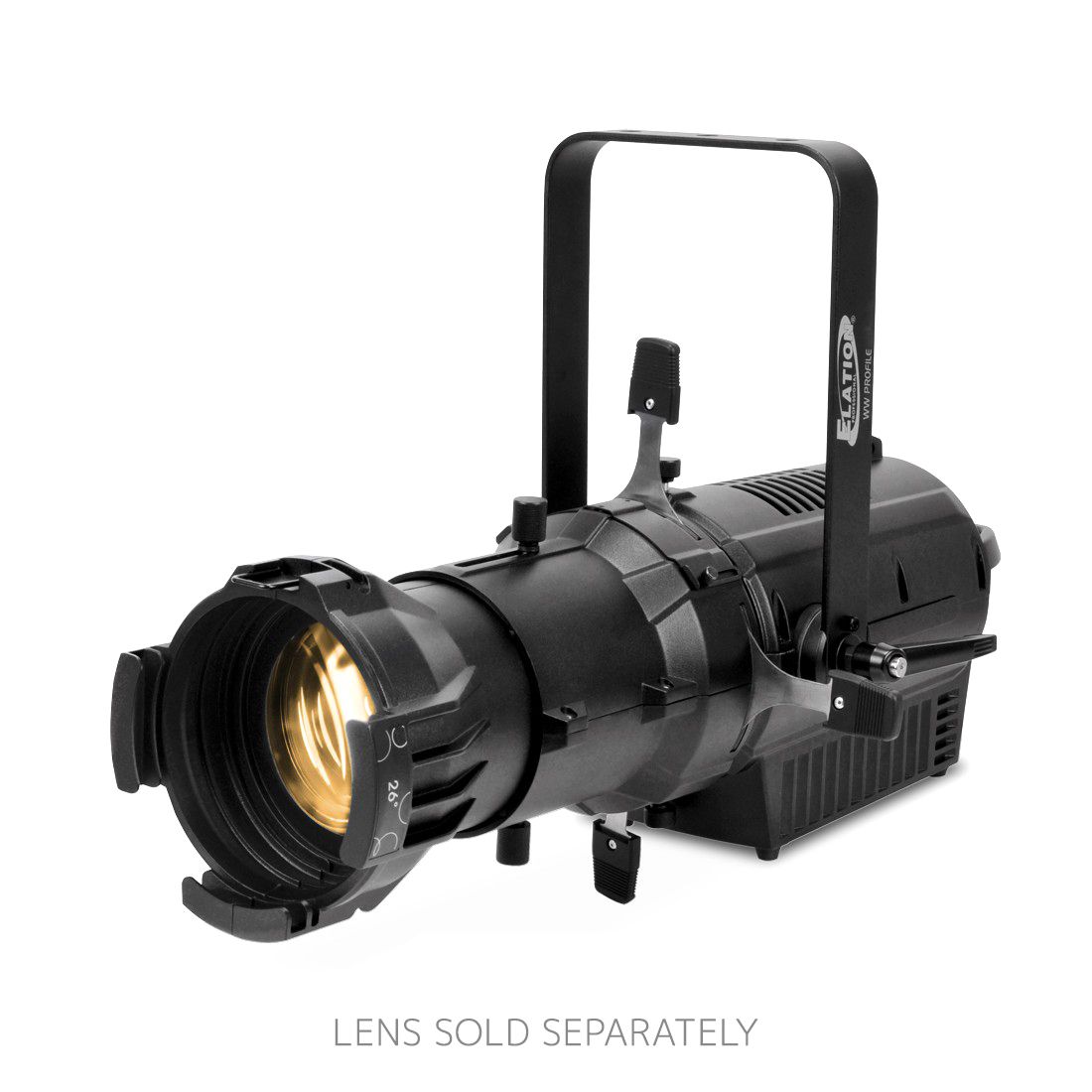

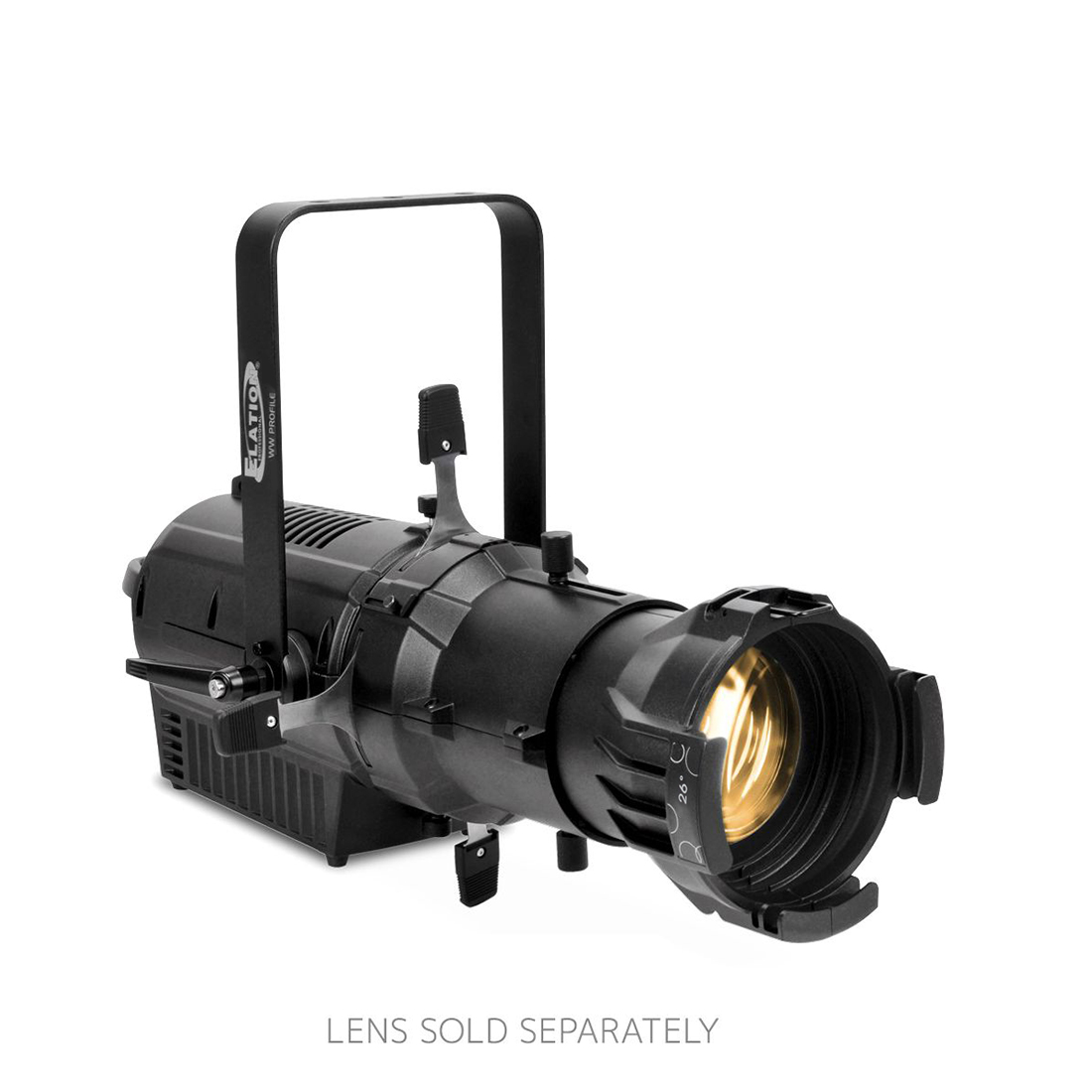

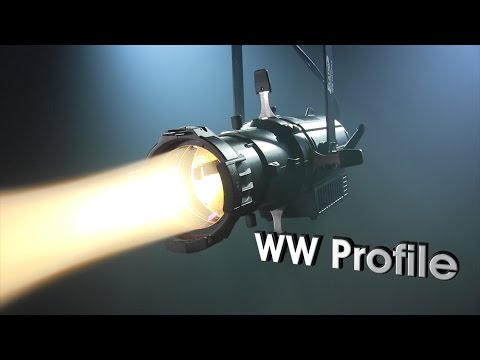

The WW Profile™ Ellipsoidal features a 130W Warm White 3,000K LED engine, >94CRI and is highly efficient offering 6,700 total lumens* with only 160W max power consumption (42 lumens per watt). It features 19°, 26°, 36°, and 50° interchangeable lens options**, 4-blade manual framing shutters in a rotatable barrel, adjustable refresh frequency and gamma brightness, manual focus, supports B size metal or HT transparency gobos and adjustable iris, variable dimming curves, DMX, RDM (Remote Device Management), locking 3/5pin DMX in/out and locking power in/out connections, flicker free operation for TV and Film, 4 button control panel, 160W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Very Efficient Warm White LED Profile

High CRI >94, 6,700 Total Lumens*

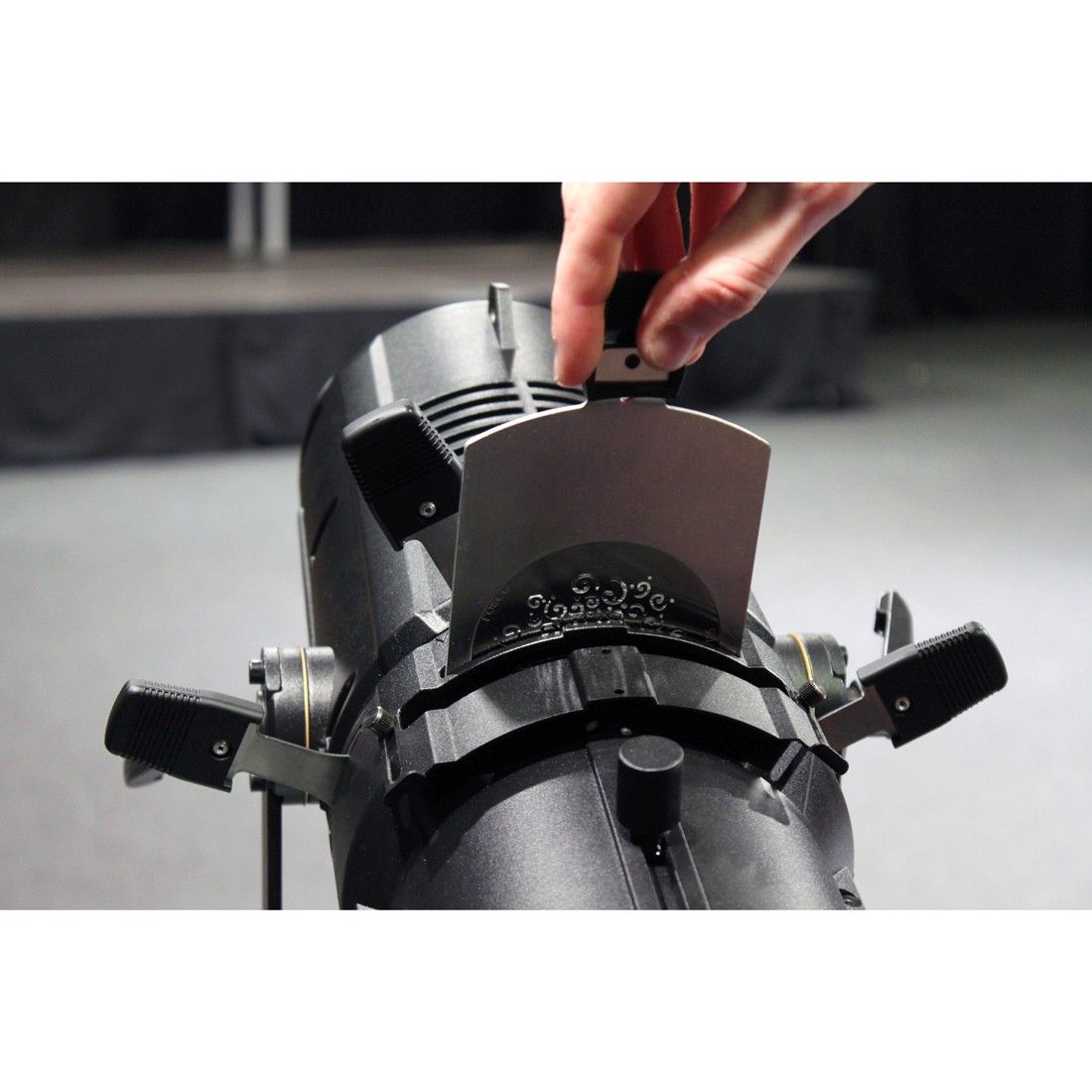

4-Blade Manual Framing Module in Rotatable Barrel

Adjustable Refresh Frequency and Gamma Brightness

Supports B Size Metal or HT Transparency Gobos

Supports Adjustable Iris

160W Max Power Consumption / 42 Lumens per Watt

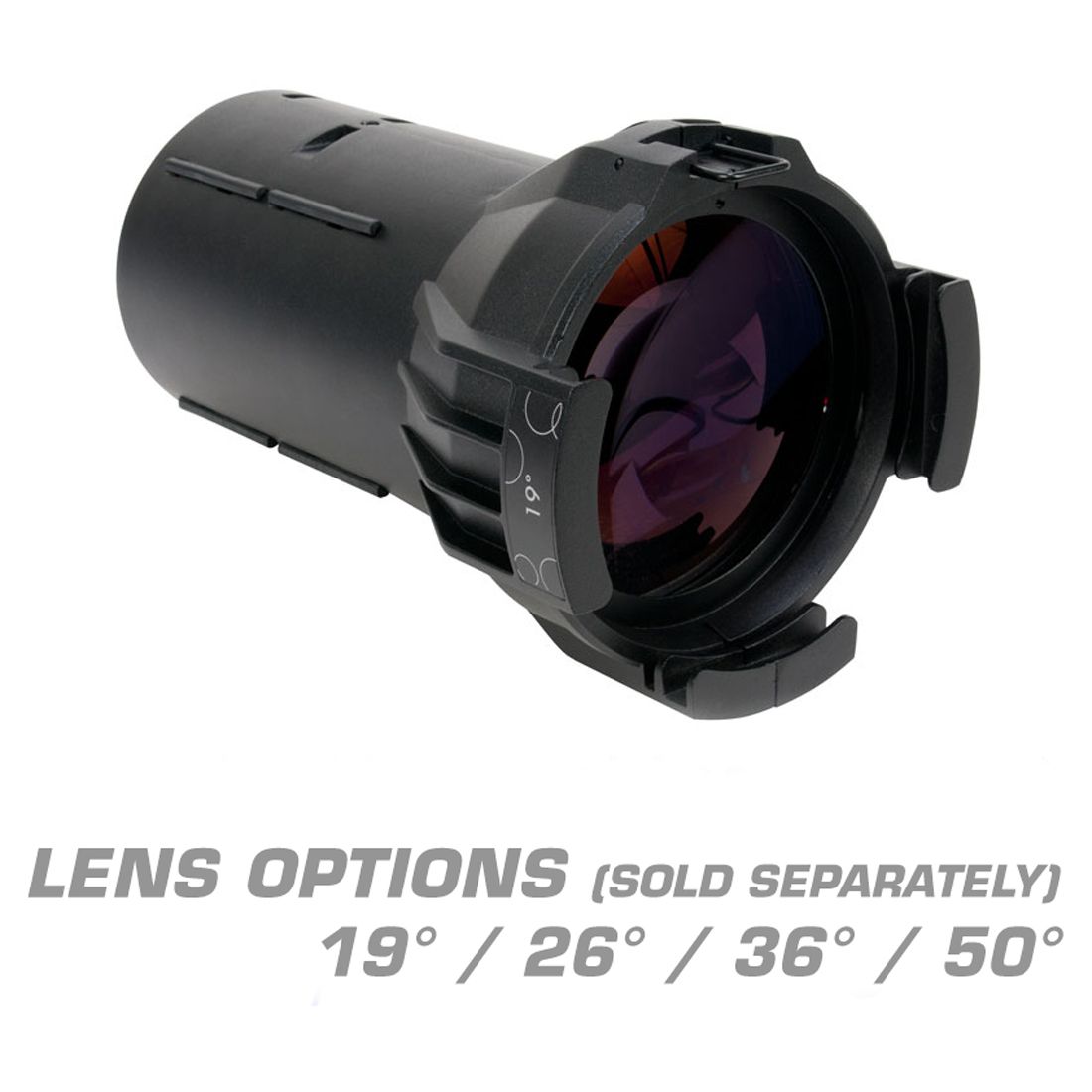

Interchangeable Lens Options (19°, 26°, 36°, 50°)**

Quiet Fan Cooling

Variable Dimming Curves

Flicker Free Operation for TV and Film

RDM – Remote Device Management

SOURCE

130W Warm White 3,000K LED Engine

6,700 Total Lumens*, >94CRI

50,000 Hour Average LED Life***

PHOTOMETRIC DATA

7,818 LUX 726 FC @ 8.2’ (2.5m)*

EFFECTS

Supports Adjustable Iris

Strobe: 1-18fps

Dimming: 0% - 100%

Variable Dimming Curves

GOBOS

Supports B Size Metal or HT Transparency Gobos

Gobo Size: OD 86mm / ID 64mm / Thickness 0.15mm

CONTROL / CONNECTIONS

(2) DMX Channel Modes (1 / 4)

Adjustable Refresh Rate (900-1500, 25,000 Hz)

Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

RDM (Remote Device Management)

4 Button Control Panel

LCD Menu Display

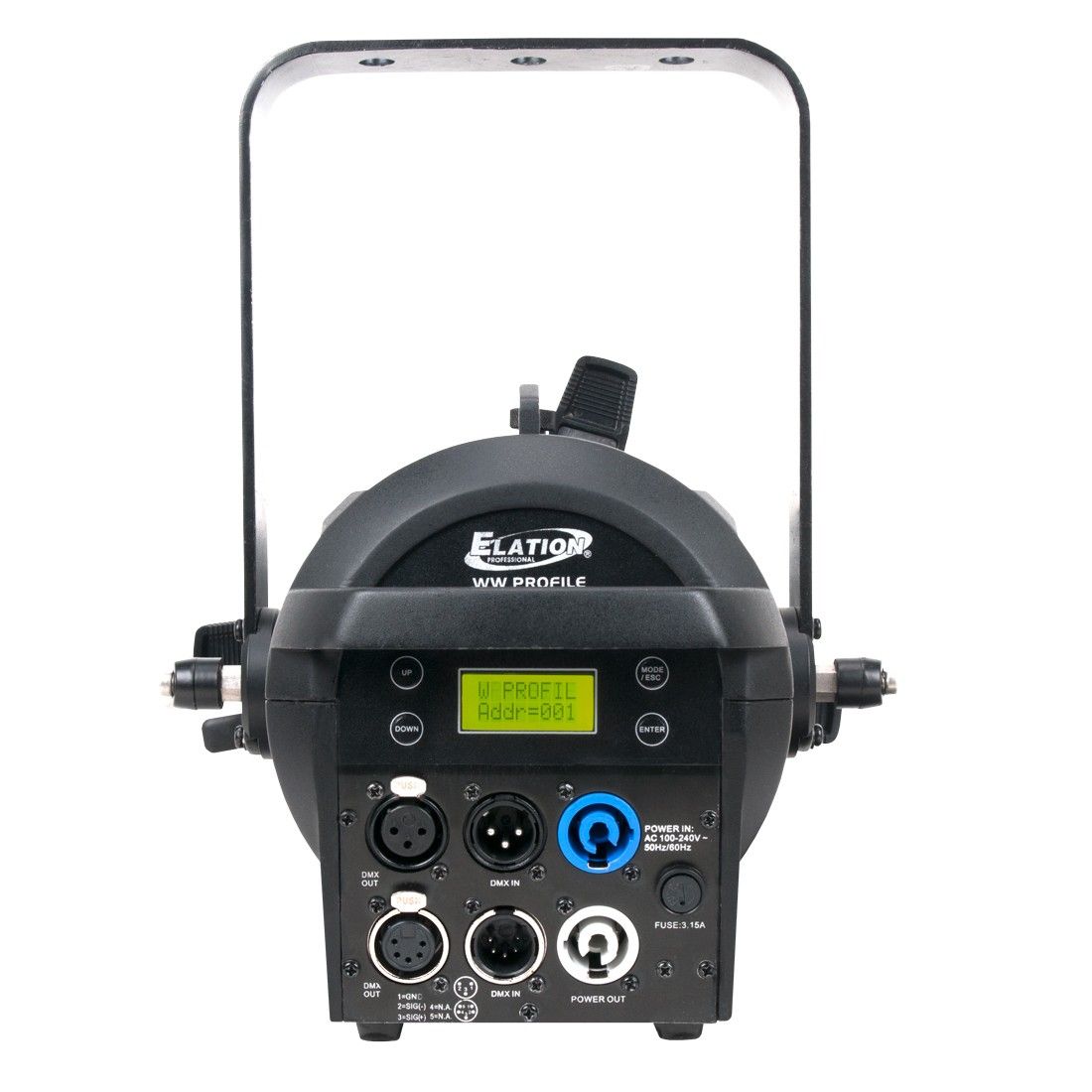

Locking 3/5pin XLR Connector In/Out

Locking Power Connector In/Out

SIZE / WEIGHT

Length: 24.3” (618mm)

Width: 12.2” (310mm)

Vertical Height: 15.7” (398mm)

Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

160W Max Power Consumption

Power Linking: 4pcs Max @120V / 9pcs Max @240V

14° to 113°F (-10° to 45°C)

OPTIONAL ACCESSORIES

1322000054 E Loader III

1236100117 PHDL19 Lens for LED Profile

1236100118 PHDL26 Lens for LED Profile

1236100119 PHDL36 Lens for LED Profile

1236100120 PHDL50 Lens for LED Profile

FIRMWARE UPDATES

Current firmware can be found here (login required)

*with 26° lens

**sold separately

***LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Specifications and documentation subject to change without notice
