Code 1235300054

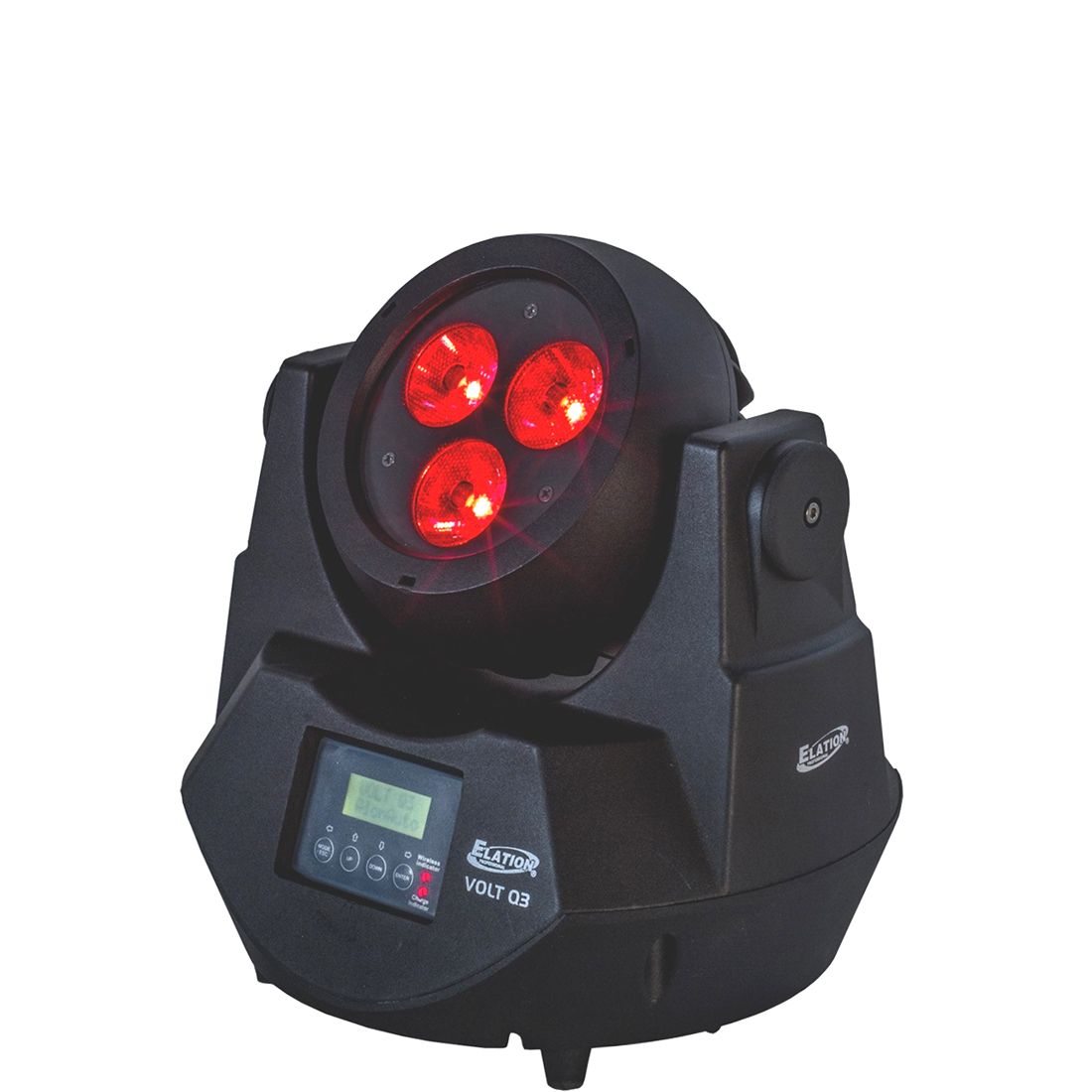

Volt Q3

The new IP65 rated Volt Q3™ features (3) 15W QUAD color RGBW LEDs, 7° beam 13° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and Film, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery. The Volt Q3™also has a built-in Wireless DMX receiver that's compatible with Elation Professional's EWDMX products.

Technical Data

FEATURES

IP65 Rated
7° Beam and 13° Field Angles
180°+ Manual LED Head Positioning
Variable Color Correction (2,700K - 7,200K)
Internal Wireless EWDMX Receiver
Rechargeable Lithium-Ion Battery
Flicker Free Operation for TV and Film
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base and Retractable Carrying Handle


SOURCE

(3) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life


PHOTOMETRICS

8,920 LUX 829 FC @6.6 ft (2m)


EFFECTS

Variable Color Correction (2,700K - 7,200K)
Magnetic Frost Filter Gel Frame
Electronic Strobe and Dimming
Multiple Color and Chase Macros

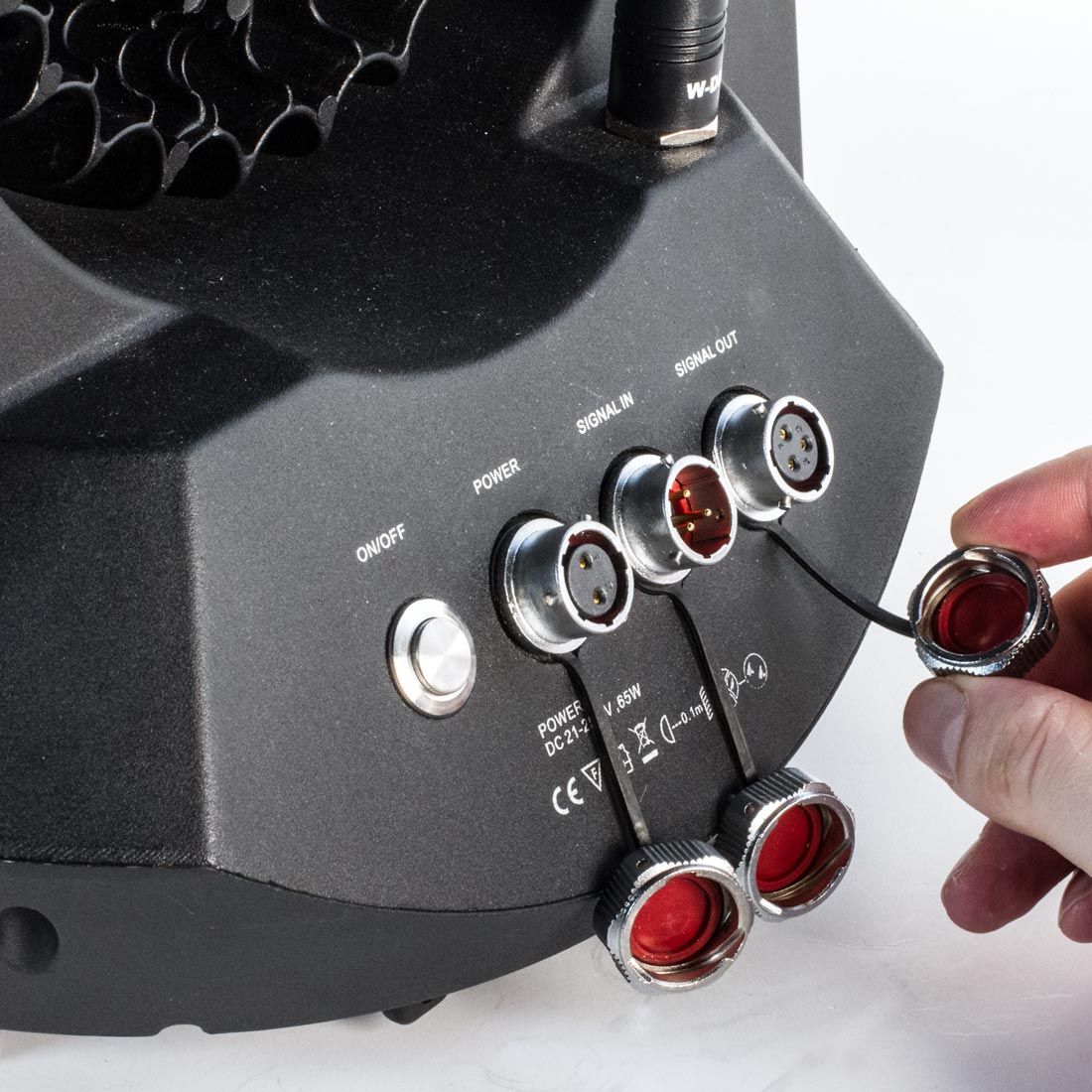

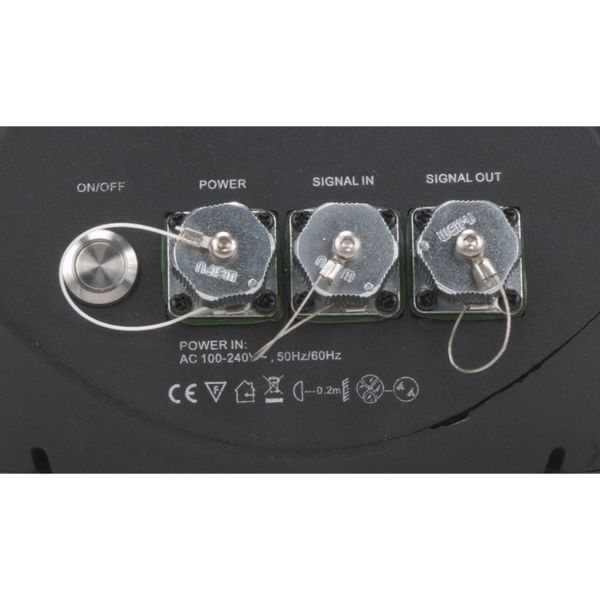

CONTROL / CONNECTIONS

(4) DMX Channel Modes (4 / 5 / 7 / 9)

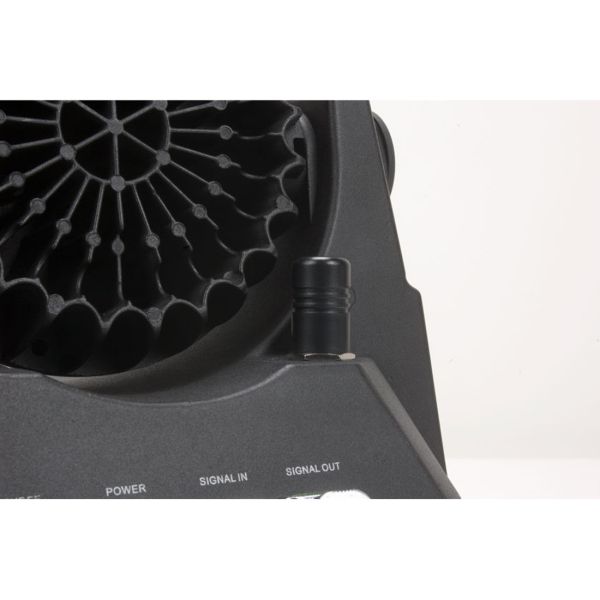

Internal Wireless EWDMX Receiver
(4) Button Control Panel
LCD Menu Display
3pin IP DMX In/Out
2pin IP Power Charger In


SIZE / WEIGHT

Length: 9.8” (250mm)
Width: 8.5” (215mm)
Vertical Height: 10.9” (276mm)
Weight: 13.0 lbs. (5.9 kg)


ELECTRICAL / THERMAL

DC 13-17.5V
40W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)

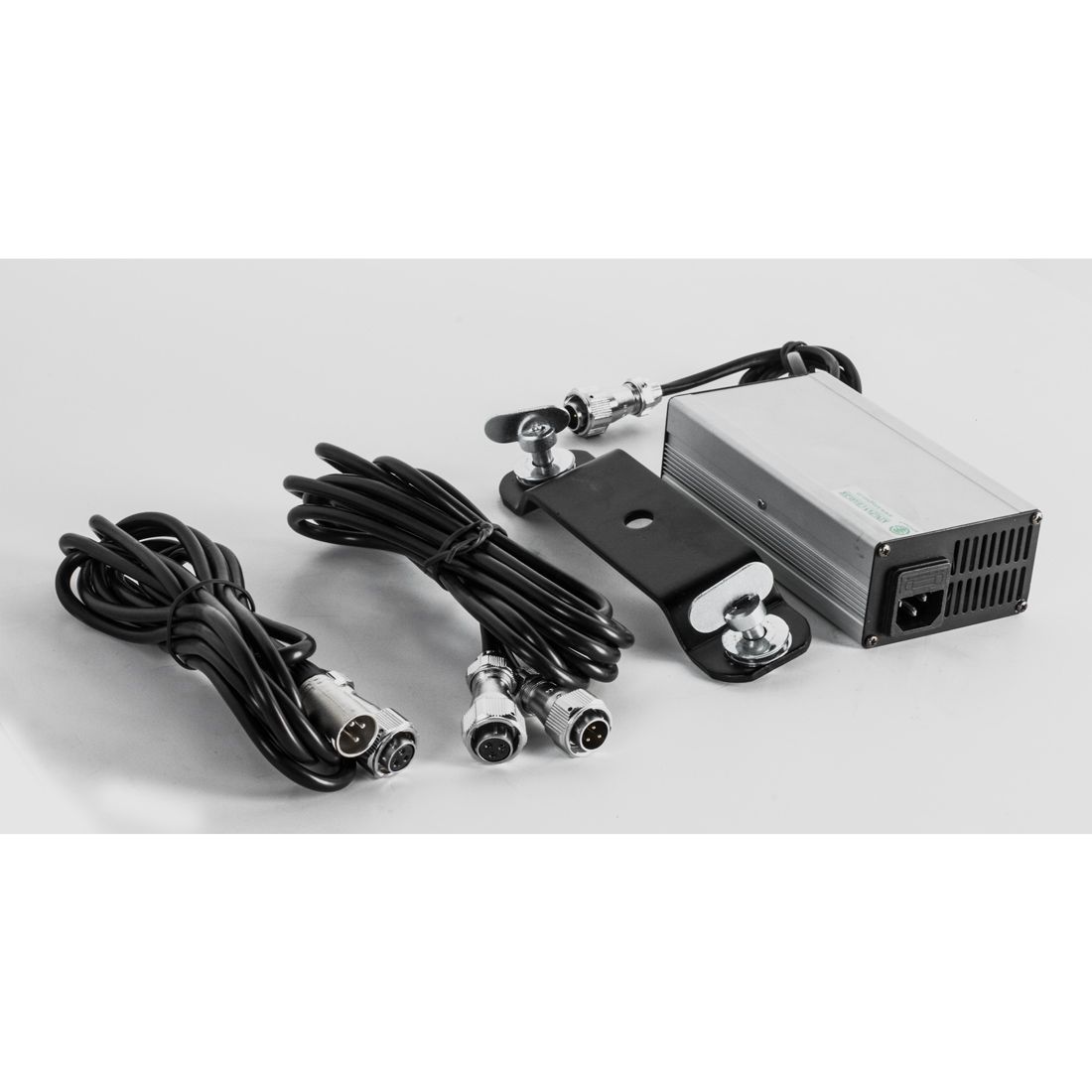

INCLUDED ITEMS

(1) Volt Q3 17.5 VDC Charger + IEC Power Cable
(1) Volt Series 3pin IP Data Link Cable
(1) Volt Series 3pin IP to 3pin DMX Data Input Cable
(1) Magnetic Frost Filter
(1) Omega Bracket


Specifications and documentation subject to change without notice
