  • TVL3000-II WW
Code 1236300046

TVL3000-II WW

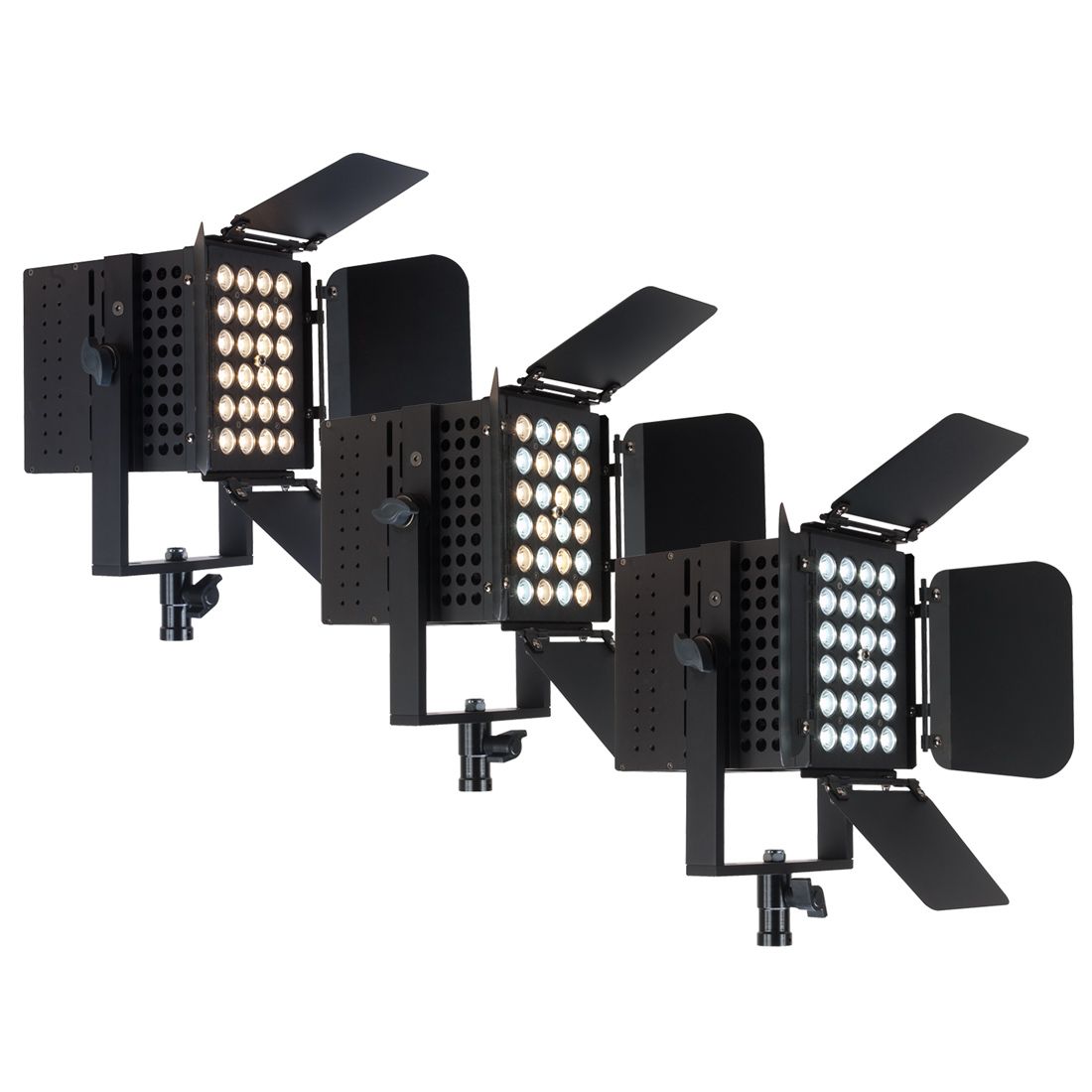

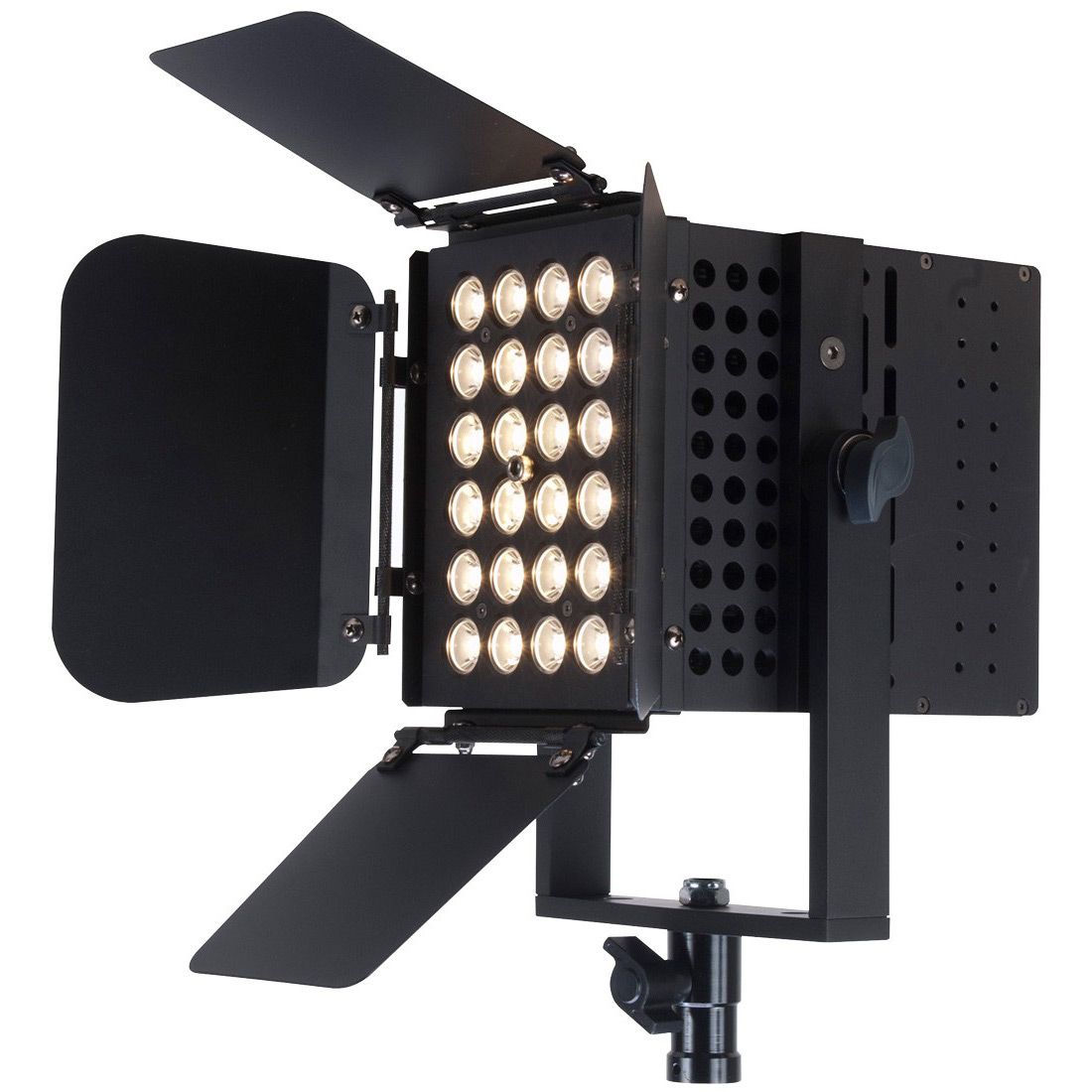

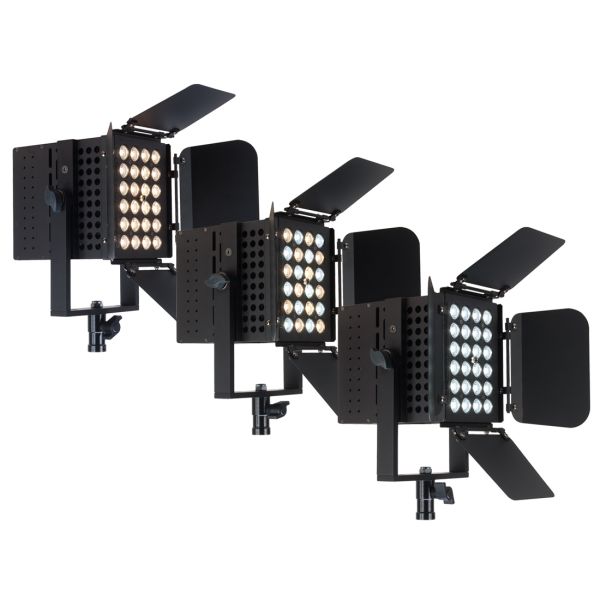

These improved TVL3000-II WW features 24 LEDs, variable beam angles, adjustable barn doors, flicker free operation for broadcast TV and Film, locking 5pin DMX in/out and locking power in connections and optional battery pack for mobile applications. (4) Button LED display control panel, 72W max power consumption, and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES


Convection Cooled, No Fans
Flicker Free Operation for TV and Film
Locking power connector In and 24V In For Optional Battery Pack
Replaces Key- or Headlights
Adjustable Barndoors Included
Optional Brackets for Mounting Multiple Units Together
Available 10°-115° Beam Angle (Multiple Lens Kits Included)


SOURCE

24x 3W 3,200K Warm White LED


PHOTOMETRIC DATA

42,252 LUX @ 1M (25° 3,200K)


EFFECTS

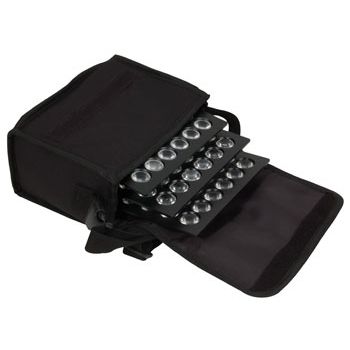

10°, 25°, 40°, 60° Beam Angle Lens Kits Included
115° Beam Angle W/O Lens Kit Attached
Electronic Dimming (0% - 100%)

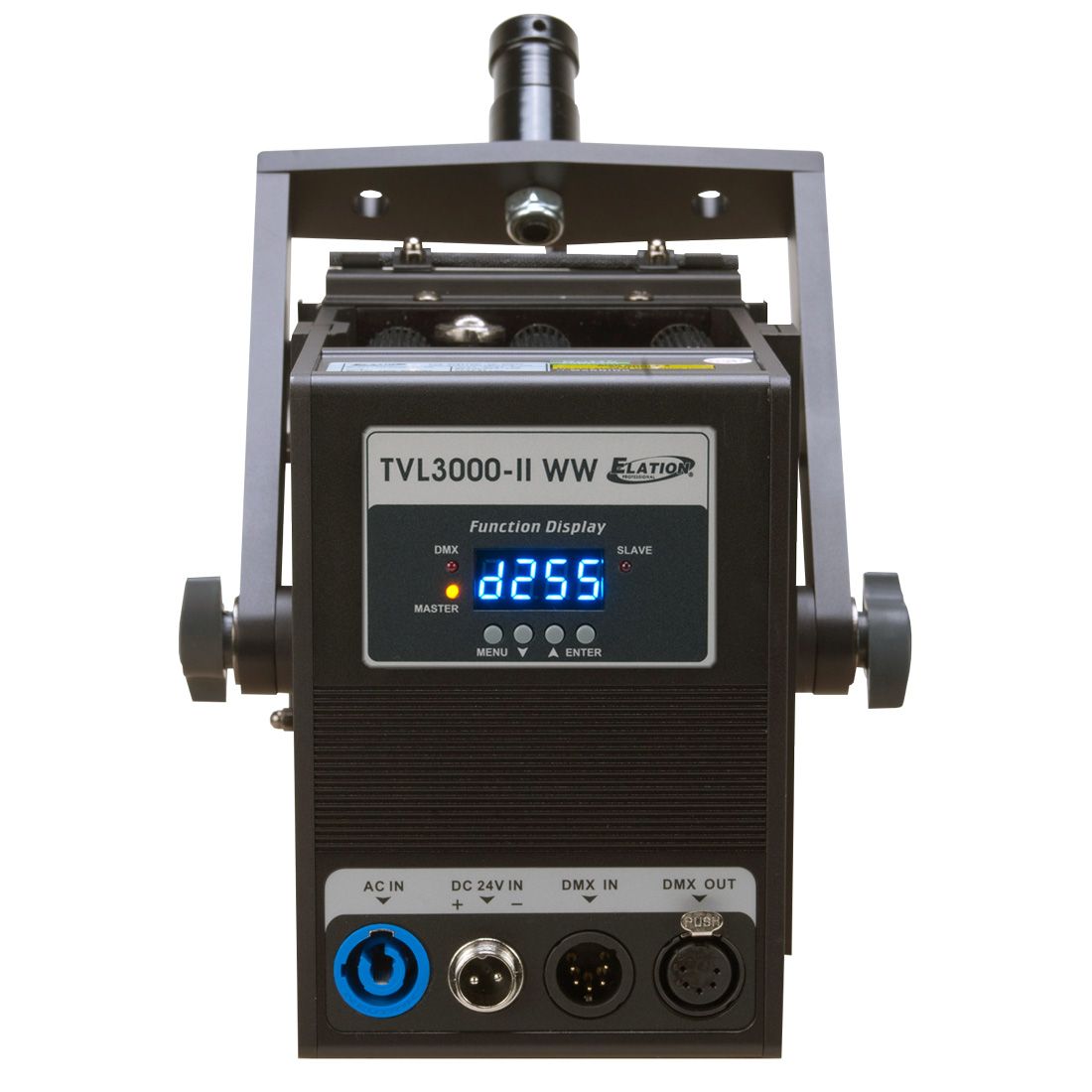

CONTROL / CONNECTIONS


(4) Button Control Panel LED Menu Display
1 DMX Channel Mode (2CH.)
Locking 5pin DMX In/Out
Locking power connector In

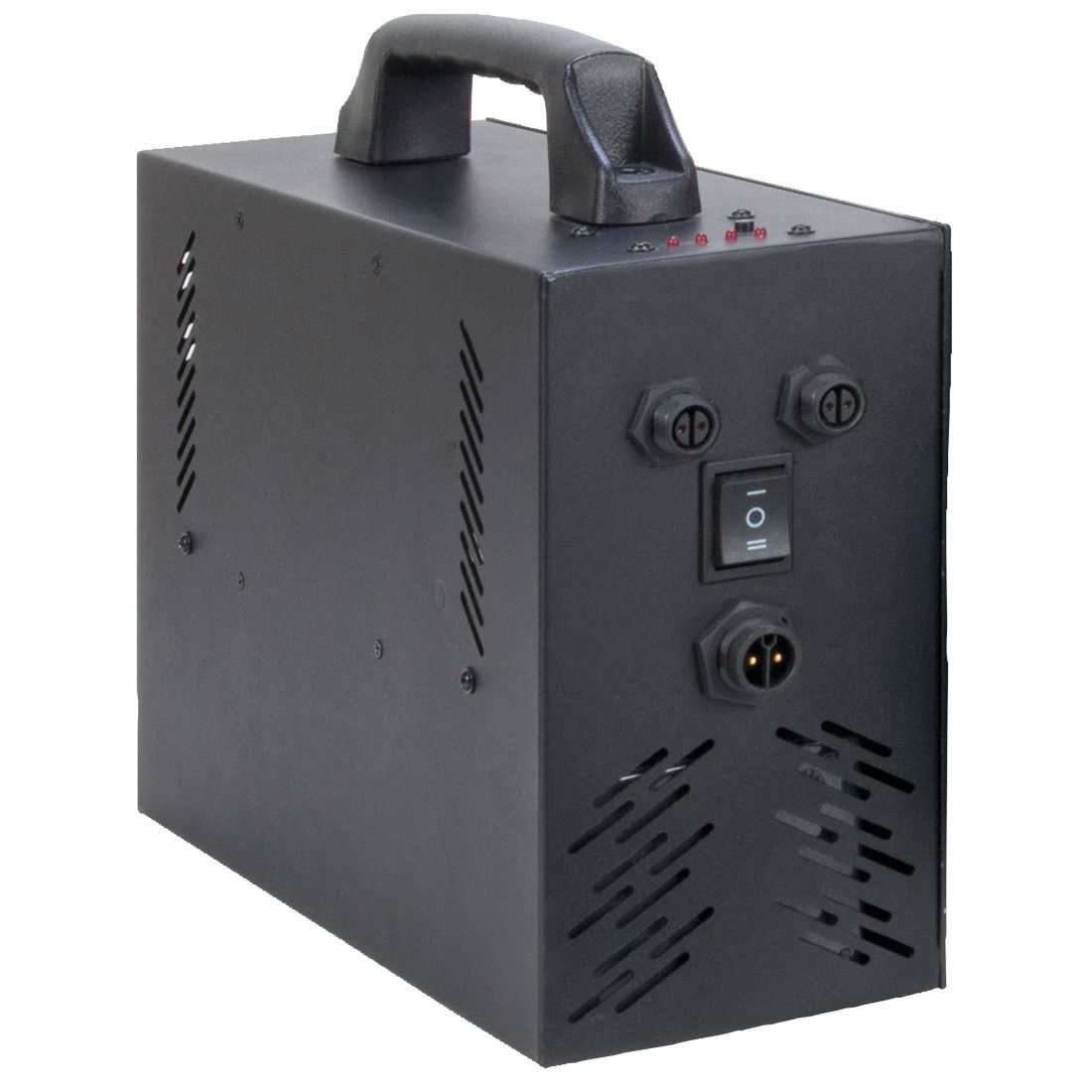

DC 24V In for Optional Battery Pack


SIZE / WEIGHT

Length: 8.7” (220mm)
Width: 7.9” (200mm)
Vertical Height: 12.5” (317mm)
Weight: 11.3 lbs. (5.1 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
72W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


Specifications and documentation subject to change without notice
