Code
1236100096
FEATURES

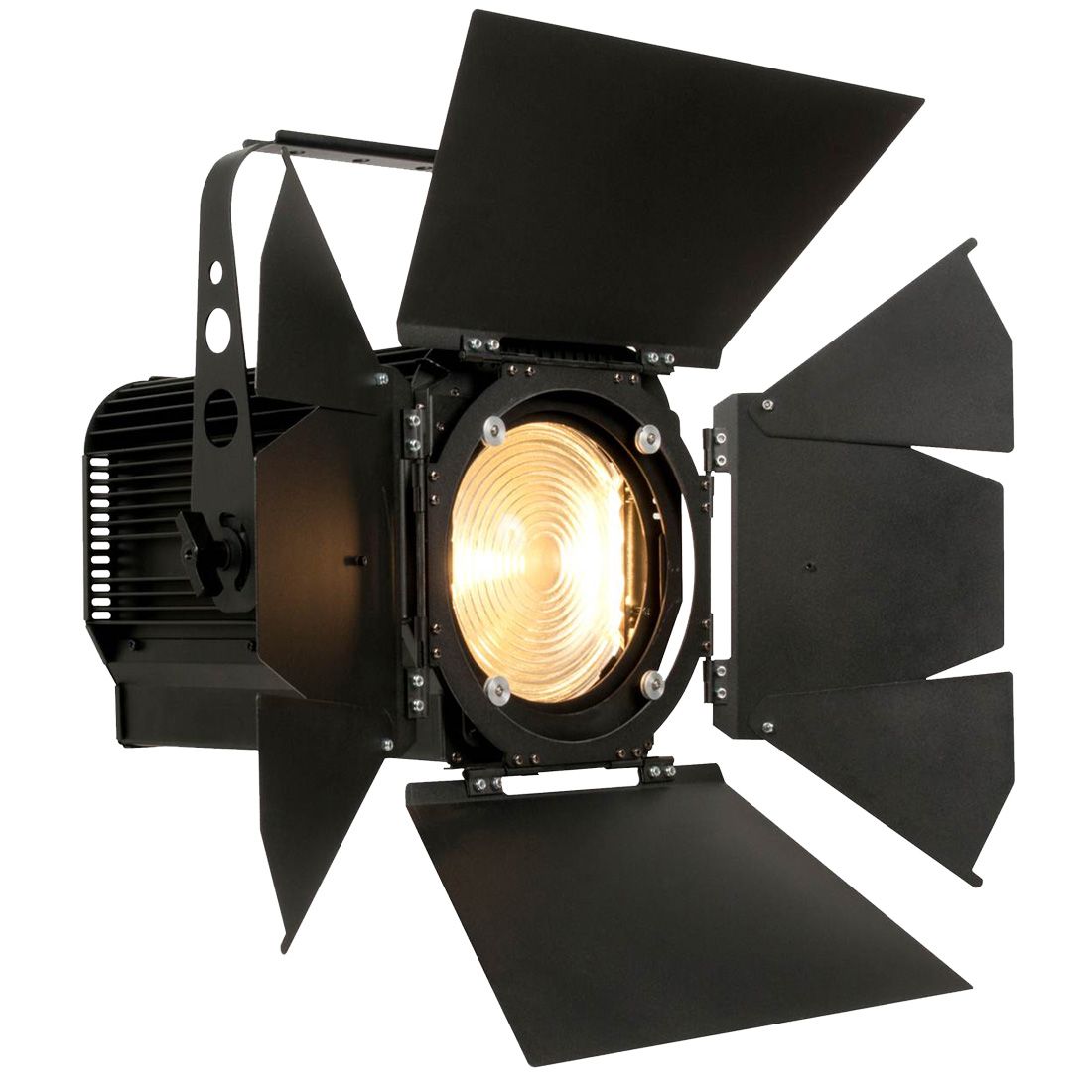

Very Efficient LED Fresnel
12° - 40° Motorized Zoom
(5) Variable Dimming Curve Modes
No Noise Thermo-Optical Cooling Technology
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for TV and Film
Including Rotating Barndoor and Gel Frame Holder
RDM - Remote Device Management
SOURCE
(1) 100W Cool or Warm White LED Engine
50,000 Hour Average LED Life
PHOTOMETRIC DATA
High CRI = 95 / 24.3 Lm/W 3,200K
2,192 Max LUX @ 5M (12° 3,200K)
EFFECTS
Zoom: 12° - 40°
Dimming: 0% - 100%
(5) Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(2) DMX Channels

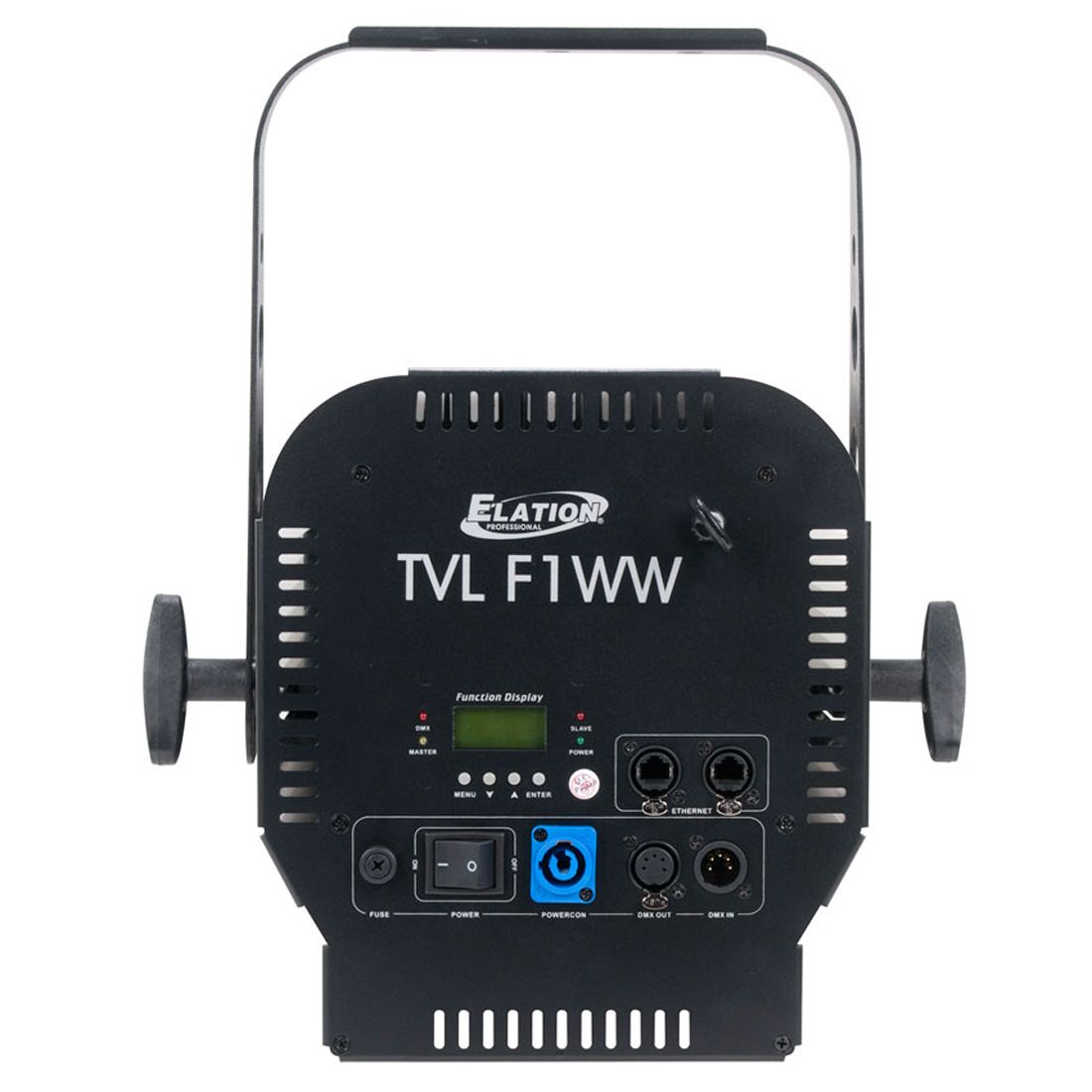

(4) Button Control LED Menu Display Panel
Locking 5pin DMX In/Out
Locking power connector In
SIZE / WEIGHT
Length: 20.4” (519 mm)
Width: 16” (407 mm)
Vertical Height: 17.4” (442 mm)
Weight: 35 lbs. (15.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
141W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Specifications and documentation subject to change without notice
