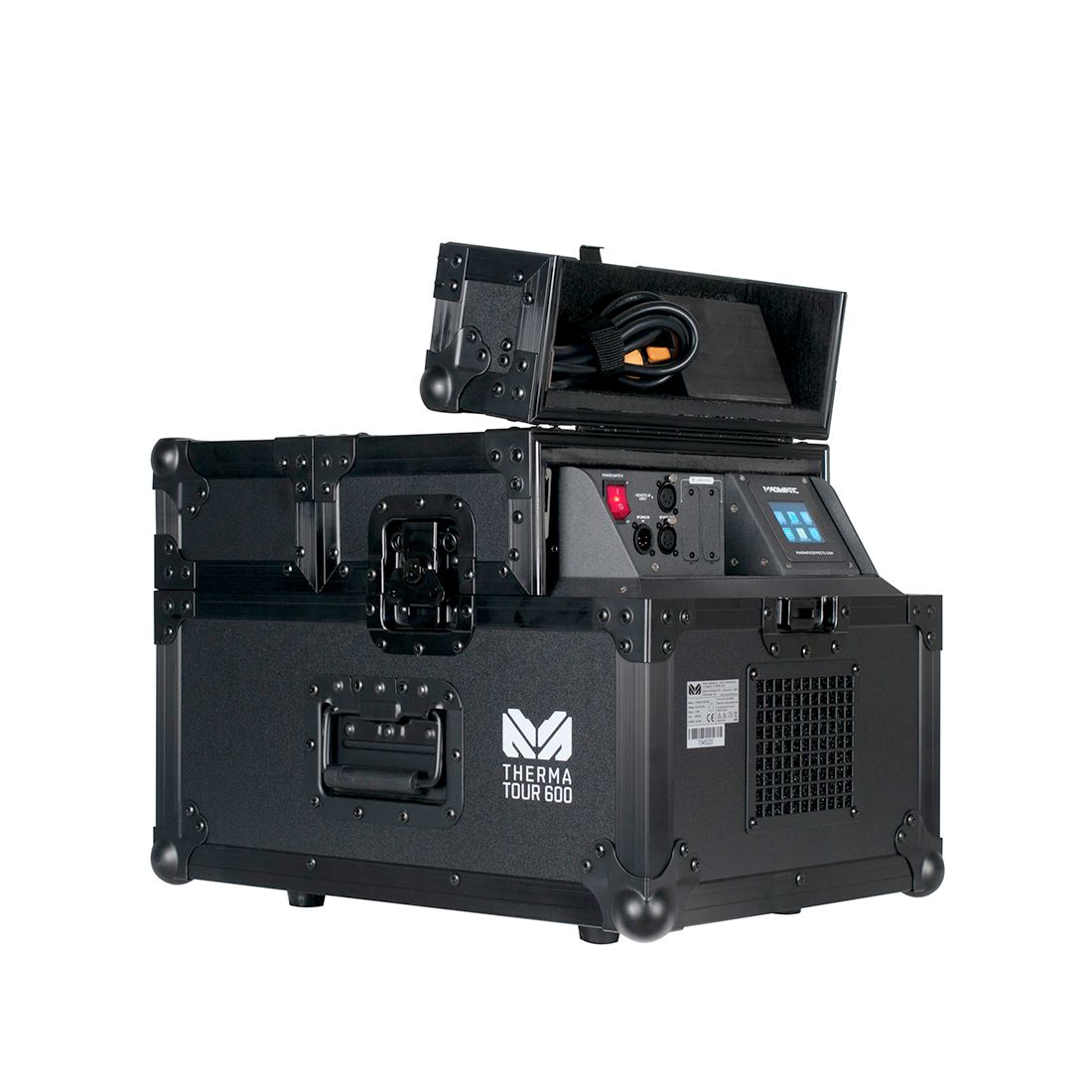

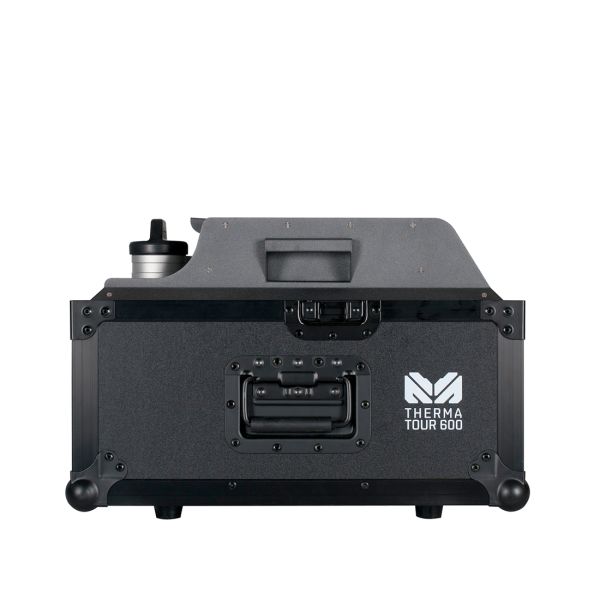

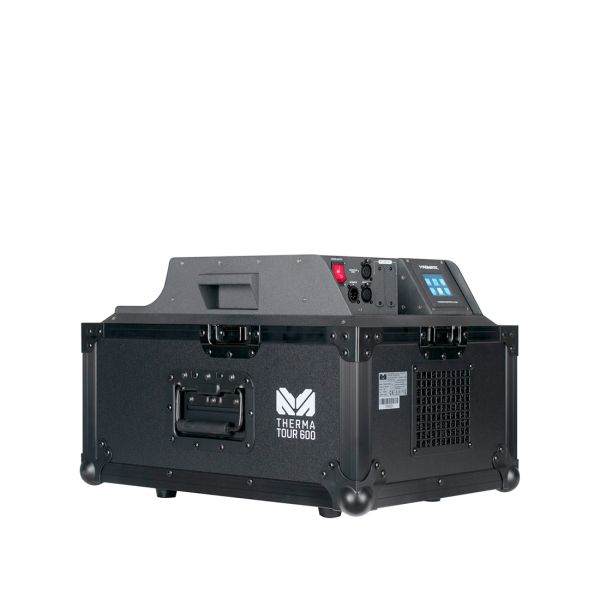

THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
THERMA TOUR 600
Code
1412000004
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_2.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_4.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_5.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_6.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_7.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_8.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_9.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/t/h/therma_tour_600_3.jpg)
FEATURES
350 watt low power consumption
Over 35 hours of run time
Haze lasting up to 3 hours after machine is off

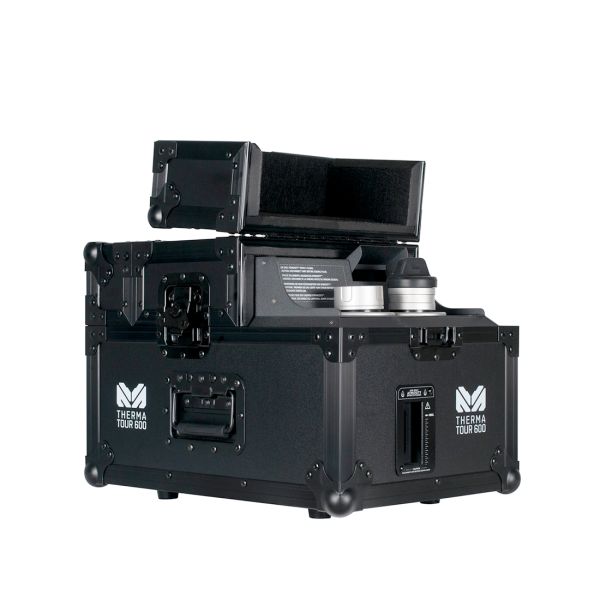

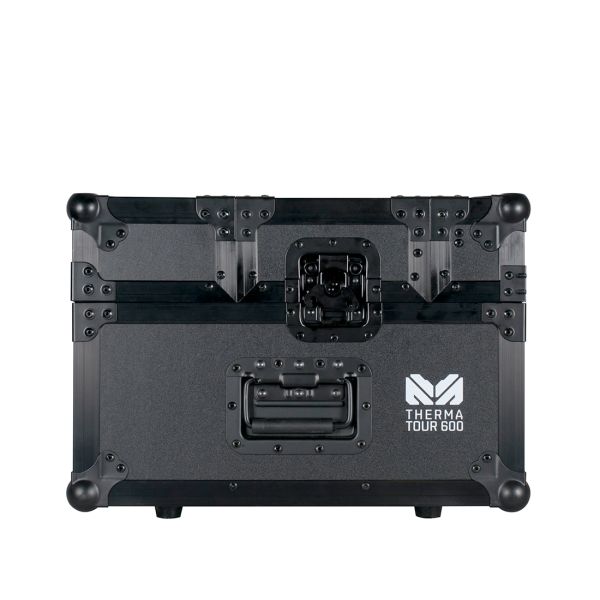

Rugged mobile road case design
Soundproof insulation for indoor use
PERFORMANCE
Rated Power: 370W
Max Output: 1,200 CFM* (cu ft/min.)
Ready Time: Instant
Fluid Capacity: 0.66043 Gallons (2.5 liters)
Fluid Consumption: 0.033814 oz/min (1.0 ml/min)
*approximate
COMPATIBLE FLUID
Atmosity Oil Based Haze Fluid (ARH), available as a 2, 4 or 20 litre container
or
Atmosity Premium Haze Fluid (AAH), available as a 2, 4 or 20 litre container
NOTE: AAH Water base fluid can be used but cannot switch between oil/water without cleaning out entire fluid system prior to switching
CONSTRUCTION

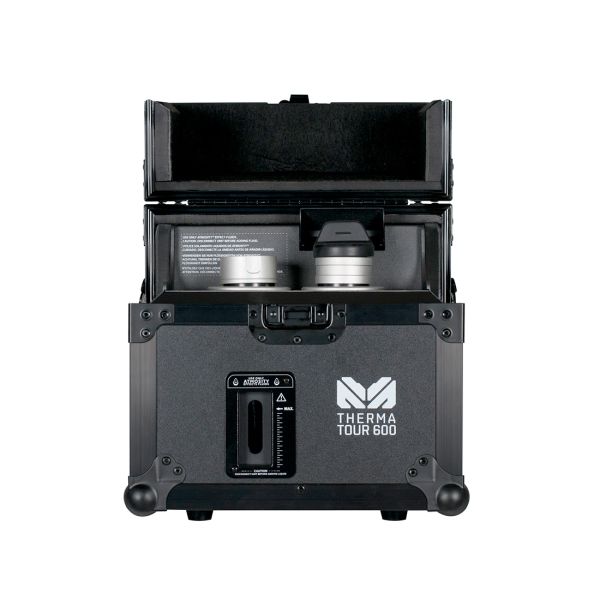

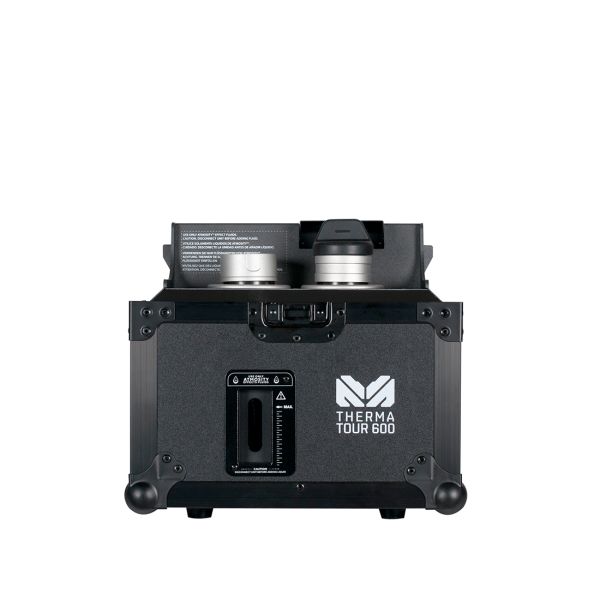

Sealed Fluid ReservoirExternal Visual Fluid Level Detection
Compact Mobile Design
CONTROL
2 DMX Channel Modes (1 / 3 Channels)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

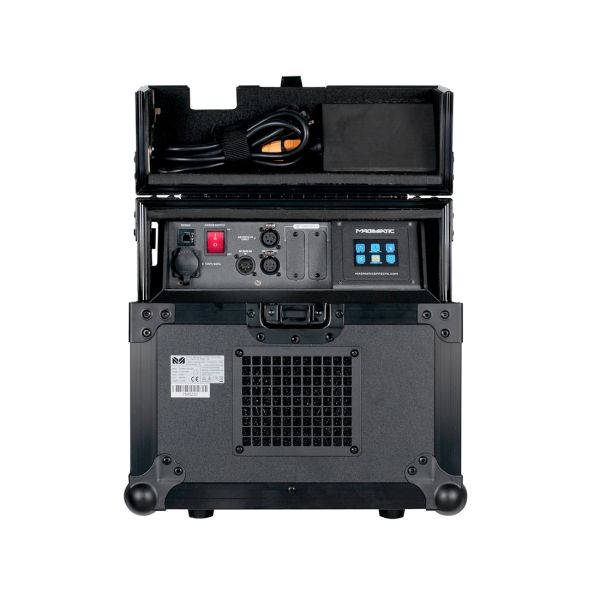

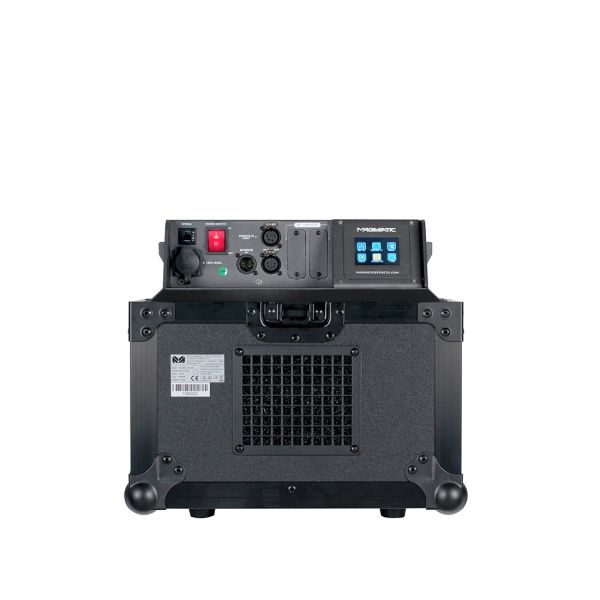

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 514.1mm (20.2 in.)
Width: 374.1mm (14.7 in.)
Height: 365.1mm (14.1 in.)
Weight: 30kg (66 lbs.)
ELECTRICAL
AC 230V 50Hz
Breaker Size: 5A
Max Power Consumption: 370W
THERMAL
Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)
OPTIONAL ACCESSORIES
Atmosity Oil Based Haze Fluid (ARH), available as a 2, 4 or 20 litre containeror
Atmosity Premium Haze Fluid (AAH), available as a 2, 4 or 20 litre container
MagFLY Card
MagRF Card
Specifications and documentation subject to change without notice
