Code
1237000180
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/s/m/smarty_hybrid_website_pic_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_3_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_2_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_rear.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_omega.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt5.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt6.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt7.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt8.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt2.jpg)
![Smarty Hybrid Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_fx2_5.jpg)
![Smarty Hybrid Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_fx3_5.jpg)
![Smarty Hybrid Picture 5](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_fx4_5.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt4.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000180_dt1.jpg)
FEATURES

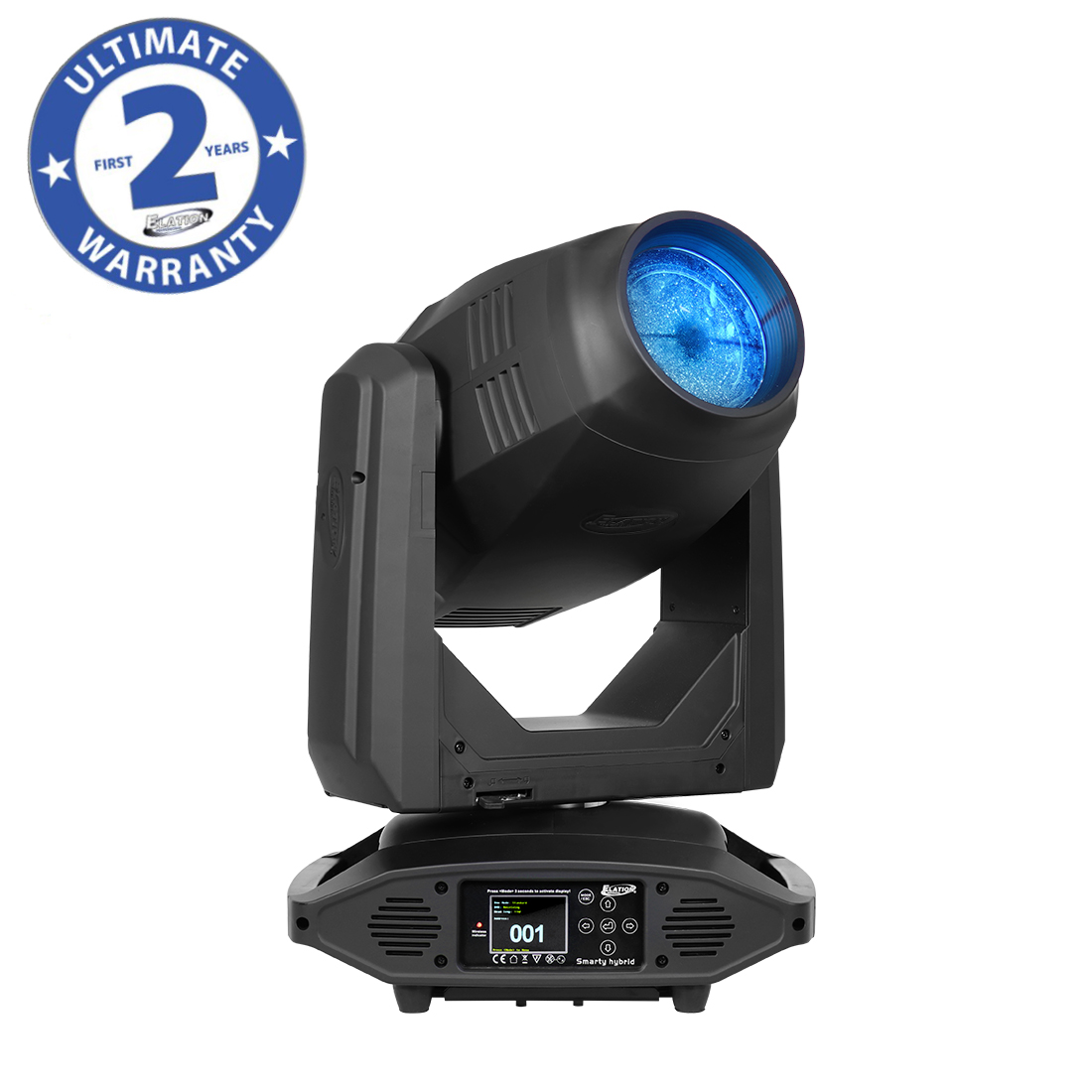

3-in-1 Smart Hybrid Beam, Spot, Wash LuminaireNew Philips™ MSD Platinum 200 Flex Lamp
Up To 6,000 Lamp Hours*
FLEX Lamp Technology from 190W to 280W + Hibernation Mode
Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
Full CMY Color Mixing System
13 Colors including Quad Color, CTB, CTO, and UV
8 Rotating Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos
16-Facet and 4-Facet Linear Rotating Prisms
Multiple CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
DMX, RDM, Art-NET, and sACN Support
Elation’s E-FLY™Internal Wireless DMX Transceiver
2 Years / 6,000 Hours Ultimate Warranty**
**First 2 Years of operation or 6,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.
SOURCE
Philips™ MSD Platinum 200 Flex 280W LampUp To 6,000 Hour Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
11,000 Total Lumen Output128,426 LUX 11,931 FC @ 15m (49.2’) (Min Zoom Beam)
135,108 LUX 12,552 FC @ 5m (16.4’) (Min Zoom Spot)
Beam
Zoom Range 1° - 18°
Beam Angle 0.8° - 7.1°
Field Angle 1.9° - 17.6°
Spot
Zoom Range 3° - 27°
Beam Angle 2.3° - 20.1°
Field Angle 3.4° - 27.3°
Wash
Zoom Range 5° - 33°
Beam Angle 2.6° - 18.3°
Field Angle 4.8° - 32.9°
EFFECTS

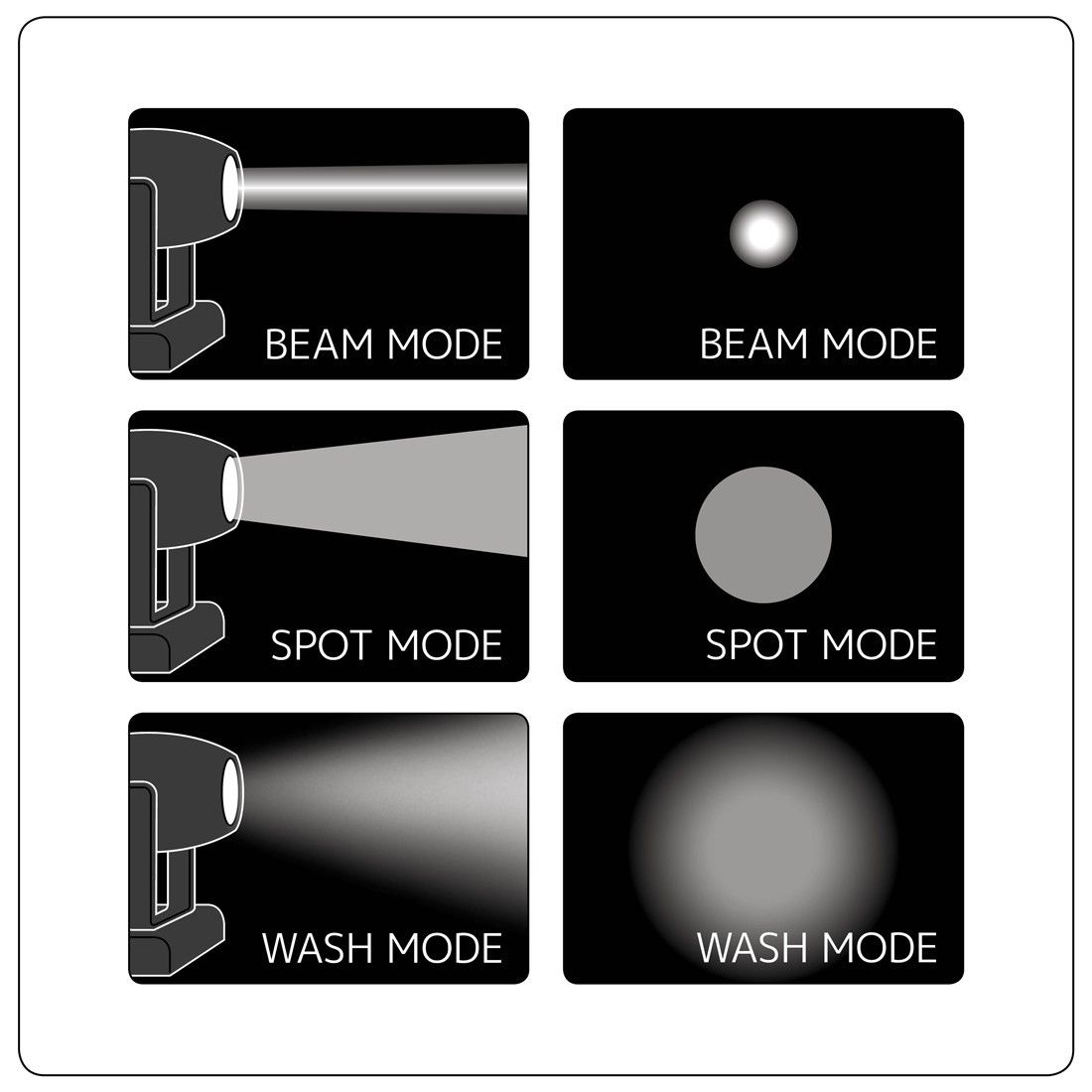

Beam, Spot, and Wash ModesMotorized Zoom
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Rotating Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
COLOR
Full CMY Color Mixing System13 Colors including Quad Color, CTB, CTO, and UV
GOBOS
2 Gobo Wheels8 Interchangeable-Rotating / Indexing Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34 channels) Full Color 180° Reversible LCD Menu Display
6 Button Menu Control Panel
16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
Hibernation Mode (Power Save)

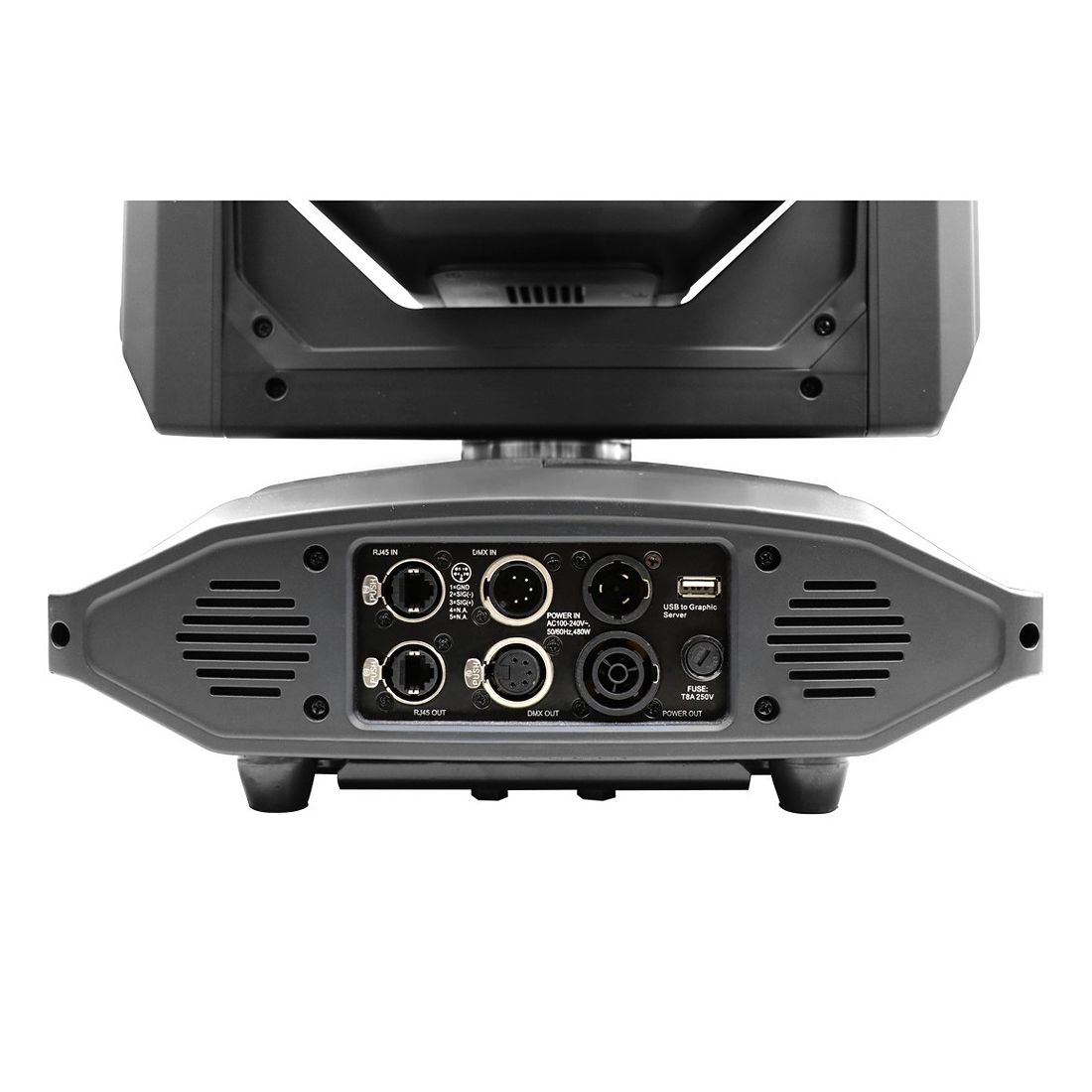

5pin DMX In/Out
RJ45 ethernet In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 385mm (15.2”)Width: 405mm (15.9”)
Vertical Height: 610mm (24.0”)
Center-to-Center Spacing 490.8mm (19.3in)
Weight: 22.2 kg (49 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz480W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
COLORS AND GOBOS
Color Flags
![]() |
![]() |
![]() |
Color Wheel
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Gobo Wheel 1
![Gobo 1](/pub/media/gobos/wheel/Gobo1.png)
![Gobo 2](/pub/media/gobos/wheel/Gobo2.png)
![Gobo 3](/pub/media/gobos/wheel/Gobo3.png)
![Gobo 4](/pub/media/gobos/wheel/Gobo4.png)
![Gobo 5](/pub/media/gobos/wheel/Gobo5.png)
![Gobo 6](/pub/media/gobos/wheel/Gobo6.png)
![Gobo 7](/pub/media/gobos/wheel/Gobo7.png)
![Gobo 8](/pub/media/gobos/wheel/Gobo8.png)
Gobo Wheel 2
![Gobo 9](/pub/media/gobos/wheel/Gobo9.png)
![Gobo 10](/pub/media/gobos/wheel/Gobo10.png)
![Gobo 11](/pub/media/gobos/wheel/Gobo11.png)
![Gobo 12](/pub/media/gobos/wheel/Gobo12.png)
![Gobo 13](/pub/media/gobos/wheel/Gobo13.png)
![Gobo 14](/pub/media/gobos/wheel/Gobo14.png)
![Gobo 15](/pub/media/gobos/wheel/Gobo15.png)
![Gobo 16](/pub/media/gobos/wheel/Gobo16.png)
![Gobo 37](/pub/media/gobos/wheel/Gobo37.png)
![Gobo 38](/pub/media/gobos/wheel/Gobo38.png)
![Gobo 39](/pub/media/gobos/wheel/Gobo39.png)
![Gobo 40](/pub/media/gobos/wheel/Gobo40.png)
Prisms
![Prism 3](/pub/media/prisms/prism_3.png)
![Prism 8](/pub/media/prisms/prism_8.png)
