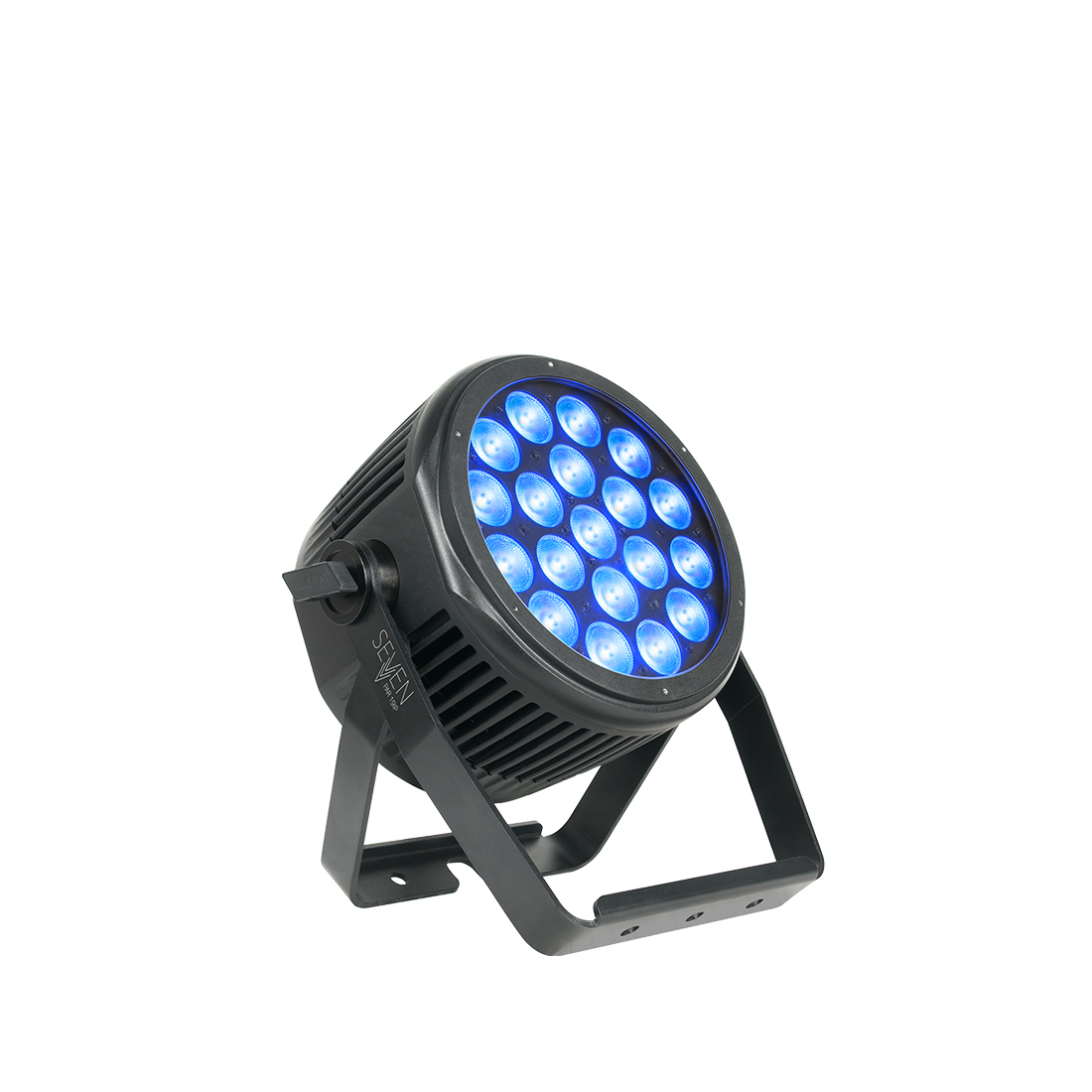

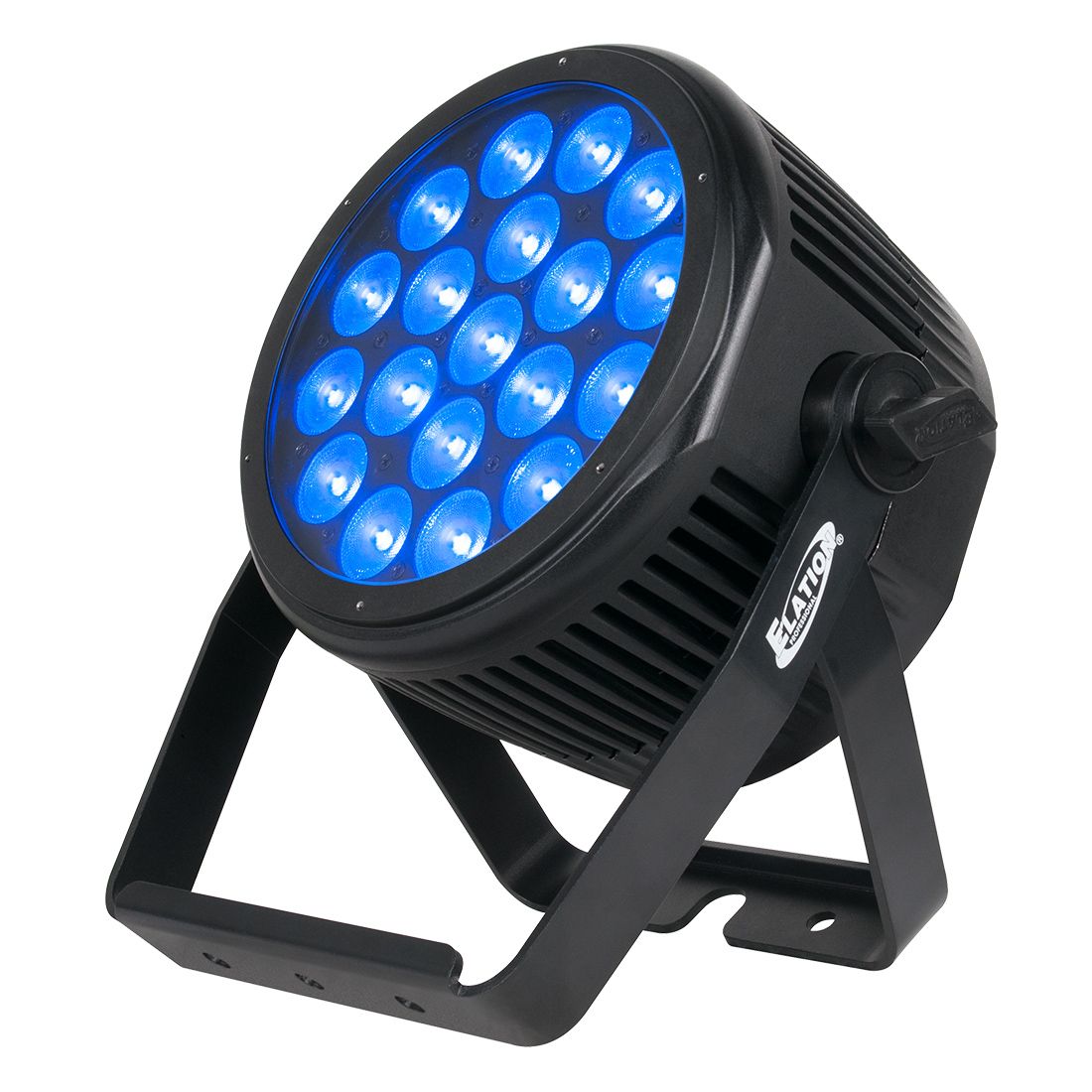

Seven Par 19IP

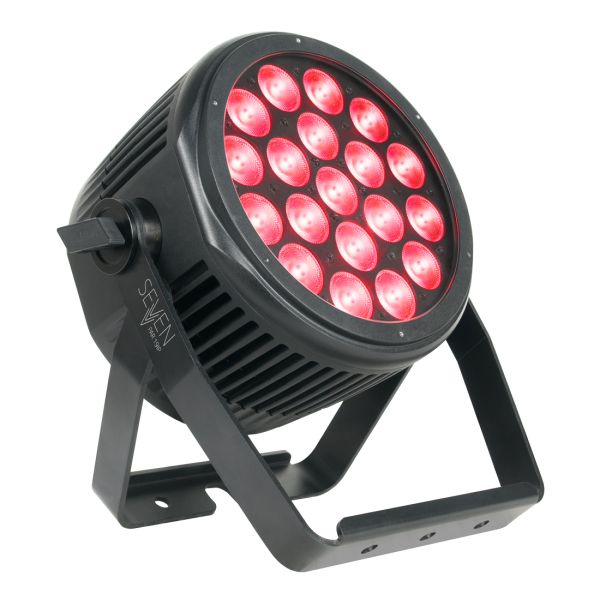

The SEVEN PAR 19IP™ is an IP65 outdoor rated seven color par wash luminaire with (19) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing up to 9,300 total output lumens and 90CRI. Features include individual hue, saturation, and intensity control, RGB + seven color 3 channel DMX mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (Remote Device Management) protocol support, IP65 rated 5pin XLR DMX and power in/out connections, dual adjustable yoke / floor stand, multiple unit power linking, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), and a rugged powder coated die-cast aluminum exterior. Gel frame and gel frame holder included, optional 4-leaf barn door available.

Technical Data

FEATURES

IP65 Outdoor Rated Seven Color Par Wash Luminaire
(19) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
9,300 Total Output Lumens | 90CRI
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
Smooth Color Mixing
12 Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
DMX and RDM Protocol Support
IP65 Rated locking 5pin XLR DMX and Power In/Out

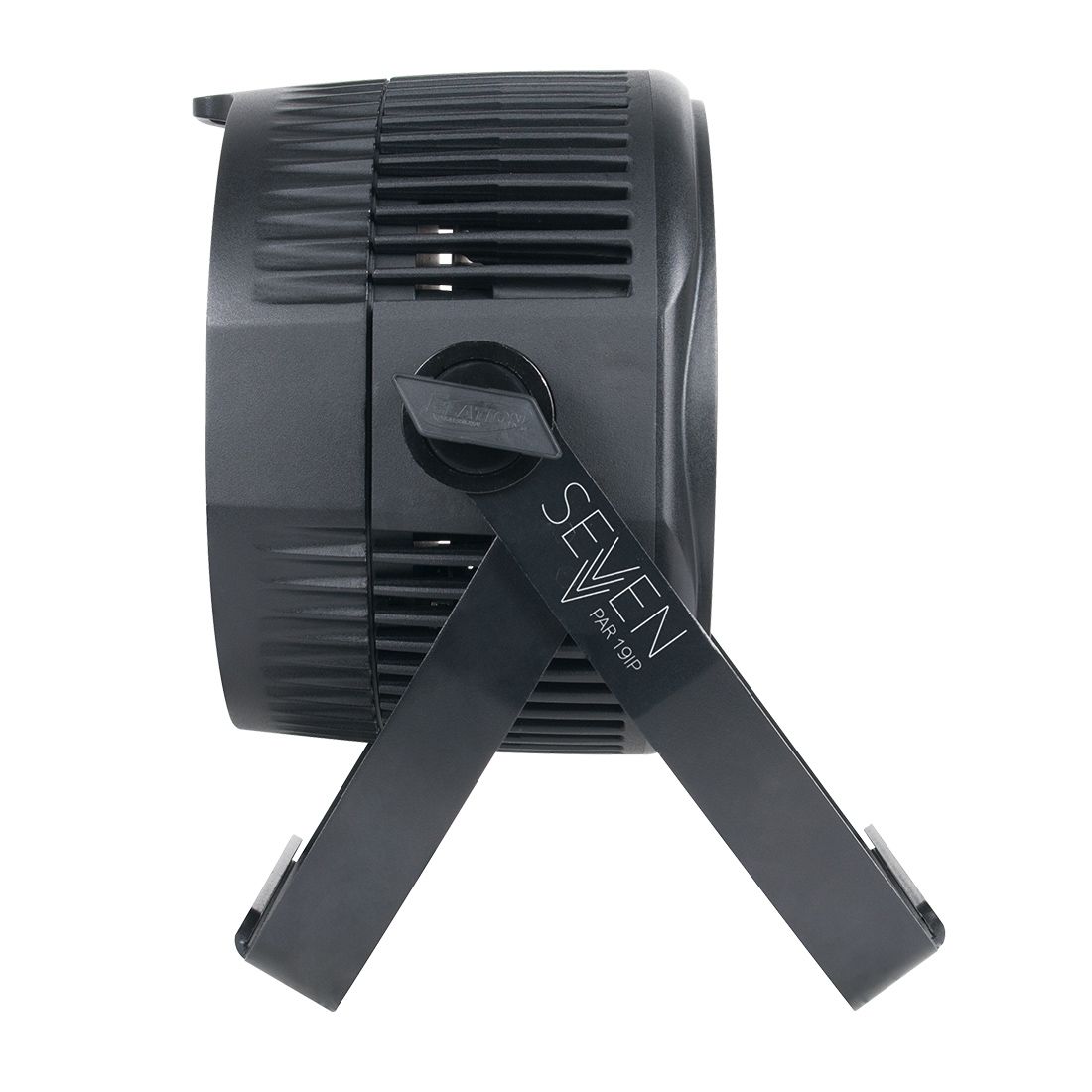

Dual Adjustable Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Powder Coated Die-Cast Aluminum Exterior

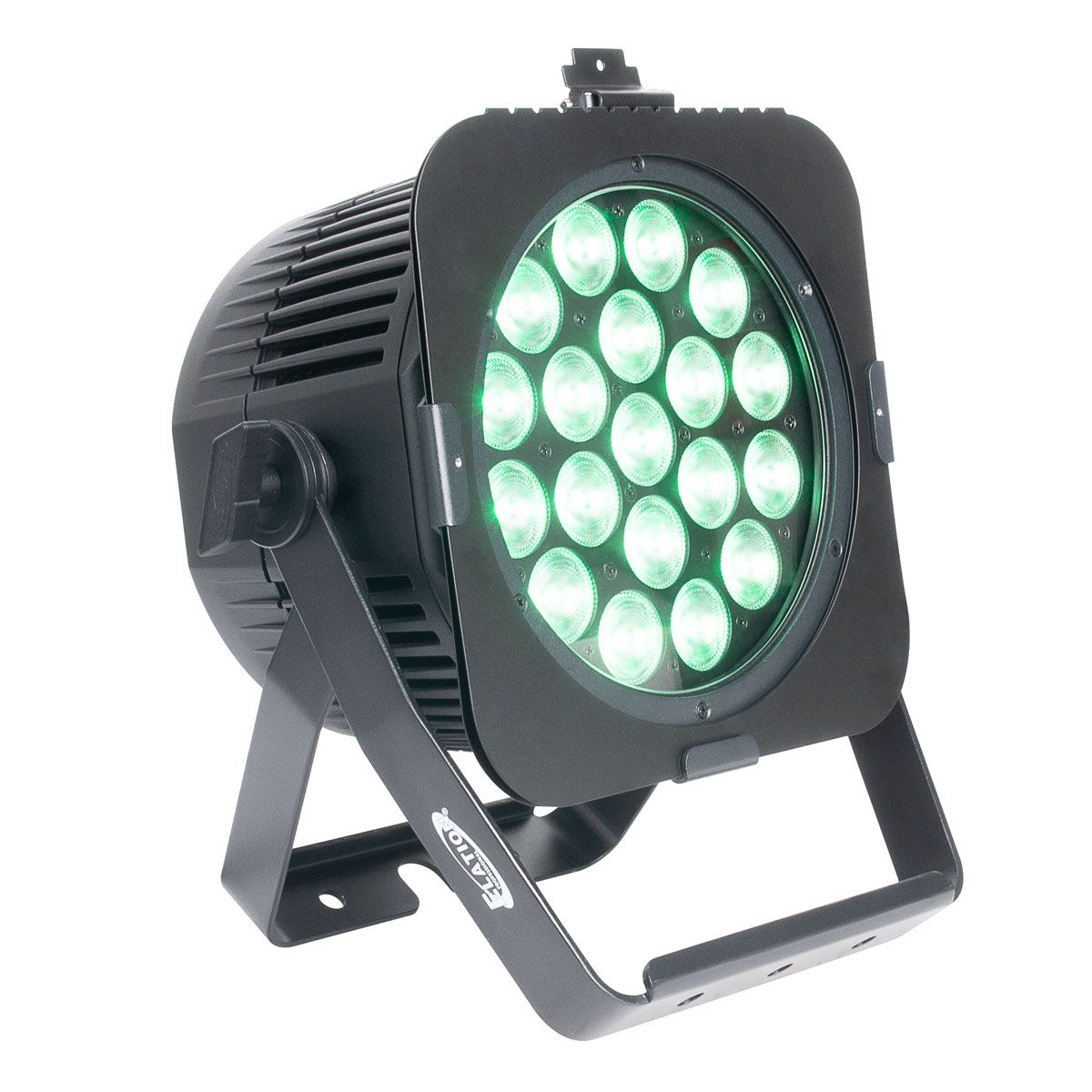

Gel Frame and Gel Frame Holder Included

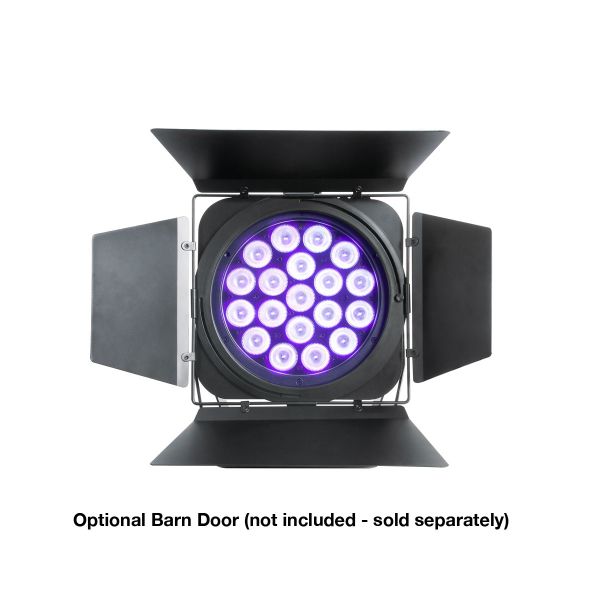

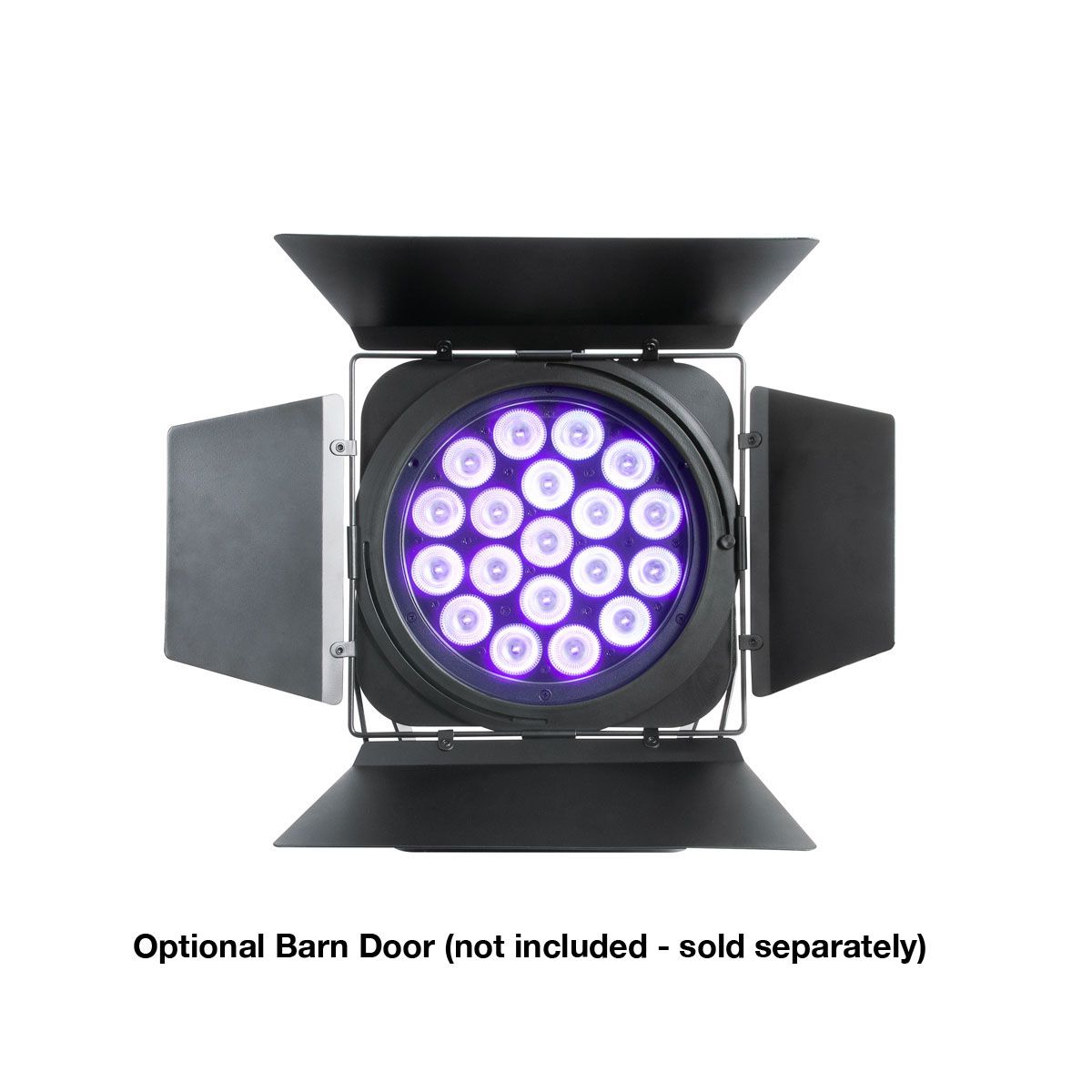

Optional 4-Leaf Barn Door Available

SOURCE

(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @ 6.6’ (2m) (Full ON)

EFFECTS

Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects

COLOR

RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS

(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900 - 25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support

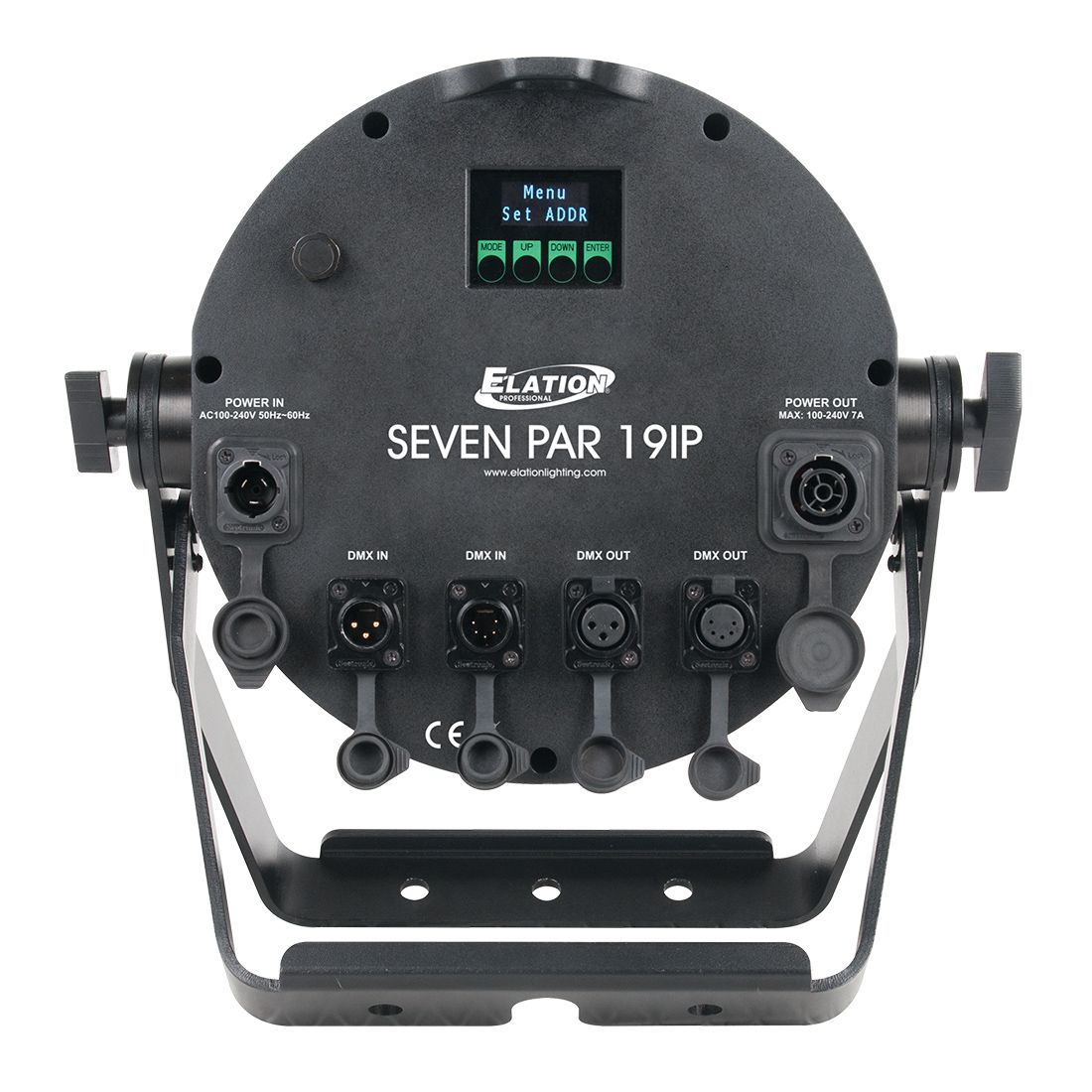

IP Rated locking 5pin XLR DMX and Power In/Out
With Wired Digital Communication Network
