  • Seven Batten 14
Code 1236200085

Seven Batten 14

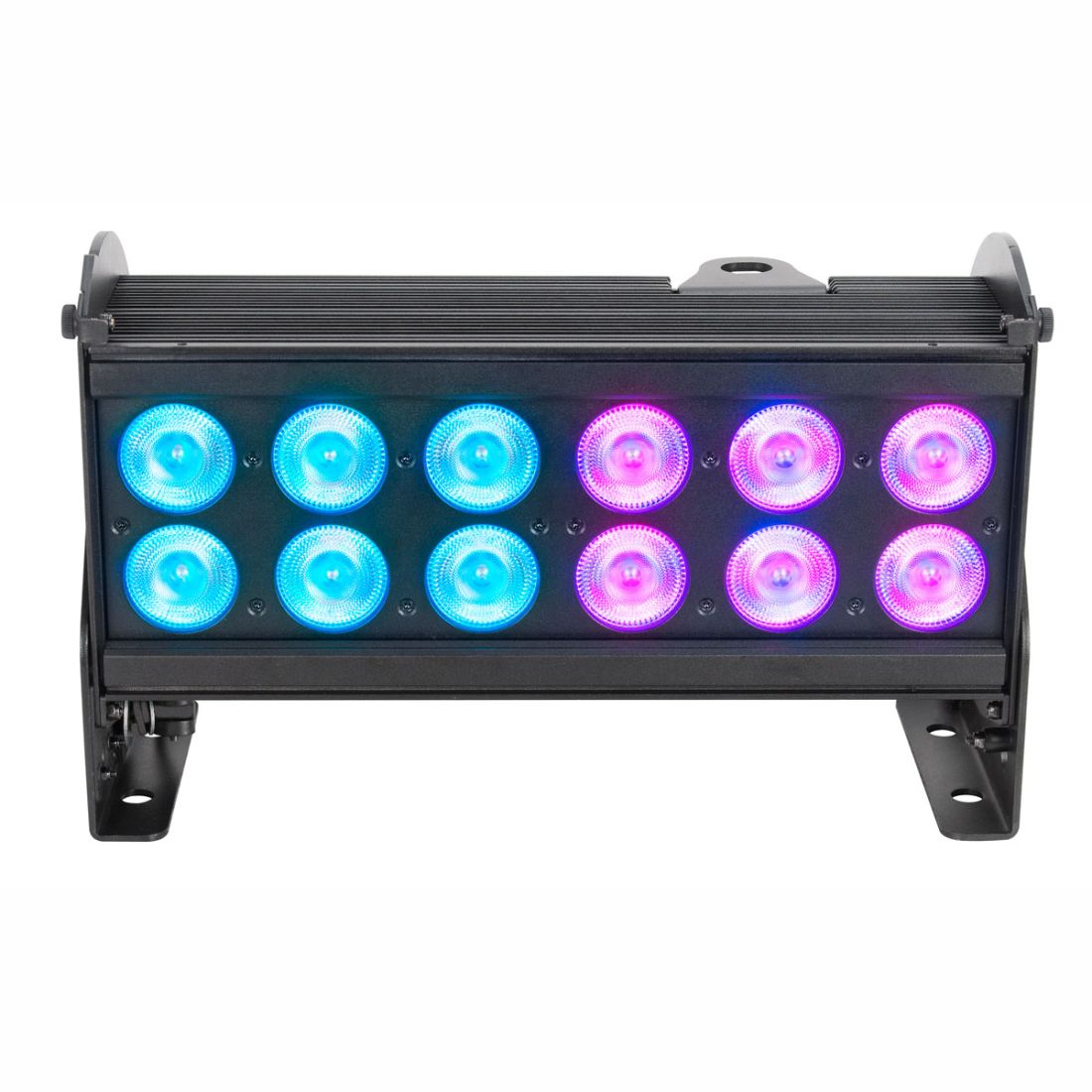

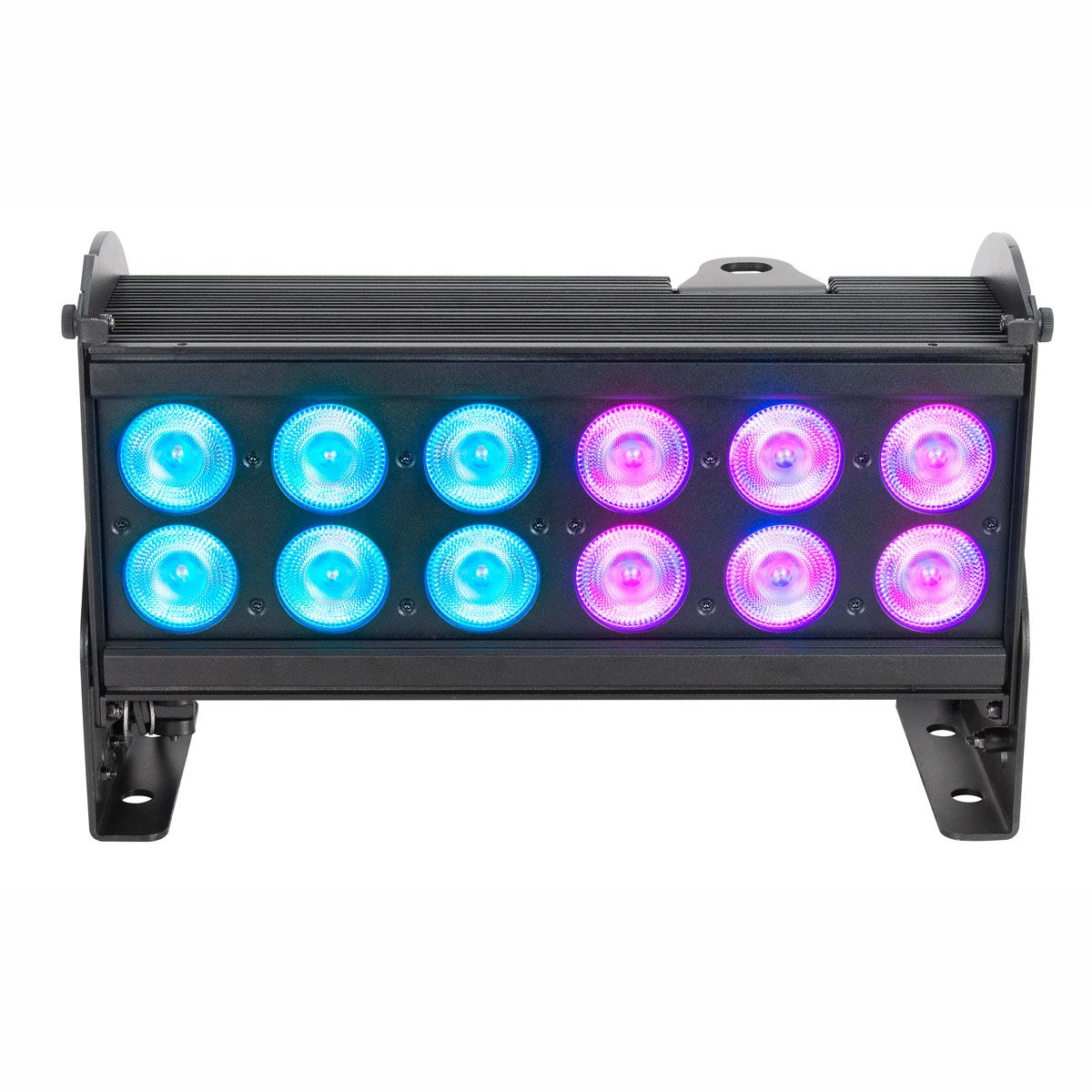

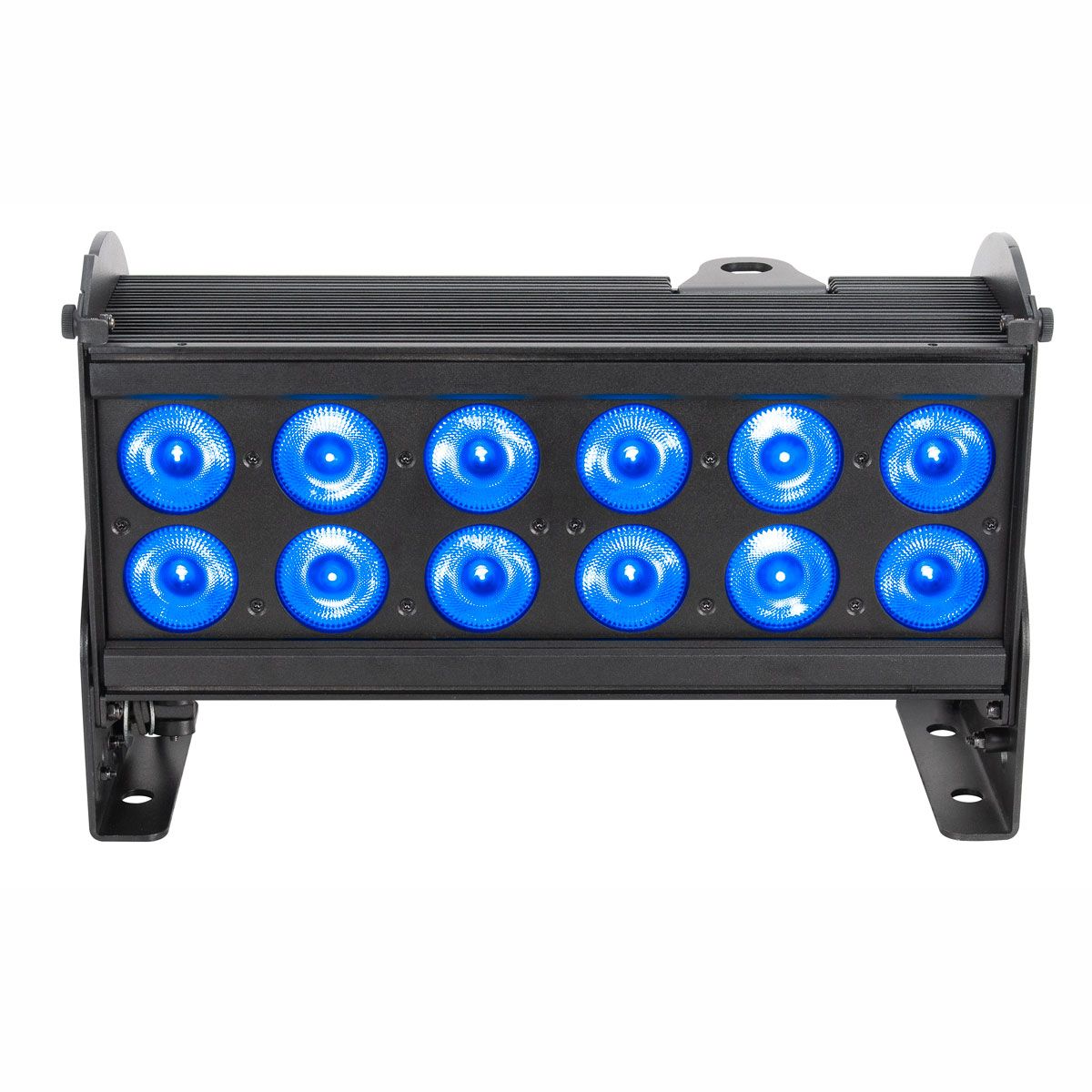

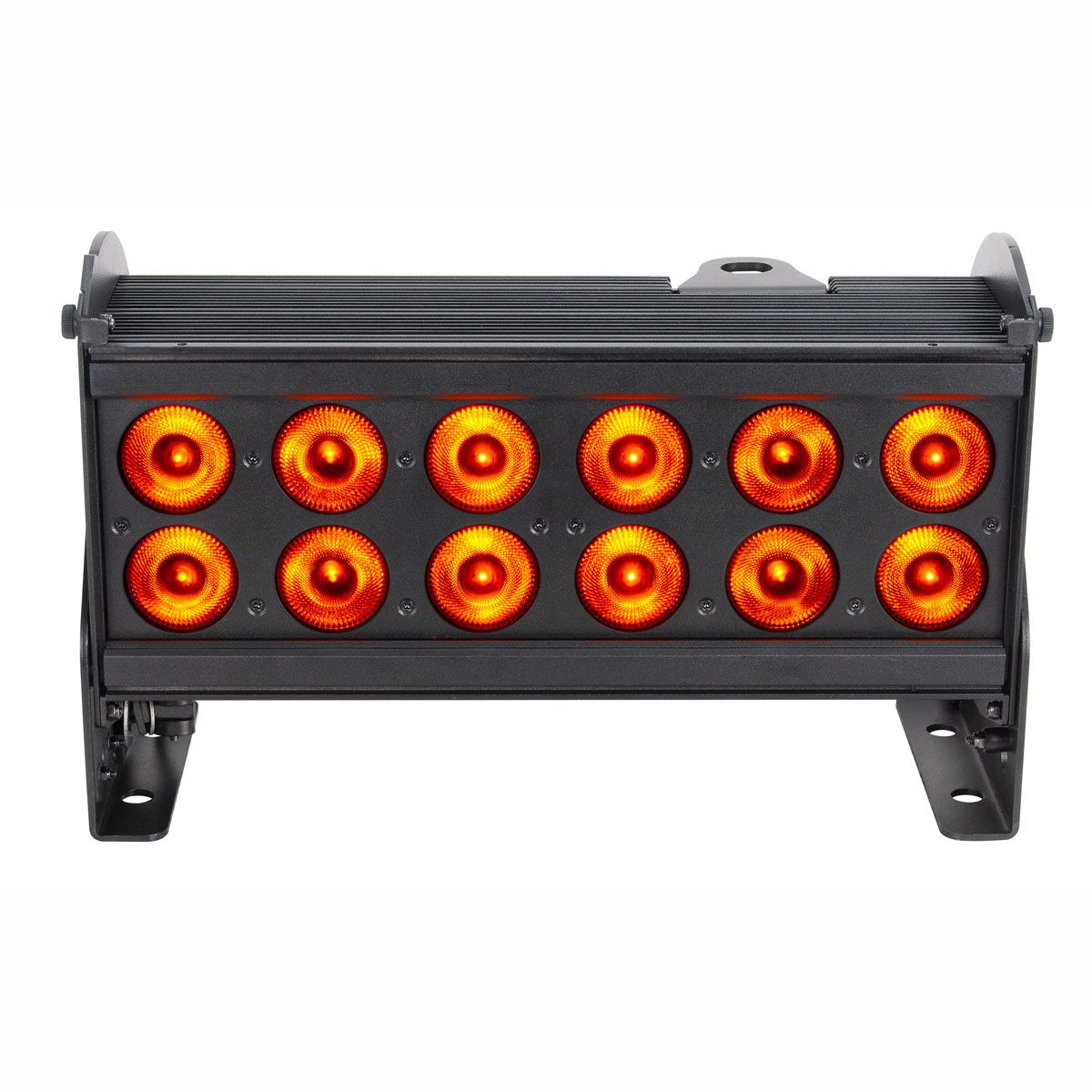

The SEVEN Batten 14™ is a seven color 0.4m (1.2 foot) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and locking power in/out connections, a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

Technical Data

FEATURES

0.4m (1.2 Foot) Seven Color Batten Wash Luminaire
(12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
2 Pixel Mapping Zones with Pixel Flip Mode
Smooth Color Mixing, Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Modes
DMX Adjustable LED Refresh Rate
Adjustable LED Gamma Brightness
Flicker Free Operation for TV and FILM
Art-Net, Kling-Net, and RDM Protocol Support

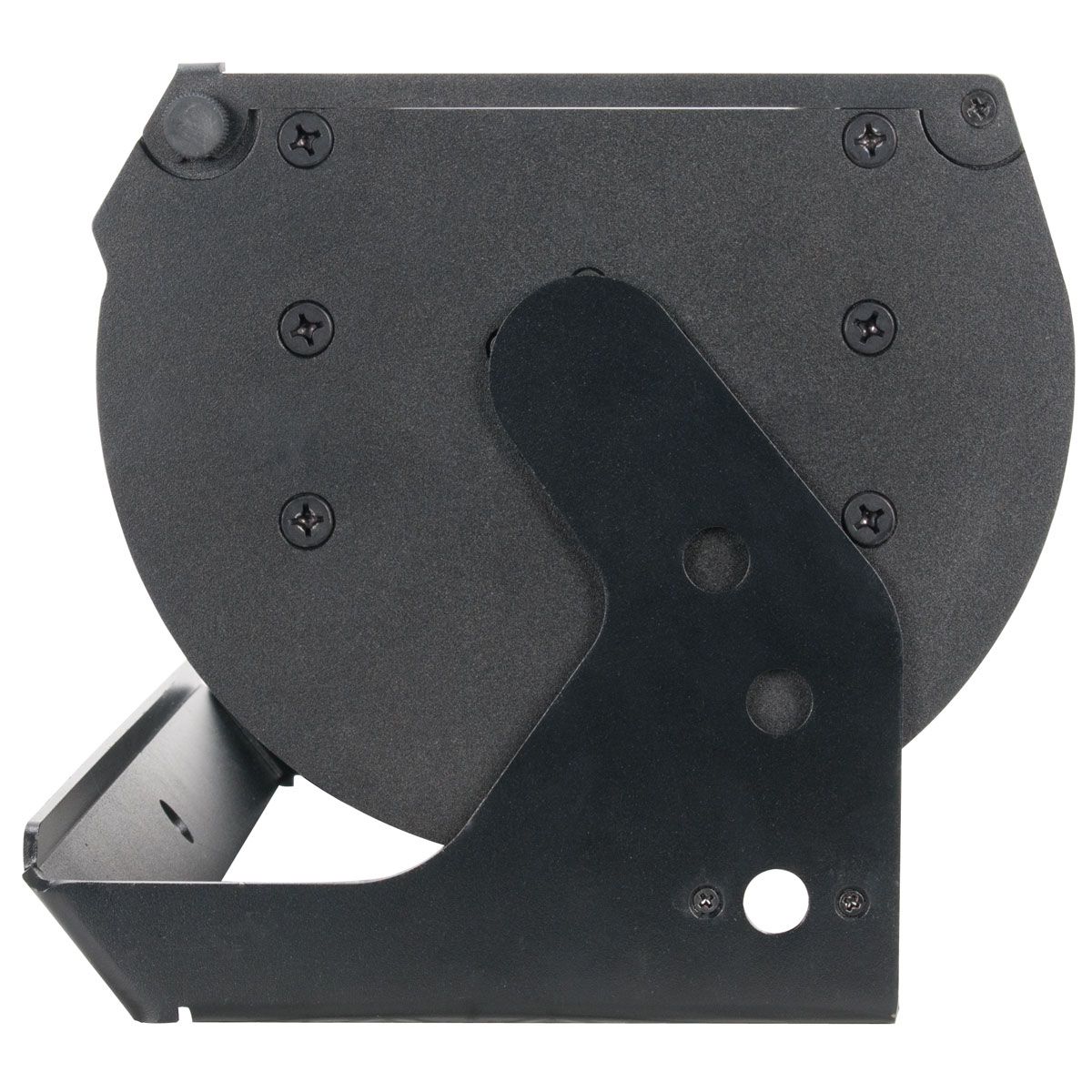

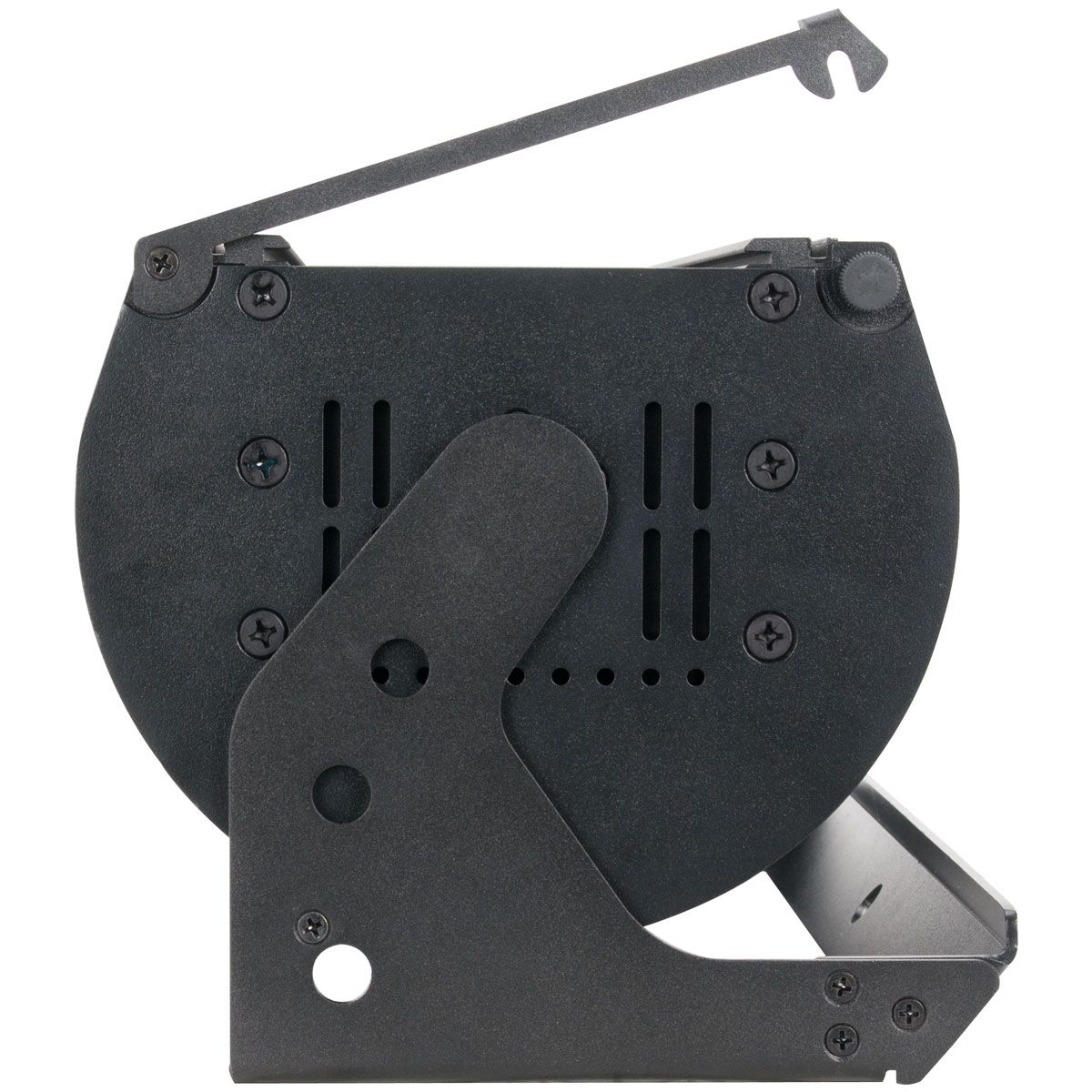

220° Manual Tilt Adjustable Mounting Bracket
Rugged Powder Coated Die-Cast Aluminum Exterior

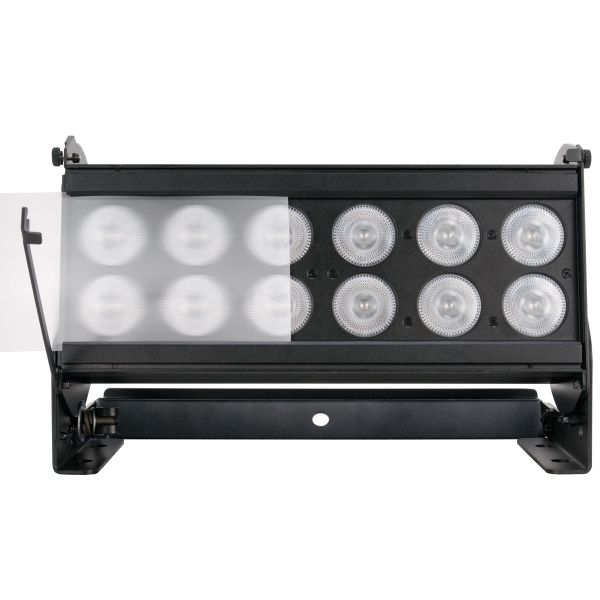

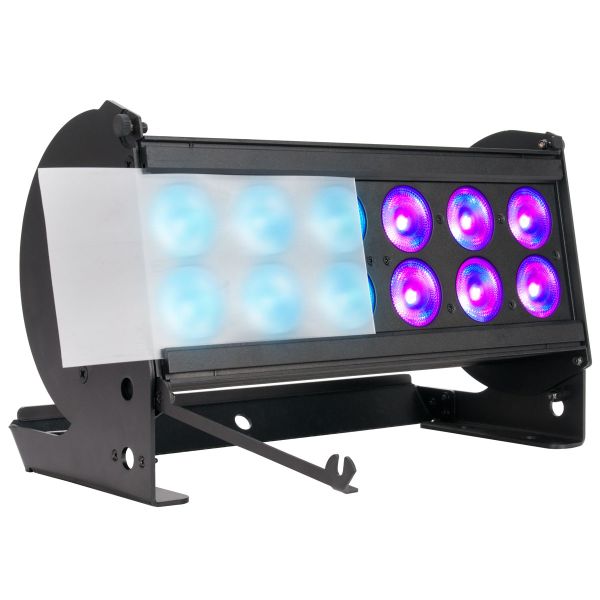

Integrated Gel / Frost Filter Slot

SOURCE

(12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

EFFECTS

Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
2 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode

COLOR

RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS

12 DMX Channel Modes (22 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
DMX Adjustable LED Refresh Rate (900 - 25,000Hz)
Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

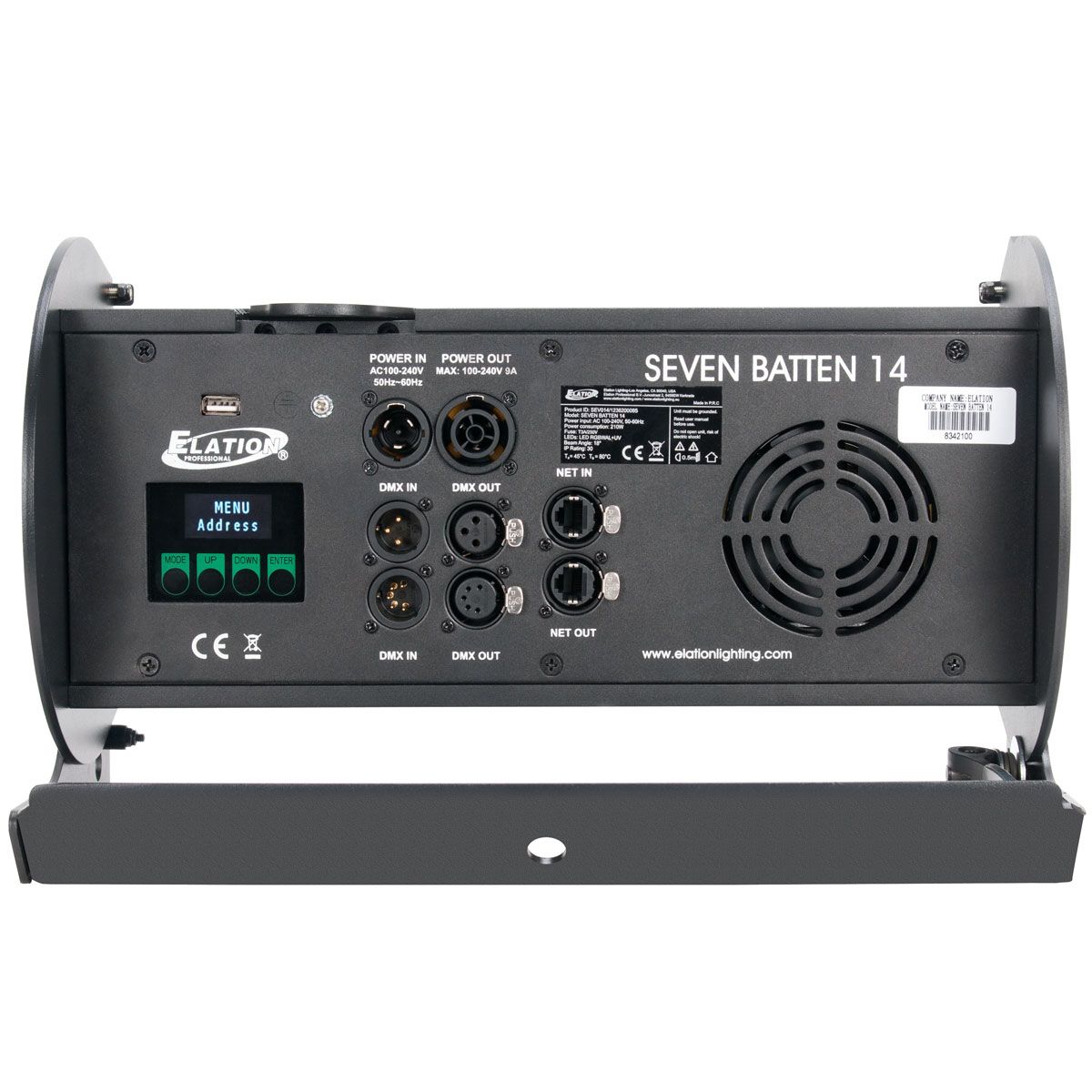

3/5pin DMX, RJ45 ethernet, and locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 355.6mm (14.0” )
Width: 114.3mm (4.5”)
Vertical Height: 228.6mm (9.0”)
Weight: 7.7kg (17.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
201W Max Power Consumption
-10°C to 45°C (14°F to 113°F)

OPTIONAL ACCESSORIES

Glareshield (see below in Related Products) - giving you further control of the light distribution.

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
