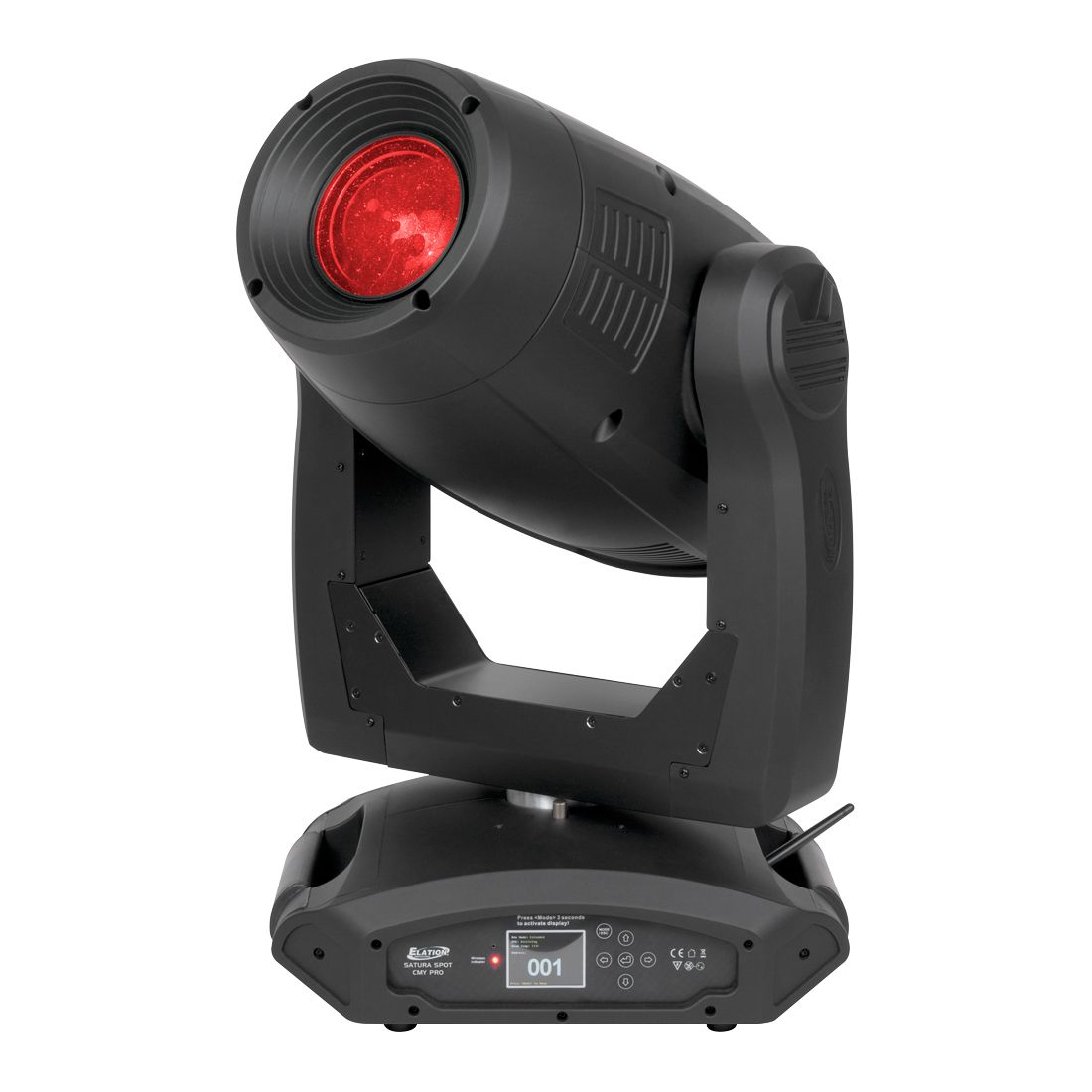

Satura Spot CMY PRO Picture
Satura Spot CMY PRO Picture 2
Satura Spot CMY PRO Picture 3
Satura Spot CMY PRO Picture 4
Code
1237000095
FEATURES
High Powered 320W LED Spot Luminaire
14° - 36° Motorized Zoom
Full CMY Color Mixing and Linear CTO Color Correction
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode
Variable Dimming Curves
Flicker Free Operation for TV and Film
Internal EWDMX Wireless DMX Receiver
Art-NET (DMX over Ethernet) Support
RDM – Remote Device Management
SOURCE
320W Cool White (8,000K) LED Engine
11,700 Total Lumen, 8,000K
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
27,430 LUX 2,548 FC @ 8.2’ (2.5m) (Min Zoom)
4,735 LUX 440 FC @ 8.2’ (2.5m) (Max Zoom)
EFFECTS
3-Facet Rotating Prism
Wash Frost Filter
Iris: 5% - 100%
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curve Modes
COLOR
7 Dichroic Colors + White (Open)
CMY Color Mixing and Linear CTO Color Correction
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 29mm / ID 24mm
7 Static-Stamped / Indexing Metal Gobos

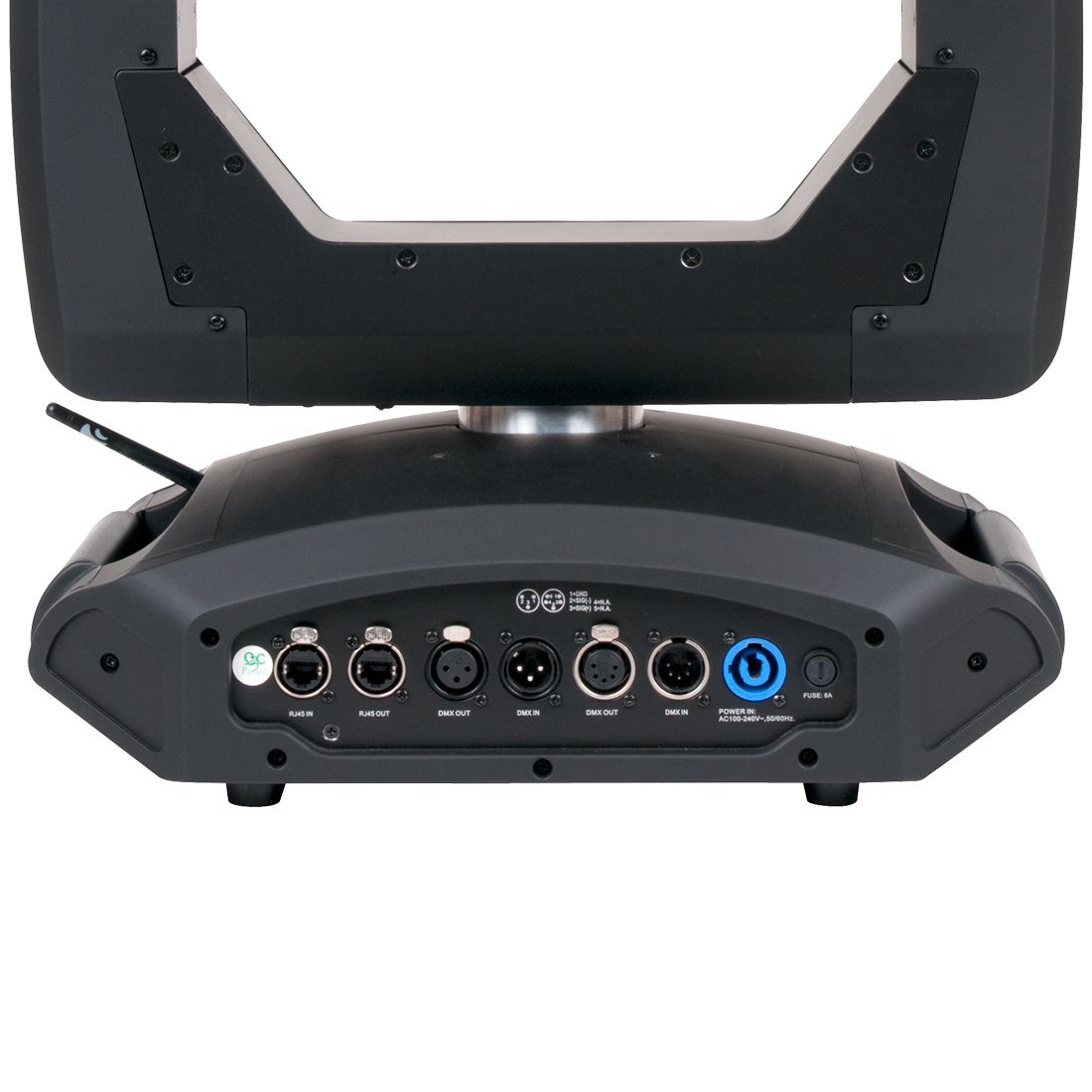

CONTROL / CONNECTIONS
(3) DMX Channel Modes (22 / 24 / 33)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET)
Locking power connector In
Internal EWDMX Wireless DMX Receiver
SIZE / WEIGHT
Length: 20.0” (508mm)
Width: 16.9” (430mm)
Vertical Height: 28.6” (727mm)
Weight: 66.1 lbs. (30 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1322000054 E Loader III
1322000022 EWDMXT Wireless DMX Transmitter
1521000183 Touring Case 2x Satura Spot LED/CMY PRO
1521000220 PRO Case 2x Satura Spot LED/CMY PRO
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
