RDMXM2

The RDMX6S™ is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a locking 5pin DMX input, a locking 5pin DMX loop thru output with built-in termination, and (6) locking opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v).

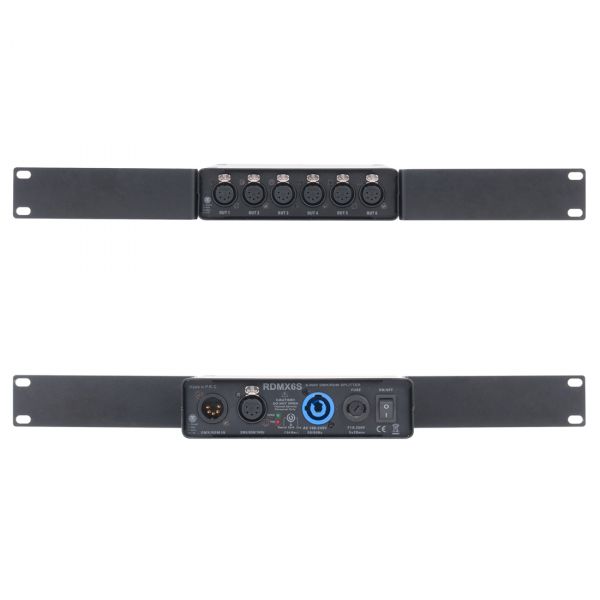

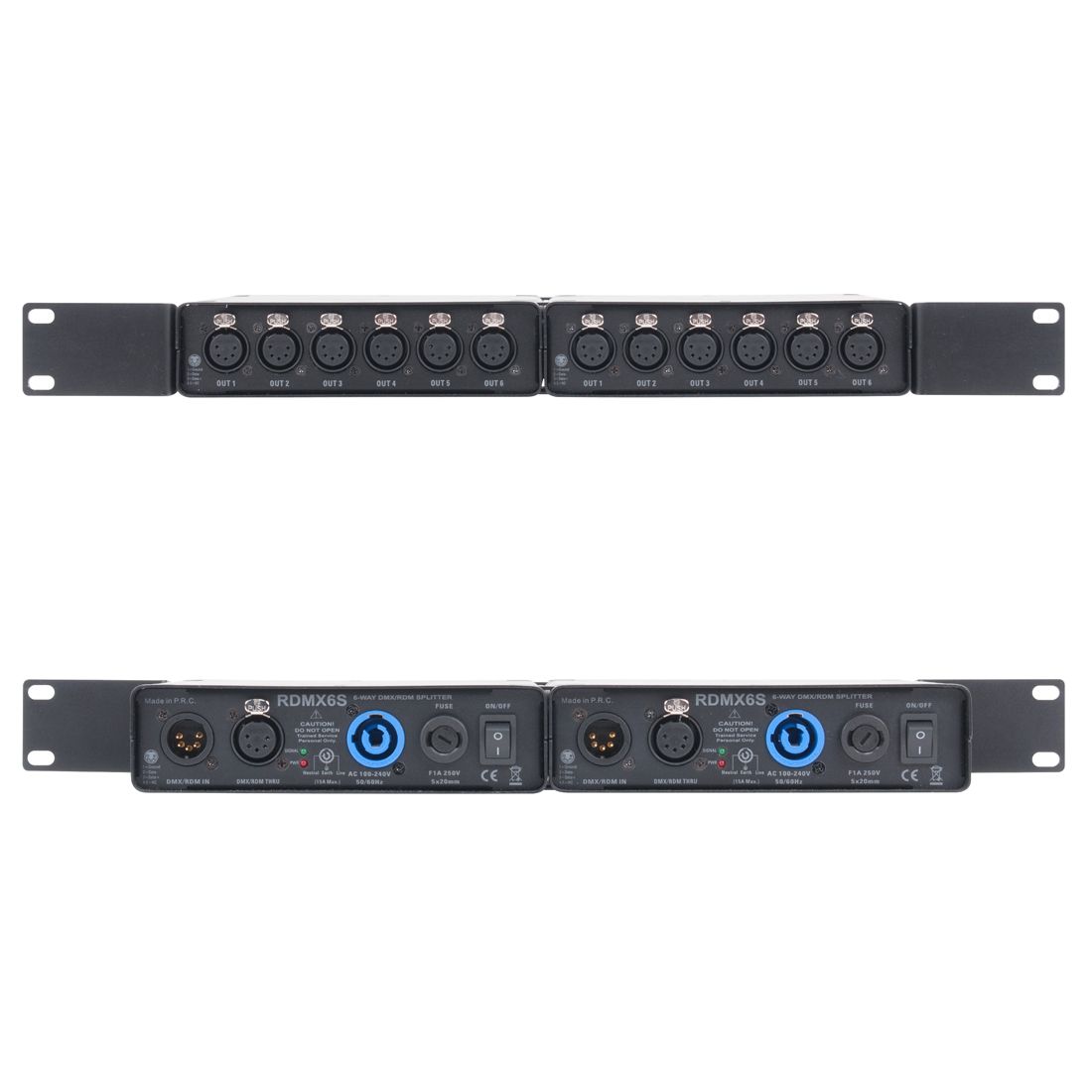

The RDMX6S™ Series is available in three different versions. The RDMX6S™ is equipped with a single unit mounting bracket for truss/clamp installation. The RDMXM1™ is equipped with a single unit 19” inch rack mounting kit. The RDMXM2™ is equipped with a dual unit 19” inch rack mounting kit.

Technical Data

FEATURES

RDM E1.20 Compliant
Locking 5pin DMX Loop Thru Output with Built-In Termination
6 locking Opto-Isolated 5pin DMX Outputs
Locking power connector In
Universal Multi-Voltage Auto Switching Power Supply
Optional Single and Dual Unit Rack Mount Kits Available

CONTROL / CONNECTIONS

Locking 5pin DMX Input
Locking 5pin DMX Loop Thru Output w/Built-In Termination
6 locking 5pin Opto-Isolated DMX Outputs
Locking power connector In

SIZE / WEIGHT

Length: 6.8” (173mm)
Width: 19” (483mm)
Vertical Height: 1.7” (44mm)
Weight: 4.4 lbs. (2.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

Locking power connector to CEE 7/7 Cable

Specifications and documentation subject to change without notice
