Code 1215200022

Protron LED

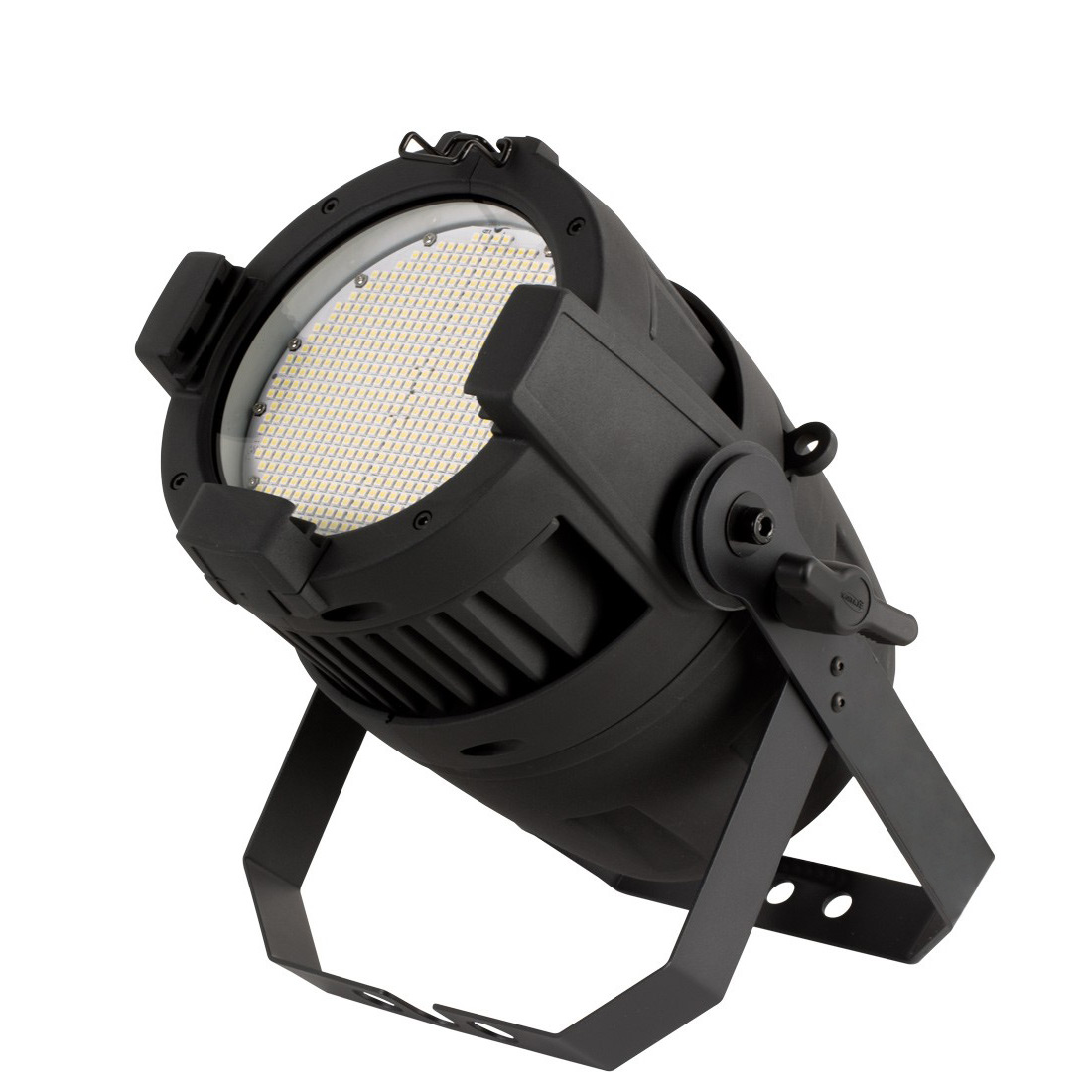

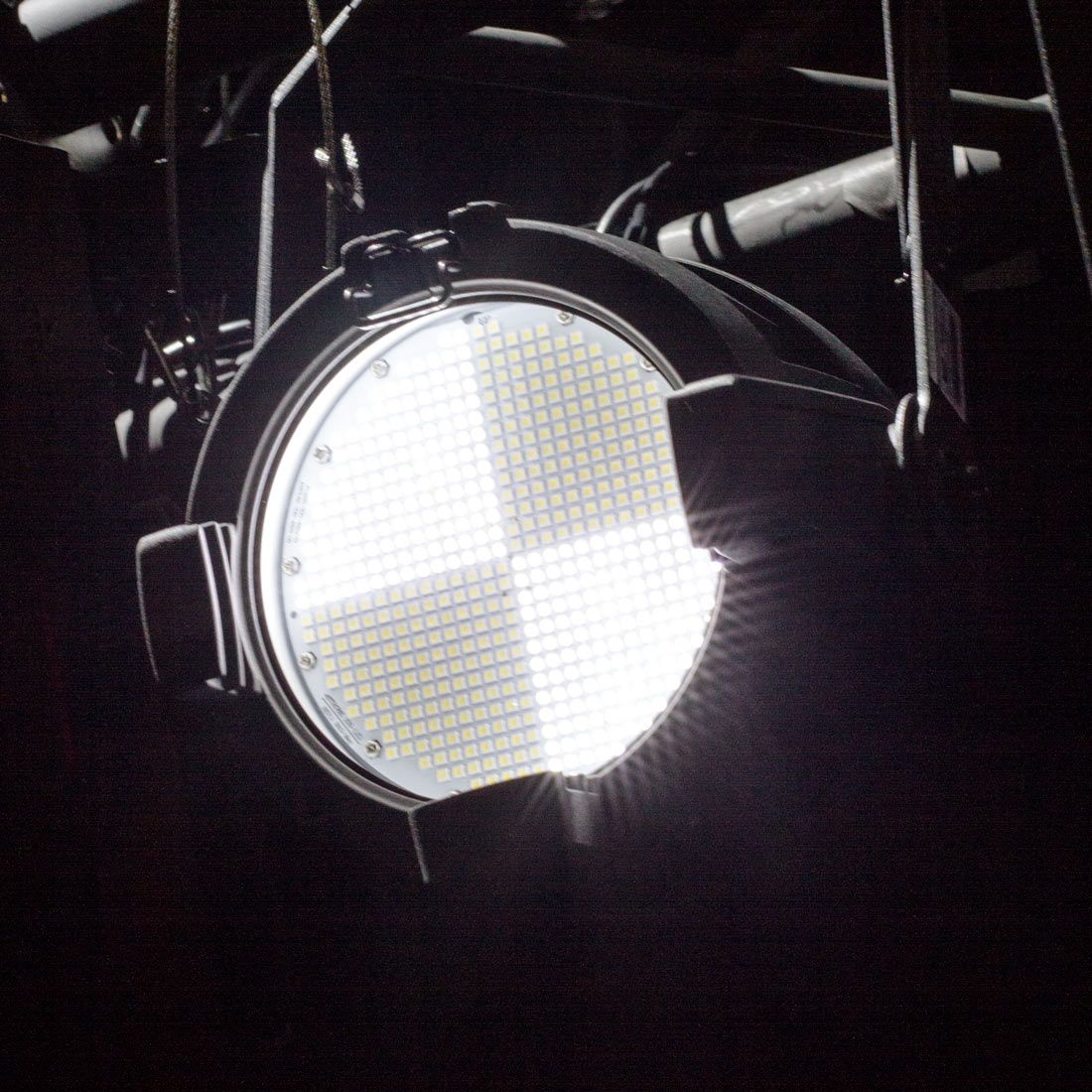

The IP65-rated Protron LED Strobe features (576) high power, long life 6,500K Cool White surface mount LEDs, a 120° beam angle producing 28,000 total lumens, selectable dimming curves, multiple zone chase effects, RDM (Remote Device Management), flicker free operation for TV and Film, 3pin DMX in/out and power in/out connections, no fans for silent operation, LCD menu display with (4) button control panel, integrated split yoke rigging bracket and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

IP65-Rated
High Power 6,500K Surface Mount Cool White LEDs
No Fans - Silent Operation
(5) Variable Dimming Curve Modes
Low 150W Power Consumption
Integrated 6.25” Gel Frame Holder
Flicker Free Operation for TV and Film
RDM - Remote Device Management


SOURCE

(576) 6,500K Cool White Surface Mount LEDs
100,000 Hour Average LED Life


PHOTOMETRIC DATA

120° Beam Angle
28,000 Total Lumens


EFFECTS

Variable Strobe Intensity, Rate, and Duration Control
Multiple Zone Chase Effects


CONTROL / CONNECTIONS

(4) DMX Channel Modes (1 / 3 / 4 / 6)
RDM (Remote Device Management)

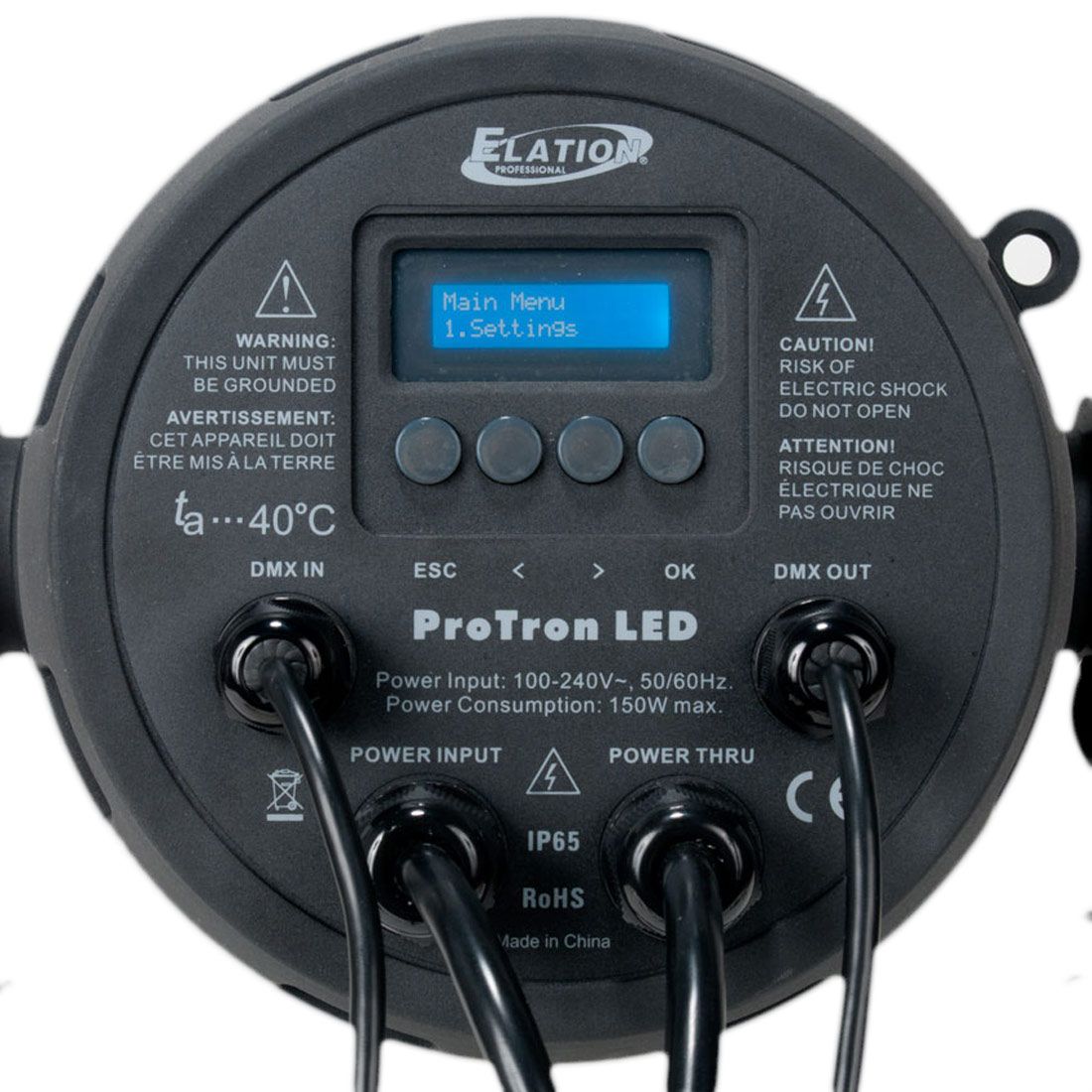

(4) Button Control Panel and LCD Menu Display

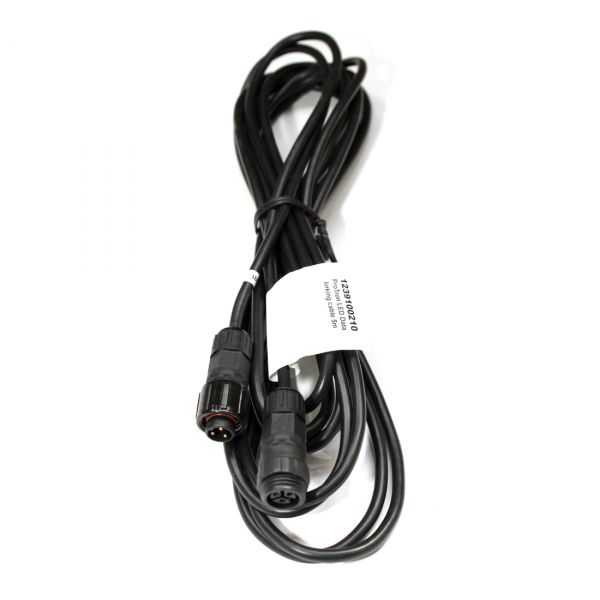

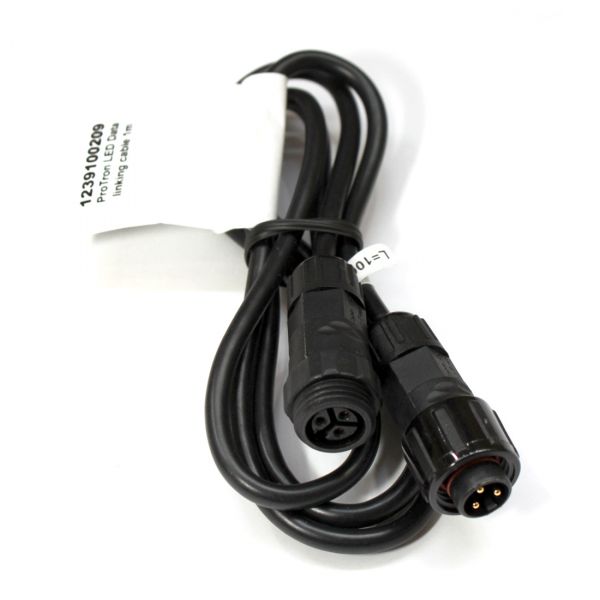

IP 3pin DMX In/Out
IP Power In/Out


SIZE / WEIGHT

Length: 10.85” (275.5mm)
Width: 10.77” (273.5mm)
Vertical Height: 13.9” (352mm)
Weight: 11.7 lbs. (5.3 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
150W Max Power Consumption
32°F to 104°F (-0°C to 40°C)


Specifications and documentation subject to change without notice
