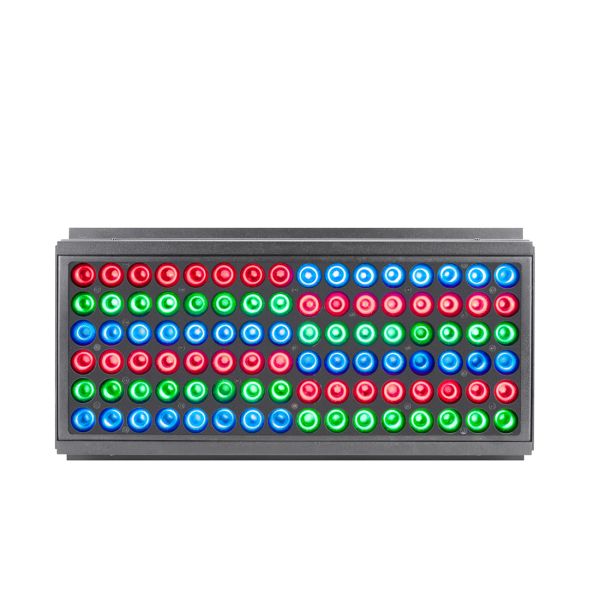

![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/r/protron_eclypse_website_pic.jpg)

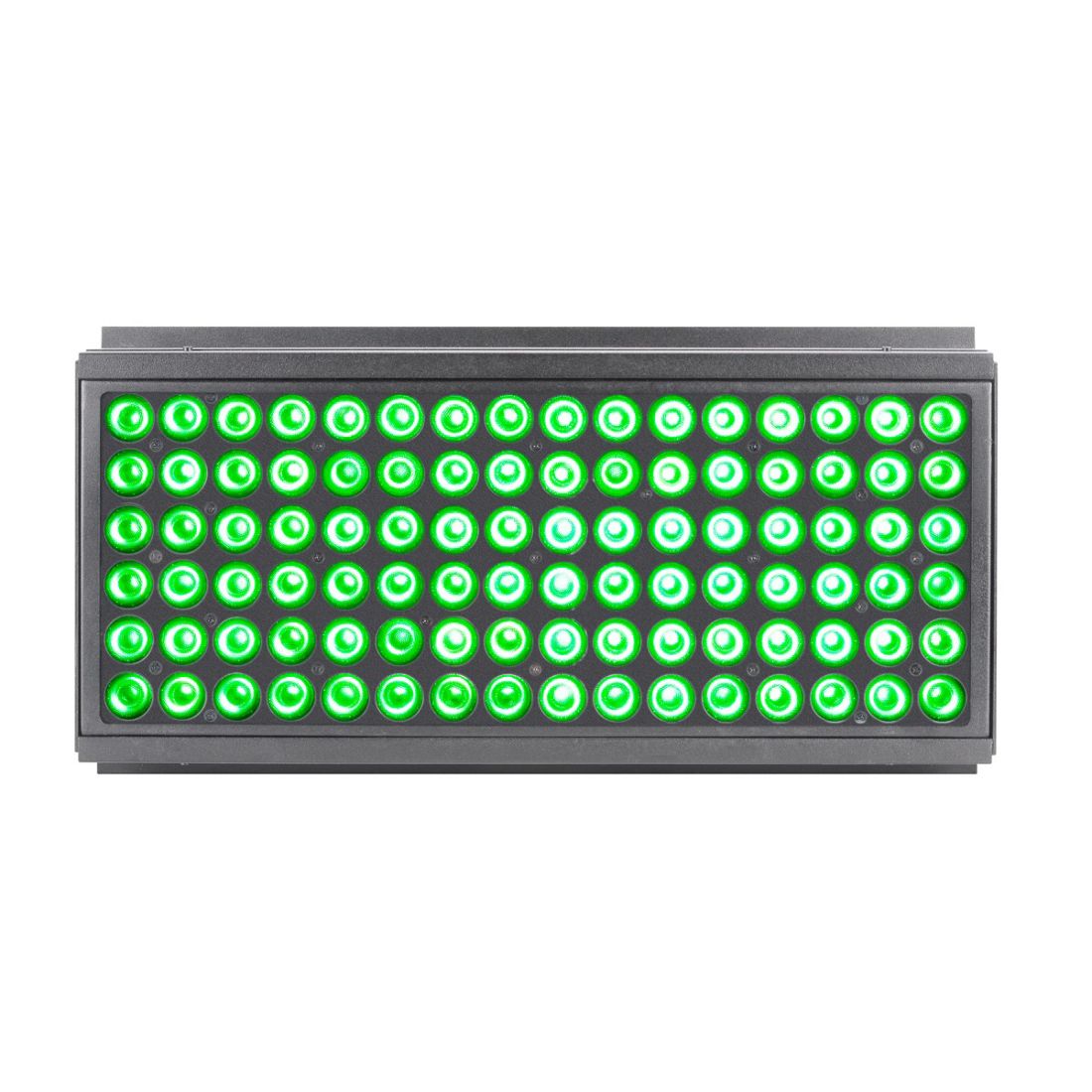

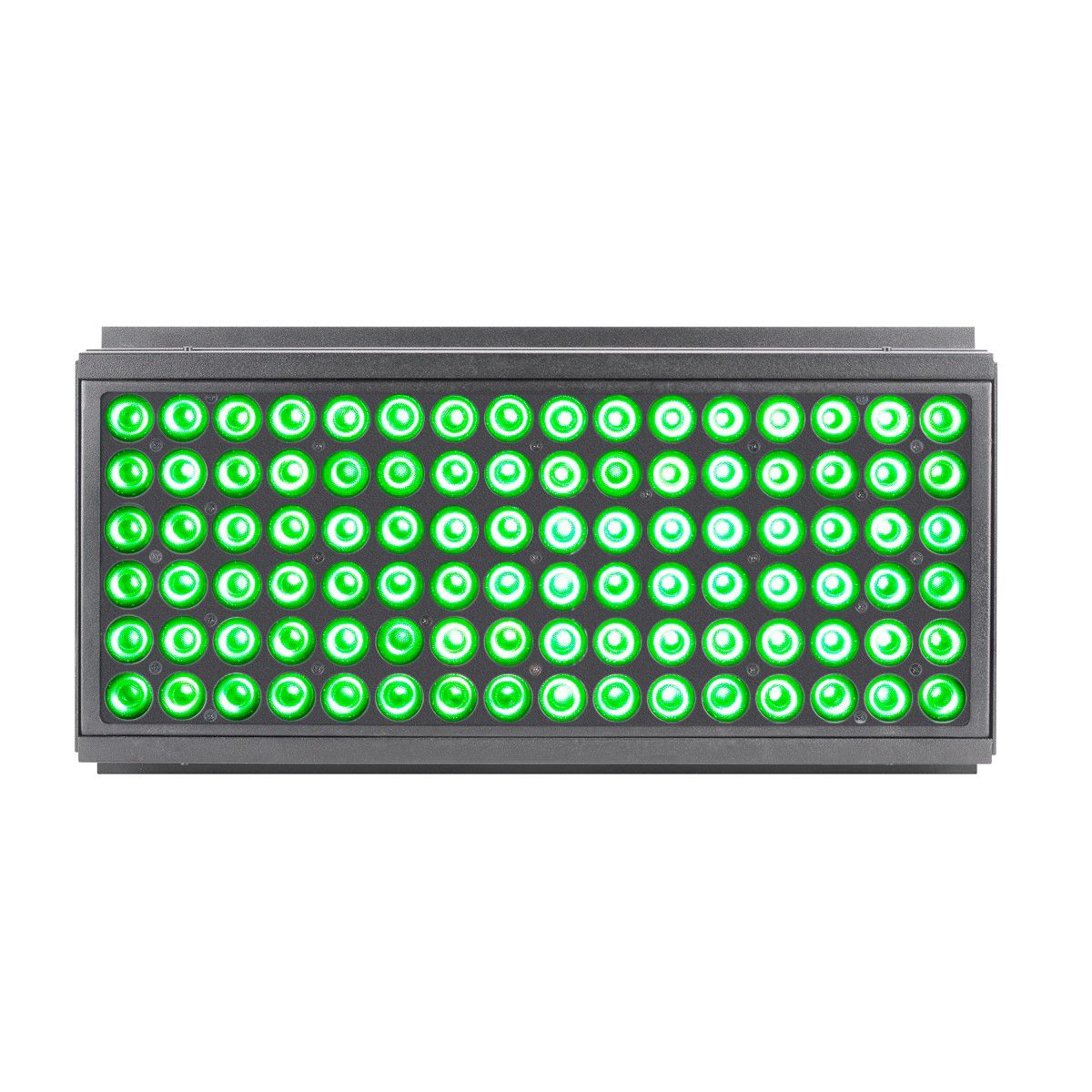

![PROTRON ECLYPSE Picture 7](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-ft-g_1.jpg)

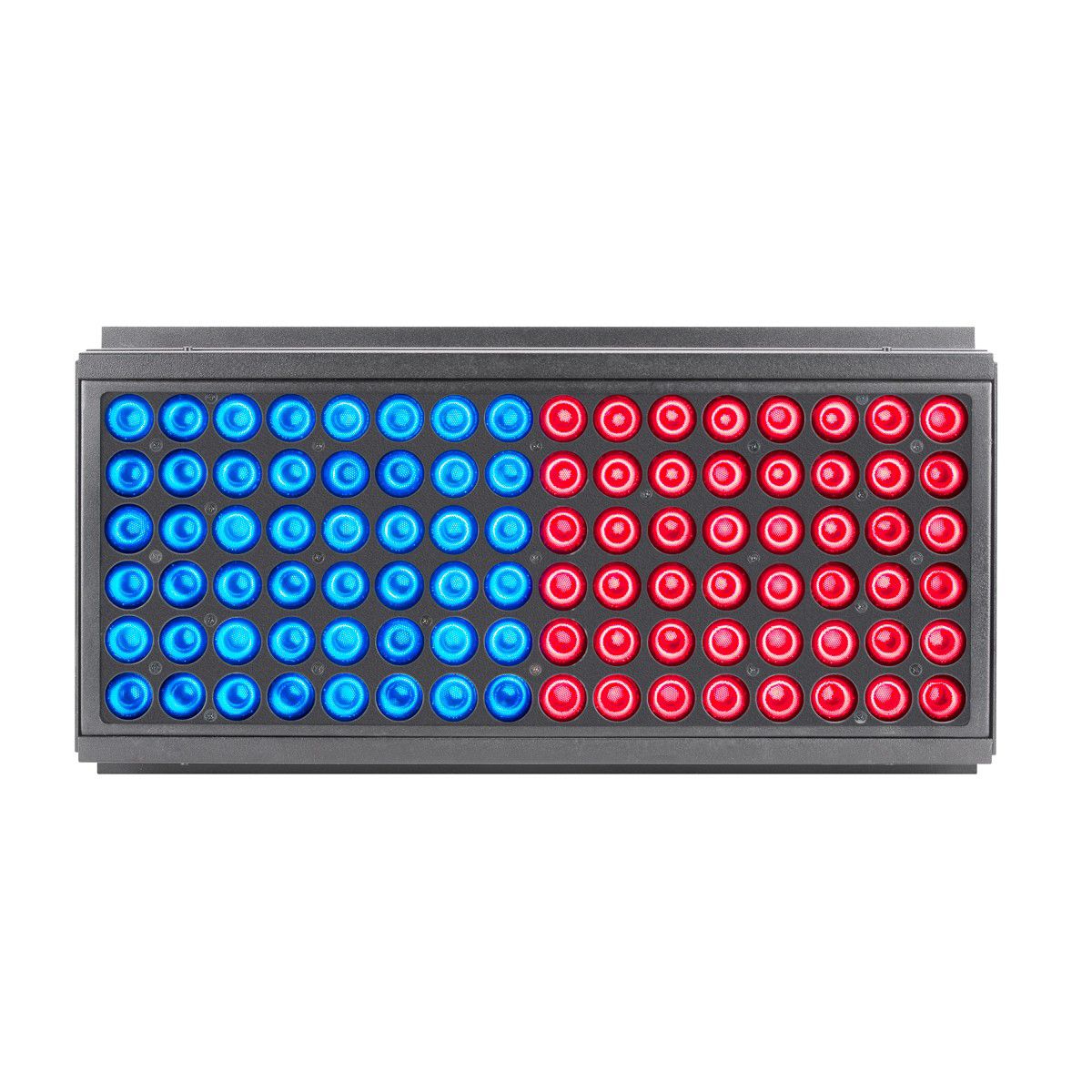

![PROTRON ECLYPSE Picture 10](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-ft5_1.jpg)

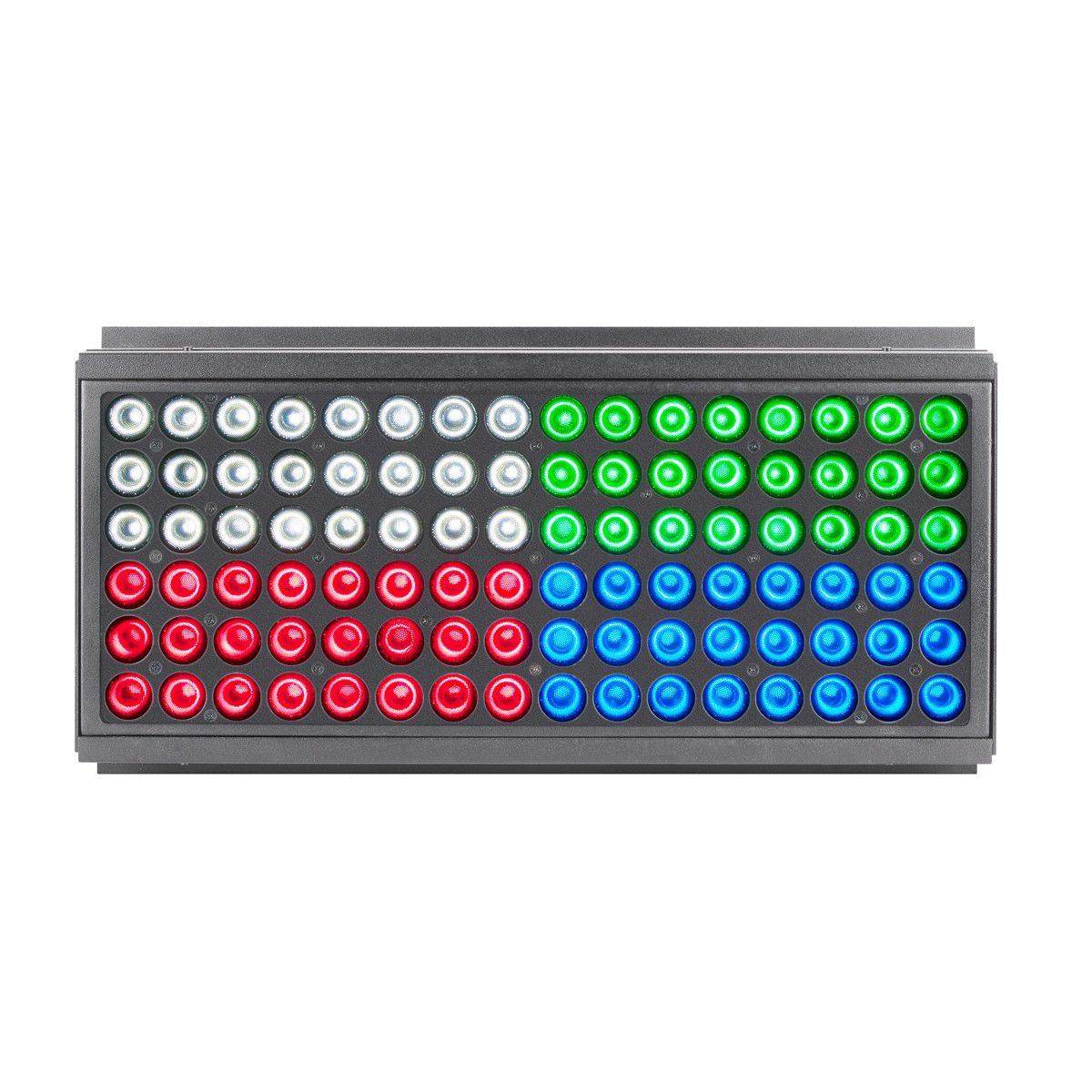

![PROTRON ECLYPSE Picture 9](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-ft4_1.jpg)

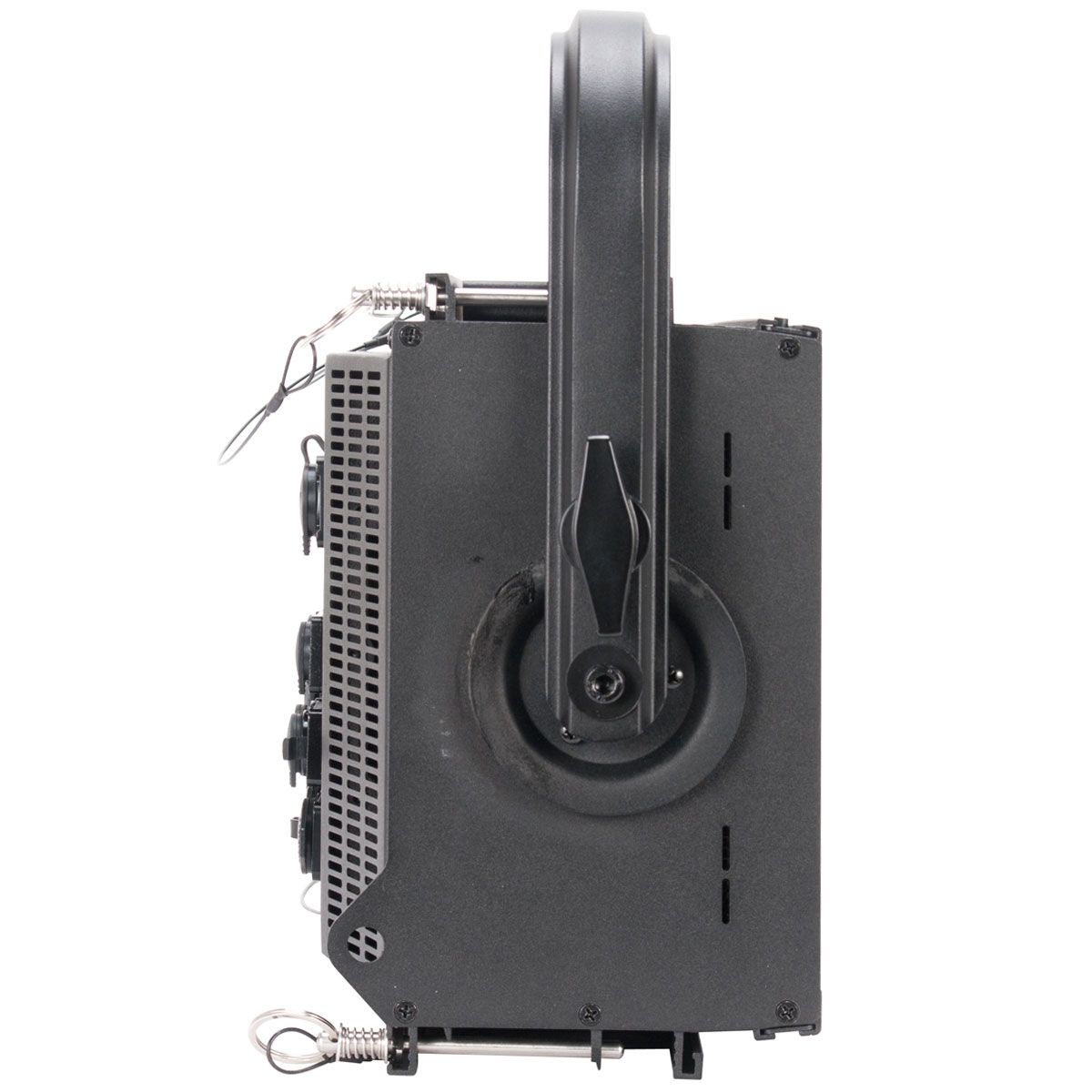

![PROTRON ECLYPSE Picture 13](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-side_1.jpg)

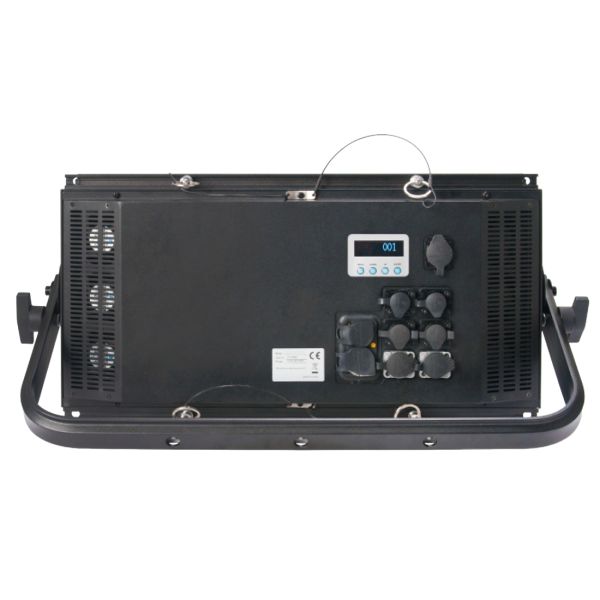

![PROTRON ECLYPSE Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1215200037_Eclips_rear_11_1.jpg)

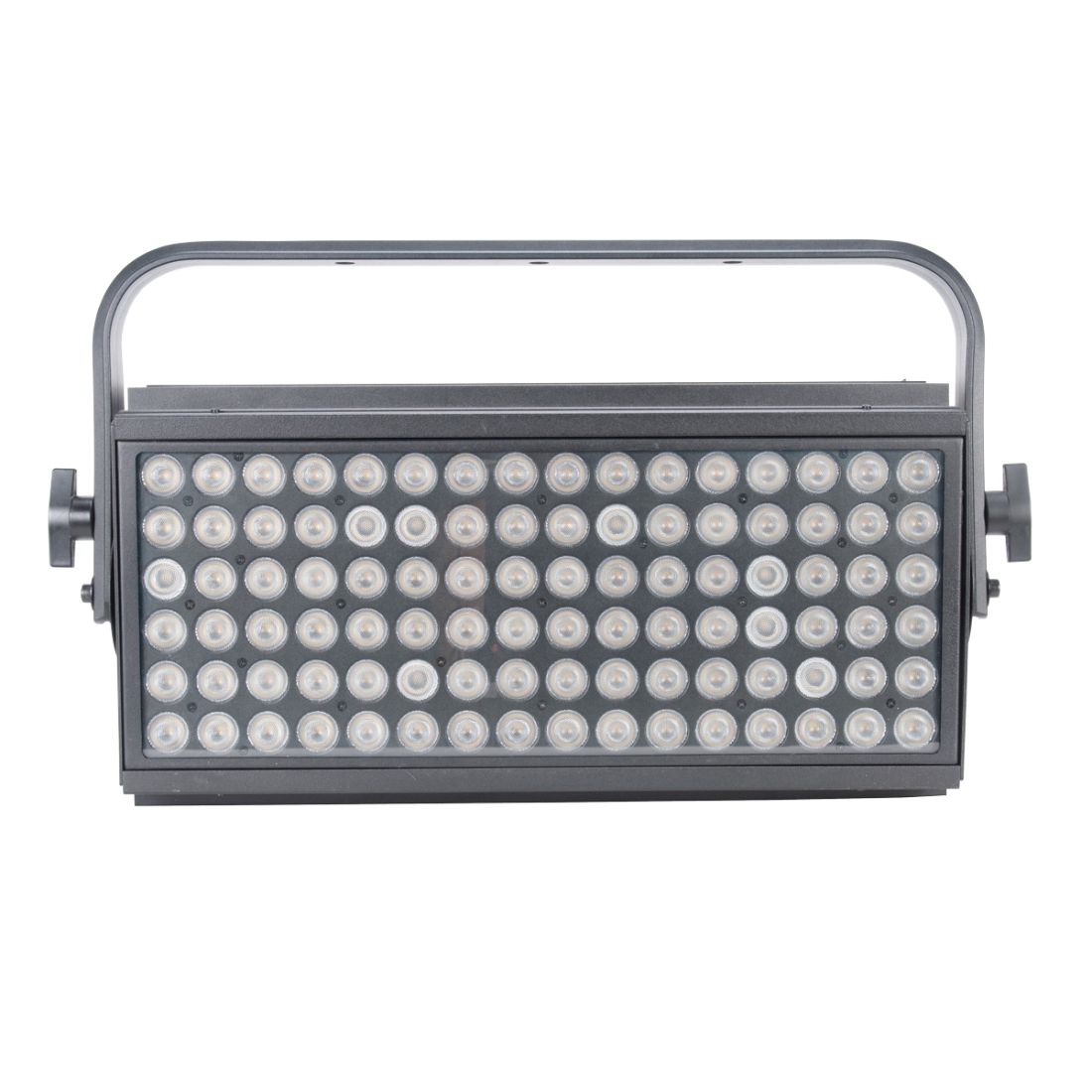

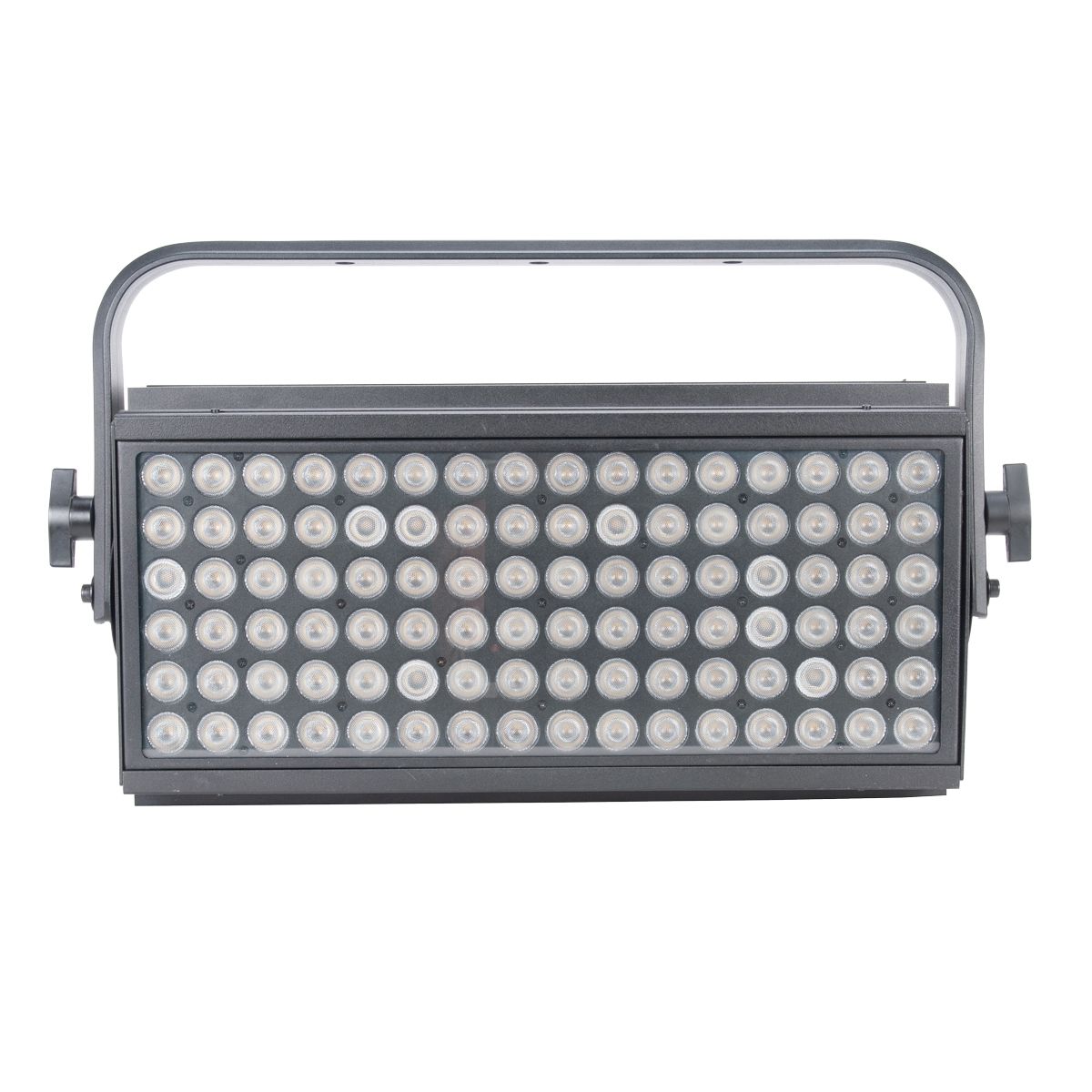

![PROTRON ECLYPSE Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-7-front_1.jpg)

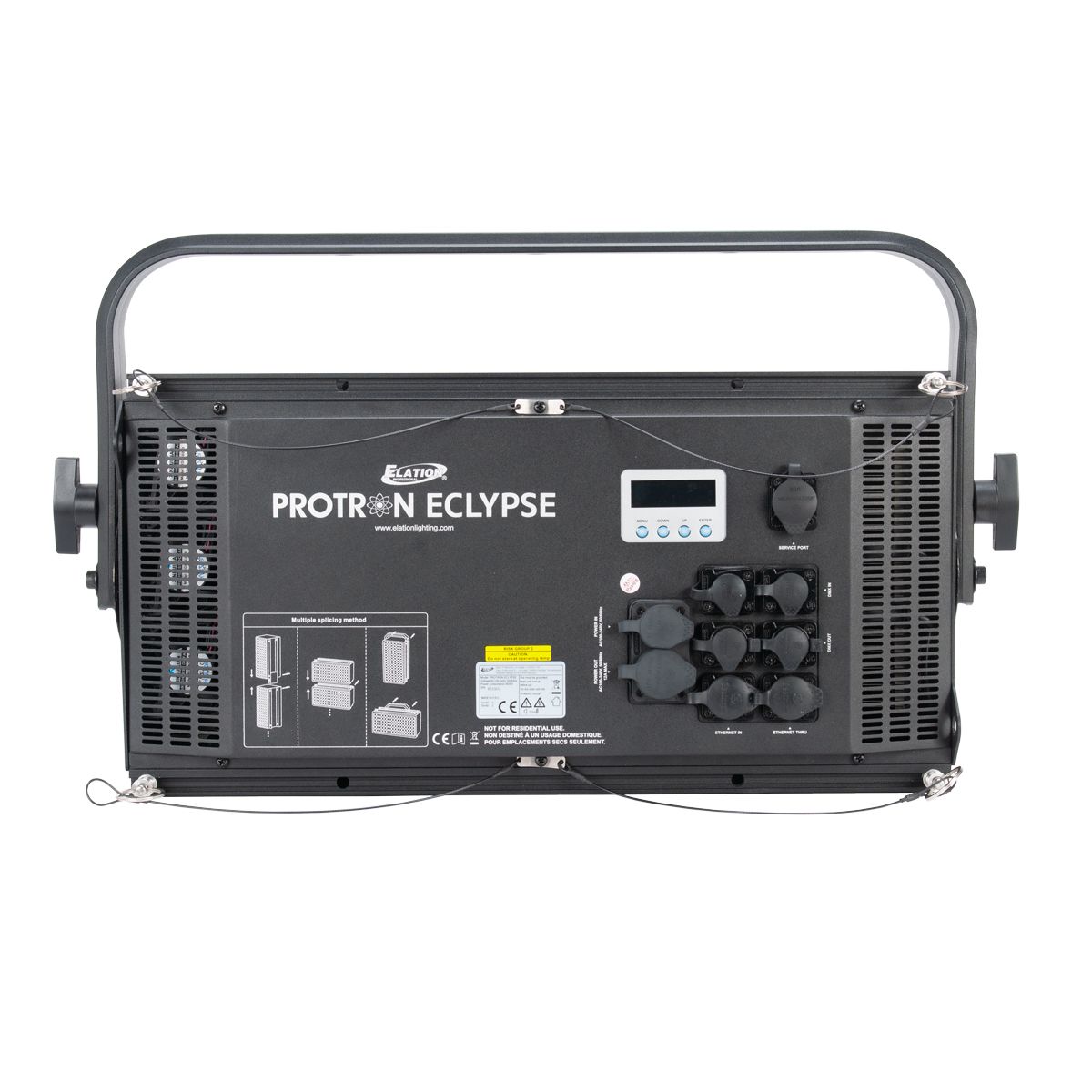

![PROTRON ECLYPSE Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-7-rear_1.jpg)

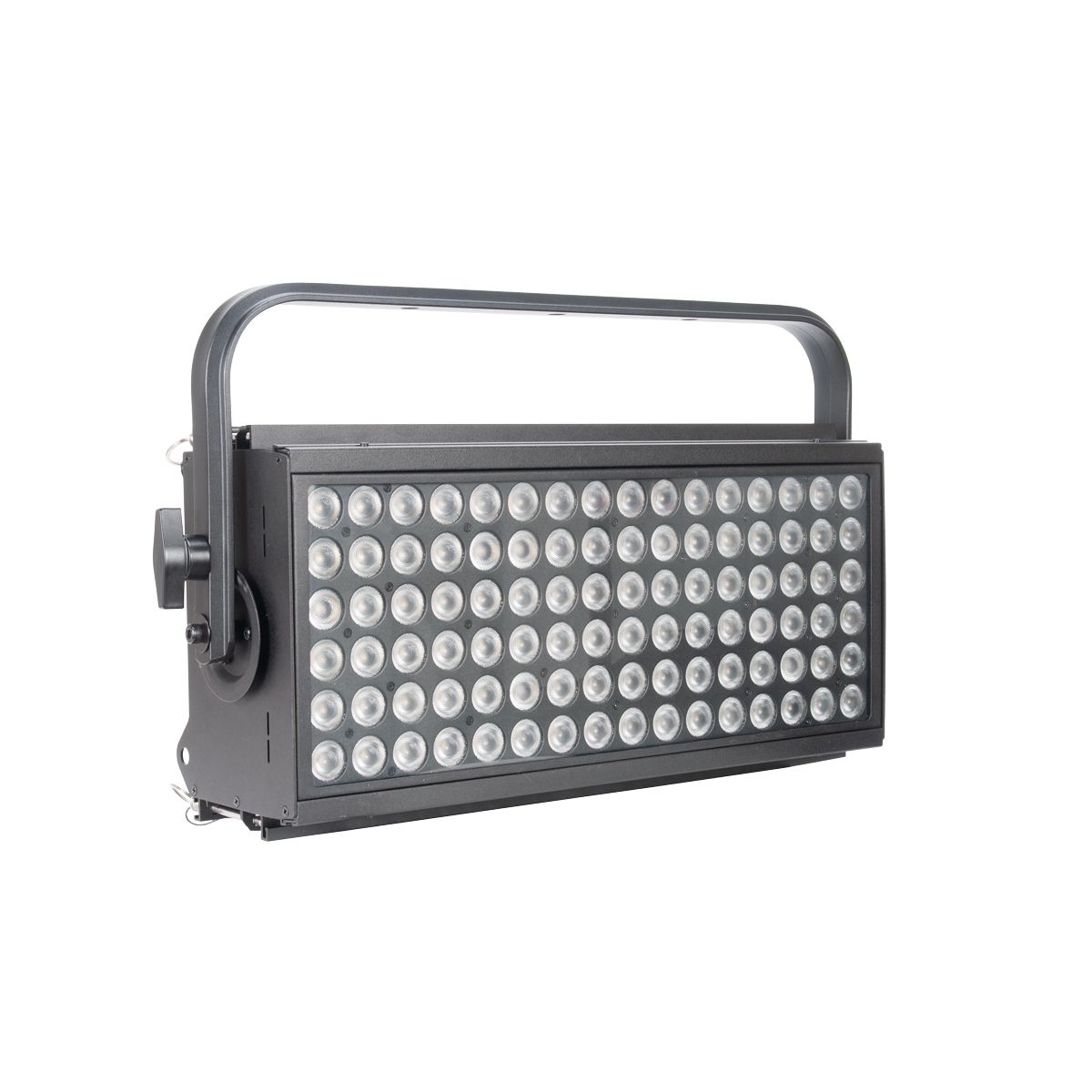

![PROTRON ECLYPSE Picture 5](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-7-side-left_1.jpg)

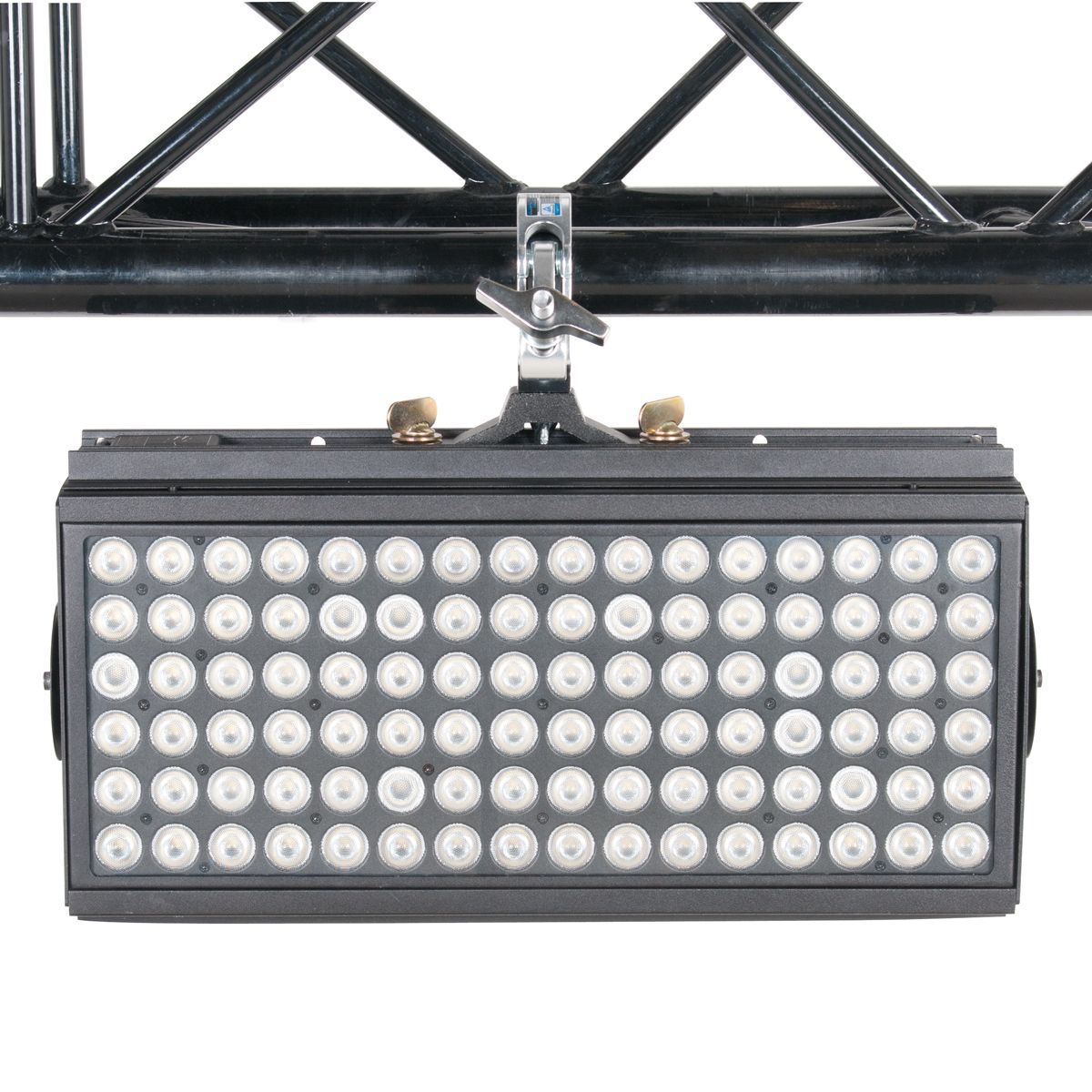

![PROTRON ECLYPSE Picture 12](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-omega-truss_1.jpg)

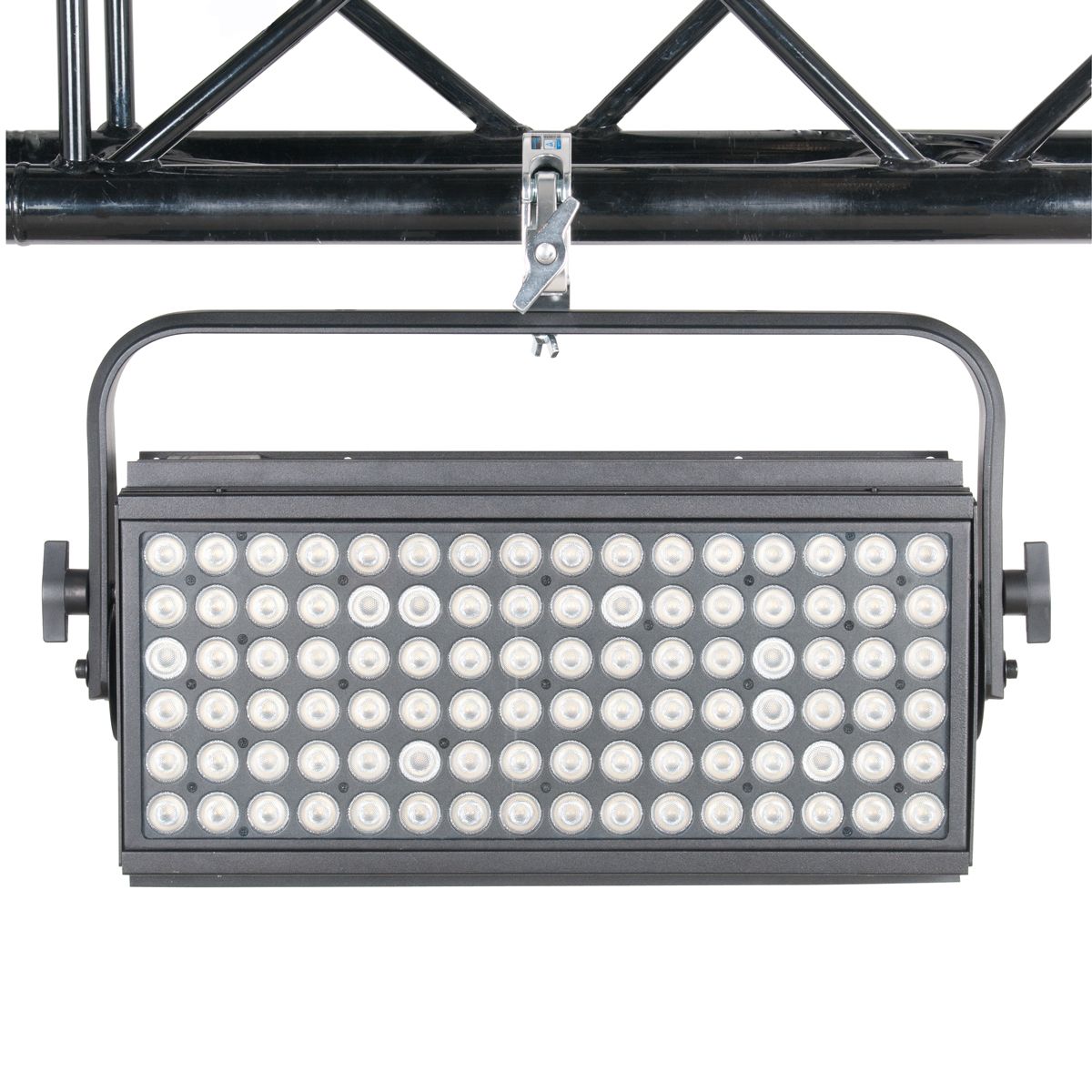

![PROTRON ECLYPSE Picture 6](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-bracket-truss_1.jpg)

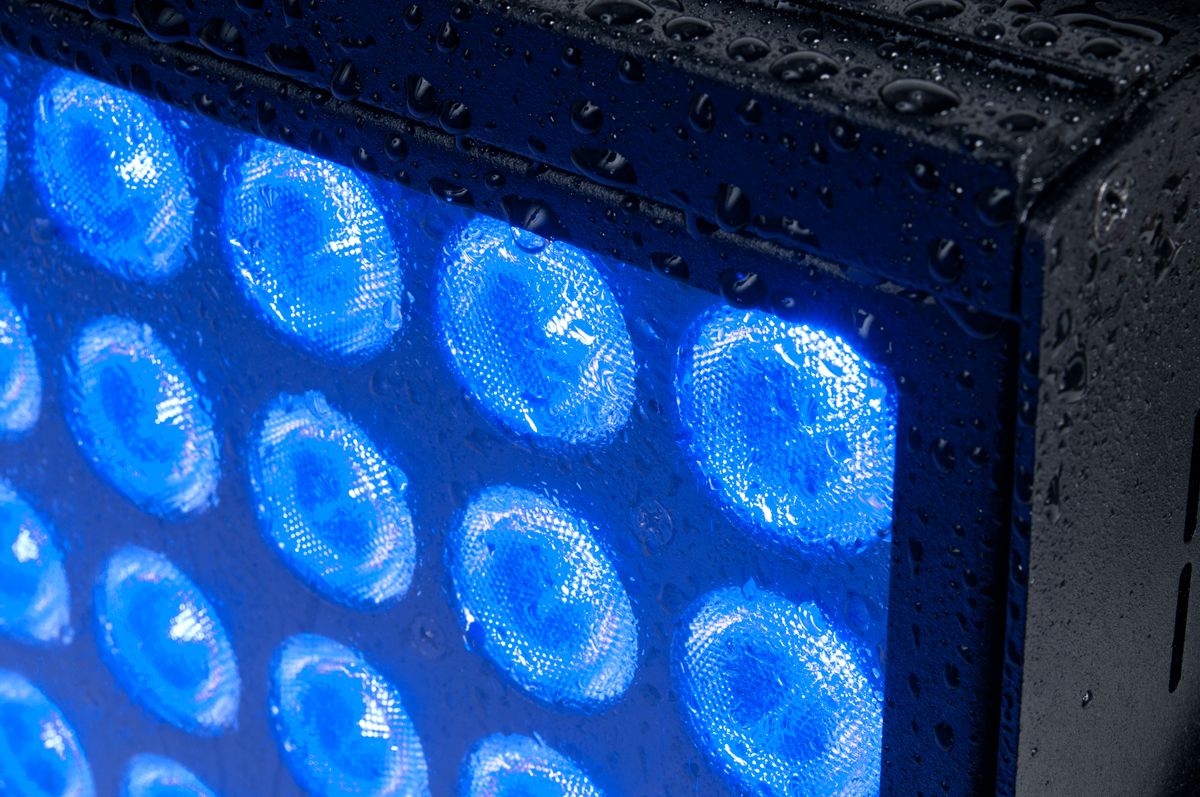

![PROTRON ECLYPSE Picture 11](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation-protron-eclypse-macro-wet_1.jpg)

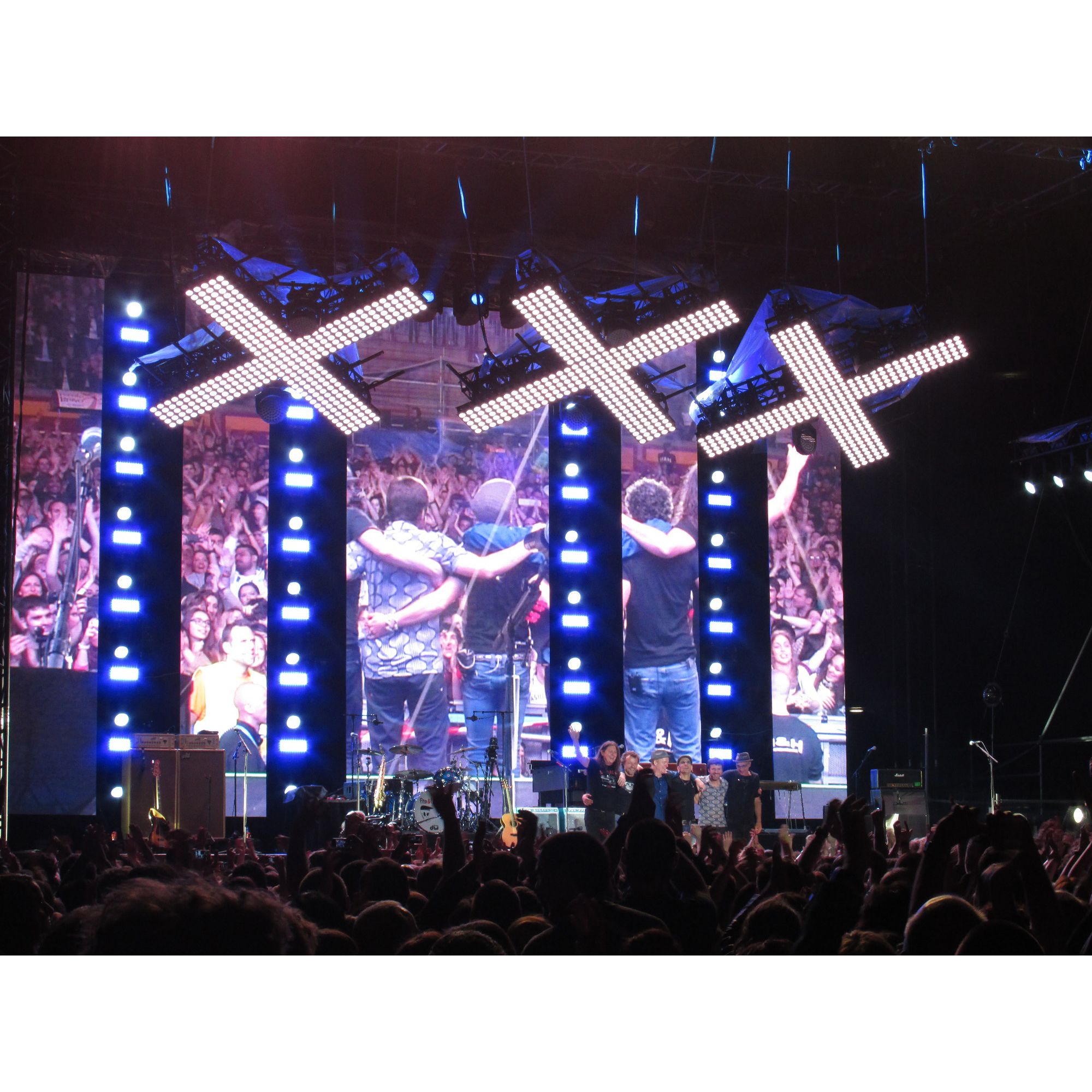

![PROTRON ECLYPSE Picture 14](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/P/r/Protron_Eclypse_1.jpg)
FEATURES
Versatile Color Blinder, Strobe, Wash LuminaireHigh Powered 1000W Air Cooled IPX4 Outdoor Rated
96 10W CREE RGBW 4-in-1 LEDs
31° Beam / 63° Field Angles
27,000+ Total Lumen Output
Brilliant Eye Candy Effects
Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25fps) Adjustable Strobe
DMX, RDM, Kling-NET and Art-NET Protocol Support
8/16 Bit RGB and RGBW Smooth Color Mixing Modes
Adjustable/Removable Yoke Bracket w/3-Position Holes
Interlocking System for Multiple Unit Matrix Designs
SOURCE
(96) 10W CREE 4-in-1 RGBW LEDs15,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
31° Beam / 63° Field Angles27,000+ Total Lumen Output
EFFECTS
Color Blinder, Strobe, and WashBrilliant Eye Candy Effects
Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25fps) Adjustable Strobe
8/16 Bit RGB and RGBW Smooth Color Mixing Modes
COLOR
RGBWCONTROL / CONNECTIONS
Multiple DMX Channel Modes (57 total channels)4 Button Touch Control Panel with OLED Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support
IP65 3/5pin DMX and RJ45 ethernet In/Out
IP65 Locking Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
SIZE / WEIGHT
Length: 24.9” (633mm)Width: 7.0” (177.5mm)
Vertical Height: 14.4” (364.8mm)
Weight: 34.6 lbs. (15.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz843W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2874.63
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
