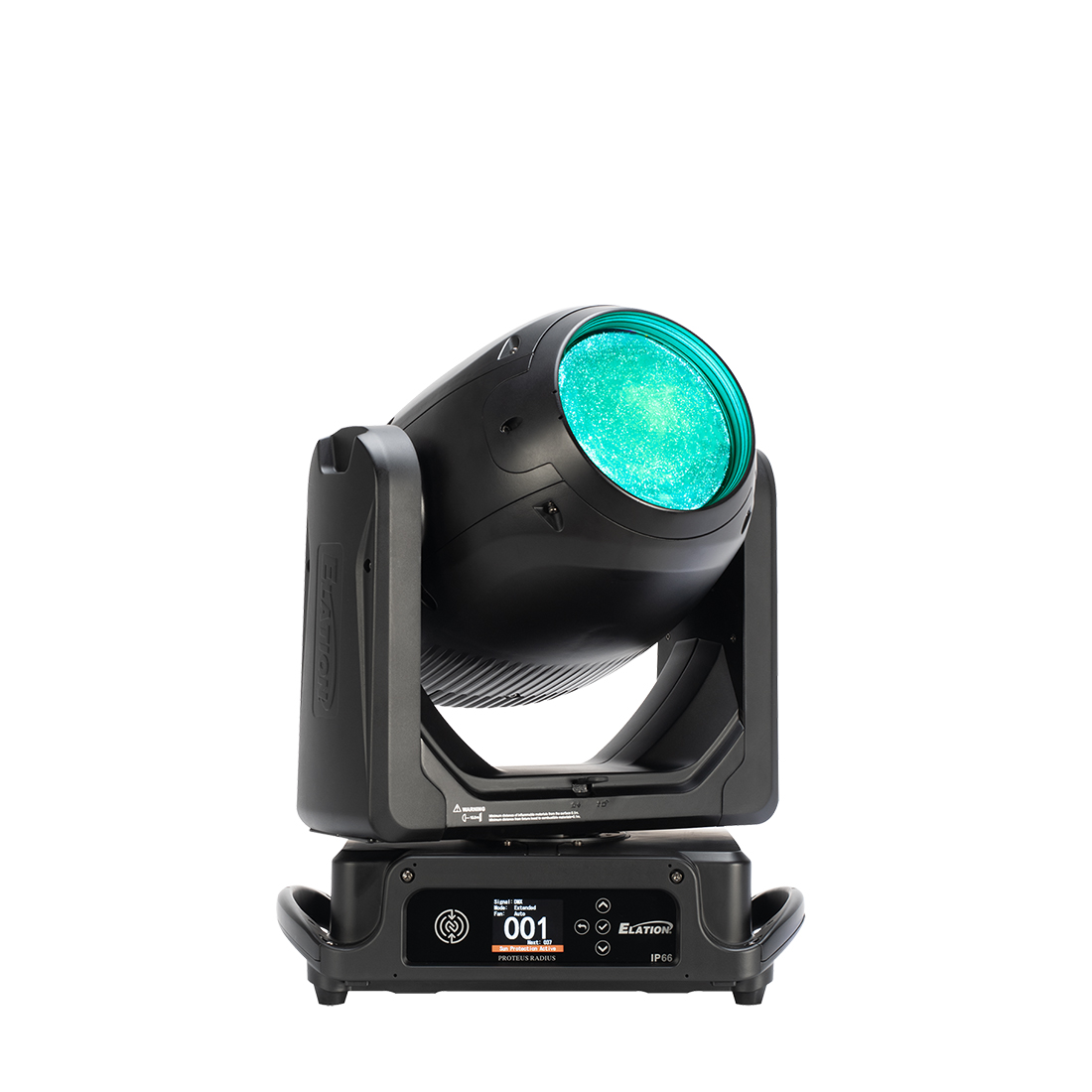

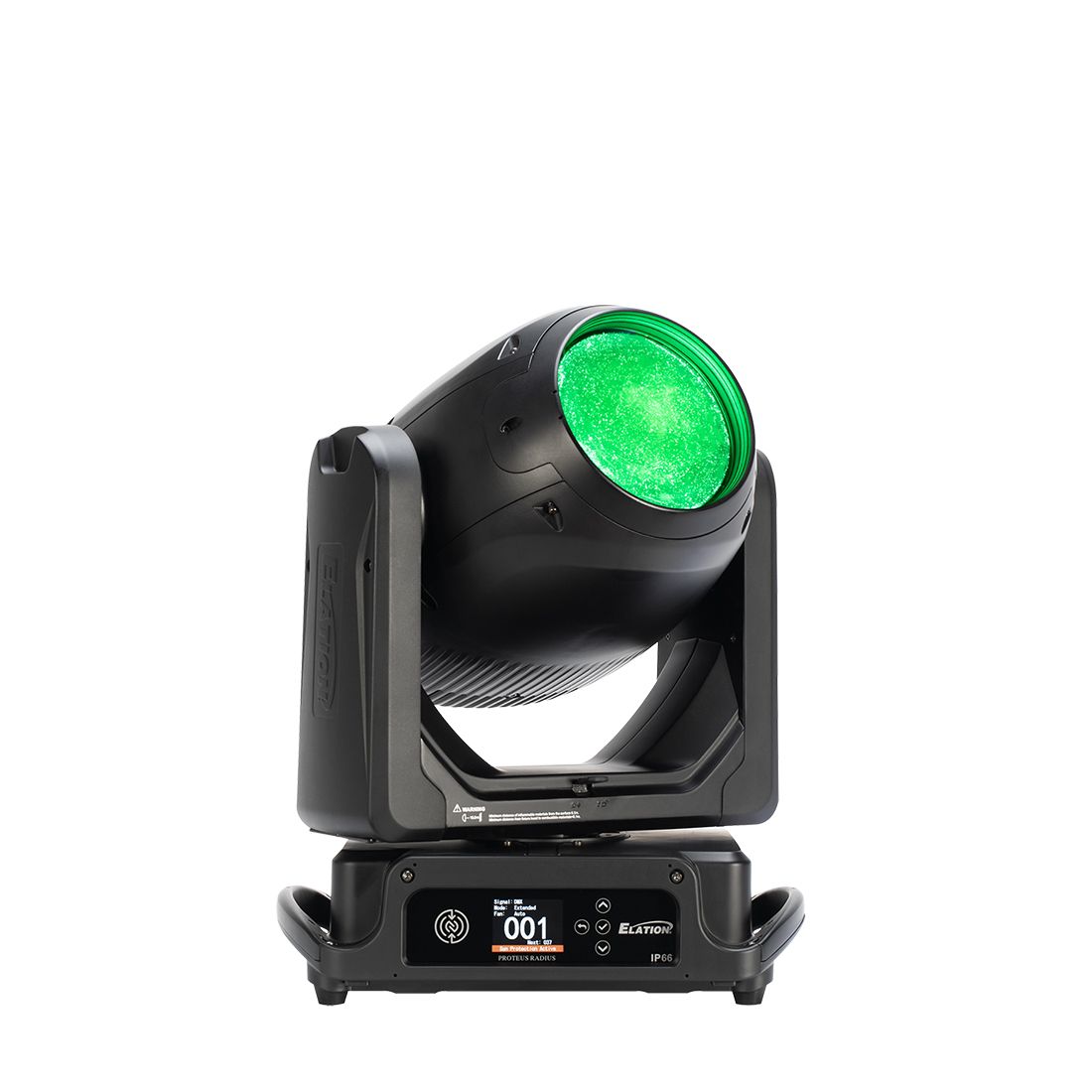

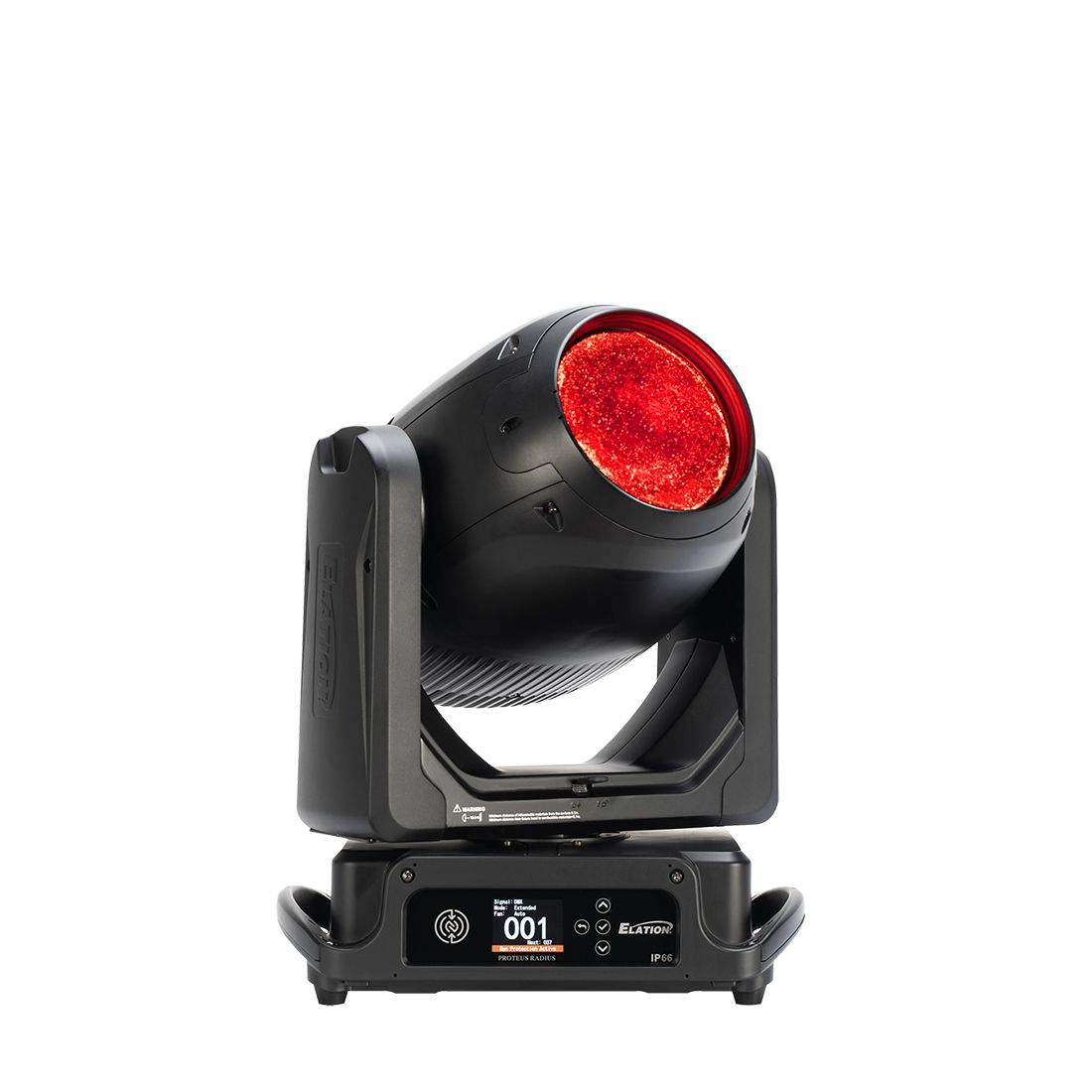

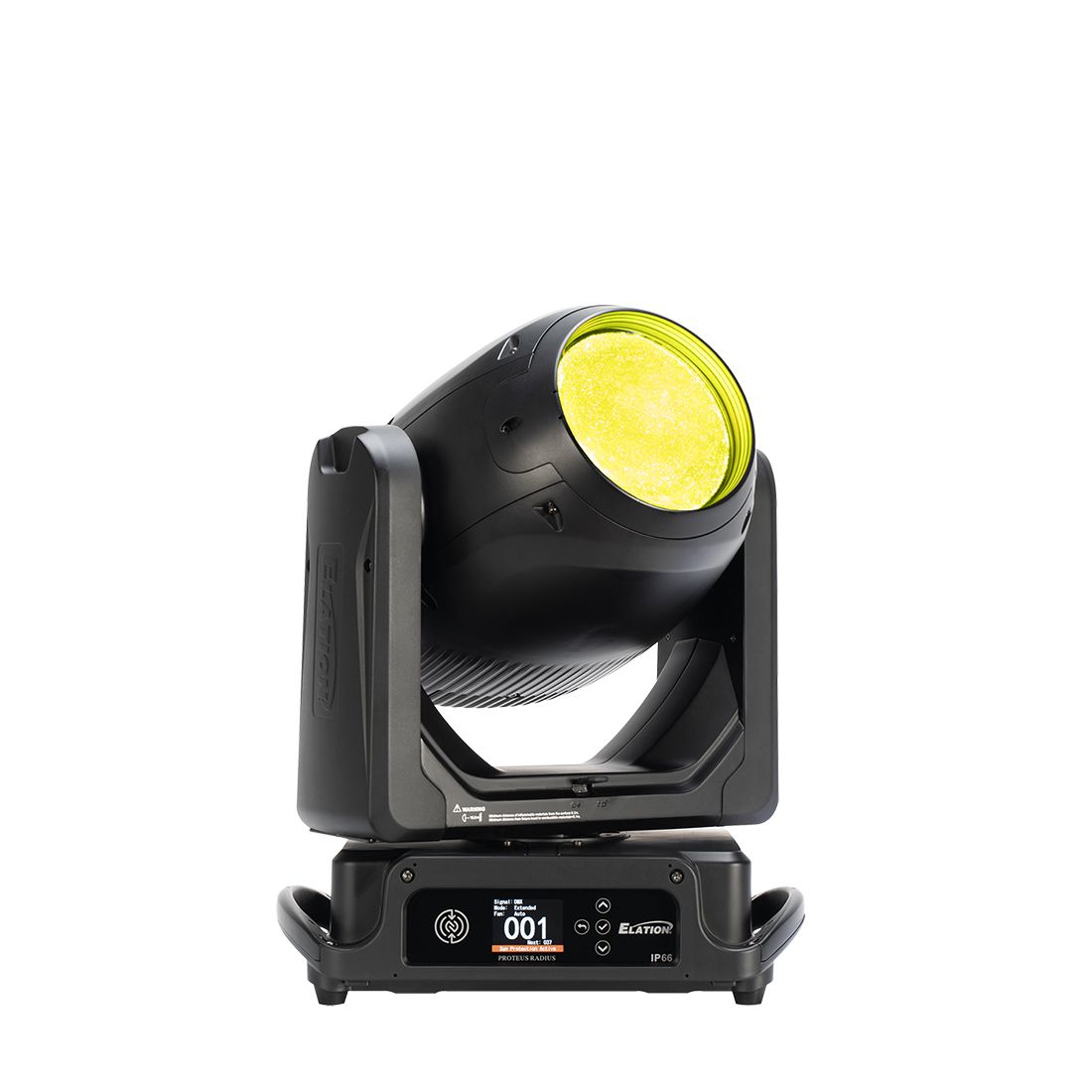

PROTEUS RADIUS

The PROTEUS RADIUS is a compact IP66 High Intensity Beam FX fixture.
Utilizing an efficient 100W Solid State Phosphor-Converted (SSPC) light engine the fixture projects narrow intense beams with incredible power at long distances.
Incredibly fast 360 Degree of Movement on both axis allow impactful beam animations, while the CMY color mix, gobos, prisms and frost options allow the designer to compose an endless array of stunning aerial effects.

Technical Data

FEATURES

100W Solid State Phosphor-Converted (SSPC) Light Engine
Compact and lightweight IP66 housing
Ultra Intense 0.9˚ Beam
Endless High-Speed 360 Pan and Tilt Movements
CMY Color Mixing CMY
FX Package with rotating, fixed gobo, 4 prisms and dual frost
NFC Support
FIL (Foam In Lay) Polyurethane Foam Packaging Included

SOURCE

100W Solid State Phosphor-Converted (SSPC) Light Engine
6000K, CRI 70
10,000 Hour Lamp Life*

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

2700 Lumen Total Fixture Output
Beam Angle 0.9˚

EFFECTS

Dual Frost
4 Prisms on Dual Planes
CMY Color, Gobo, Prism Macros
Motorized Focus
Digital Shutter and Strobe

COLOR

Full CMY Color Mixing System
25 Position Color Wheel

GOBOS

2 Gobo Wheels
13 Interchangeable-Rotating / Indexing Metal Gobos
24 Static-Stamped Metal Gobos

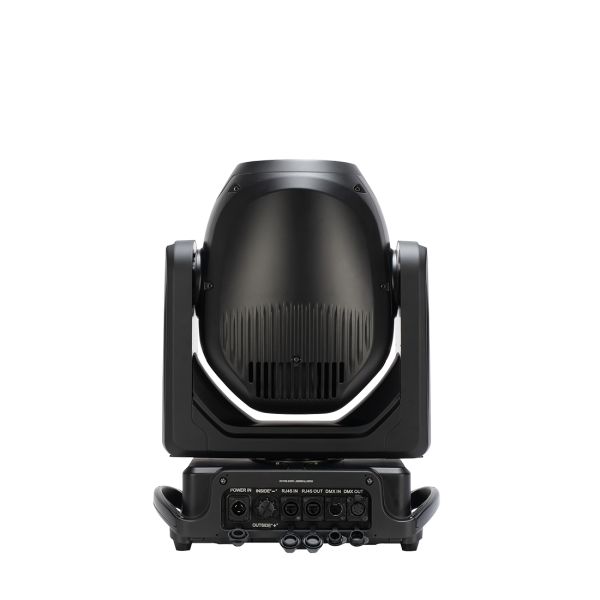

CONTROL / CONNECTIONS

2 DMX Channel Modes
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
5pin DMX In/Out
RJ45 Ethernet In/Out
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 270mm (10.6")
Width: 395mm (15.5")
Vertical Height: 516mm (20.3")
Center-to-Center:405mm(15.9")
Weight: 20.4 kg (45 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
300W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Cyan Cyan
 Cyan 2 Cyan 2
 Green Green
 Green 2 Green 2
 Kelly Green Kelly Green
 Red Red
 Blue Blue
 Blue 2 Blue 2
 Deep Blue Deep Blue
 Orange Orange
 UV UV
 High CRI High CRI
 Yellow Yellow
 Yellow Green Yellow Green
 Magenta Magenta
 C.T.O. C.T.O.
 CTB CTB
 Light Blue Light Blue
 Pink Pink
 Wine Pink Wine Pink
 RYBG RYBG
 Light Yellow Light Yellow
 Deep Yellow Deep Yellow
 Lavender Lavender
 Amber Amber
Gobo Wheel 1
Gobo 10
 Gobo 52
 Gobo 72
 Gobo 132
 Gobo 133
 Gobo 134
 Gobo 135
 Gobo 136
 Gobo 137
 Gobo 138
 Gobo 139
 Gobo 156
 Gobo 160
Gobo Wheel 2
Gobo 1
 Gobo 39
 Gobo 40
 Gobo 53
 Gobo 54
 Gobo 62
 Gobo 95
 Gobo 140
 Gobo 141
 Gobo 142
 Gobo 143
 Gobo 144
 Gobo 145
 Gobo 146
 Gobo 147
 Gobo 148
 Gobo 149
 Gobo 150
 Gobo 151
 Gobo 152
 Gobo 153
 Gobo 154
 Gobo 155
 Gobo 161
