Code
1236300043
![PRO FS 15R Follow Spot Picture](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236300043_1.jpg)
![PRO FS 15R Follow Spot Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236300043_back_1.jpg)
![PRO FS 15R Follow Spot Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236300043_color_1.jpg)
![PRO FS 15R Follow Spot Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236300043_fx_1.jpg)
![PRO FS 15R Follow Spot Picture 5](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236300043_fx2_1.jpg)
![PRO FS 15R Follow Spot Picture 6](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation_pro_fs_15r_in_road_case_1.jpg)
![PRO FS 15R Follow Spot Picture 7](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation_pro_fs_15r_road_case_1.jpg)
FEATURES
5° - 10° Manual Zoom

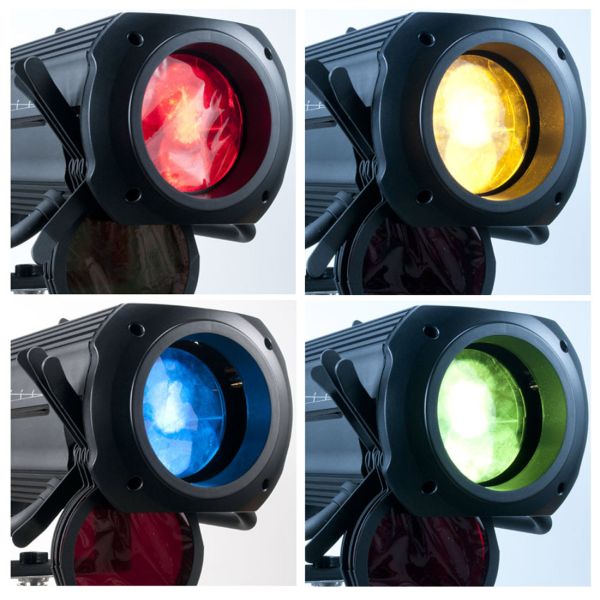

(5) Motorized Dichroic Colors Including CTB plus White
(4) Manual Gel Frame Holders
Variable Color Temperature Settings (3,200K - 6,800K)
SOURCE
Philips™ MSD Platinum 15R Lamp
13,500 Total Lumen, 8,000K >75 CRI
2,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
10,770 LUX 1,001 FC @ 32.8’ (10m)
EFFECTS
Iris and Manual Framing Shutters
Frost Filter
Stepless CTO
Dimming: 0% - 100%
CONTROL / CONNECTIONS

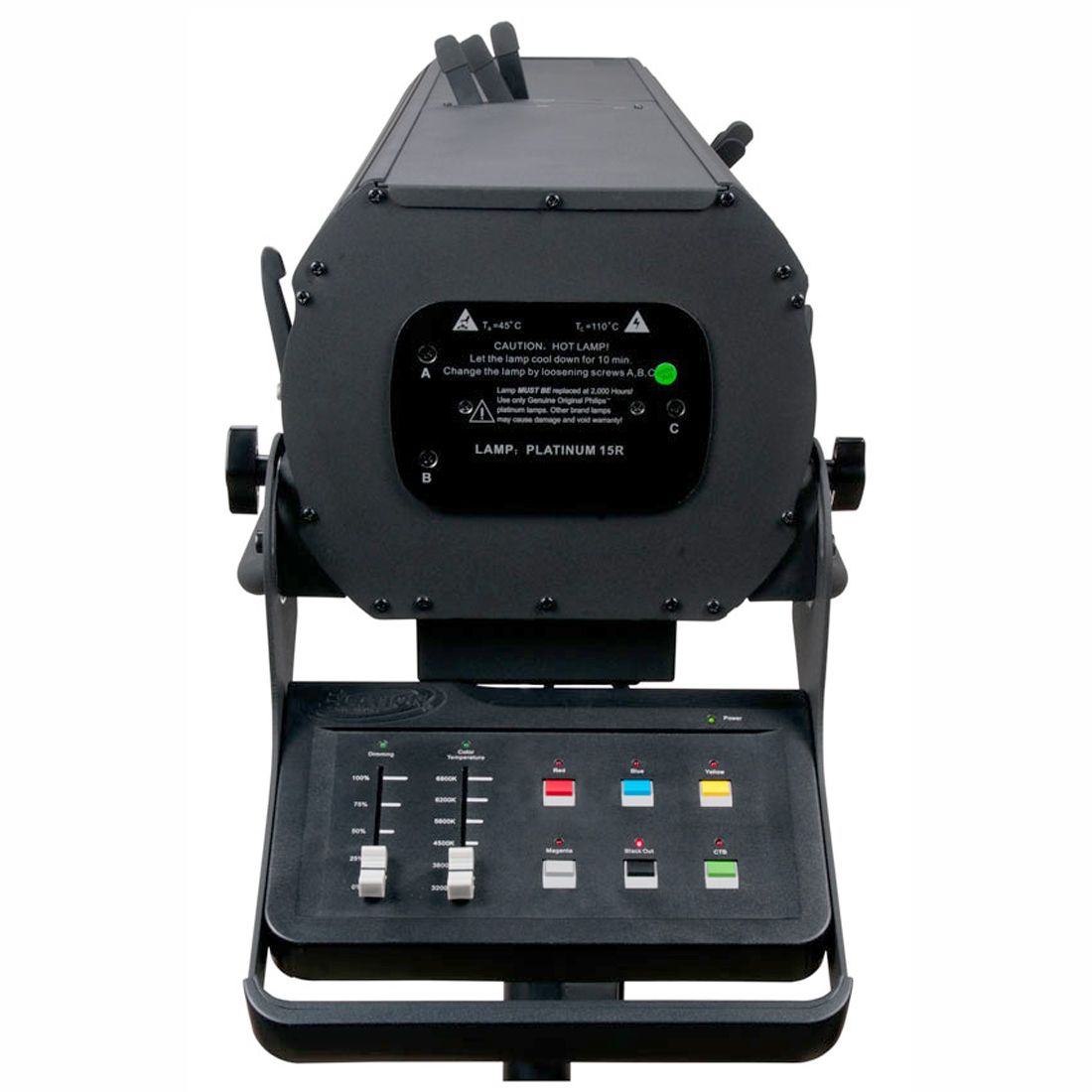

Remote Panel
(6) Push Buttons
(2) Faders (Dimming + Color Temperature)
Locking power connector In
Power Switch
SIZE / WEIGHT
Followspot
Length: 42.0” (1068mm)
Width: 14.9” (376mm)
Vertical Height: 10.0” (255mm)
Weight: 52.0 lbs. (24 kg)

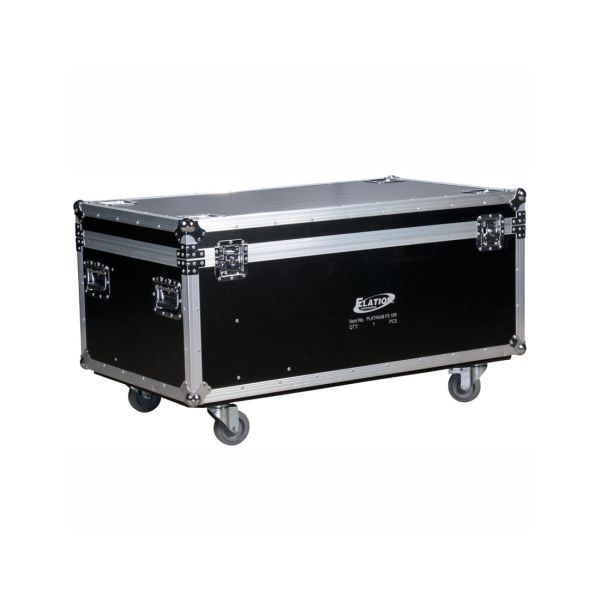

Road Case
Length: 46.0” (1170mm)
Width: 26.8” (680mm)
Vertical Height: 25.6” (650mm)
Weight: 174.0 lbs. (79 kg) (with followspot + stand)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

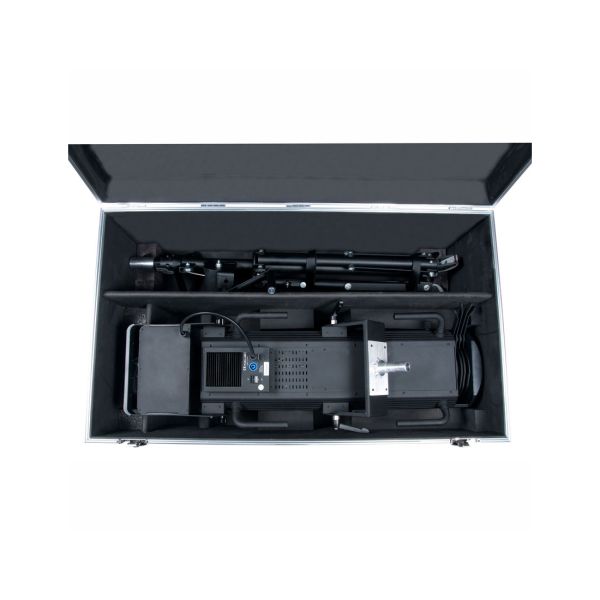

INCLUDED ITEMS
Roadcase
Tripod Stand with Winch
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
