  • Prisma Driver 8
Code 1237000230

Prisma Driver 8

The PRISMA DRIVER 8™ is an easy to use 48VDC driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™, and the PRISMA MINI BAR 20™.

Features include a rugged aluminium housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 2pin bare wire terminal blocks, DMX 5pin locking XLR in/out, and locking power in/out.

Technical Data

FEATURES

48VDC Power Driver for up to 8 PRISMA MINI UV LED Fixtures
2pin Bare Wire Block Terminal Connections (x8)
DMX-512 and Manual Control

SPECIFICATIONS

CONSTRUCTION

Rugged Aluminum Housing

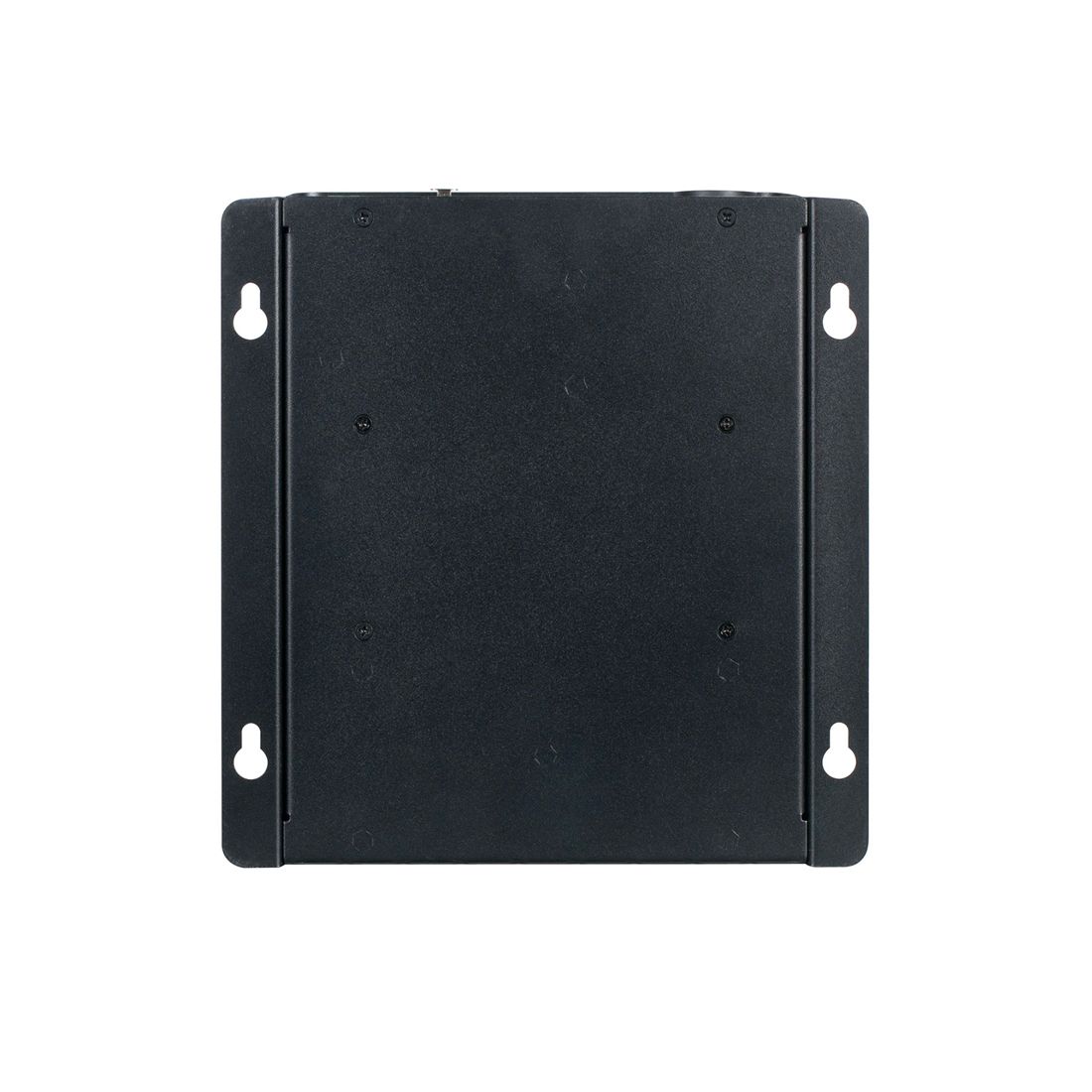

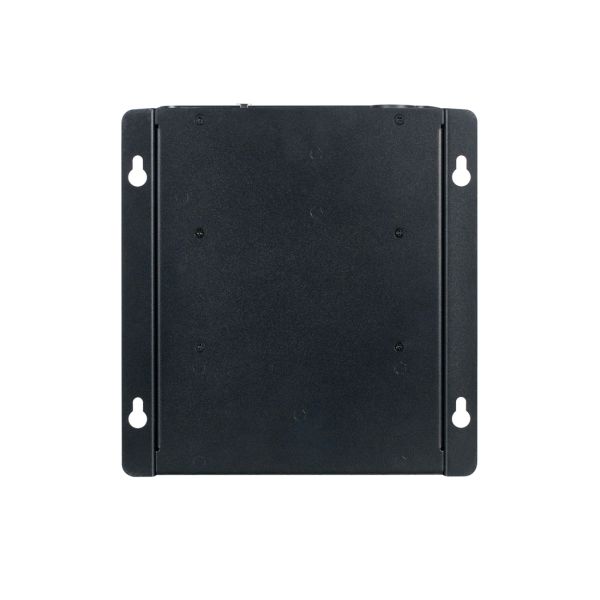

Easy Keyhole Slots for Wall/Surface Mounting

CONTROL

Multiple DMX Channel Modes

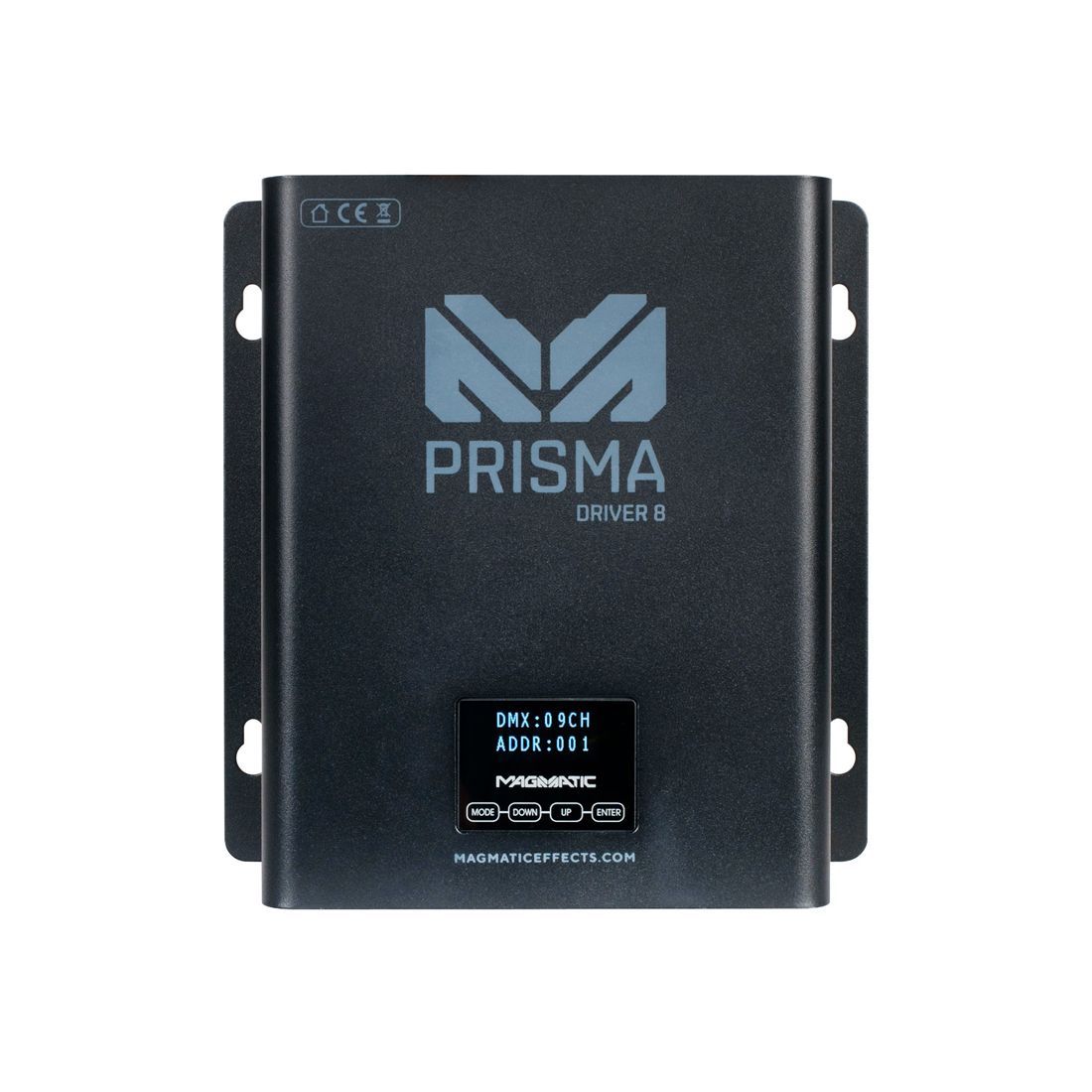

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

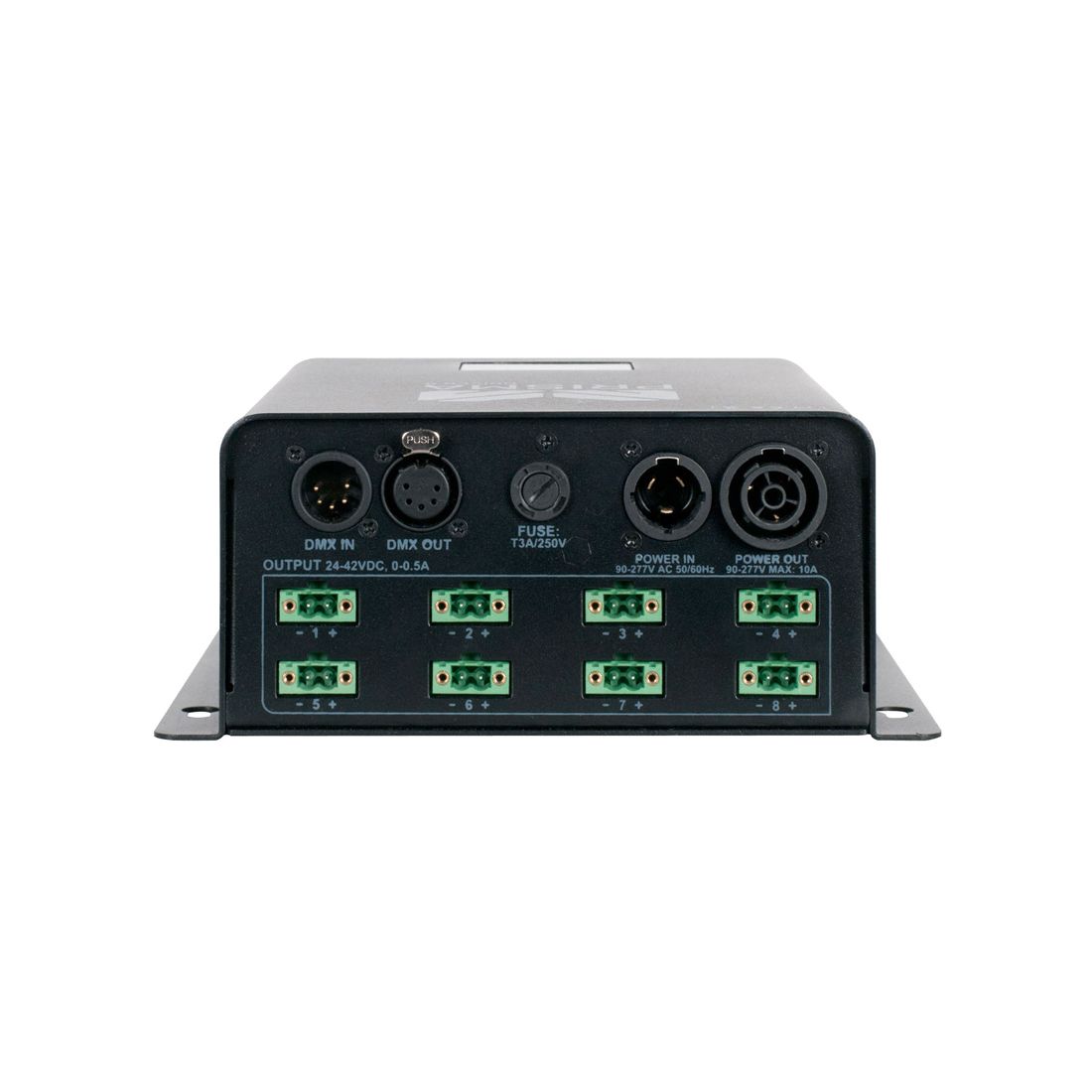

CONNECTIONS

8x 2pin Bare Wire Block Terminals (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 225mm (8.9 in.)
Width: 212mm (8.4 in.)
Vertical Height: 88mm (3.5 in.)
Weight: 2.6 kg (5.7 lbs.)

ELECTRICAL

AC100-240V 50-60Hz
48VDC 8.3A
167W Max Power Consumption

THERMAL

Maximum Temperature (Ambient): 45° C (113° F)
Minimum Temperature (Ambient): -10° C (14° F)

FIRMWARE UPDATES

Current firmware can be found here (login required)


Specifications and documentation subject to change without notice
