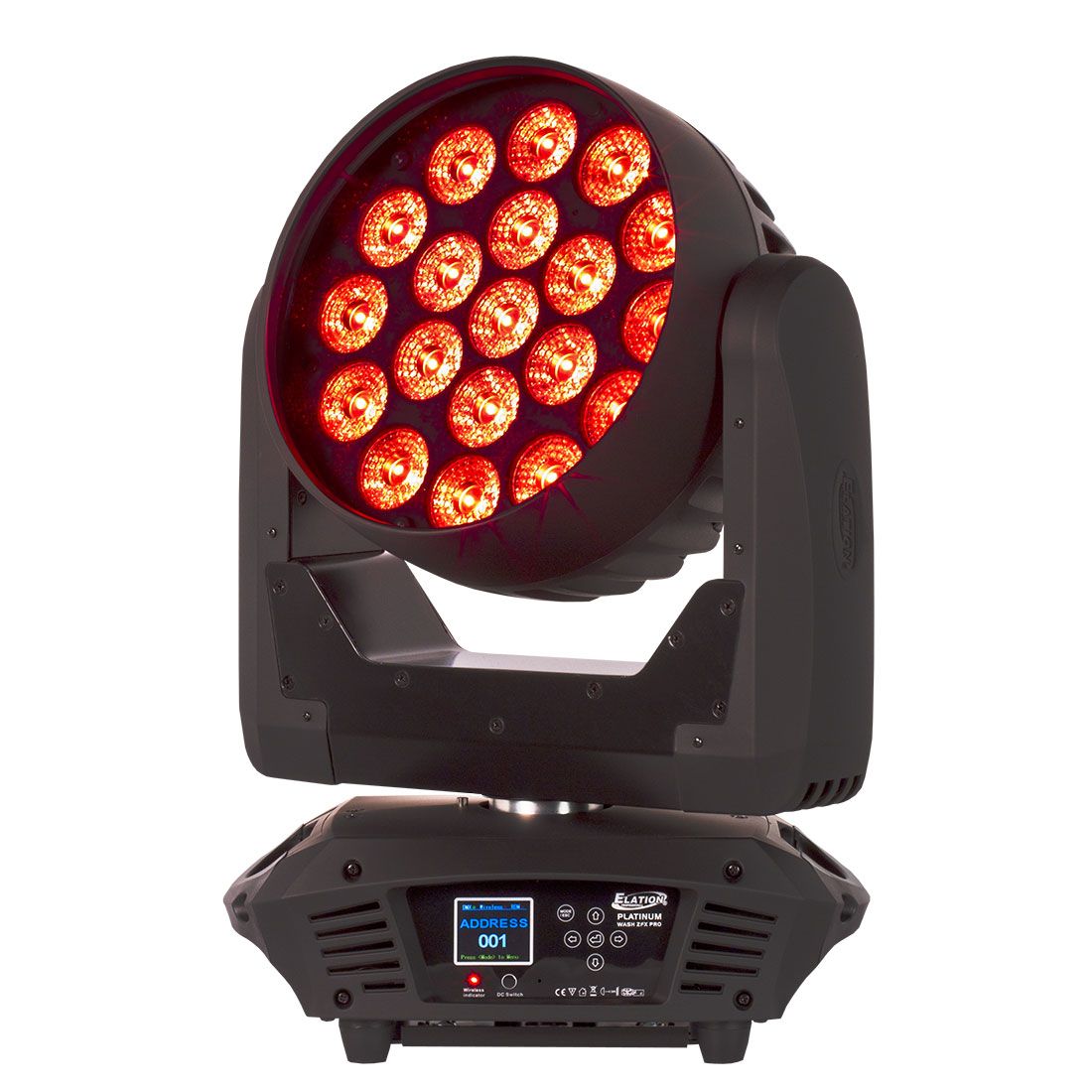

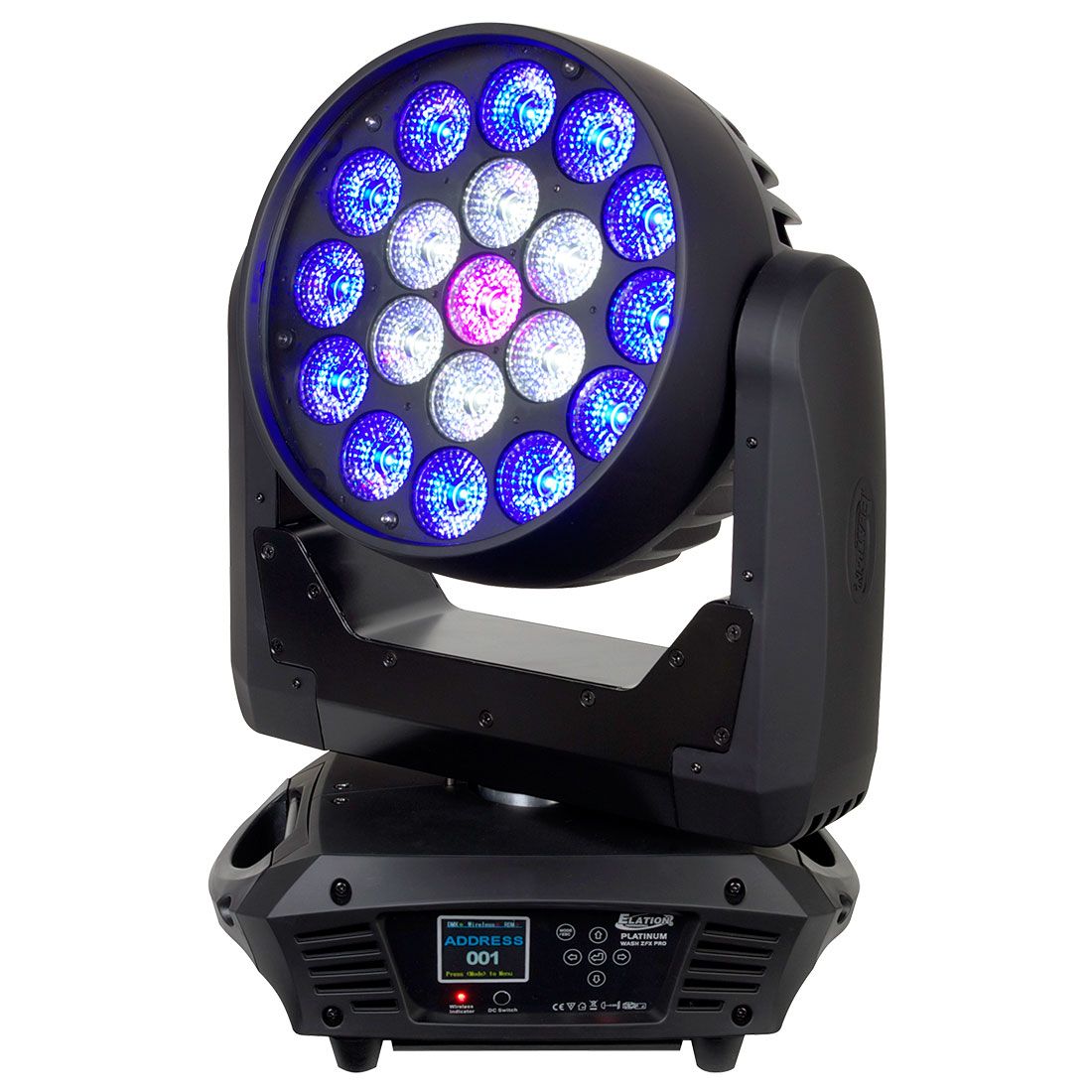

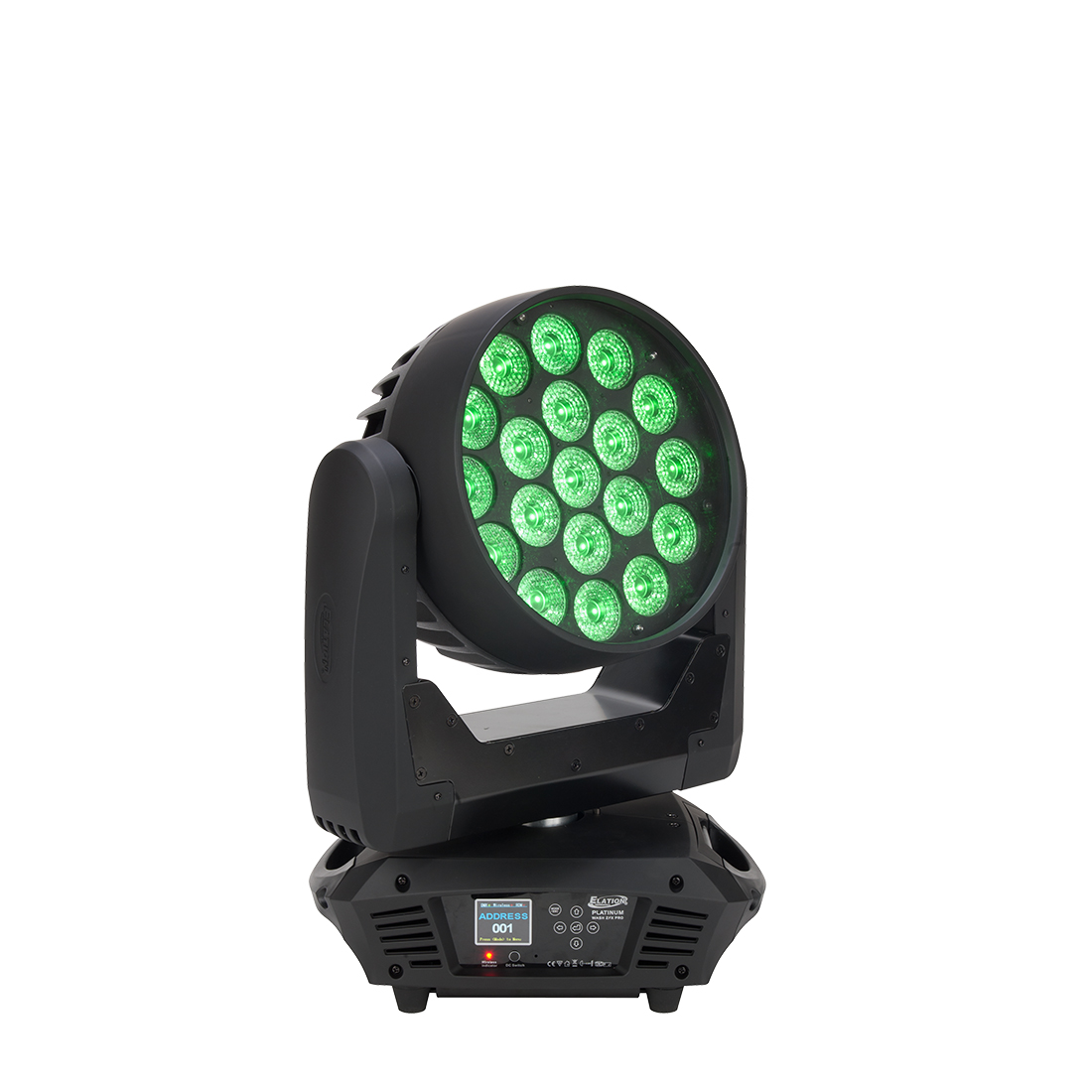

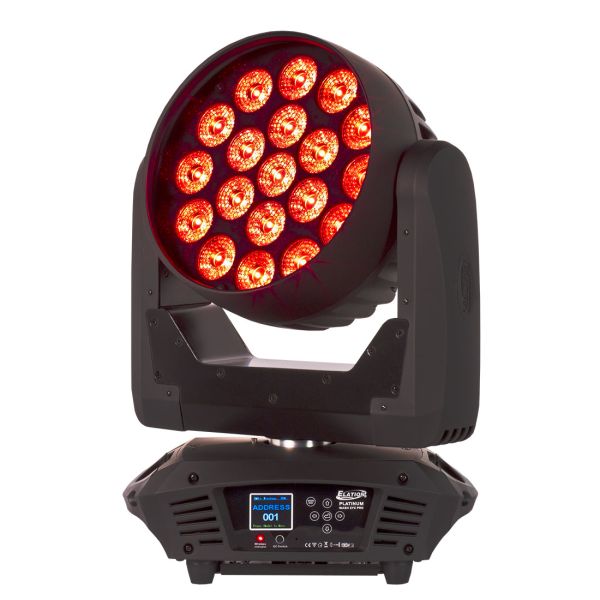

Platinum Wash ZFX Pro

The Platinum Wash ZFX PRO™ features (19) 15W OSRAM RGBW LEDs producing similar output to a 700W wash fixture, motorized zoom (9° - 43°), multiple zone control, built-in EWDMX receiver, electronic strobe and dimming (0-100%), flicker free operation for TV and FILM, locking 3/5pin in/out DMX and locking power in connections, (6) button touch control panel, 370W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).

Technical Data

FEATURES

540°/630° Pan
265° Tilt
8 / 16 Bit Resolution Adjustable Movement
Similar to 700-Watt Wash Fixture
9° to 43° Zoom Range
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Primary/Secondary Function
Software Upload via Optional External DMX Accessary


LAMP

19x 15W OSRAM Quad RGBW LEDs
100,000 Hour Average Life


PHOTOMETRICS

Zoomrange: 9° to 43° Beam Angle


EFFECTS

Zone Chase Control
Electronic Smooth Dimming: 0% - 100%


COLOR

RGBW Quad Color LEDs


CONTROL / CONNECTIONS

3 DMX Channel Modes (20 / 32 / 42)

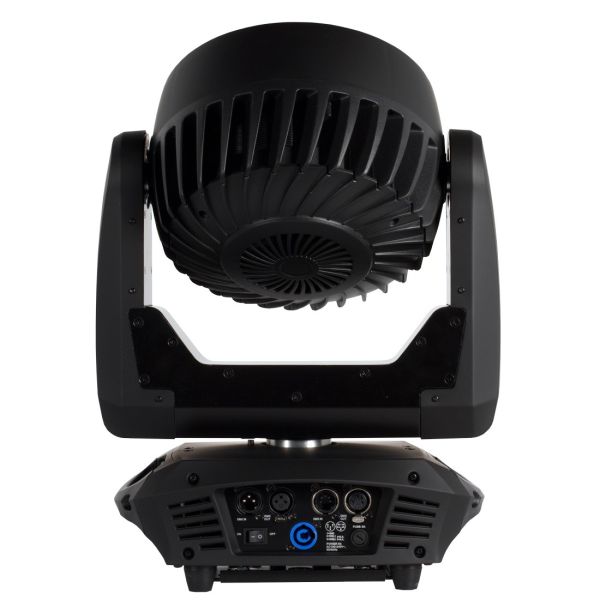

Locking 3pin & 5pin XLR DMX In/Out
Locking power In


SIZE / WEIGHT

Length: 367mm
Width: 230mm
Vertical Height: 495mm
Weight: 14,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
370W Max Power Consumption
-25°C to 45°C


FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
