  • Platinum SEVEN
Code 1237000143

Platinum SEVEN

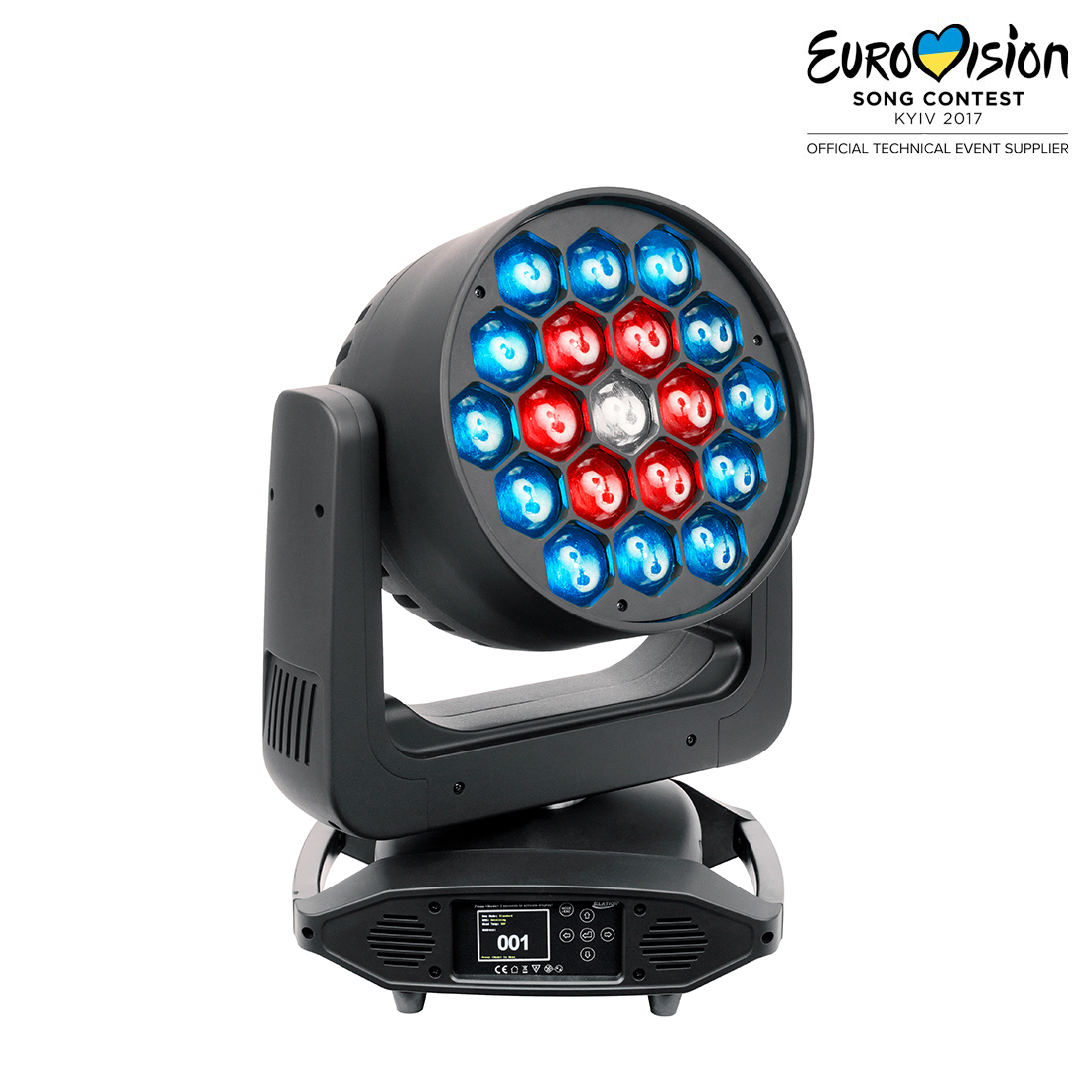

The Platinum Seven™ is a versatile 7-color wash fixture featuring (19) 25W RGBWA+Cyan+UV multi-chip LEDs. Features include a fast 5° - 50° motorized zoom, advanced high efficiency low noise cooling and movement control systems, silent mode which reduces fan noise by over 25% decibels, CRI presets (85, 90, 95), variable color temperature (2,700K – 8,000K), multiple ring control, variable dimming curves, DMX, RDM (Remote Device Management), Art-NET, sACN and KlingNET™ (DMX over Ethernet) support, Locking 5pin XLR DMX in/out, RJ45 Ethernet in/out, and Power in/out connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 600W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Patent Pending High Power 7 Color Wash Luminaire

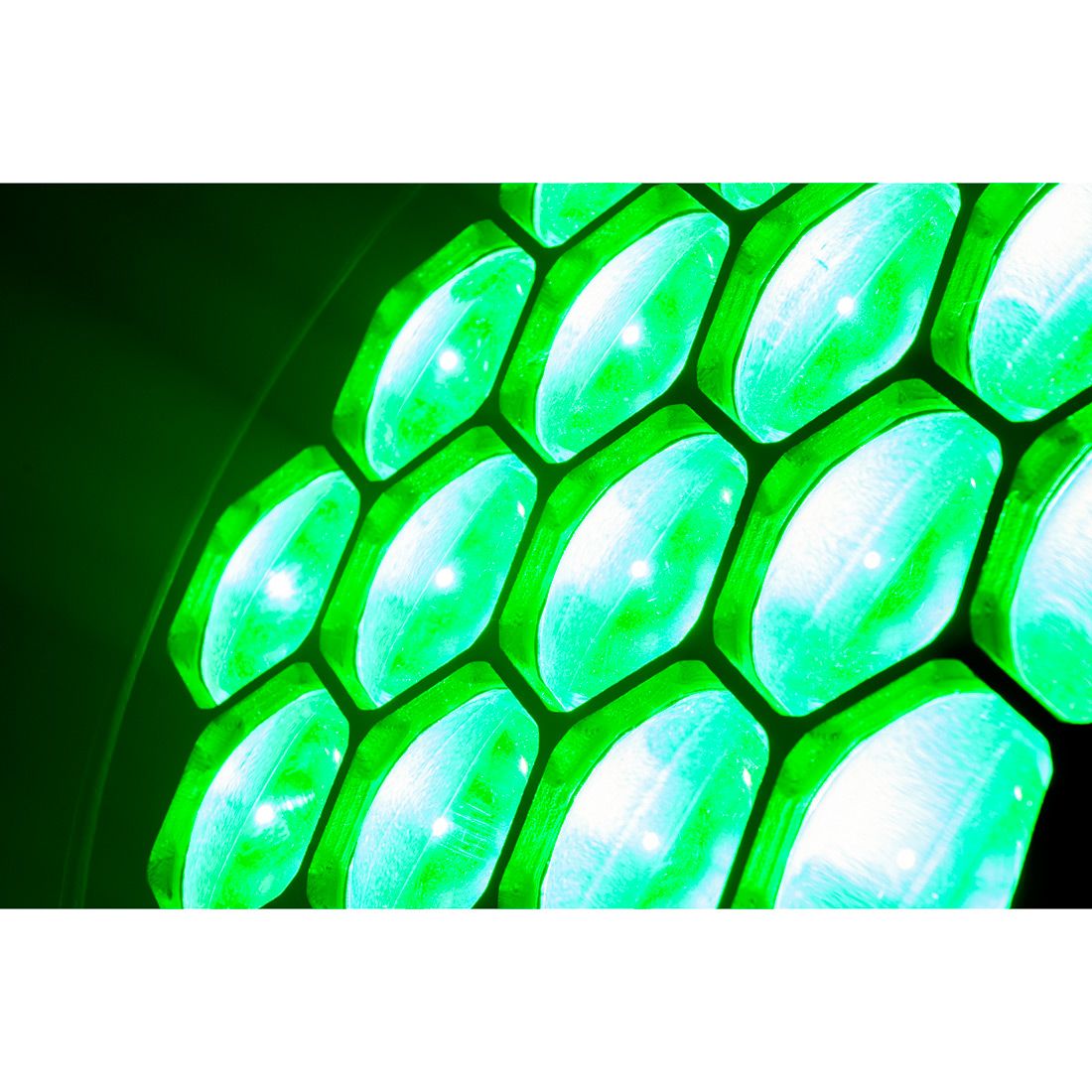

(19) 25W Multi-Chip LEDs
5° - 50° Motorized Zoom Range
(3) Pixel Ring Control
RGBWA+Cyan+UV Color Mixing
Linear Color Temperature Presets (2,700 - 8,000K)
Pan/Tilt Lock
Advanced Cooling and Movement Control Systems
Silent Mode - Reduces Fan Noise by 25% Decibels
CRI Presets (85, 90, 95)
Adjustable Refresh Frequency and Gamma Brightness
Variable Dimming Curves
Flicker Free Operation for TV and Film
Art-NET, sACN and KlingNET™ (DMX over Ethernet) Support
RDM – Remote Device Management


SOURCE

(19) 25W RGBWA+Cyan+UV 7-in-1 LEDs
50,000 Hour Average Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

11,365 LUX 1056 FC @ 5m (16.4’) (Min. Zoom)
357 LUX 33 FC @ 5m (16.4’) (Max. Zoom)


EFFECTS

Multiple Ring Control
Strobe: 1-25fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBWA+Cyan+UV
Variable Color Temperatures (2,700K – 8,000K)


CONTROL / CONNECTIONS

(3) DMX Channel Modes (24 / 31 / 40)
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Adjustable CRI Settings (85, 90, 95)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

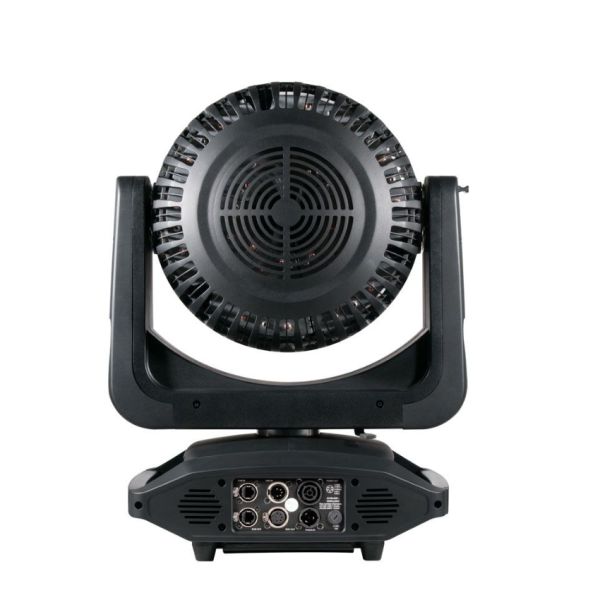

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET / sACN)
Power In/Out


SIZE / WEIGHT

Length: 418.1mm (16.5”)
Width: 284.4mm (11.2”)
Vertical Height: 515.8mm (20.3”)
Weight: 21.3 kg (47.0 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
600W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2,046


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1521000287 Touring Case 2x Platinum Seven
1521000288 PRO Case 2x Platinum Seven
1322000054 E Loader III


FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

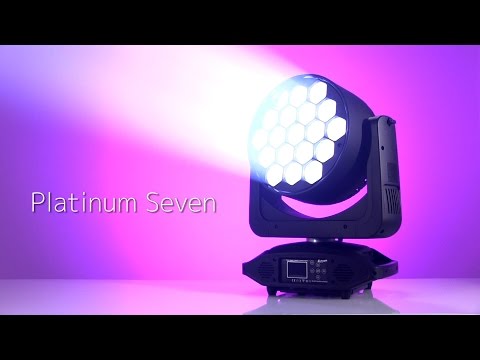

Videos
