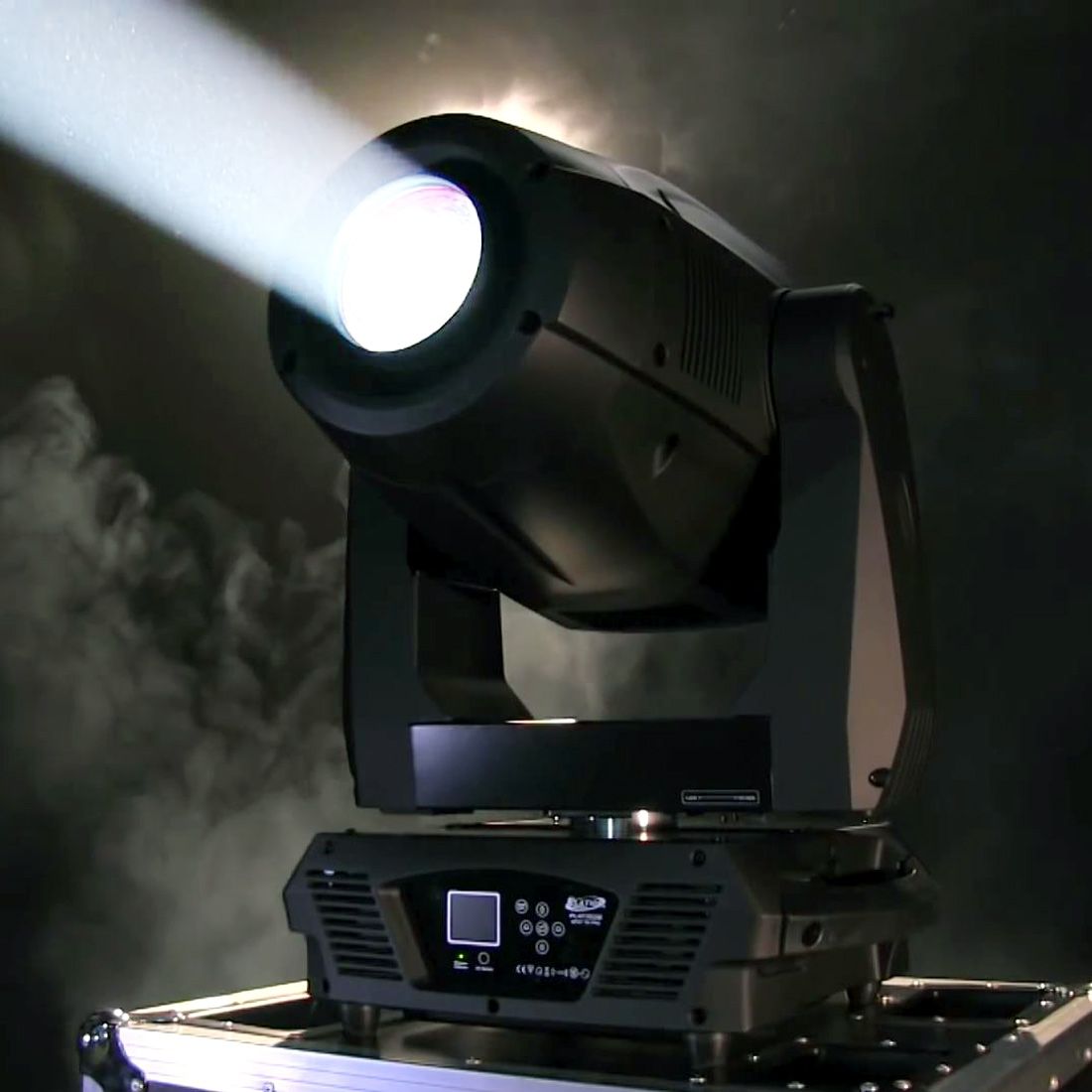

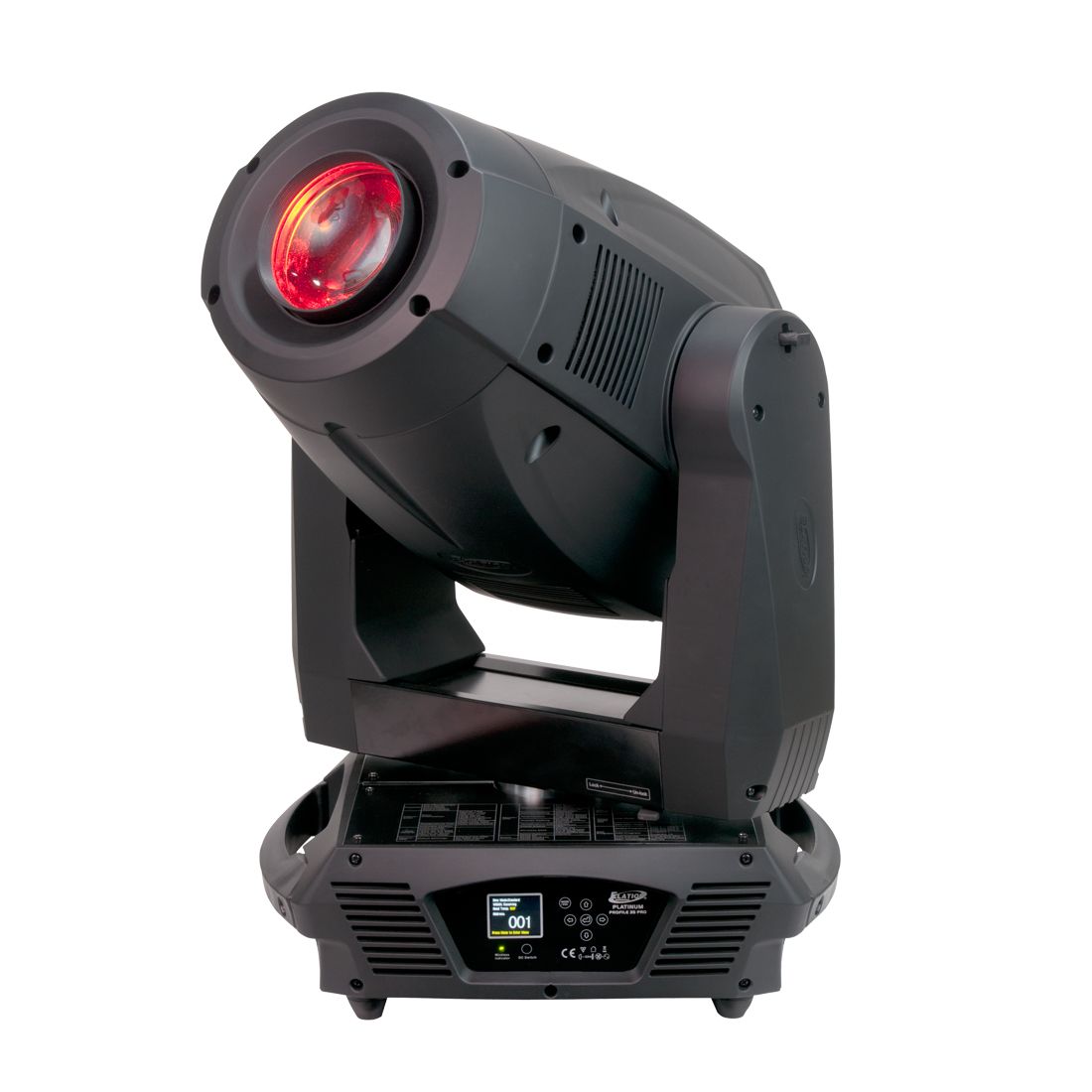

  • Platinum Profile 35 Pro
Code 1237000049

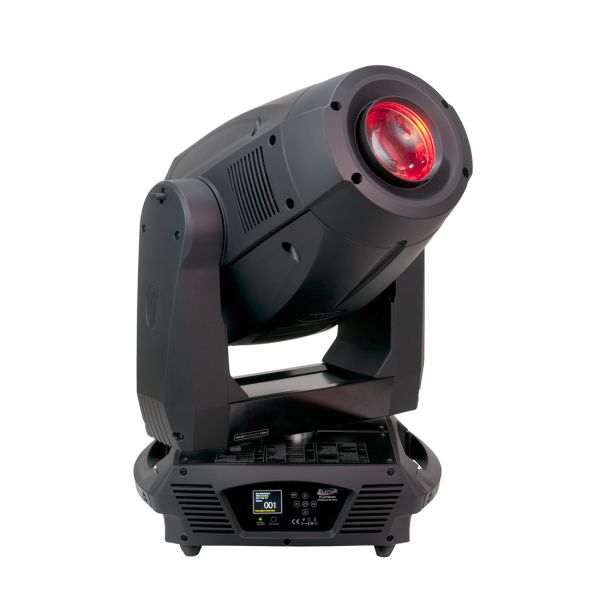

Platinum Profile 35 Pro

The new Platinum Profile 35 PRO™ features the MSR Platinum 35, 800W lamp from Philips™, motorized 4-blade framing shutter module, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 6 interchangeable, rotating and indexing glass gobos, 3 fixed indexing metal gobos and a 160° animation effect, variable CMY color mixing and CTO, a static color wheel with 8 dichroic colors including UV, CTB and white (open), 3-facet rotating prism, frost filter, motorized focus / zoom system with an 8° to 50° beam angle, pan/tilt lock, built-in EWDMX wireless DMX receiver, locking 3/5pin DMX in/out and locking power in connections, full color 180° reversible menu display with (6) button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Comparable Output to 1,200W Fixtures
Innovative Auto Focus Function
4-Blade Rotating Framing Module
Motorized 8° - 50° Zoom and Focus
CMY Color Mixing and Linear CTO Color Correction
Bi-Directional Animation and Frost Effects
3-Facet Rotating Prism
Pan/Tilt Lock
Internal EWDMX Wireless DMX Receiver
RDM - Remote Device Management


SOURCE

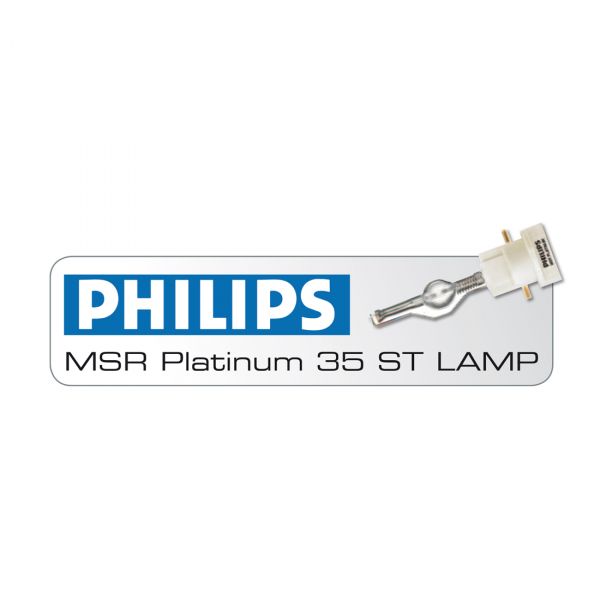

Philips™ MSR Platinum 35 800W Lamp
55,000 Lumen, 7,800K, >75 CRI
750 Hour Average Lamp Life


PHOTOMETRIC DATA

18,750 LUX @ 10M (8° Min. Zoom)
812 LUX @ 10M (50° Max. Zoom)


EFFECTS

4 Rotating Blade Framing Module
160° Animation Effect
3-Facet Prism and (16) Prism Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%


COLOR

Variable CMY Color Mixing
Linear CTO Color Correction
(8) Interchangeable Dichroic Colors Including UV, CTB + White


GOBOS

(2) Gobo Wheels
(6) Interchangeable / Rotating / Indexing Glass & Metal Gobos
(3) Static-Stamped / Indexing Metal Gobos + 160° Animation
Size: OD 29mm / ID 24mm


CONTROL / CONNECTIONS

3 DMX Channel Modes (37/39/60)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

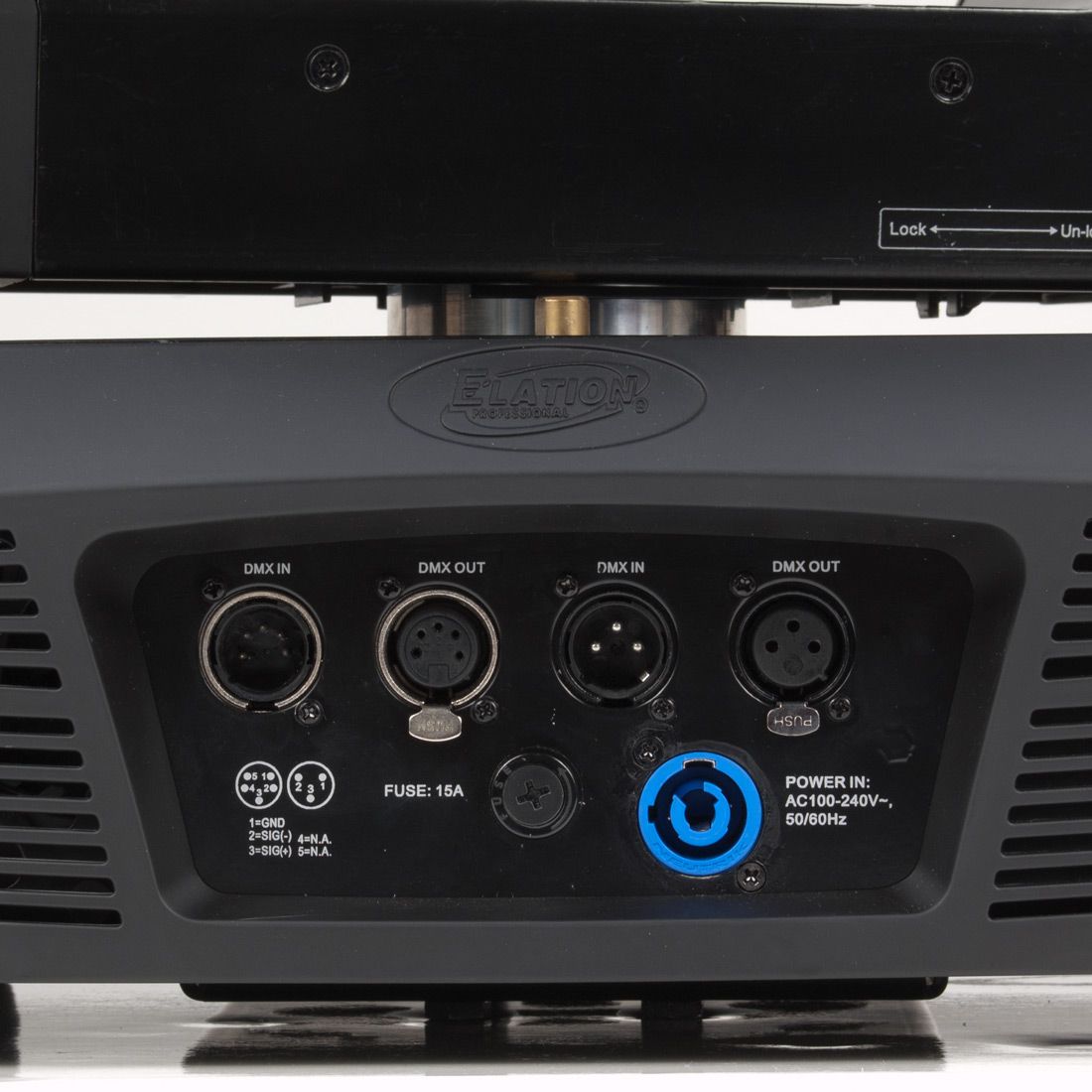

Locking 3/5pin XLR DMX In/Out
Locking power In


SIZE / WEIGHT

Length: 19.9” (506.5mm)
Width: 17.6” (447.3mm)
Vertical Height: 28.6” (726.5mm)
Weight: 88.2 lbs. (40 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1044W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


Specifications and documentation subject to change without notice
