Code 1237000123

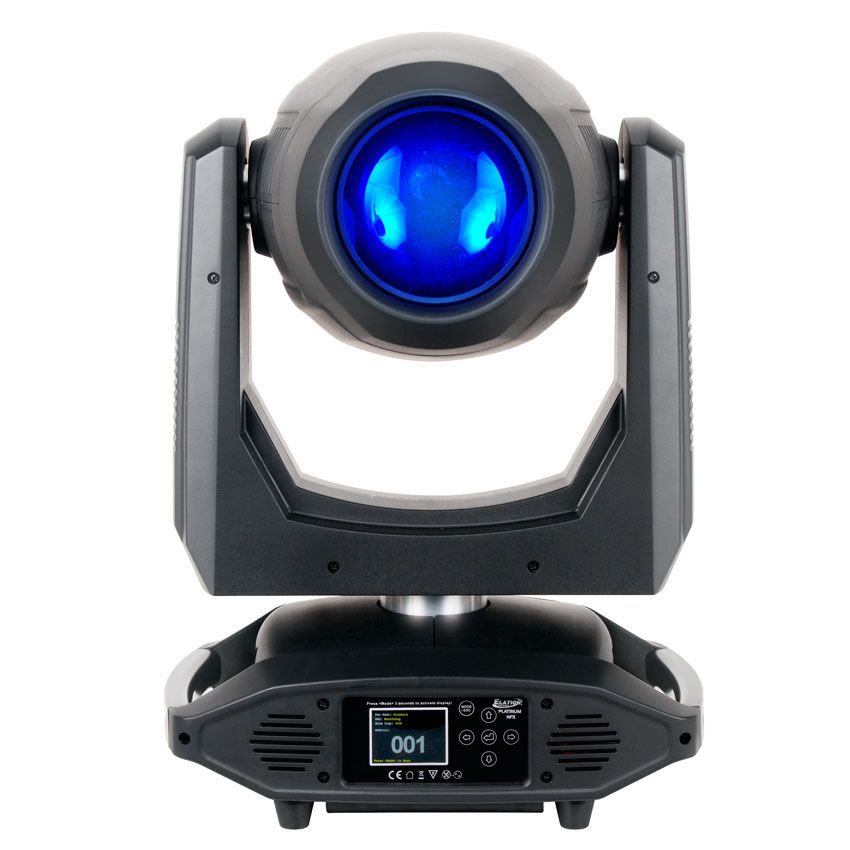

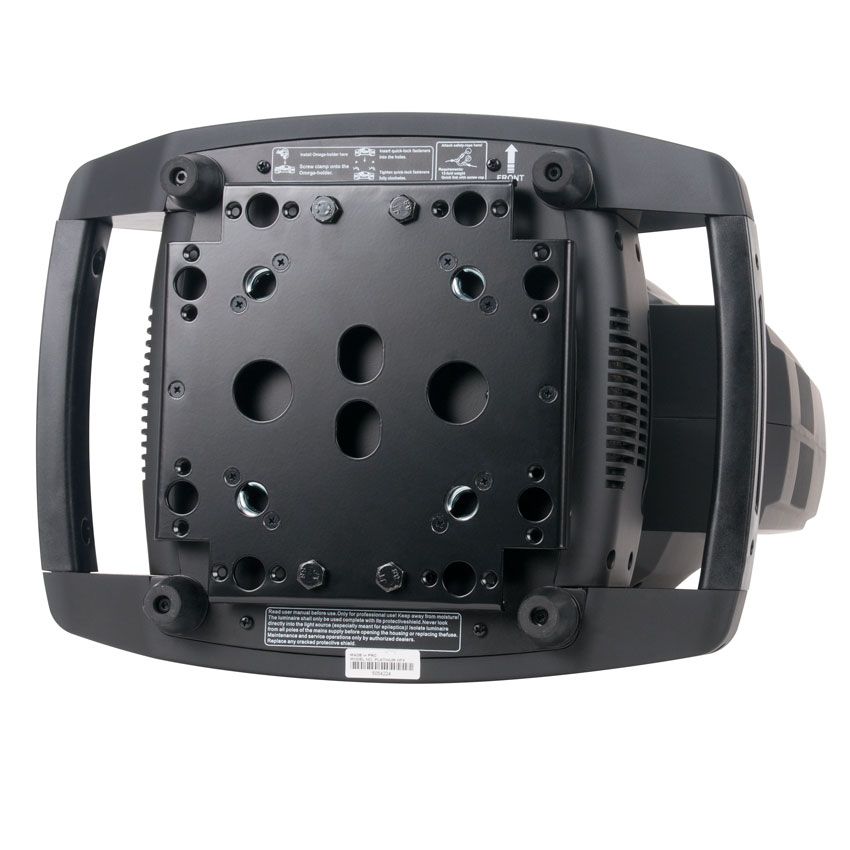

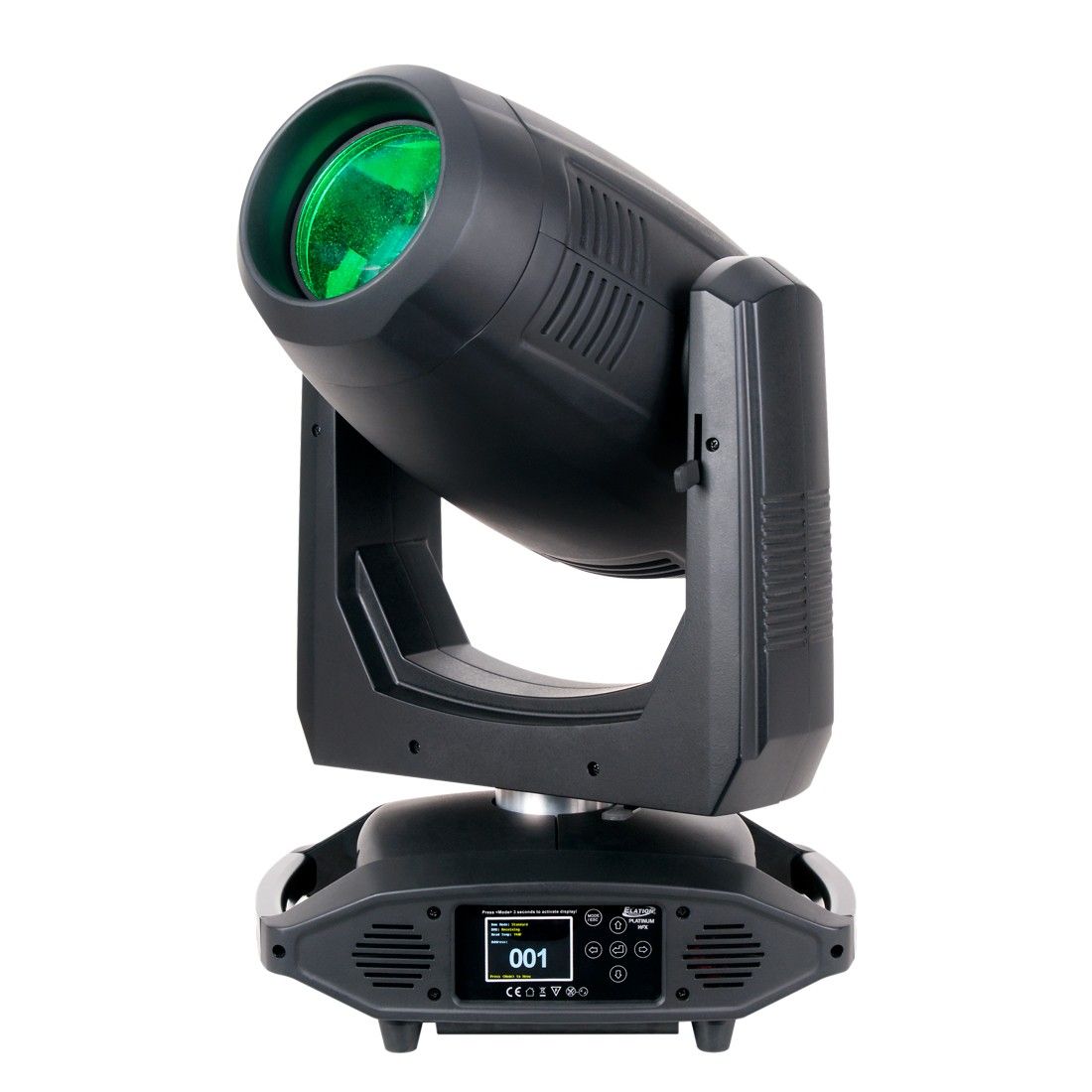

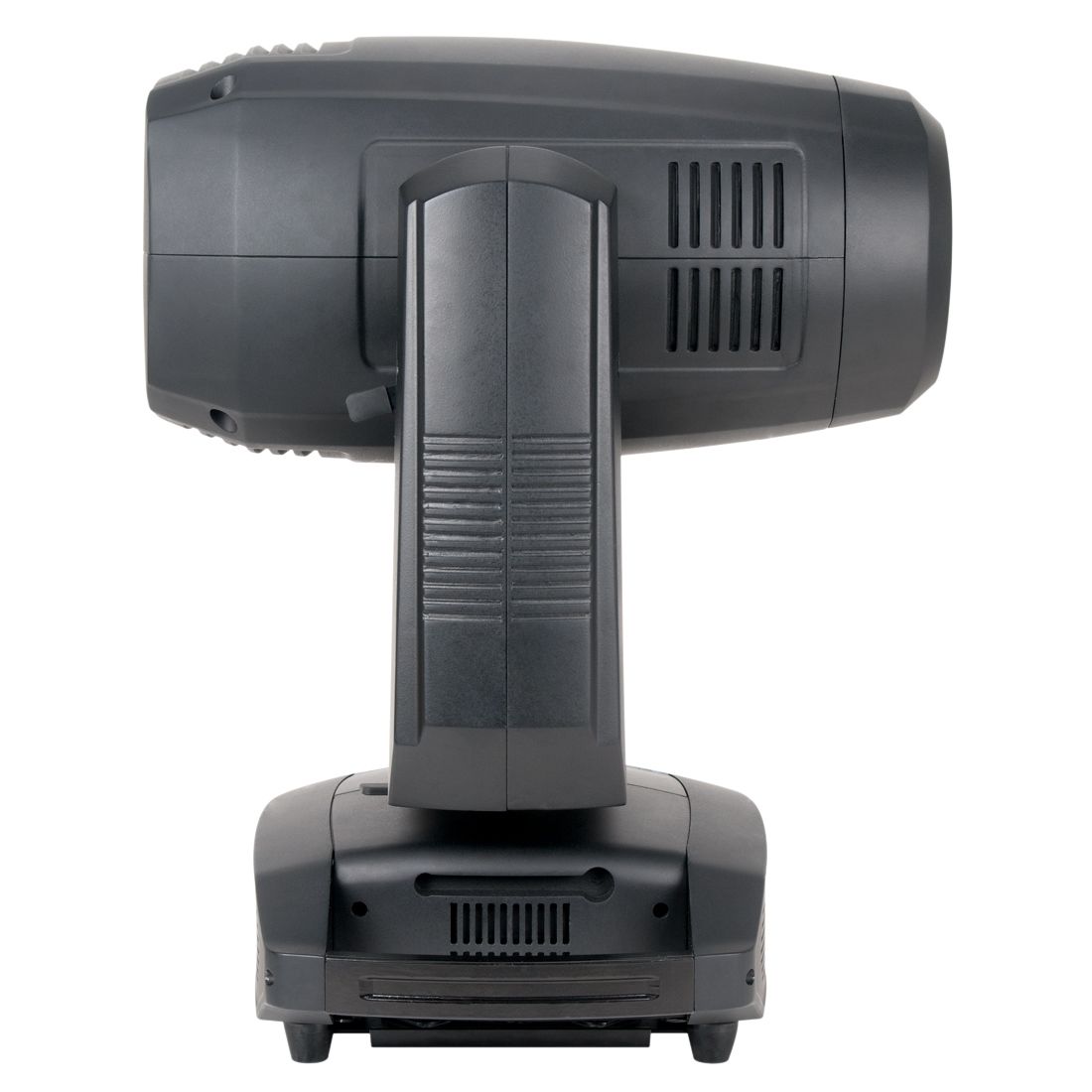

Platinum HFX

The Platinum HFX™ is a versatile hybrid 3-in-1 luminaire which can be utilized as a spot, beam or wash fixture. It features the Philips™ MSD Platinum 14R 280W 80CRI lamp, 7,800K, 12,000 lumen, 3° to 22° zoom in spot mode, 2.3° to 15° zoom in beam mode and 10° to 34° zoom in wash mode, 13 dichroic colors including UV, CTO, CTB, a new Quad Color (RGBY) filter and white (open), 8 rotating, interchangeable glass & metal gobos and 12 static-stamped gobos, prism overlay effect using 6-facet linear plus 8-facet rotating and 10-facet static prisms with prism morphing, DMX, Art-NET and sACN (DMX over Ethernet) support, locking 5pin DMX in/out, locking RJ45 ethernet in/out and locking power in/out connections, 6 button control full color 180° reversible menu display, 450W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

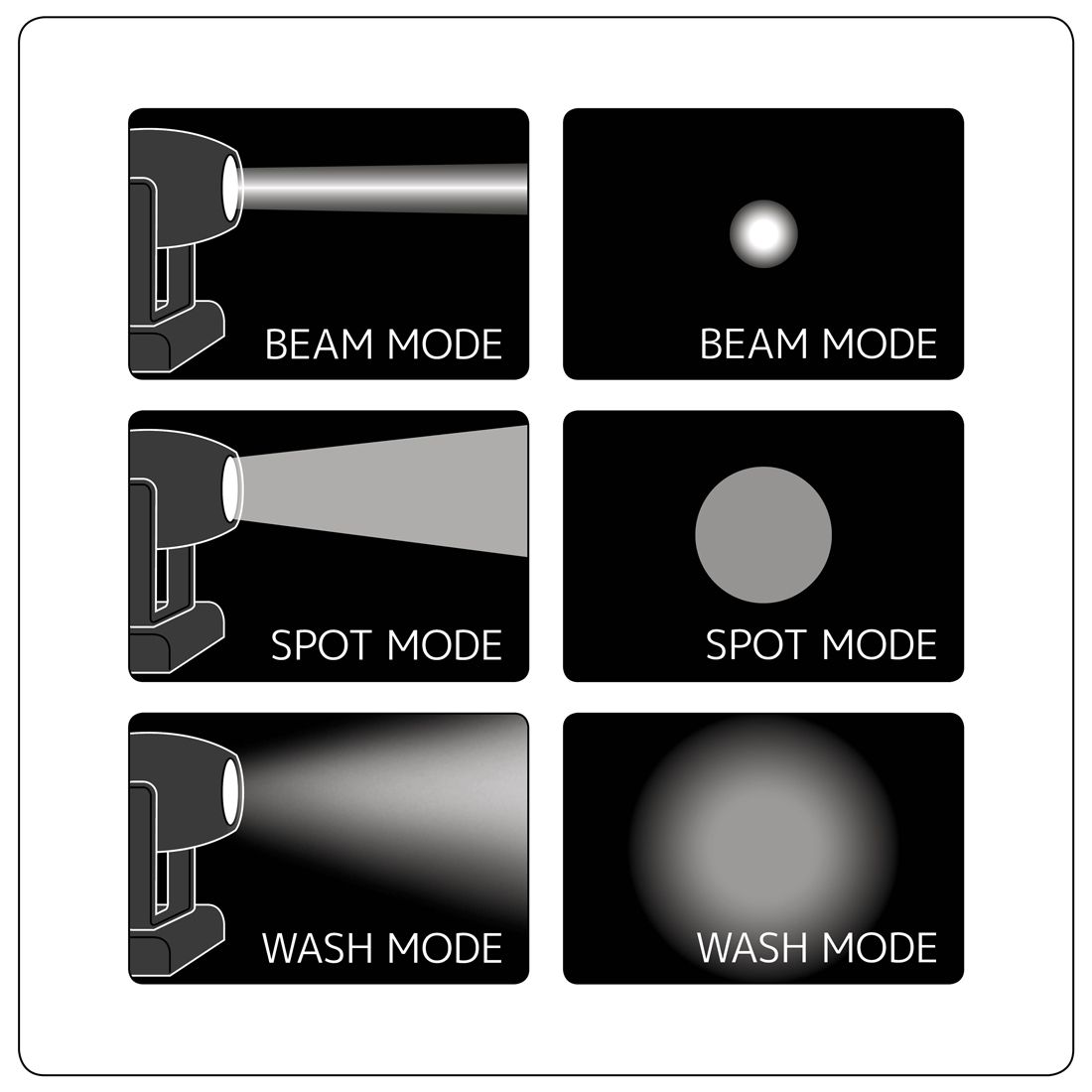

Hybrid Spot Beam and Wash 3-in-1 Luminaire
Innovative Auto Focus Function
3° - 22° Spot, 2.3° - 15° Beam and 10° - 34° Wash Zoom Range
CTO and CTB Color Correction
6-Facet Linear plus 8-Facet Rotating and 10-Facet Static Prisms
Prism Morphing
Pan/Tilt Lock
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management


SOURCE

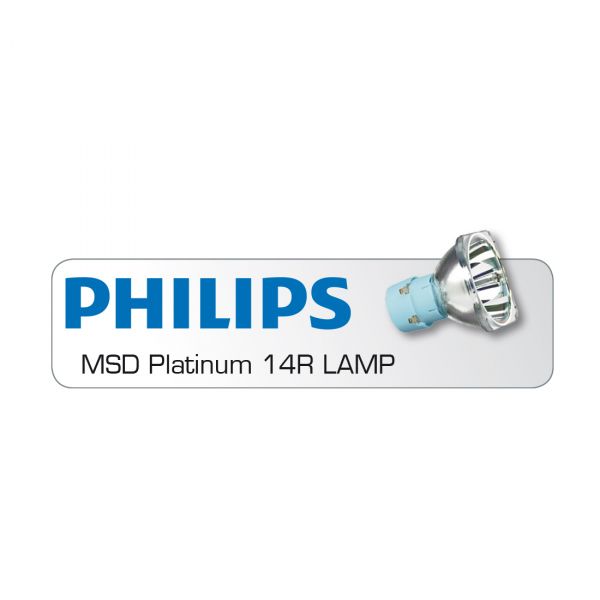

Philips™ MSD Platinum 14R 280W Lamp
12,000 Lumen, 7,800K, 80CRI
2,000 Hour Average Lamp Life*


PHOTOMETRIC DATA

13,375 LUX 1,243 FC @ 49.2’ (15m) (Spot)
125,800 LUX 11,687 FC @ 49.2’ (15m) (Beam)
11,500 LUX 1,068 FC @ 49.2’ (15m) (Wash)


EFFECTS

6-Facet Linear plus 8-Facet Rotating and 10-Facet Static Prisms
Prism Morphing
Wash Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%


COLOR

13 Dichroic Colors Including UV, CTO, CTB, Quad Color (RGBY) Filter + White


GOBOS

(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD: 13.8mm / ID: 9.0mm**
(12) Static-Stamped / Indexing Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (17 / 19 / 26)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

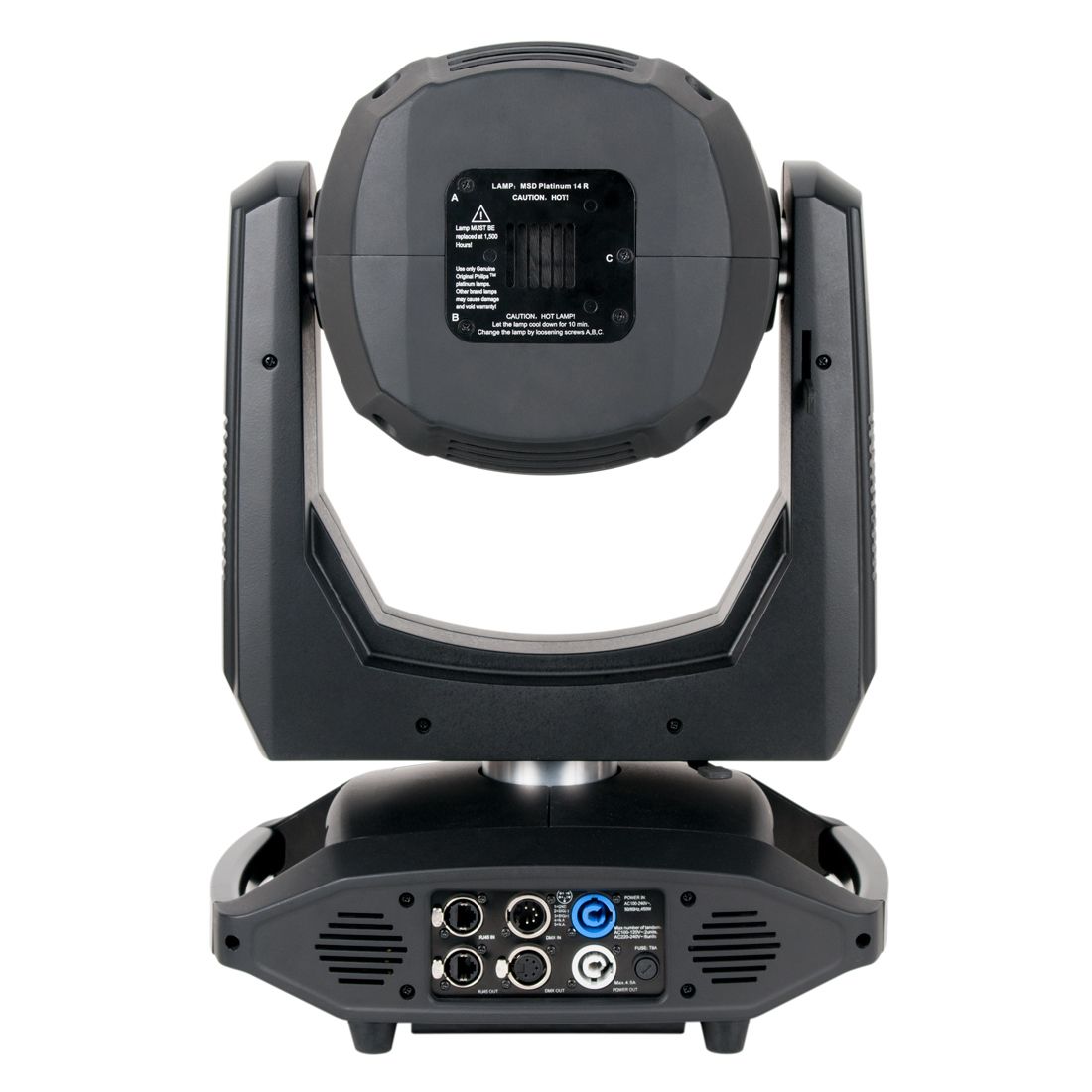

Locking 5pin XLR DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET and sACN)
Locking power In/Out


SIZE / WEIGHT

Length: 11.2” (284.4mm)
Width: 15.2” (386.4mm)
Vertical Height: 25.9” (675.5mm)
Weight: 50.0 lbs. (22.7 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III

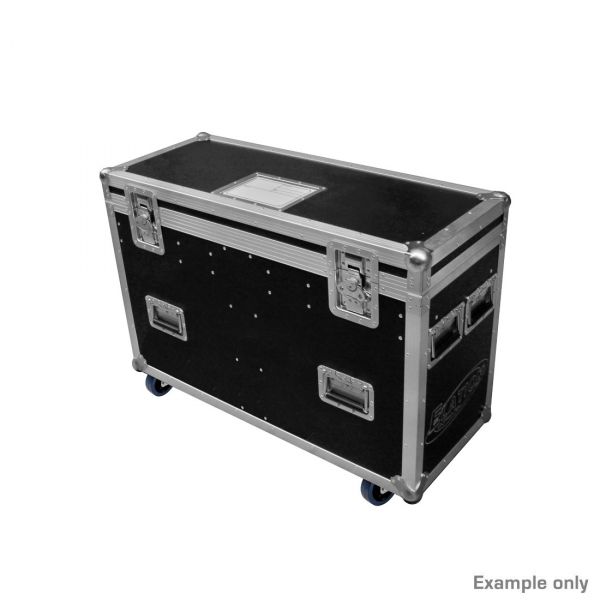

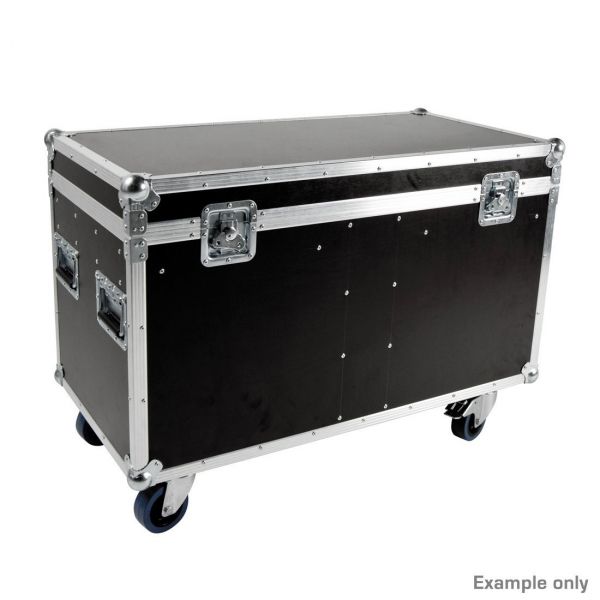

1521000257 Touring Case 2x Platinum HFX
1521000258 PRO Case 2x Platinum HFX


FIRMWARE UPDATES

Current firmware can be found here (login required)

*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.


Specifications and documentation subject to change without notice

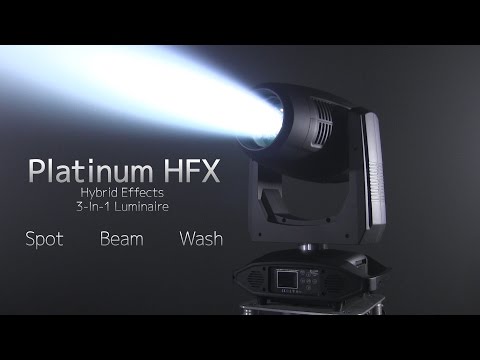

Videos
