Code
1237000100
FEATURES
Powerful 3° Beam
Extreme Output and Speed
CTO & CTB Color Correction
8-Facet Rotating Prism
Pan/Tilt Lock
Art-NET (DMX Over Ethernet) Support
RDM - Remote Device Management
SOURCE
Philips™ MSD Platinum 17 RA 350W Lamp
15,000 Total Lamp Lumens, 6,900K, 85CRI
1,500 Hour Average Lamp Life
PHOTOMETRIC DATA
219,400 LUX @ 15m (3°)
129,400 LUX @ 20m (3°)
84,680 LUX @ 25m (3°)
EFFECTS
8-Facet Rotating Prism and (16) Prism Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR

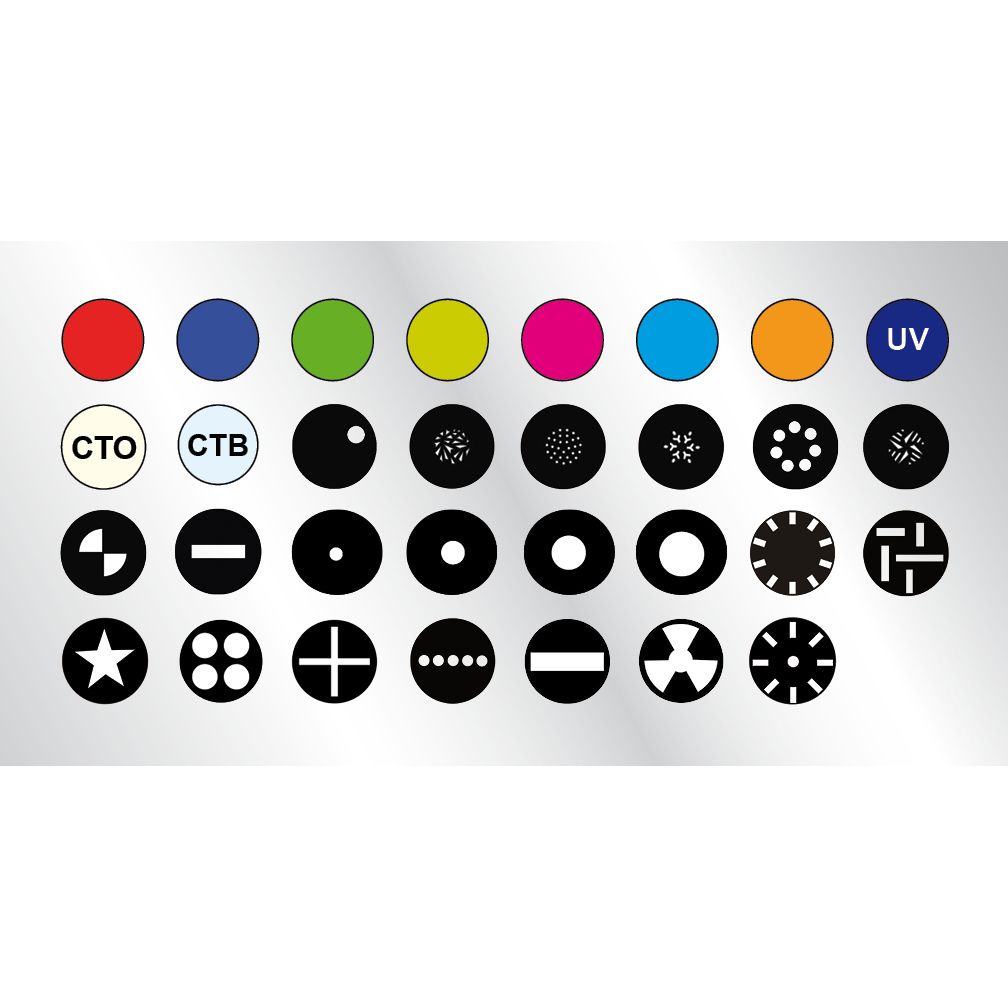

(10) Dichroic Colors Including UV, CTB, CTO + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Metal Gobos
(13) Static-Stamped / Indexing Metal Gobos
Size: OD 14mm / ID 6mm
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 22)
RDM (Remote Device Management)

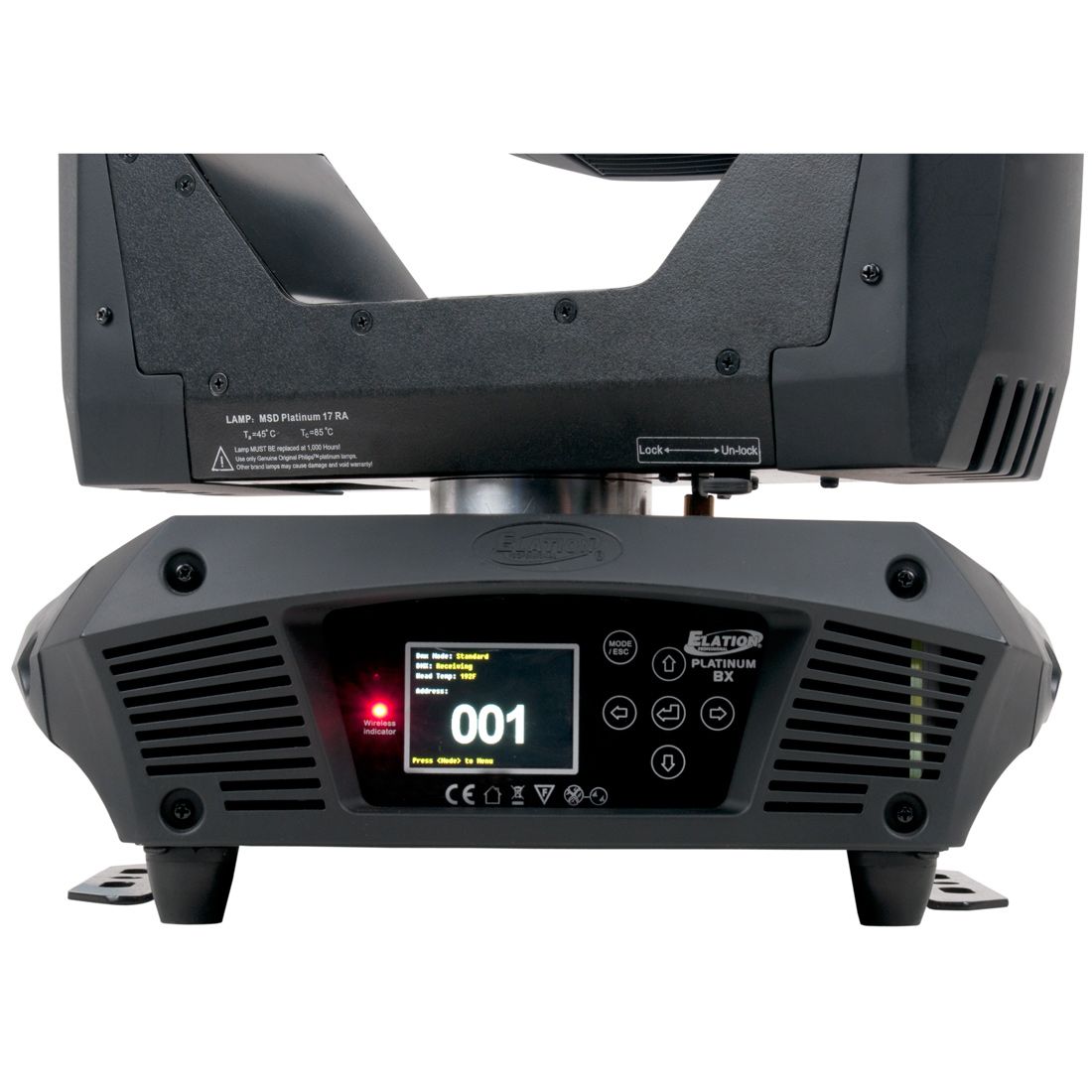

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

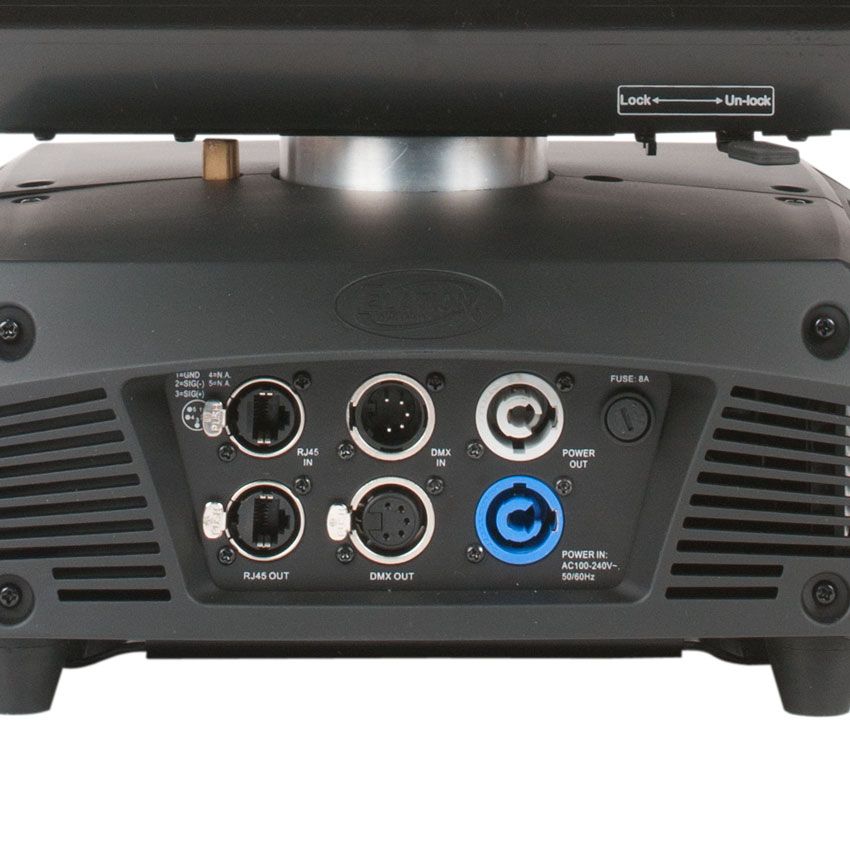

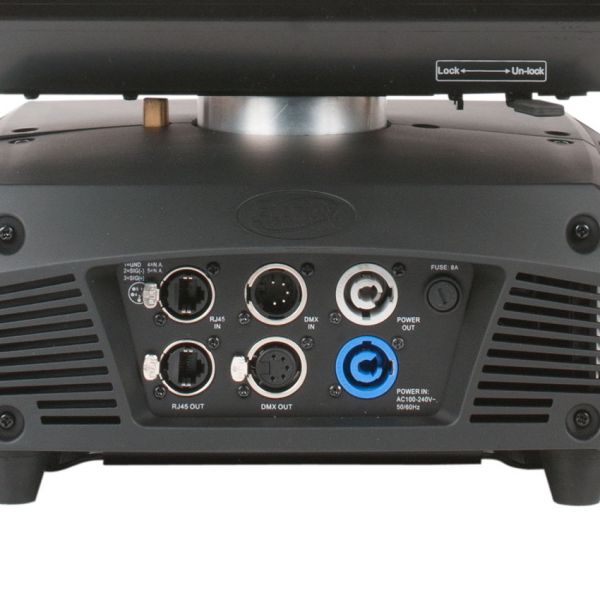

Locking 5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET)
Locking power connector In/Out
SIZE / WEIGHT
Length: 14.97” (380.2mm)
Width: 14.58” (370.3mm)
Vertical Height: 23.13” (587.5mm)
Weight: 60.0 lbs. (27 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
575W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Specifications and documentation subject to change without notice
