Platinum Beam 5R PRO

Platinum Beam 5R PROArchive

Code 1237000042

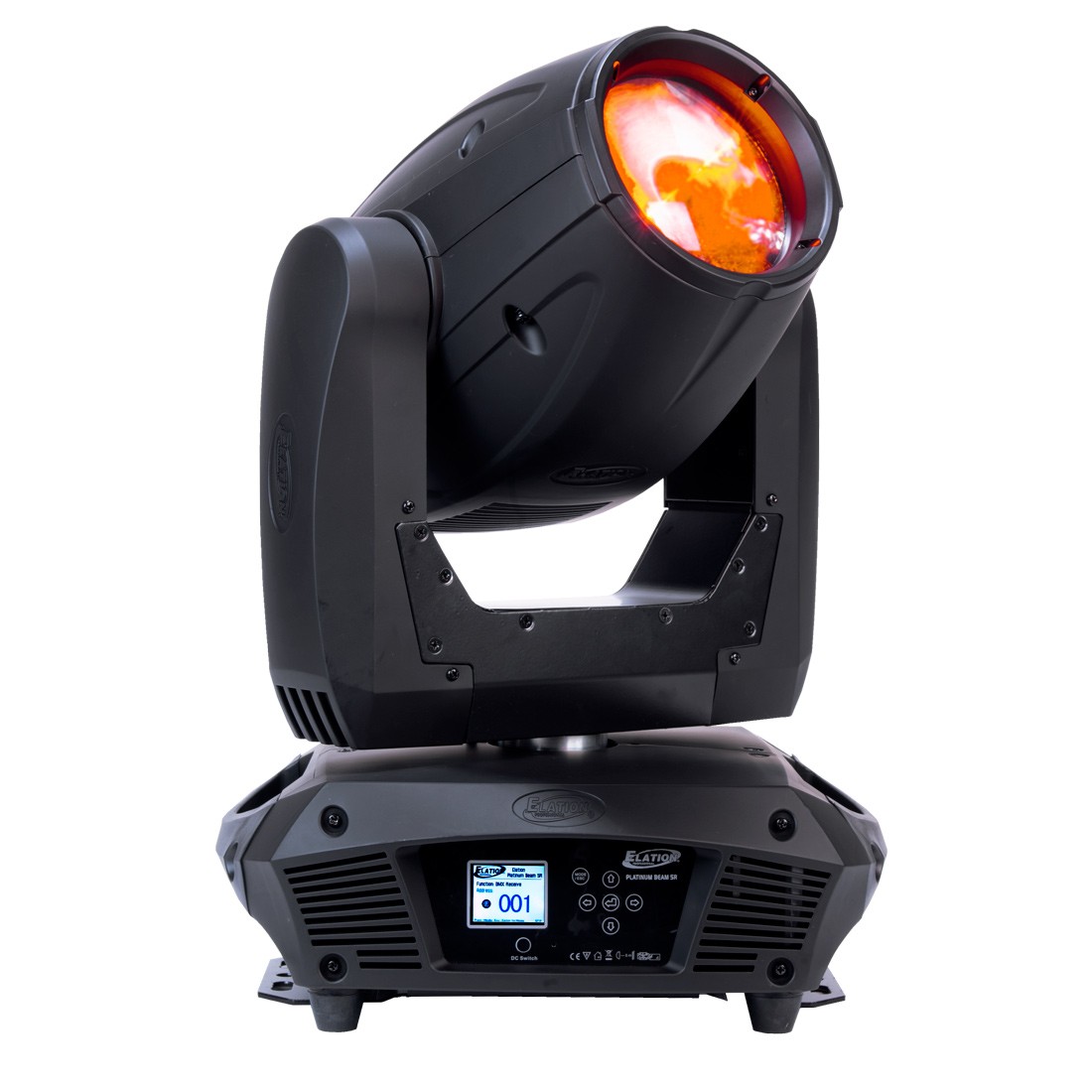

The Platinum Beam 5R PRO is the next evolution in extreme ACL / Beam moving heads. Featuring the new Platinum 5R 189 Watt Lamp from Philips, offering extreme output with a new specialized optical system offering sharp gobo projections and a extreme beam “ACL / Searchlight” type effect. Featuring 12 dichroic colors, 8 rotating indexing gobos, rotating 8 facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.

Code 1237000042

Platinum Beam 5R PRO

Technical Data

FEATURES

540°/630° Pan

265° Tilt

8 / 16 Bit Resolution Adjustable Movement

6 Button Touch Control Panel

Full Color 180° Reversible Menu Display

EWDMX Wireless DMX Receiver

Microphone for Sound Activated Programs

Rechargeable Backup Battery for Menu Display

Stand Alone Operation with Primary / Secondary Function

Software Upload via Optional External DMX Accessary

LAMP

Philips 189-Watt MSD PLATINUM 5R

7,950 Lumen, 8,000k, >75 CRI, 3,000 Hour Average Life*

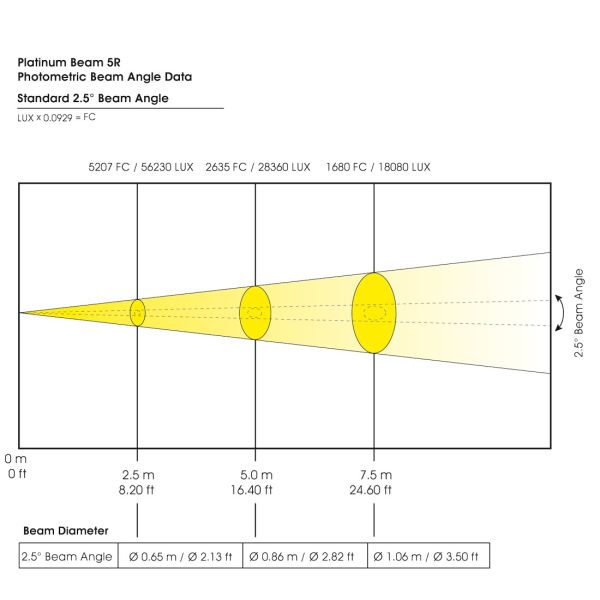

PHOTOMETRICS

Max 56,230 LUX @15M 2,5°

EFFECTS

Frost Filter

Two Direction Rainbow Effect

Mechanical Dimming: 0% - 100%

High Speed Mechanical Shutter / Strobe

8 Facet Rotating Prisms

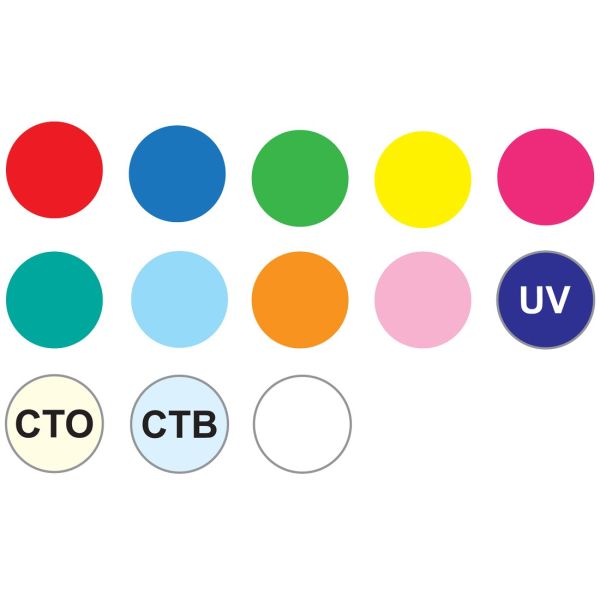

COLOR

12 Static Dichroic Colors Including + White (Open)

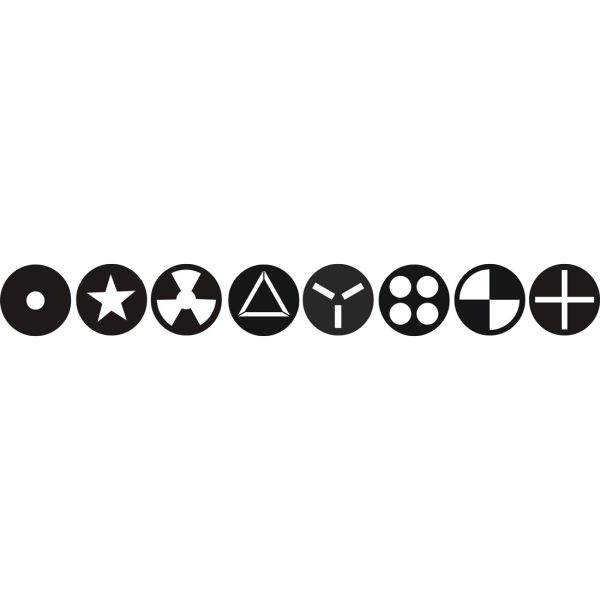

GOBOS

1 Gobo Wheel With 8 Interchangeable Rotating Gobos

Size: OD 14mm / ID 6mm

CONTROL / CONNECTIONS

3 DMX Channel Modes (11 / 13 / 16)

Locking 3/5pin DMX In/Out

Locking power connector In

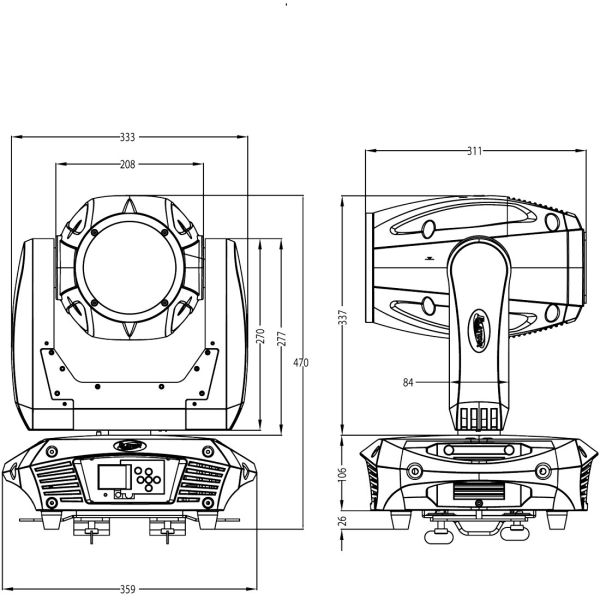

SIZE / WEIGHT

Length: 360mm

Width: 330mm

Vertical Height: 470mm

Weight: 14,5kg

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

338W Max Power Consumption

-25°C to 45°C

*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Specifications and documentation subject to change without notice
