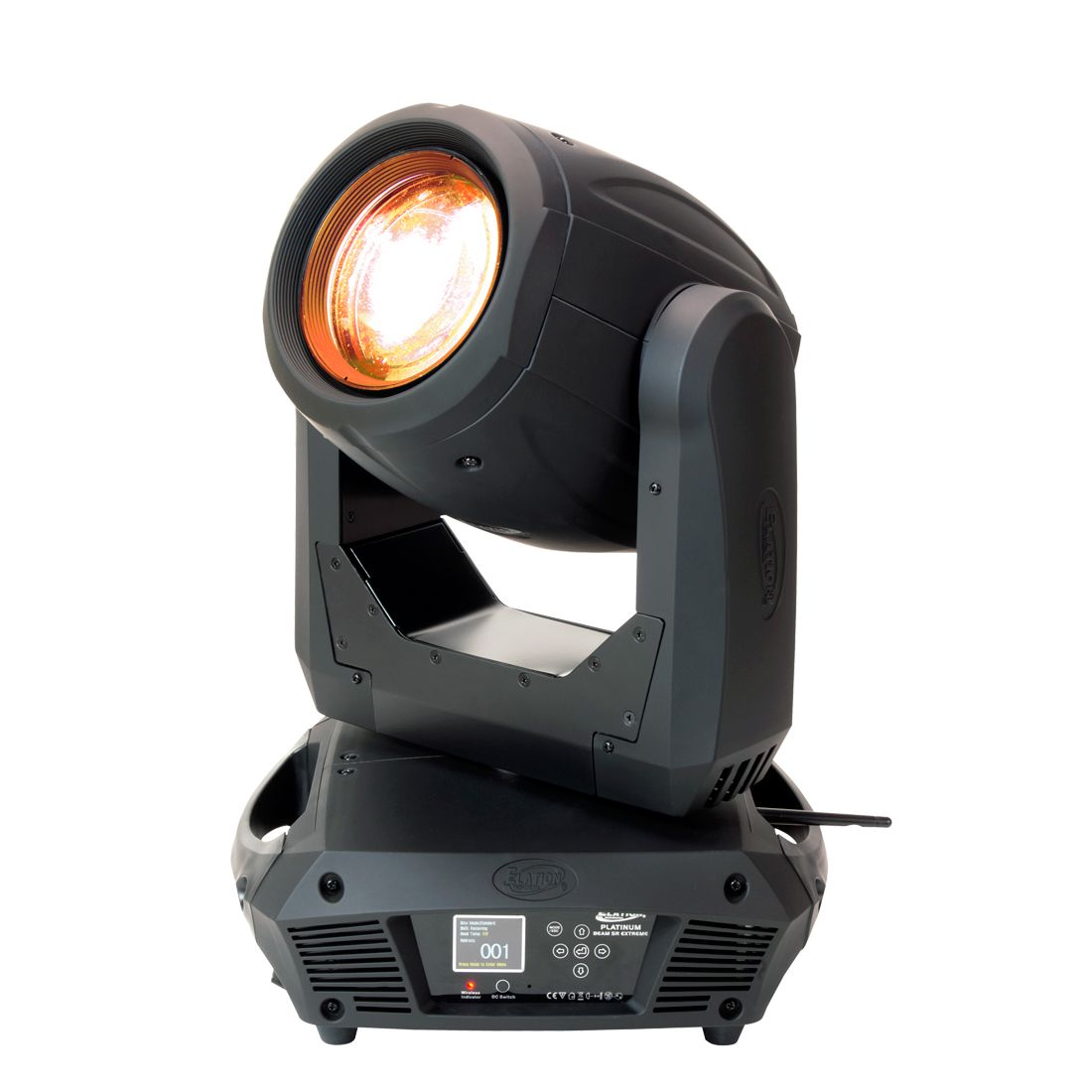

Platinum Beam 5R Extreme Picture
Platinum Beam 5R Extreme Picture 2
Platinum Beam 5R Extreme Picture 3
Platinum Beam 5R Extreme Picture 4
Code
1237000066
FEATURES
3° Sharp Pin Spot Beam
CTO and CTB Color Correction
Super-Fast 16 bit 3-Phase Pan and Tilt Motors
Frost Filter
8-Facet Rotating Prism
Internal EWDMX Wireless DMX Receiver
RDM - Remote Device Management
SOURCE
Philips™ MSD Platinum 5R 189W Lamp
7,950 Total Lumens, 8,000K, 75CRI
3,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
100,100 LUX 9,299 FC @ 49.2’ (15m)
EFFECTS
8-Facet Rotating Prism
Wash Frost Filter
Motorized Focus
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
(12) Colors Including UV, CTO, CTB + White
GOBOS
(8) Interchangeable / Rotating / Indexing Metal Gobos
Size: OD 14mm / ID 6mm
CONTROL / CONNECTIONS
(3) DMX Channel Modes (12, 14, 18)
RDM (Remote Device Management)
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

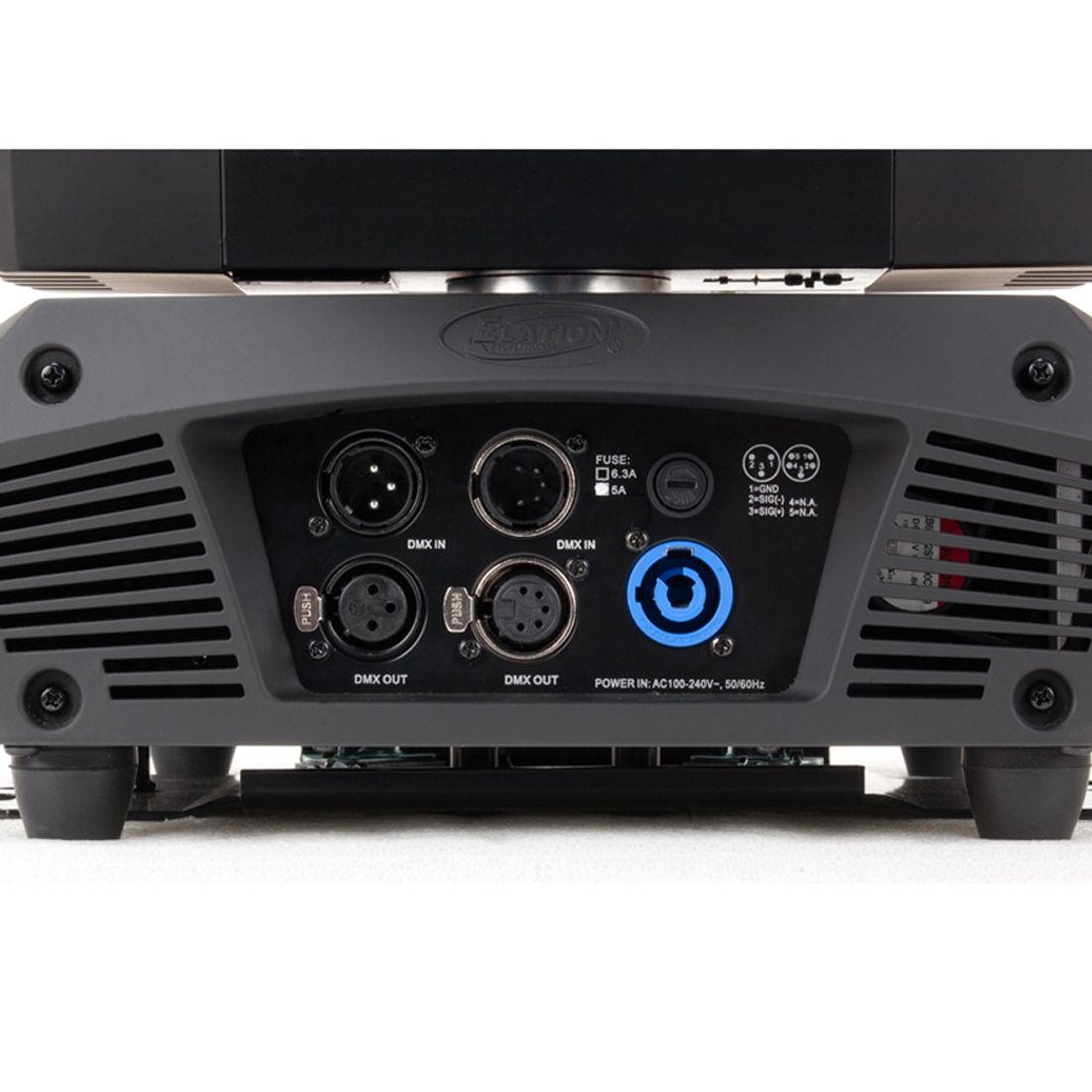

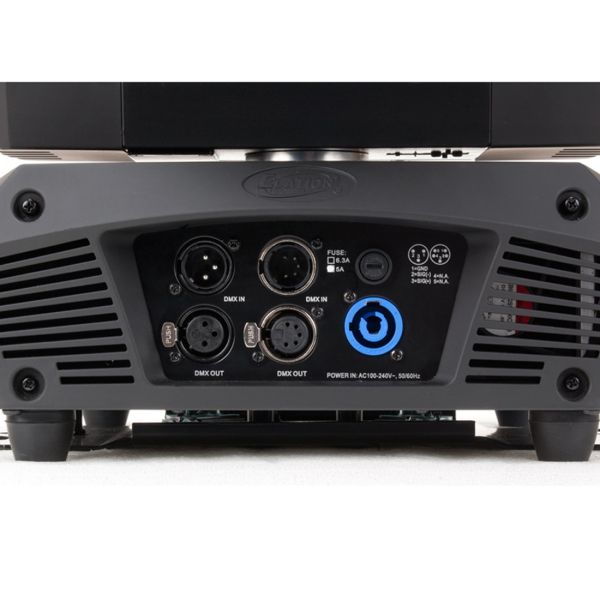

Locking 3/5pin DMX In/Out
Locking power connector Power In
Internal EWDMX Wireless DMX Receiver
SIZE / WEIGHT
Length: 13.9” (352mm)
Width: 13.0” (329mm)
Vertical Height: 20.0” (509mm)
Weight: 44.0 lbs. (20.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1193.5
BTU/hr (+/- 10%) 1193.5
OPTIONAL ACCESSORIES
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1322000022 EWDMXT Wireless DMX Transmitter
1521000179 Touring Case 2x Platinum Beam 5R Extreme

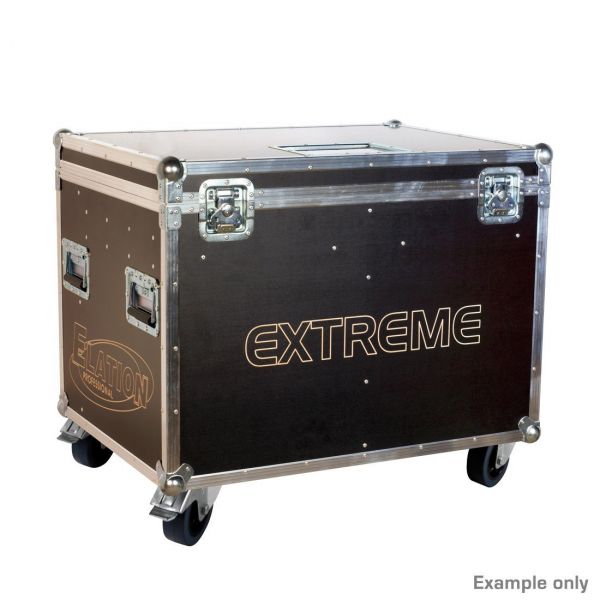

1521000180 Touring Case 4x Platinum Beam 5R Extreme
1521000200 PRO Case 2x Platinum Beam 5R Extreme
1521000231 PRO Case 4x Platinum Beam 5R Extreme
FIRMWARE UPDATES
Current firmware can be found here (login required)*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
Specifications and documentation subject to change without notice
