  • Pixel Wash 40IP
Code 1236200093

Pixel Wash 40IP

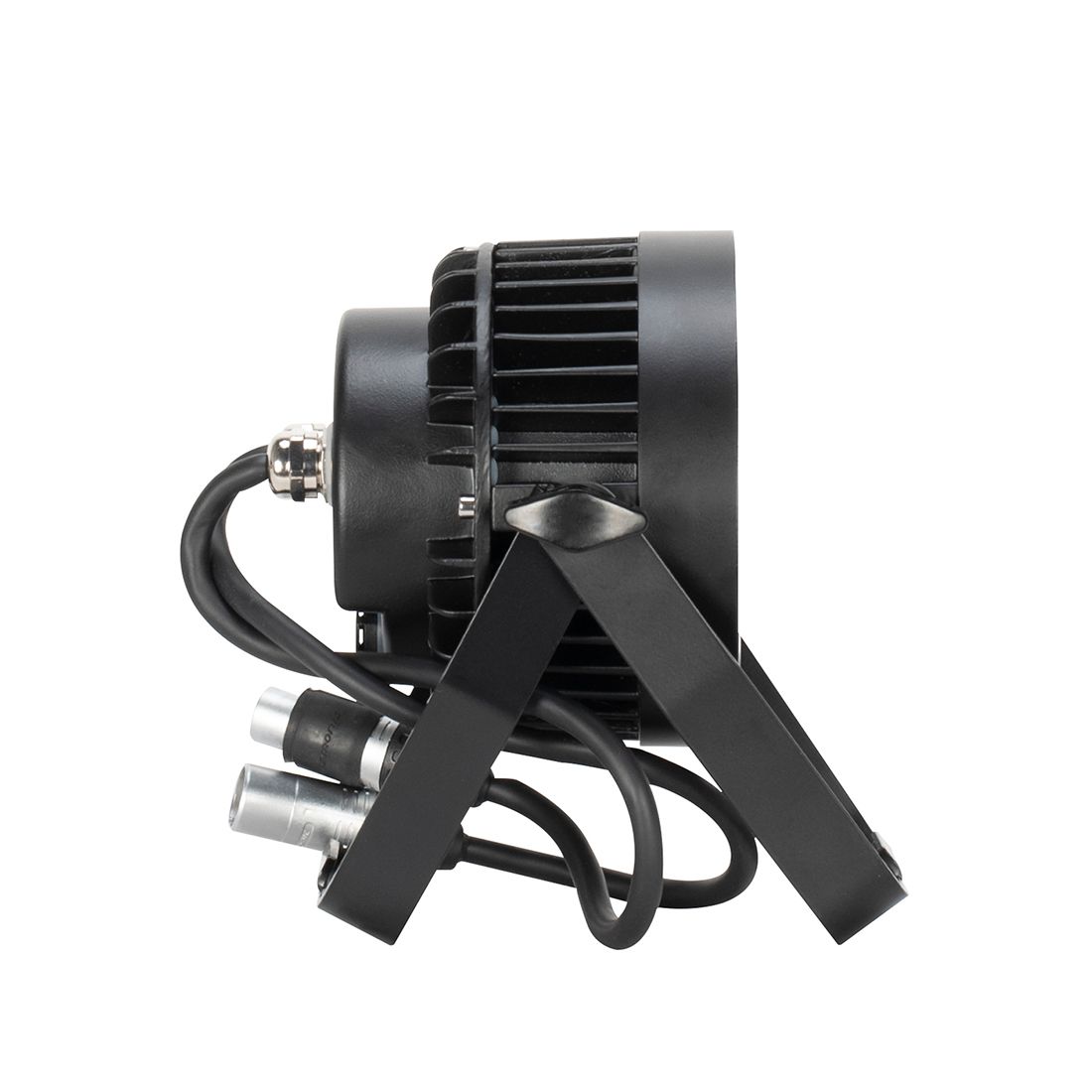

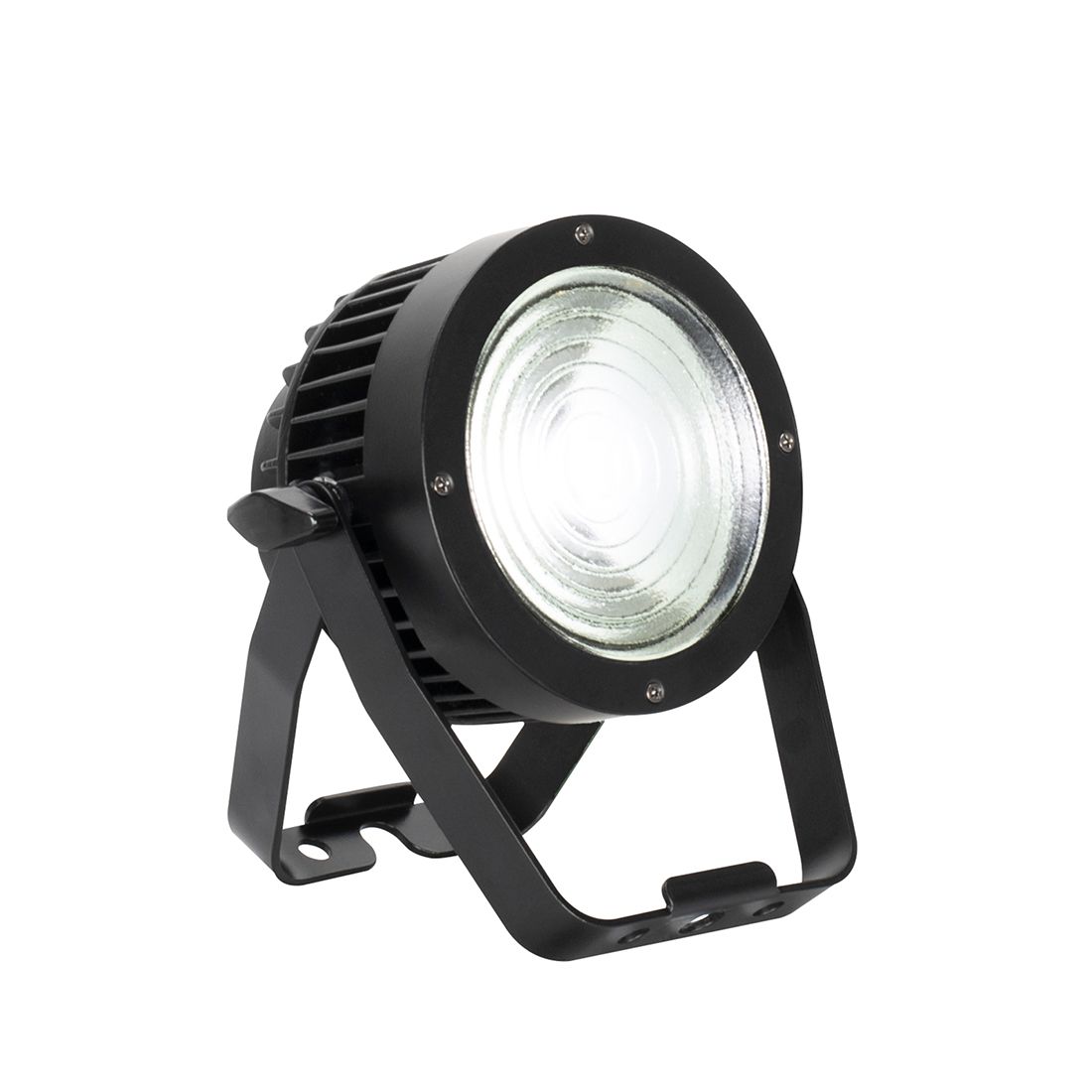

The PIXEL WASH 40IP is a lightweight, outdoor IP65 rated LED wash / effect par fixture featuring 4 in 1, 10-watt RGBW LED’s, a PWM (pulse width modulation) of 44,000Hz for flicker free operation for broadcast, TV, and film applications, a beam angle of 32° and a field angle of 60°. This unit features two integrated 4pin power/data in and out whips with locking connectors. The PIXEL WASH 40IP can be combined together with PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP, in any combination, to create a versatile pixel-mapped display. Optional power/data cables extensions are available in various lengths ranging from 2 to 50 feet (sold separately). Easy and versatile control options are handled by the PIXEL DRIVER 4000 V3™ and PIXEL DRIVER 1000IP™ (sold separately) and PIXEL DRIVER 170IP (sold separately), which provide simple on-board manual LED color / intensity control, and full pixel mapping control via Kling-Net, Art-Net and sACN protocols.

Technical Data

FEATURES

Outdoor IP65 Rated 4 in 1, 10-watt RGBW Led’s 44,000Hz PWM for Flicker Free Operation Integrated 4pin power/data in and out whips 32° Beam Angle 60° Field Angle 120° Optional lens available

SOURCE

4 in 1, 10W RGBW LEDs
Beam Angle: 32°
Field Angle: 60°
PWM (Pulse Width Modulation): 44,000Hz

CONNECTIONS

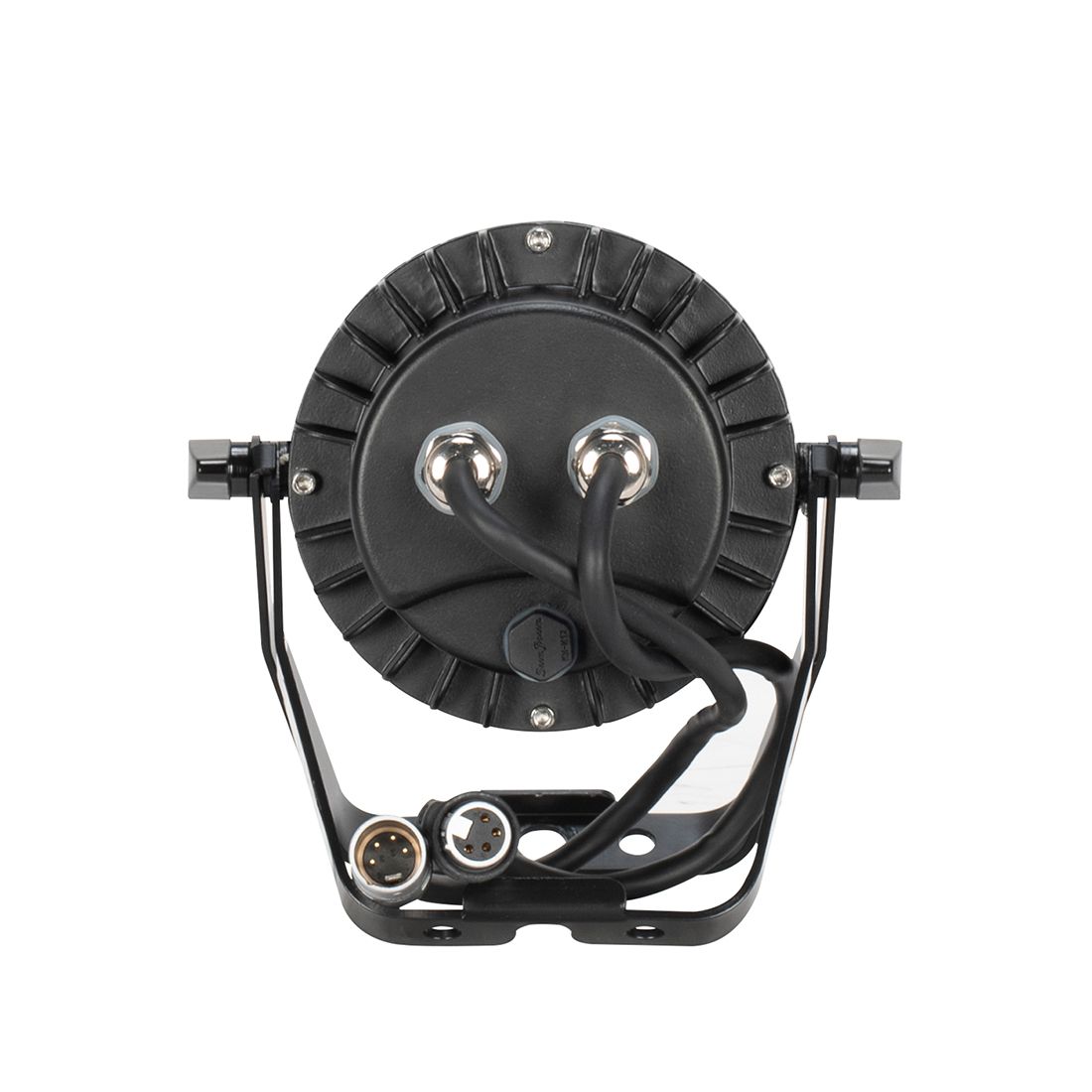

4pin Power/Data In/Out

CONTROL

For use with Pixel Driver 1000IP, PIXEL DRIVER 170IP Pixel Amp 200 and Pixel Driver 4000 V3


SIZE / WEIGHT

Length: 133mm (5.2”)
Width: 177mm (7.0”)
Height: 167mm (6.6”)
Weight: 1.56kg (3.5 lbs.)

ELECTRICAL / THERMAL

Input: DC24V
Max Power Consumption: 40W

TEMPERATURE

Max Ambient Temperature: 45°C (113°F)
Min Ambient Temperature: -20°C (-4°F)

COOLING

Convection Cooled

INCLUDED ITEMS

120° Frost Lens and Magnet attachment assembly

Specifications and documentation subject to change without notice
