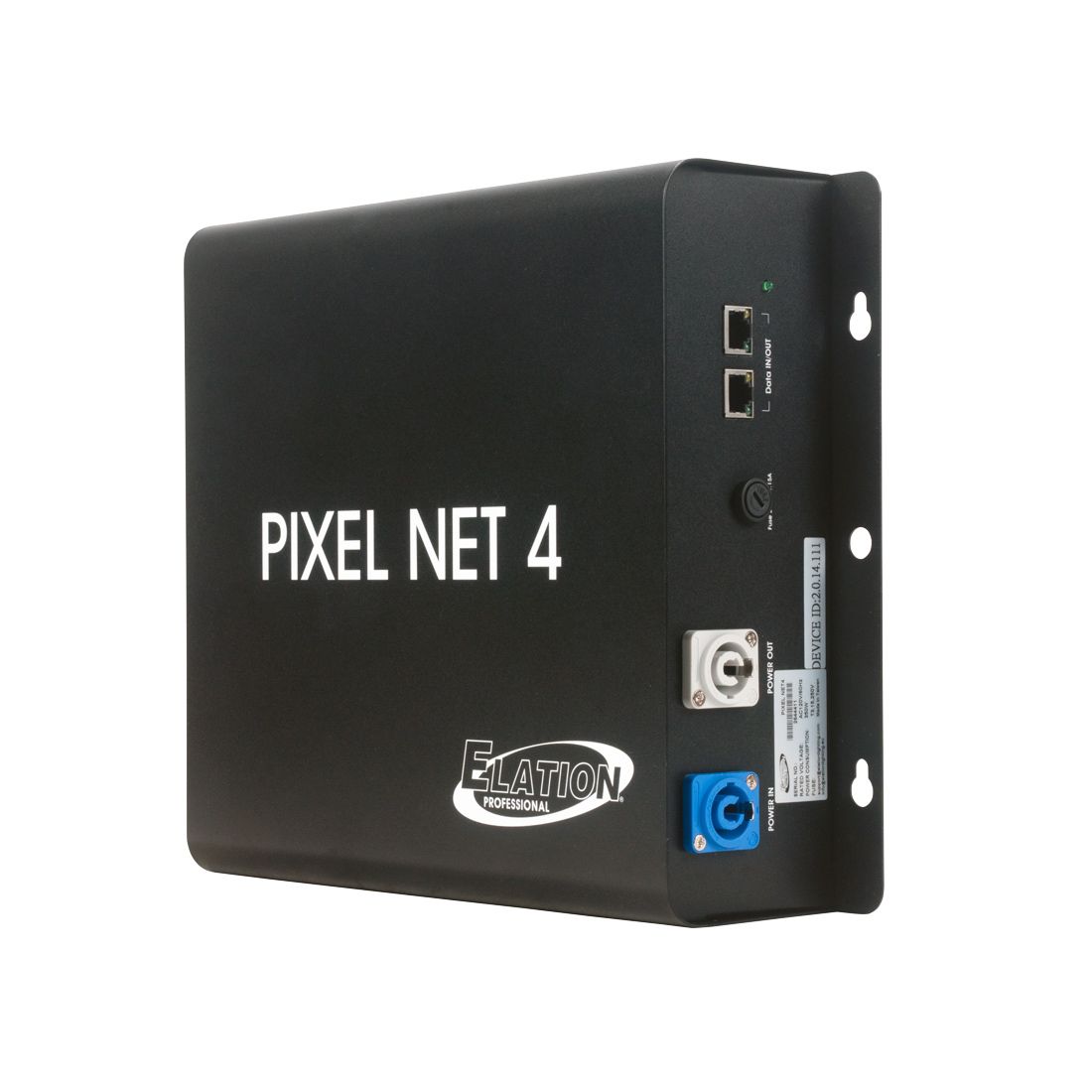

Pixel Net 4

The Pixel Net 4™ is an ArtNet to DMX driver and is compatible with all of Elation’s Pixel Bar™ products. It includes ArtNet locking CAT5 input/output, supports up to (4) DMX universes, (4) locking RJ45 CAT5e outputs, 350W max power consumption and a multi-voltage universal power supply (90-240V - 50/60Hz).

Technical Data

FEATURES
ArtNet to DMX Driver
4 DMX Universes

CONTROL / CONNECTIONS

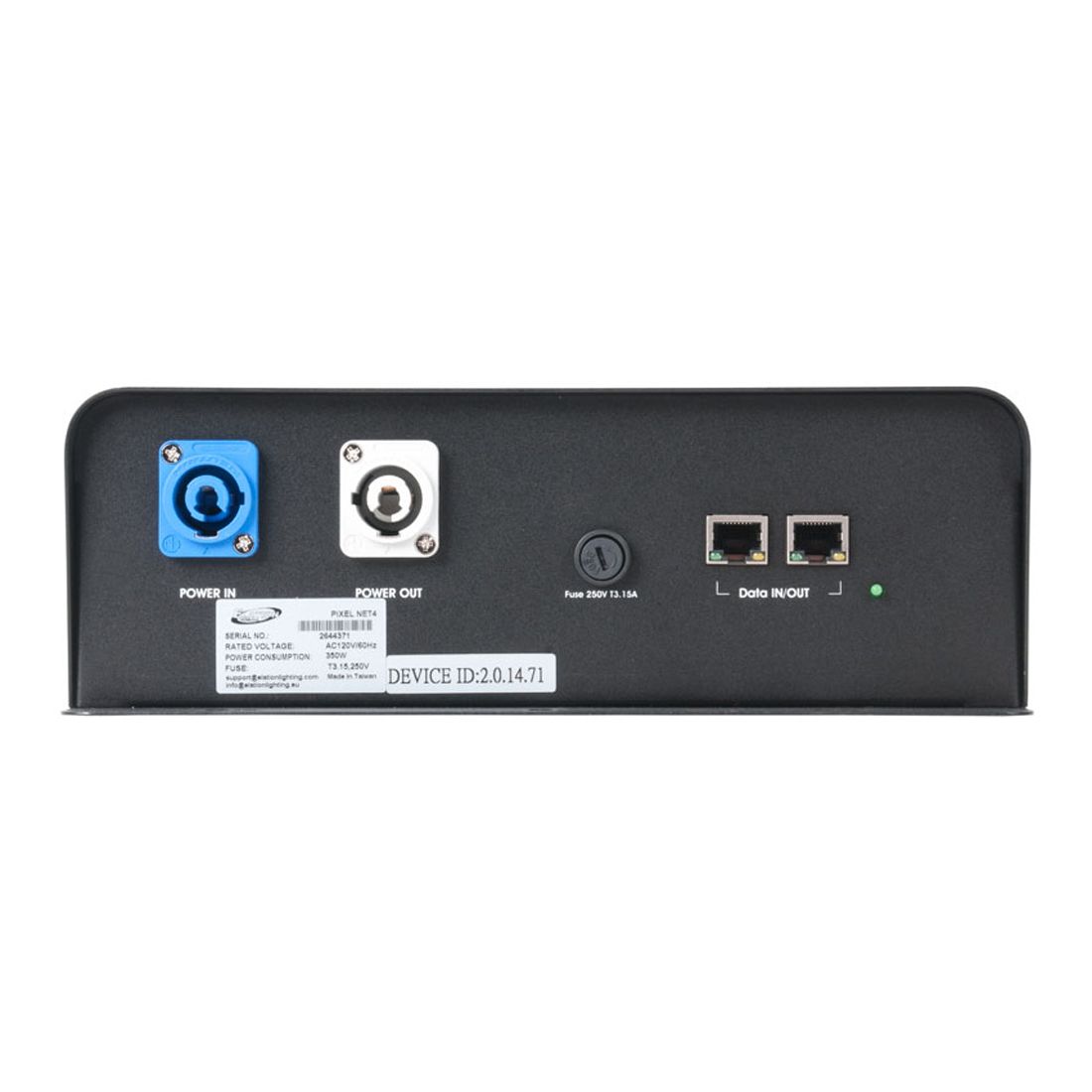

1x locking RJ45 CAT5 ArtNet Input
1x locking RJ45 CAT5 ArtNet Output

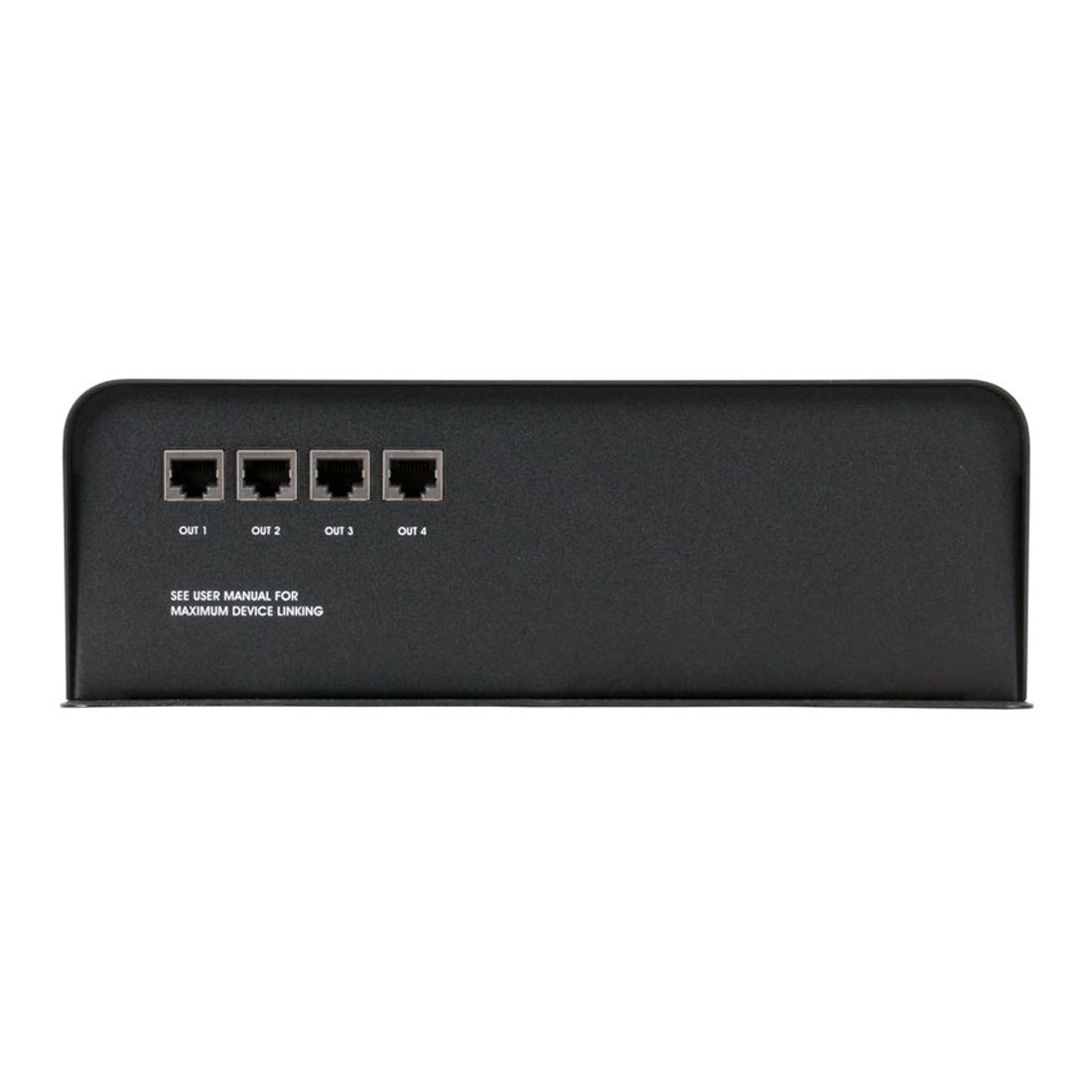

4x locking RJ45 CAT5e Outputs
Locking power connector In/Out

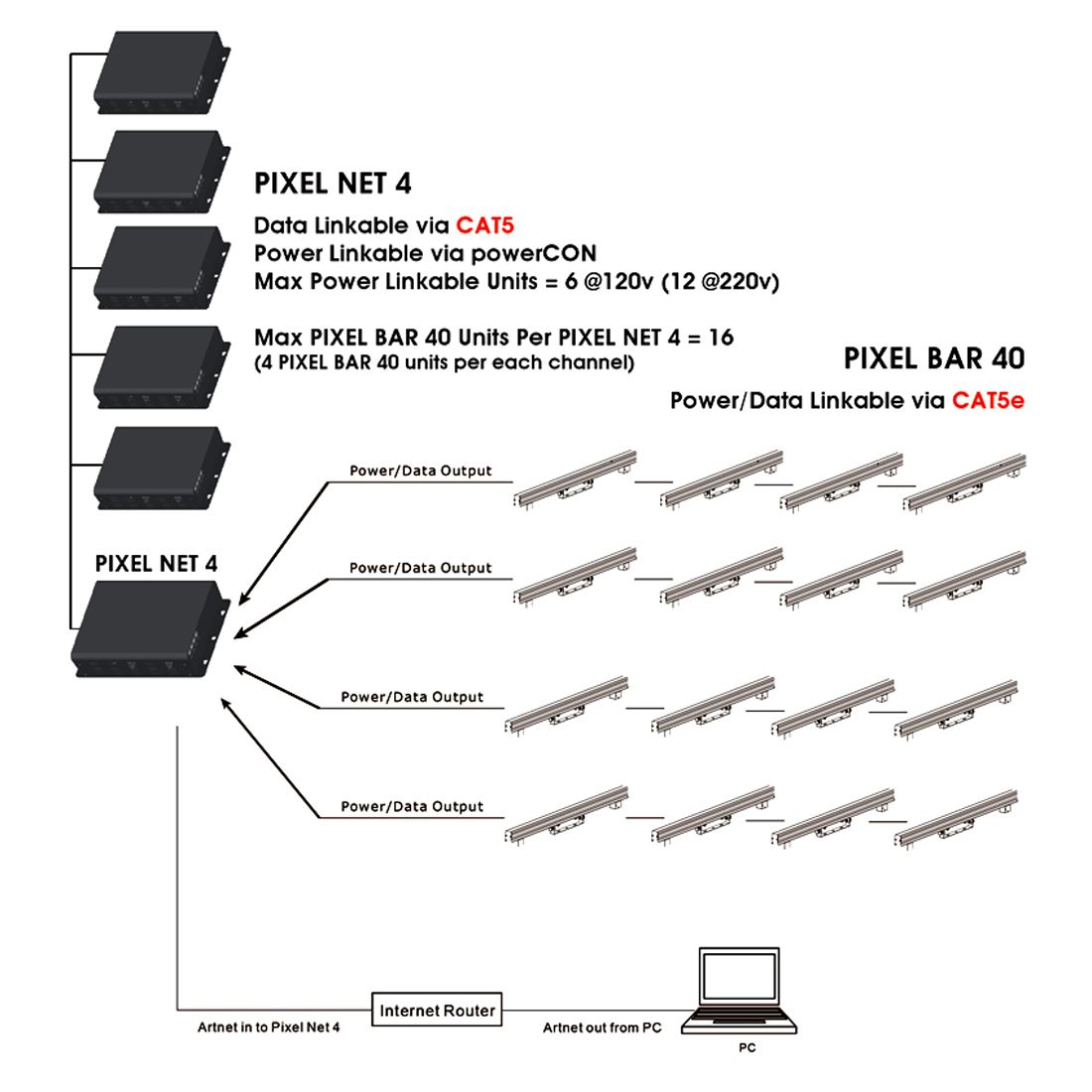

Multiple Unit Linkable: 6 units @120V / 12 units @220V

SIZE / WEIGHT
Length: 12.2” (310mm)
Width: 10.0” (255mm)
Vertical Height: 3.4” (86.2mm)
Weight: 8.0 lbs. (3.6kg)

ELECTRICAL / THERMAL
AC 90-240V - 50/60Hz
350W Max Power Consumption
0°C to 40°C

*Art-NET universes can be changed using DMX Workshop from Artistic License. DMX Workshop can be downloaded here.

Specifications and documentation subject to change without notice
