  • Pixel Driver 4000 V3
Code 1236200096

Pixel Driver 4000 V3

PIXEL DRIVER 4000 V3™ is designed specifically for the Elation  PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.

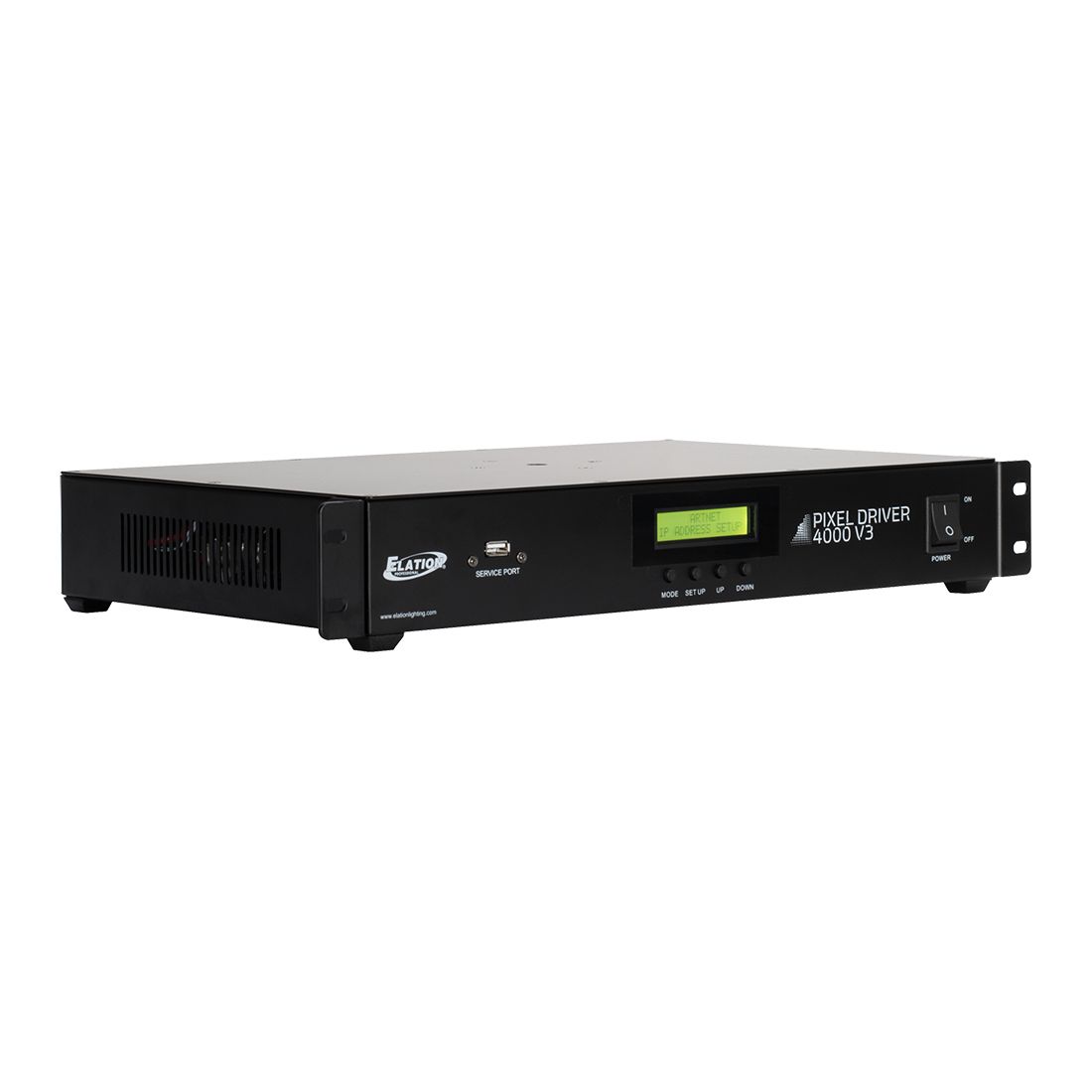

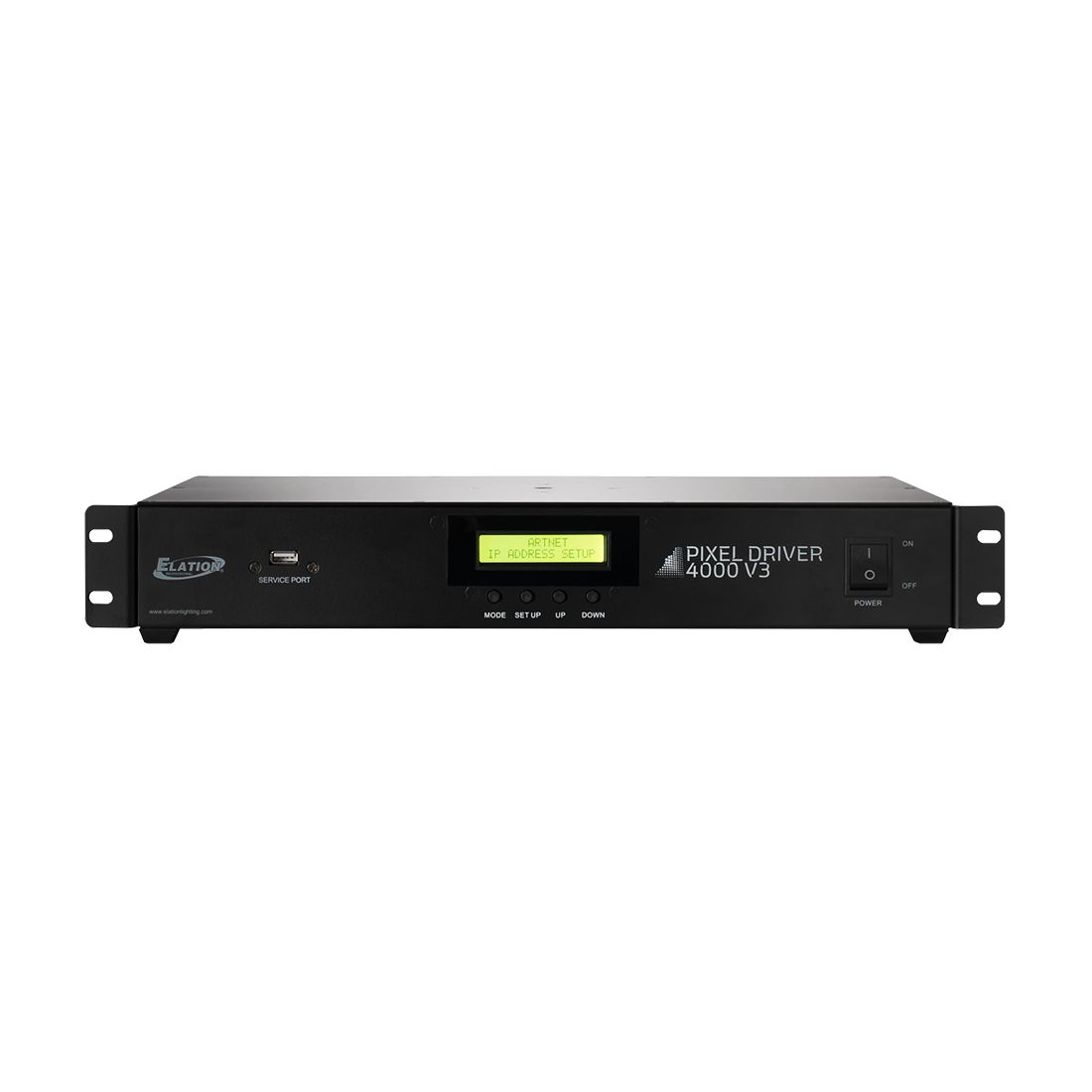

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Technical Data

FEATURES

Power/Data Supply for Elation PIXEL BAR 30IP, 60IP, 120IP, and PIXEL WASH 40IP
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
4,080 Max Pixel Mapping via Kling-Net, Art-Net and sACN (1,020 Pixels per Port)
10 Artnet / sACN Universes per Port (1,020 Pixels per Port)
19-inch (483mm) Rack Mount Kit Included

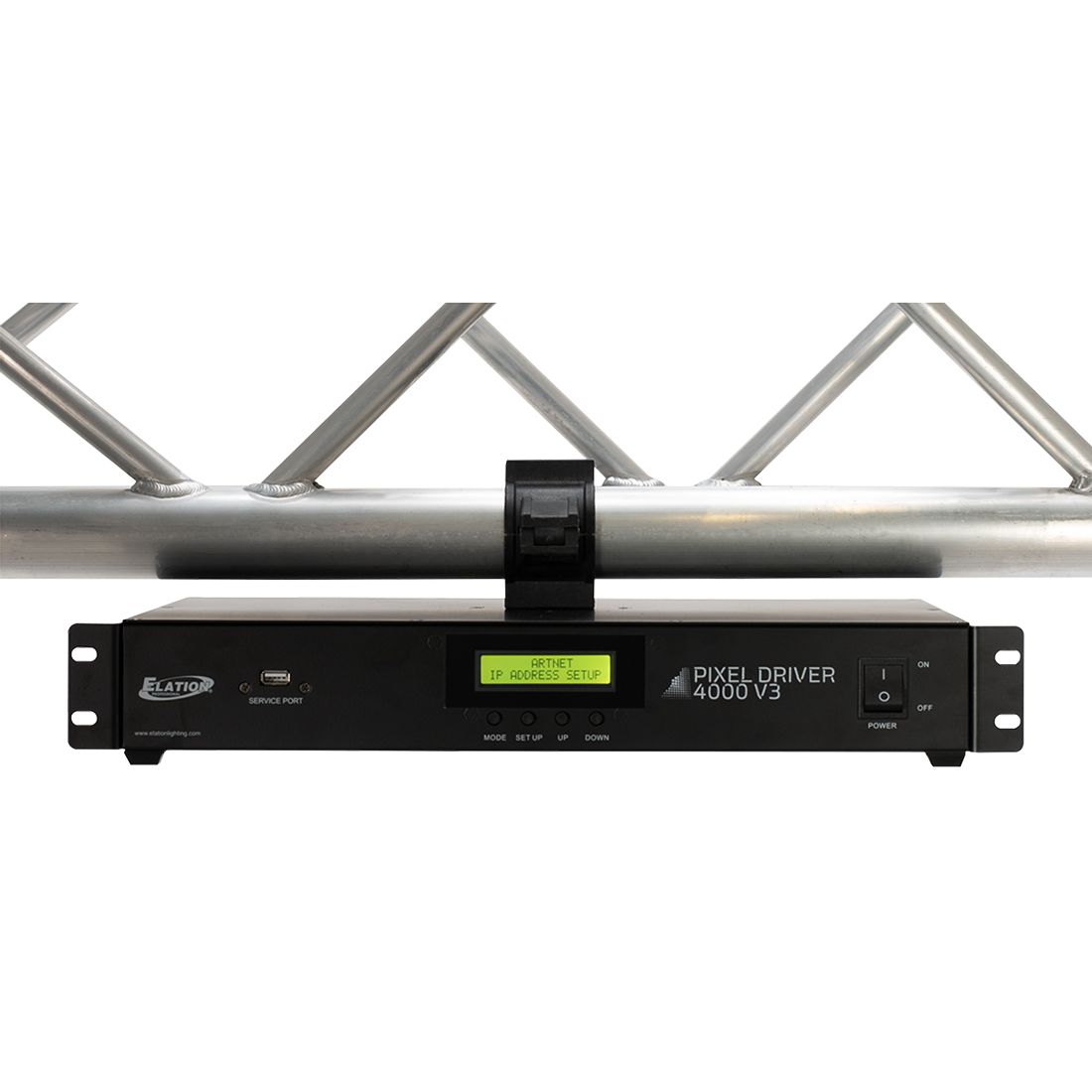

Truss Mounting Options (clamp not included)
Multi Unit Linking via RJ45 Ethernet
(4) Outputs
1.7m (5.65ft) Power Cable Included
2.8m (9.25ft) 16AWG Power/Data Cable Included
See Related Products and Accessories at the bottom of this page.

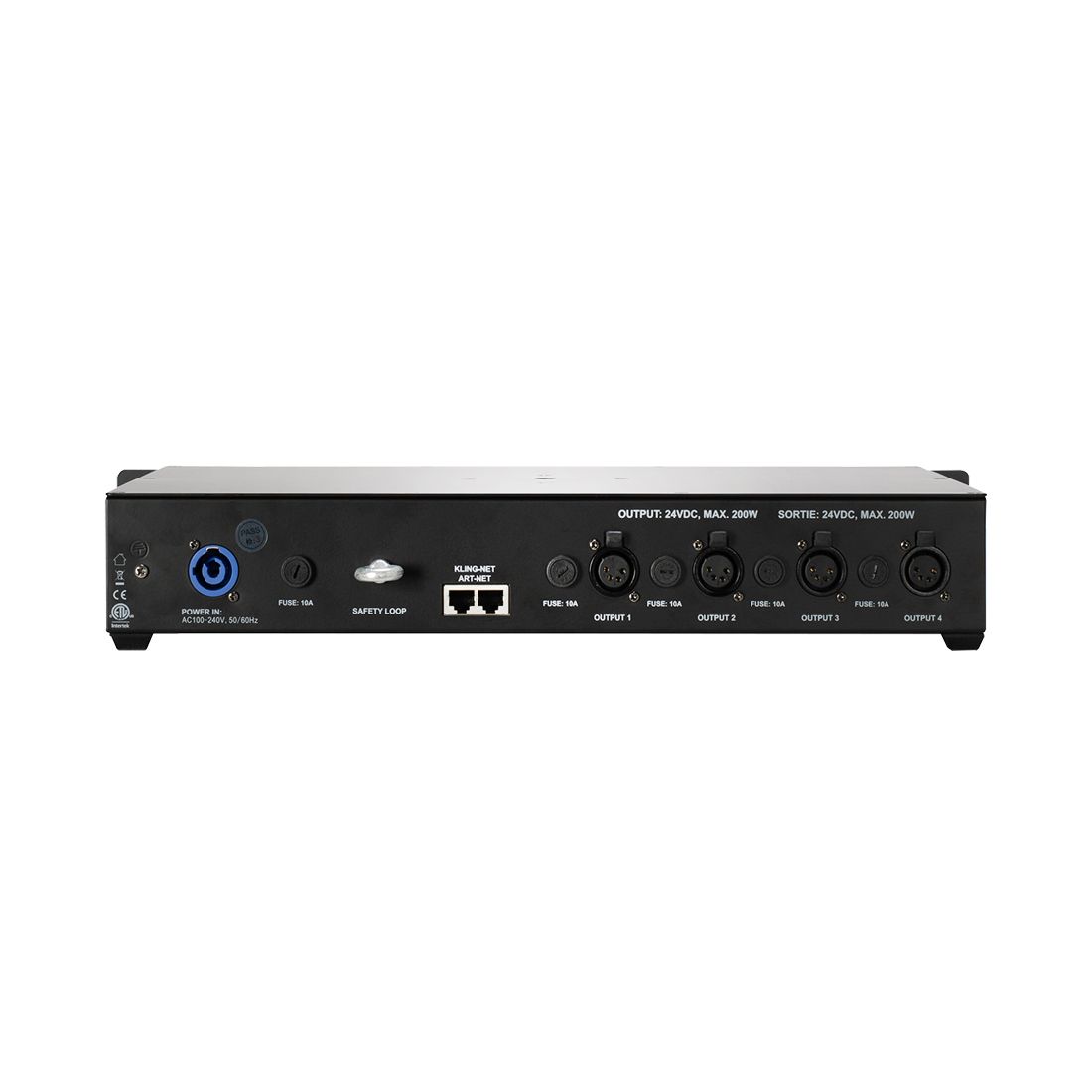

CONTROL / CONNECTIONS

Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
4 4pin Power/Data Outputs
USB Port for Firmware Updates

SIZE / WEIGHT

Length: 301mm (11.8”)
Width: 480mm (18.9”)
Height: 74mm (2.9”)
Weight: 4.9kg (10.8 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

Specifications and documentation subject to change without notice
