Code
1236200095
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_2.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_3.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_4.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_5.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_6.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_7.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_8.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel-driver-170ip_9.jpg)
FEATURES
The PIXEL DRIVER 170IP™ is a professional DMX512, 12-24VDC LED driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 4-button LED control display, DMX IN and OUT 5-pin XLR connections, a 4pin XLR connector for LED output, and a 2pin connector for 12-24VDC power IN.
CONTROL / CONNECTIONS

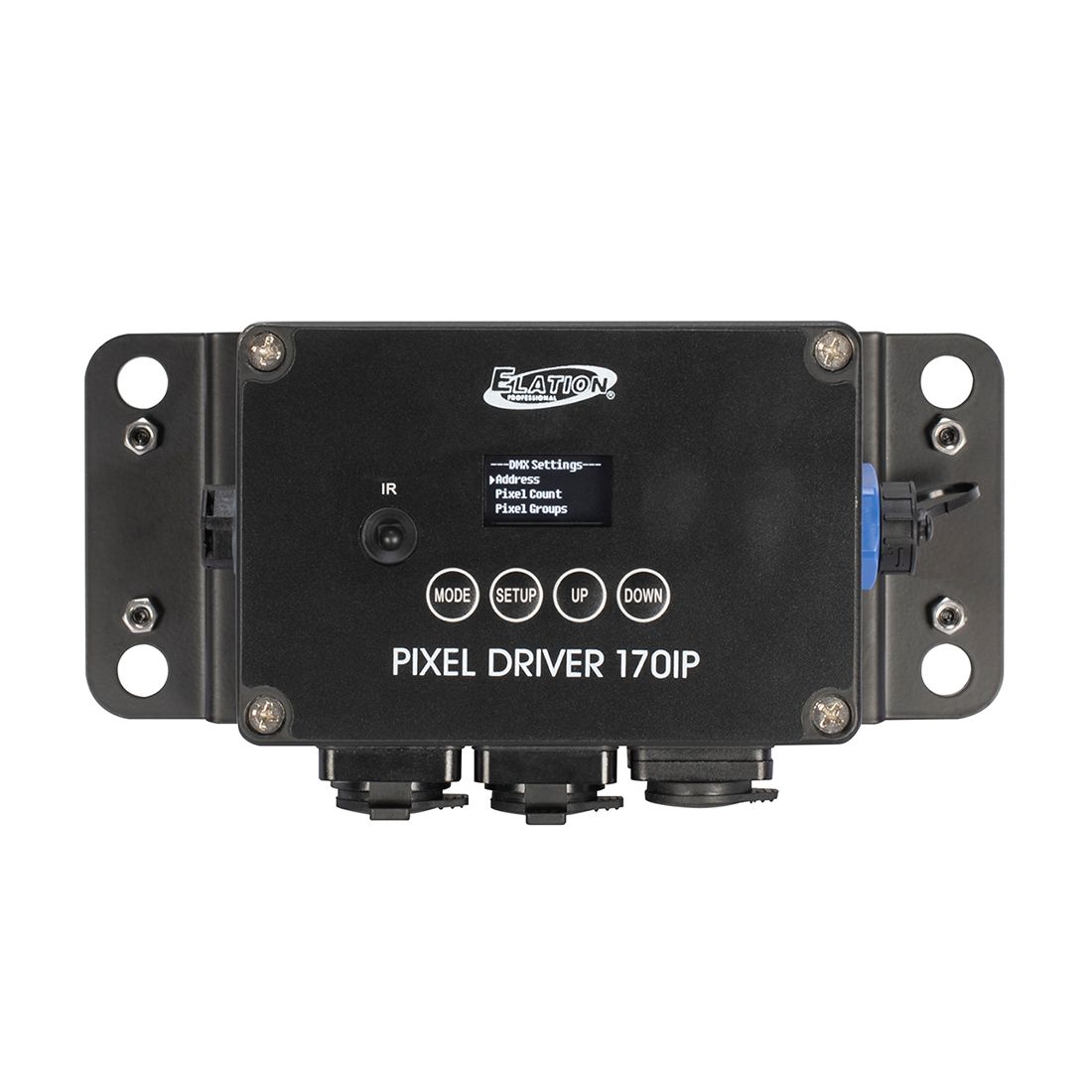

4-Button OLED Display1 DMX Universe (170 Pixels)
LED Control: LED Tape or Pixel Wash 40IP
UC-IR24EL Remote (Included)

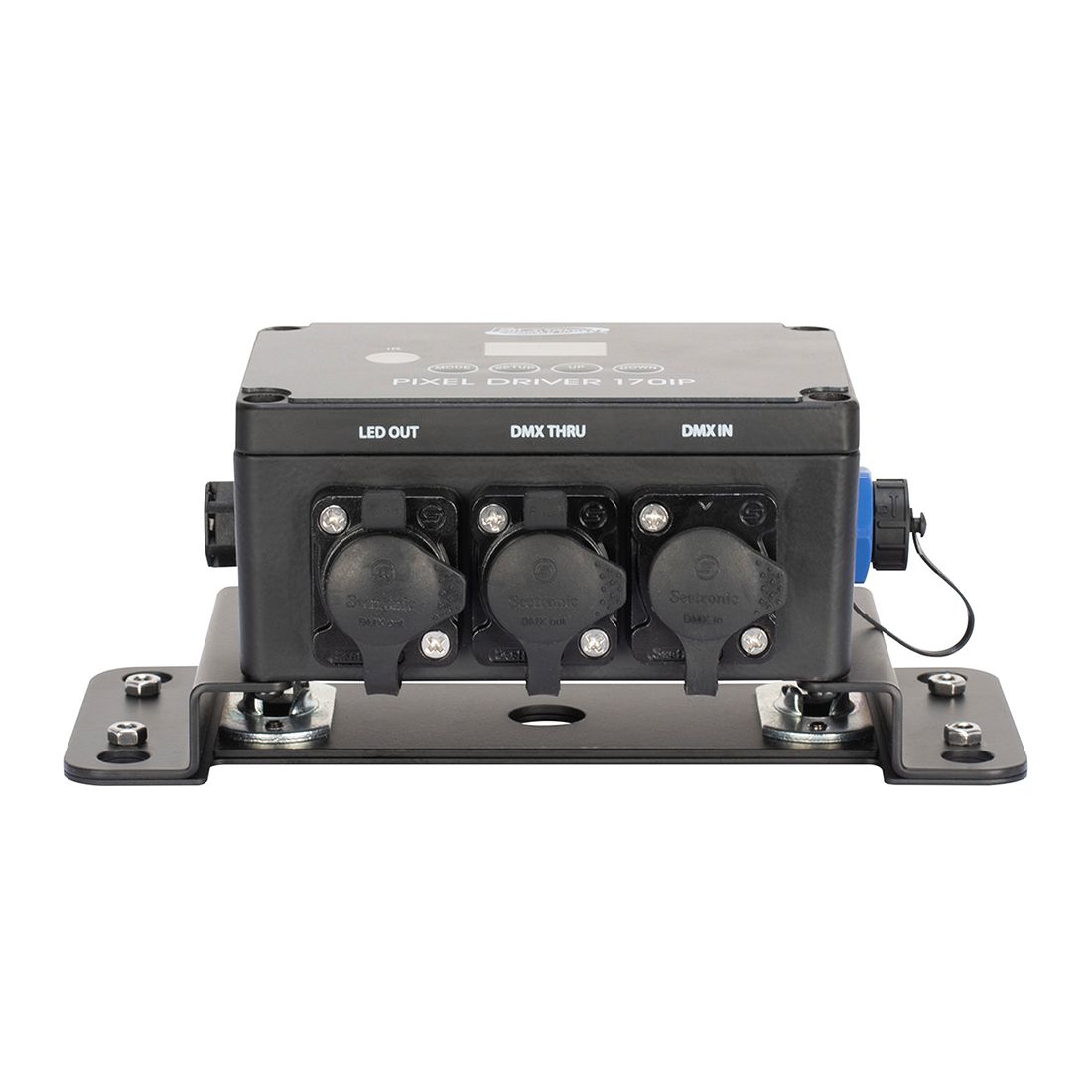

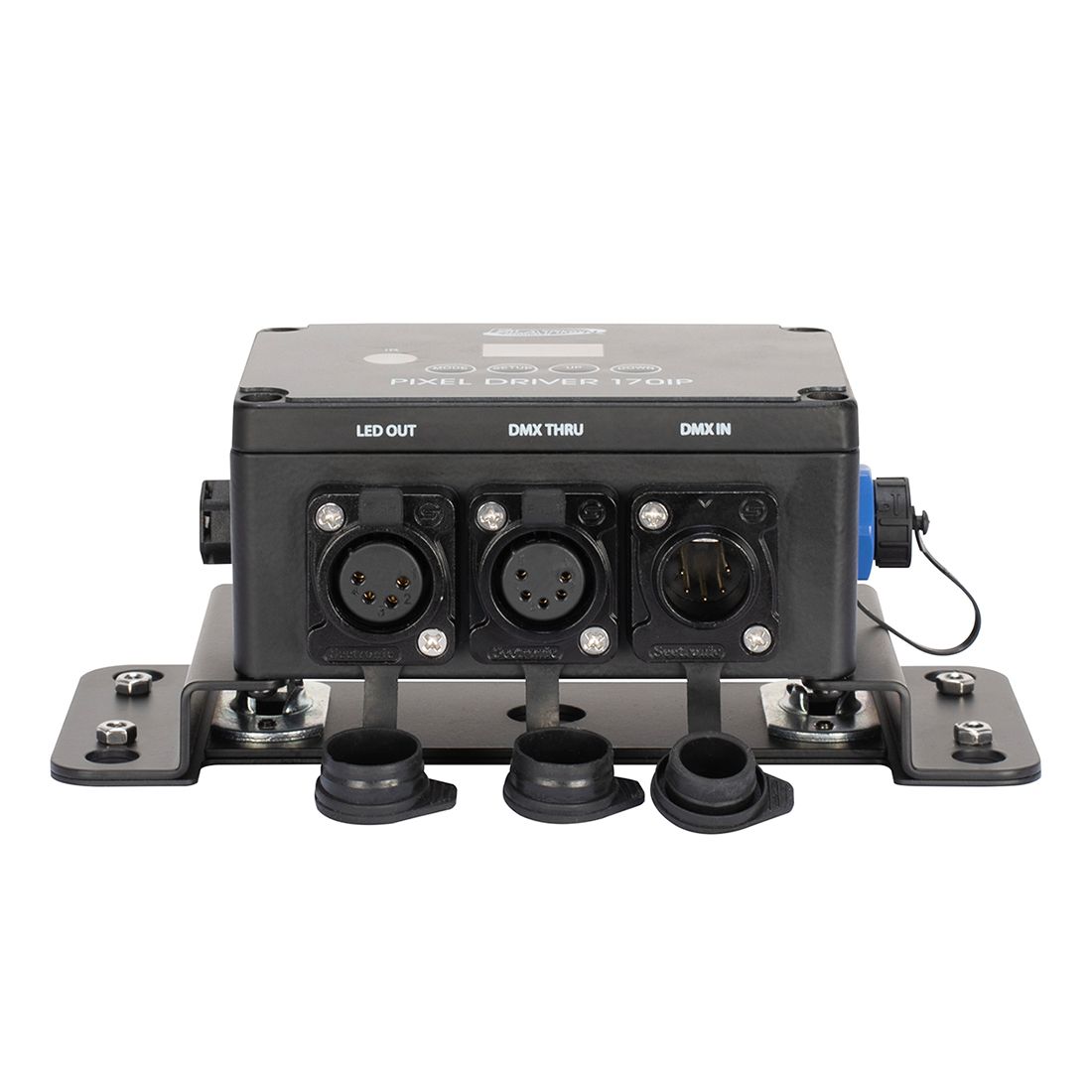

DMX Input via 5pin XLR Connector
DMX Output via 5pin XLR Connector
LED Out via 4pin XLR Connector
Hi Power Mode Off:
• control up to 8pcs Pixel Wash 40IP with the driver alone
• control up to 40pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200
Hi Power Mode On:
• control up to 5pcs Pixel Wash 40IP with the driver alone
• control up to 25pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200
SIZE / WEIGHT
Length: 93.5mm (3.68")Width: 187.5mm (7.38")
Height (No Omega Bracket: 75.7mm (3")

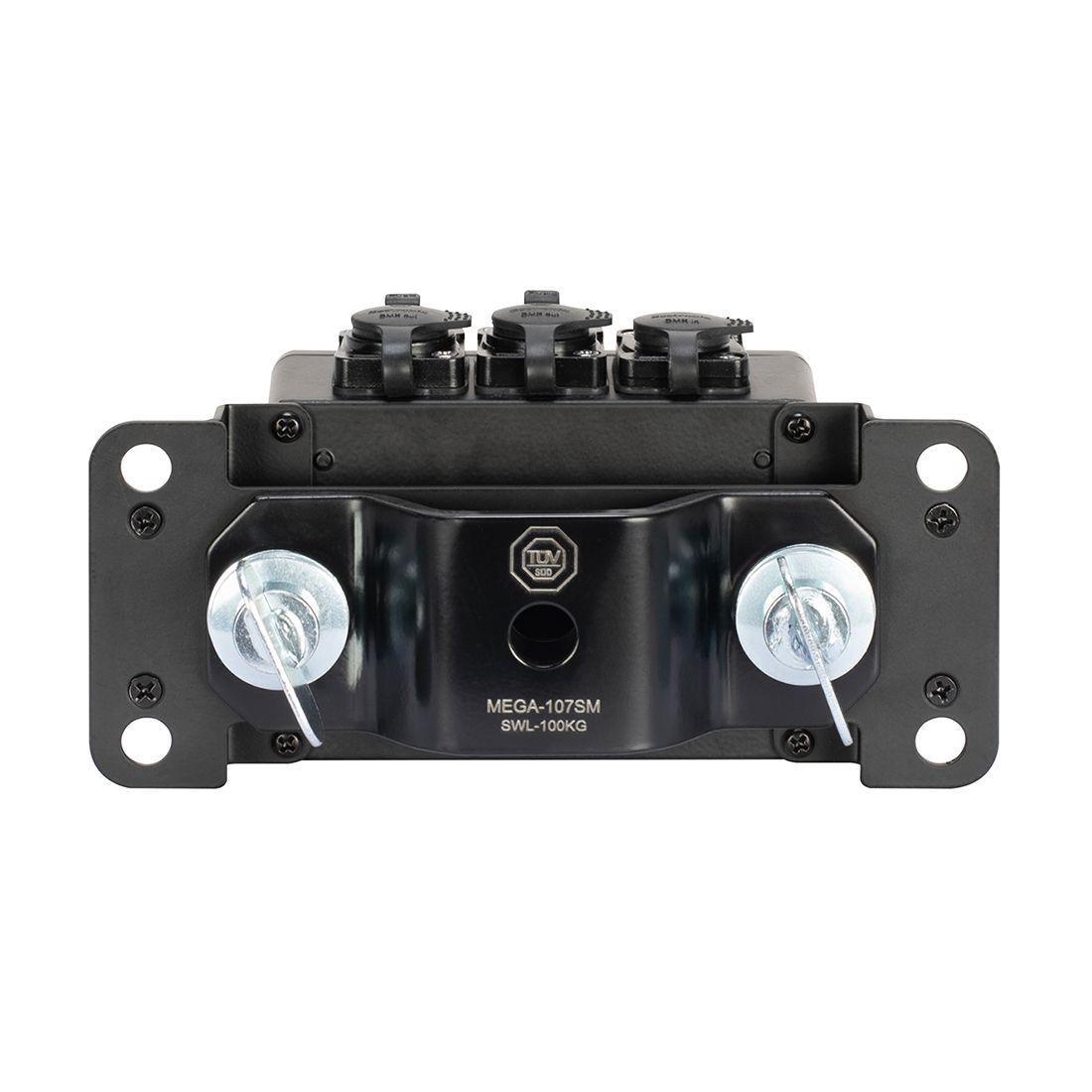

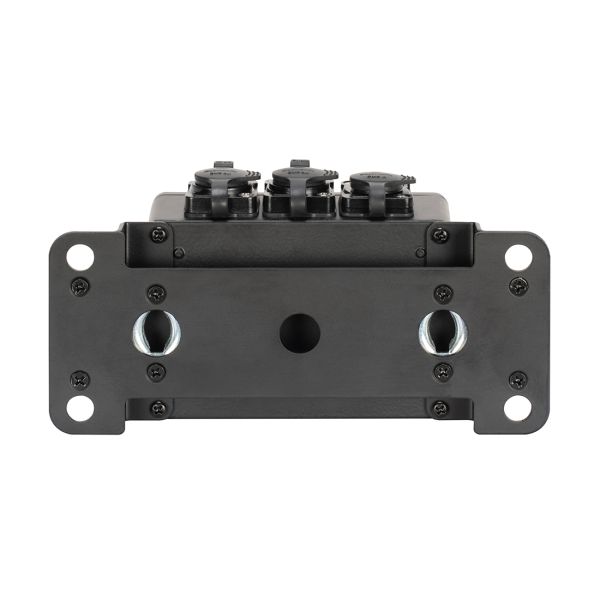

Height (With Omega Bracket: 111.0mm (4.4")
Weight: 1.2kgs. (2.64 lbs.)
ELECTRICAL / THERMAL

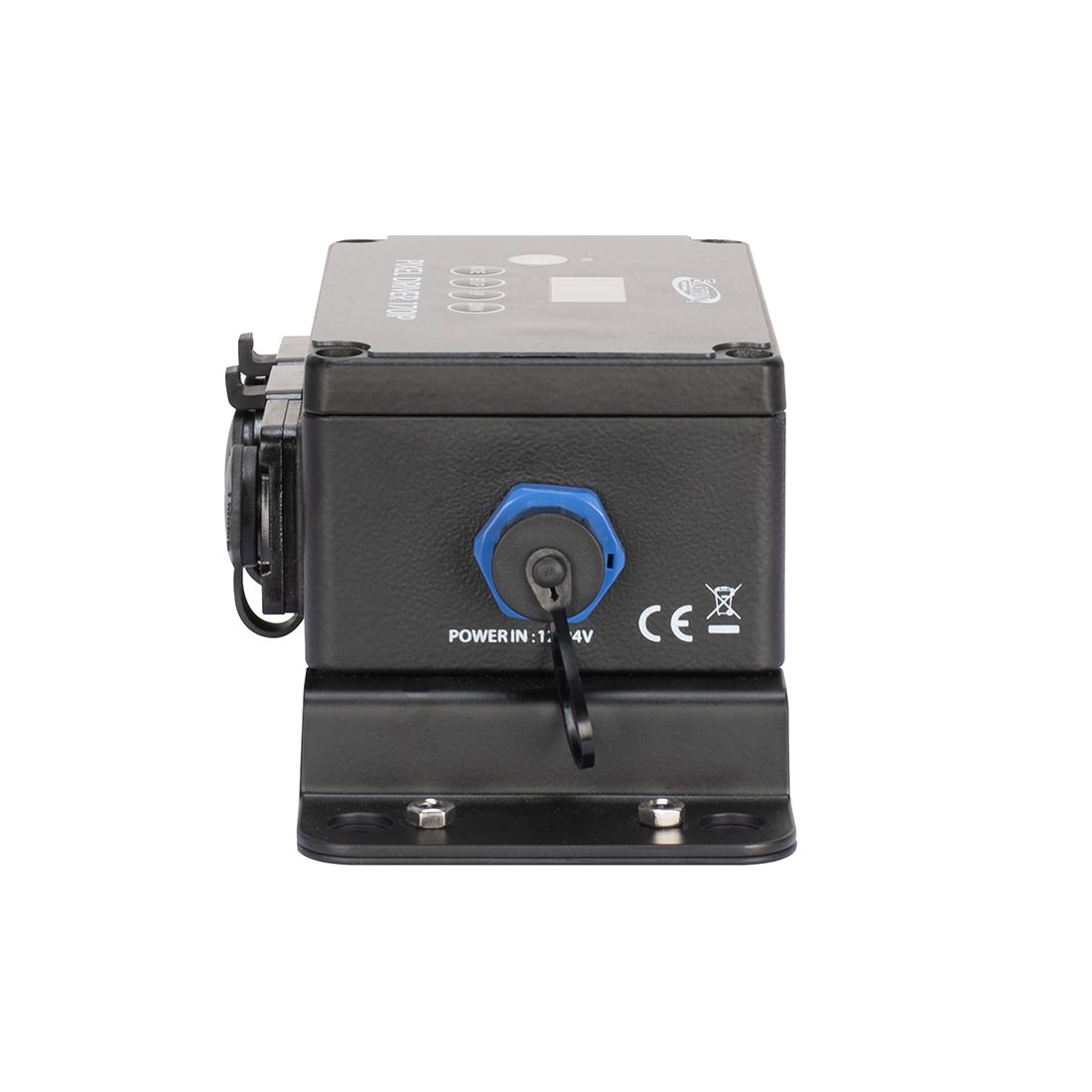

DC Input 12-24VDC, 8.4A (Requires separate power supply)200W Max Power Consumption
INCLUDED ACCESSORIES
EL-IR RemoteIR Receiver Cable
2-pin Power Cable to adapt to PSU
Specifications and documentation subject to change without notice
