  • Pixel Driver 1000IP
Code 1236200091

Pixel Driver 1000IP

PIXEL DRIVER 1000IP™ is designed specifically for the Elation PIXEL BAR 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 1,020 max pixels via ArtNet, sACN or Kling-Net protocols.

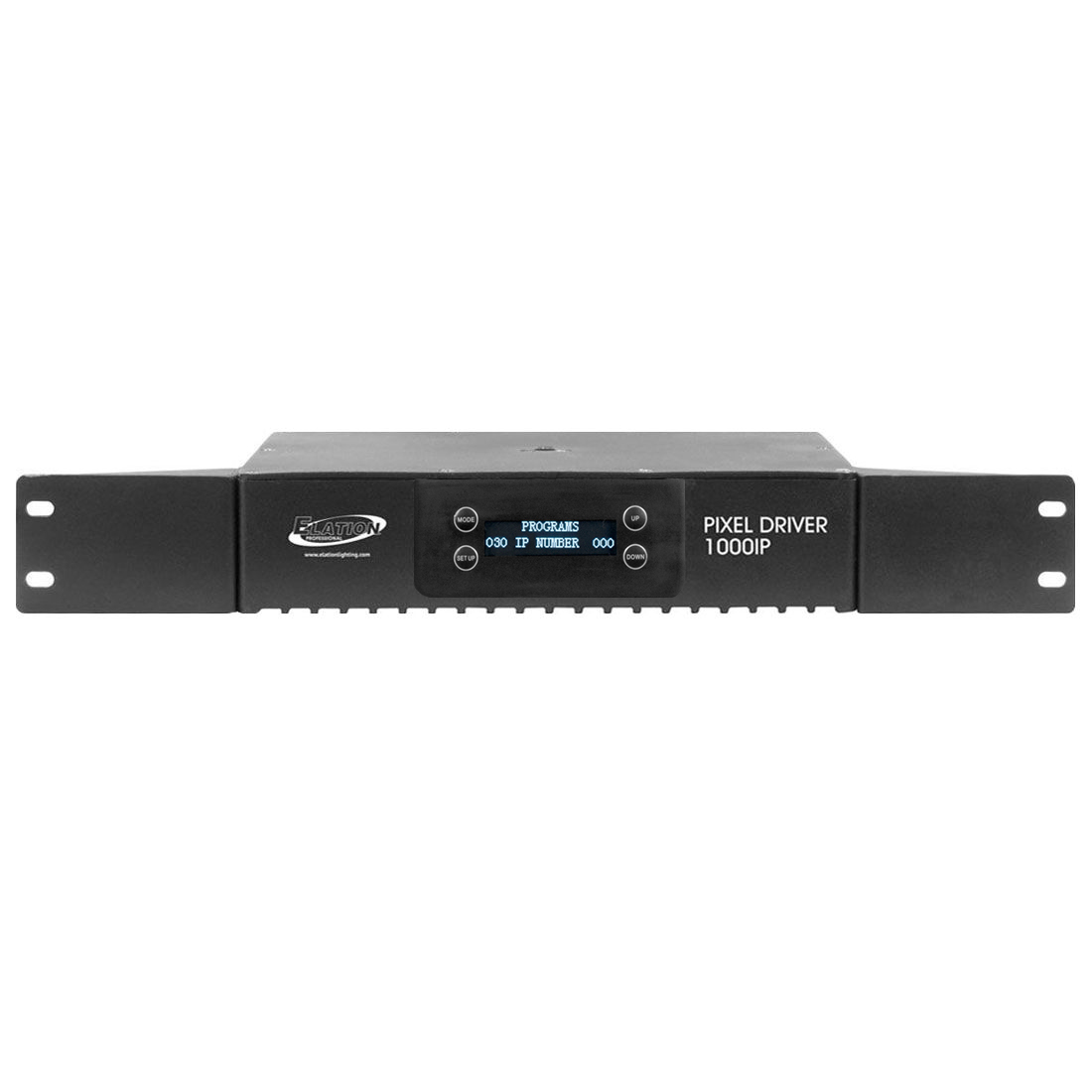

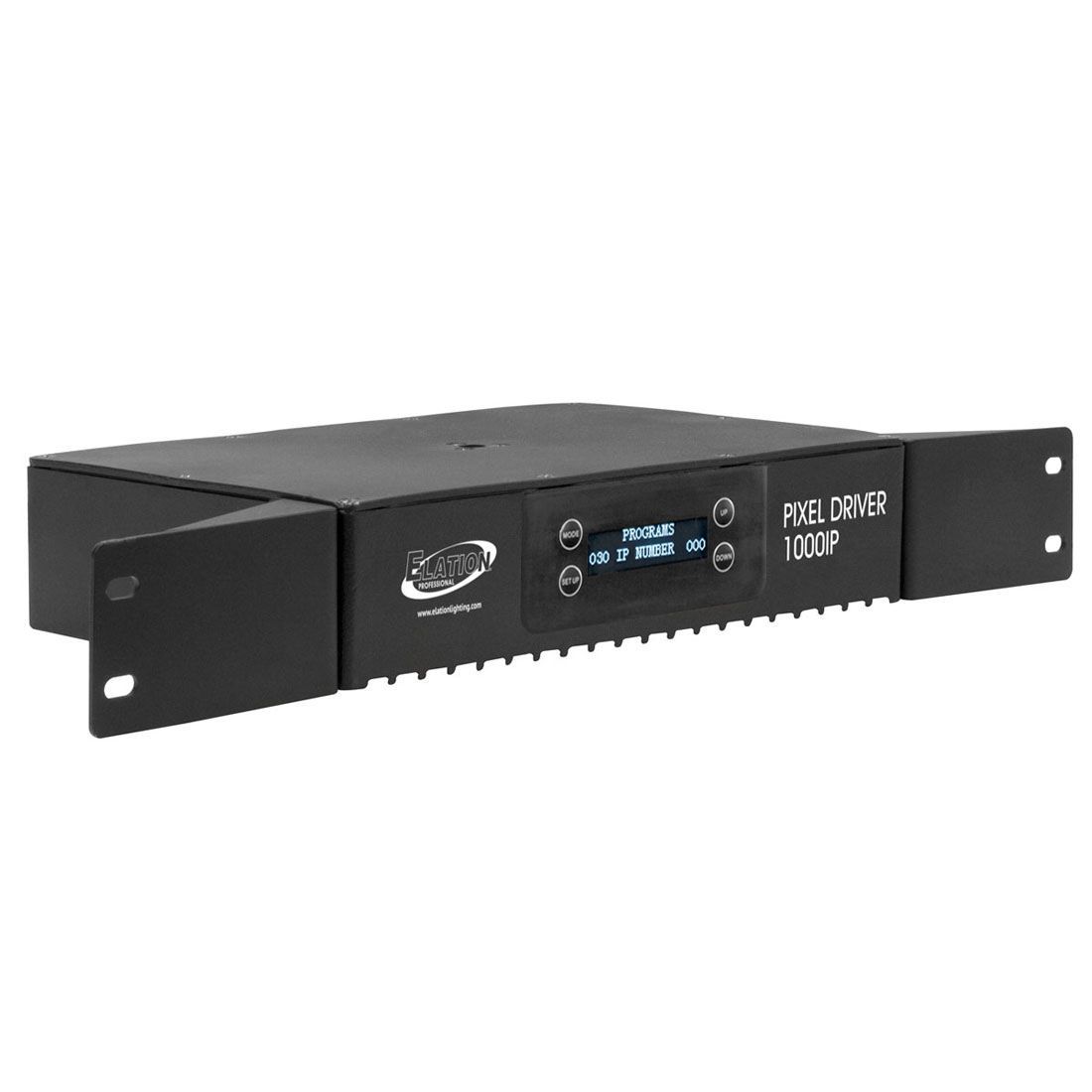

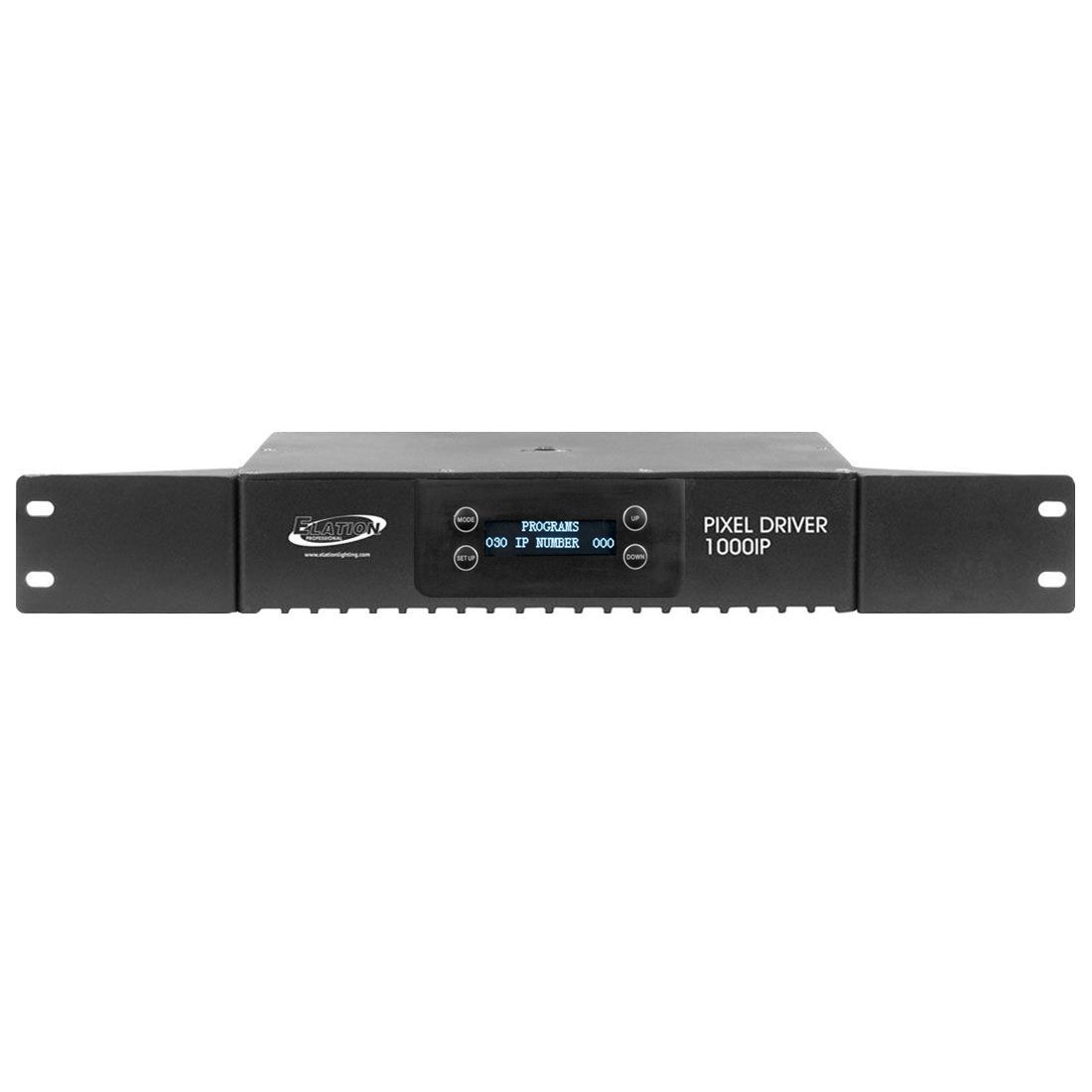

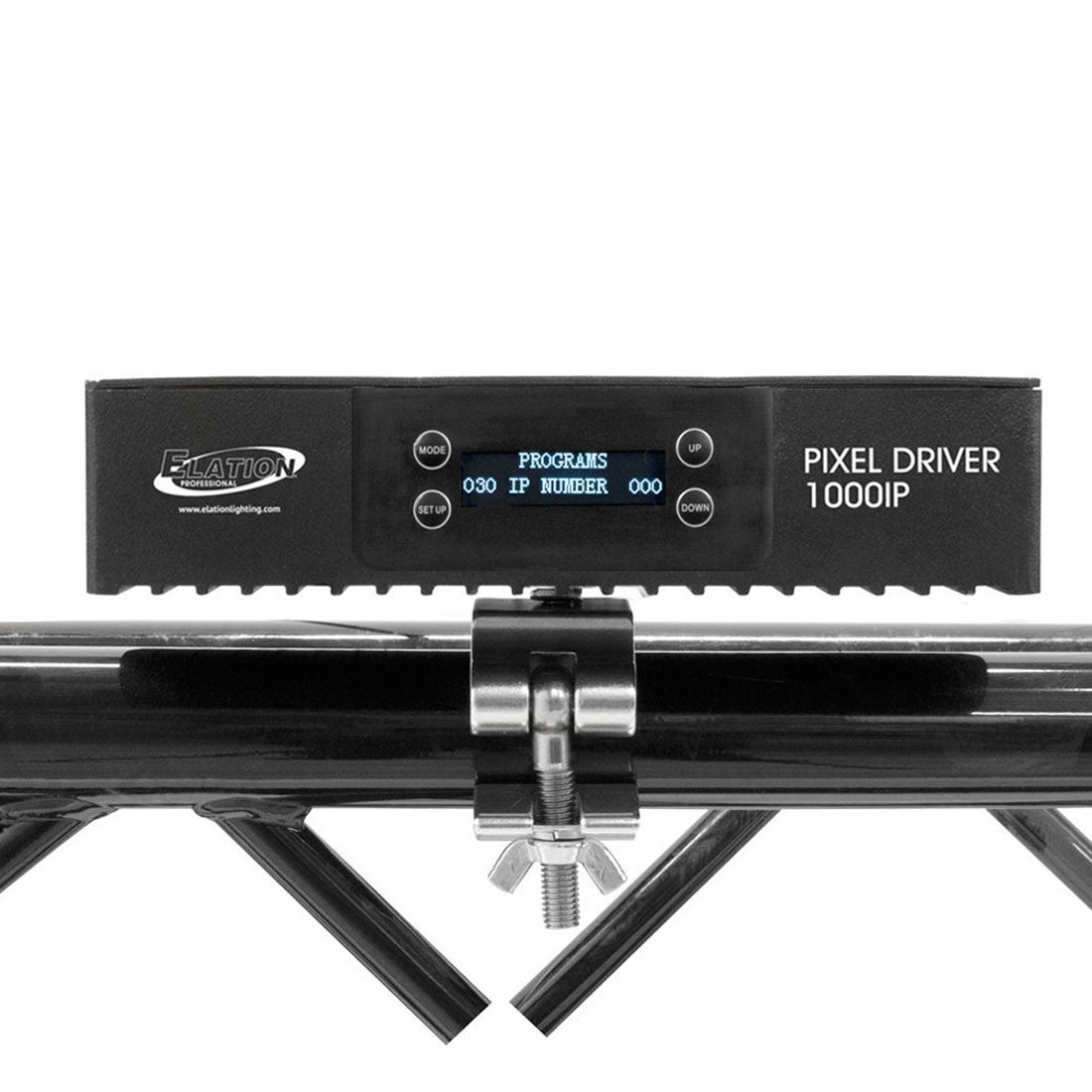

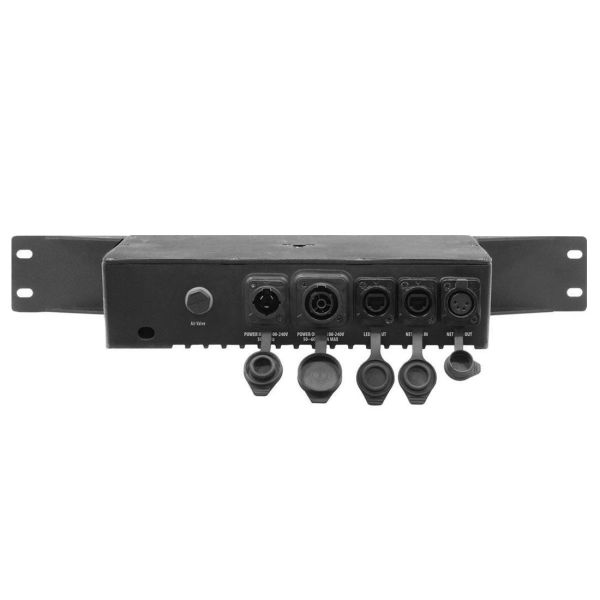

The PIXEL DRIVER 1000IP features a rugged IP65 housing, universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and a proprietary 4-pin, IP65 XLR type output that supplies power and data to the pixel bars connected to it, (Cables available in lengths from 2 to 50 meters). The PIXEL DRIVER 1000IP can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a Pro clamp (not included).

Technical Data

FEATURES


Power/Data Supply for Elation PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP and PIXEL WASH 40IP
IP65 Rated
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
1,020 Max Pixel Mapping via ArtNet, sACN or Kling-Net (Max 34pcs Pixel Bar 30IP or 17pcs Pixel Bar 60IP or 8pcs Pixel Bar 120IP per port)

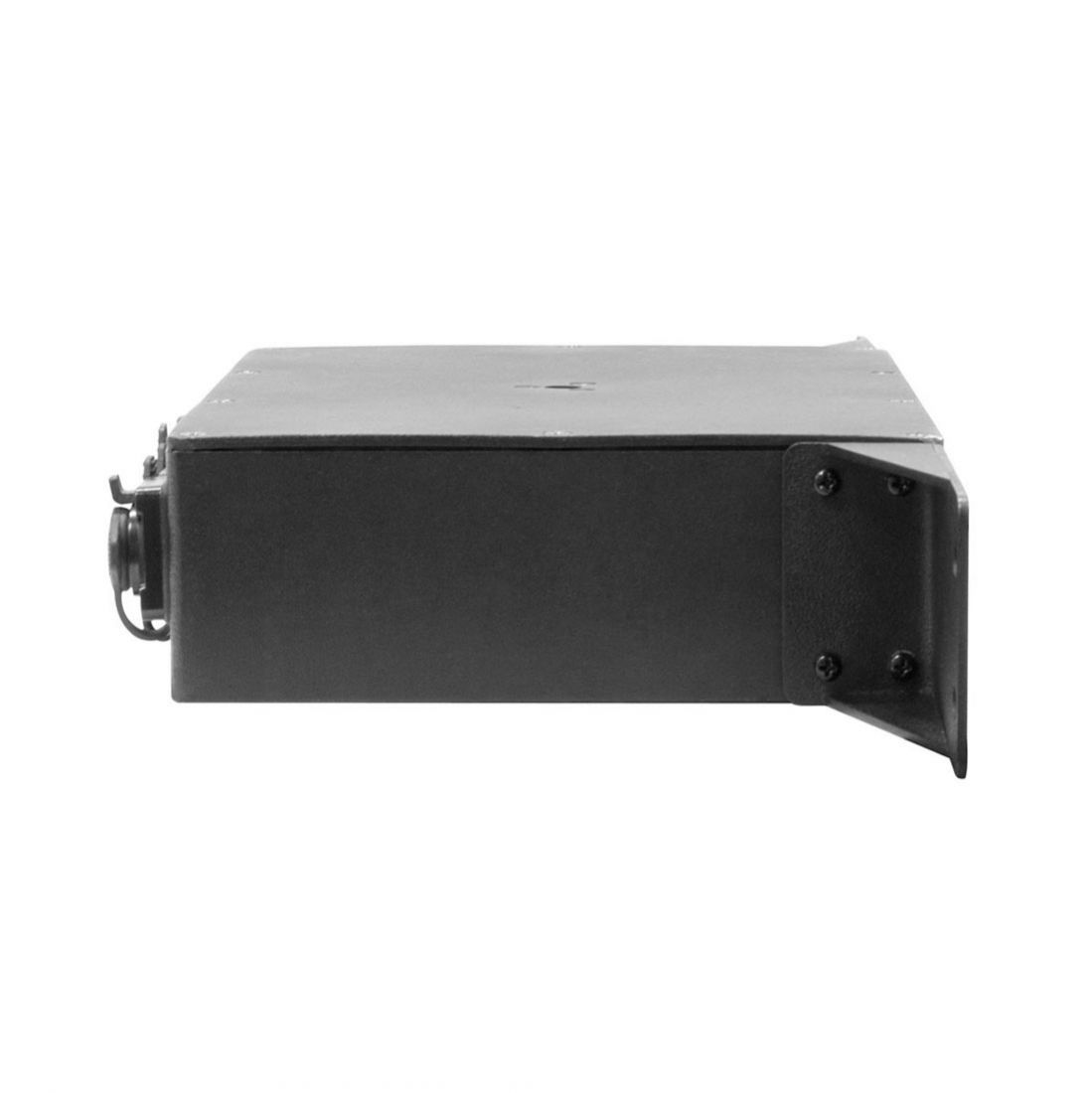

19-inch Rack or Truss Mounting Options
Multi Unit Linking via RJ45 Ethernet connections
(1) 4-pin Output
Power/Data Combo Cables (sold separately)*
*Available in lengths from 0.6-15 meters

SPECIFICATIONS

CONTROL / CONNECTIONS


Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
1 4pin Power/Data Outputs

SIZE / WEIGHT


Length: 18.9” (480mm) * With Rack Ears
Width: 8.0” (203.5mm)
Height: 2.5” (64 mm)
Weight: 8 lbs. (3.6kg)

ELECTRICAL


AC Input 100-240V - 50/60HZ, 2.2A
DC Output 24V, 8.4A
IP65 rated locking power IN/Out
200W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)


Specifications and documentation subject to change without notice
