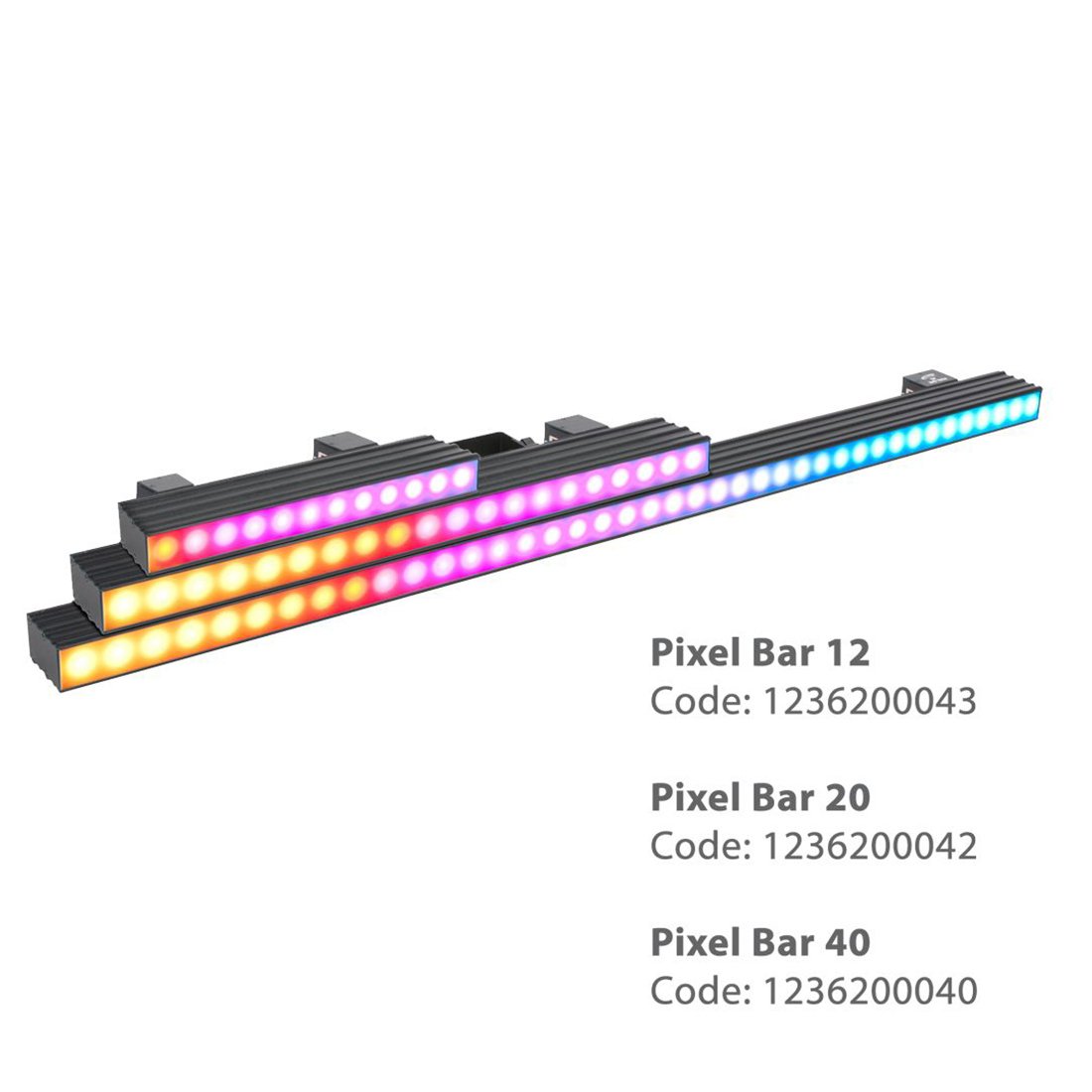

Pixel Bar 20
Pixel Bar 20 Picture 2
Pixel Bar 20 Picture 6
Pixel Bar 20 Picture 7
Pixel Bar 20 Picture 8
Pixel Bar 20 Picture 10
Pixel Bar 20 Picture 9
Pixel Bar 20 Picture 3
Pixel Bar 20 Picture 5
Pixel Bar 20 Picture 4
Code
1236200042
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/i/pixel_bar_website_pics_1.jpg)
![Pixel Bar 20 Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_back_1.jpg)
![Pixel Bar 20 Picture 6](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_in_1.jpg)
![Pixel Bar 20 Picture 7](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_info_1.jpg)
![Pixel Bar 20 Picture 8](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_out_1.jpg)
![Pixel Bar 20 Picture 10](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_tube_1.jpg)
![Pixel Bar 20 Picture 9](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_red_1.jpg)
![Pixel Bar 20 Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_blue_1.jpg)
![Pixel Bar 20 Picture 5](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_green_1.jpg)
![Pixel Bar 20 Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200042_FX_1.jpg)
FEATURES
3-in-1 RGB SMD LEDs25mm Pixel Pitch
850 NITs / 2000Hz Refresh Rate
No Fans, Silent Operation
Extruded Aluminum Housing

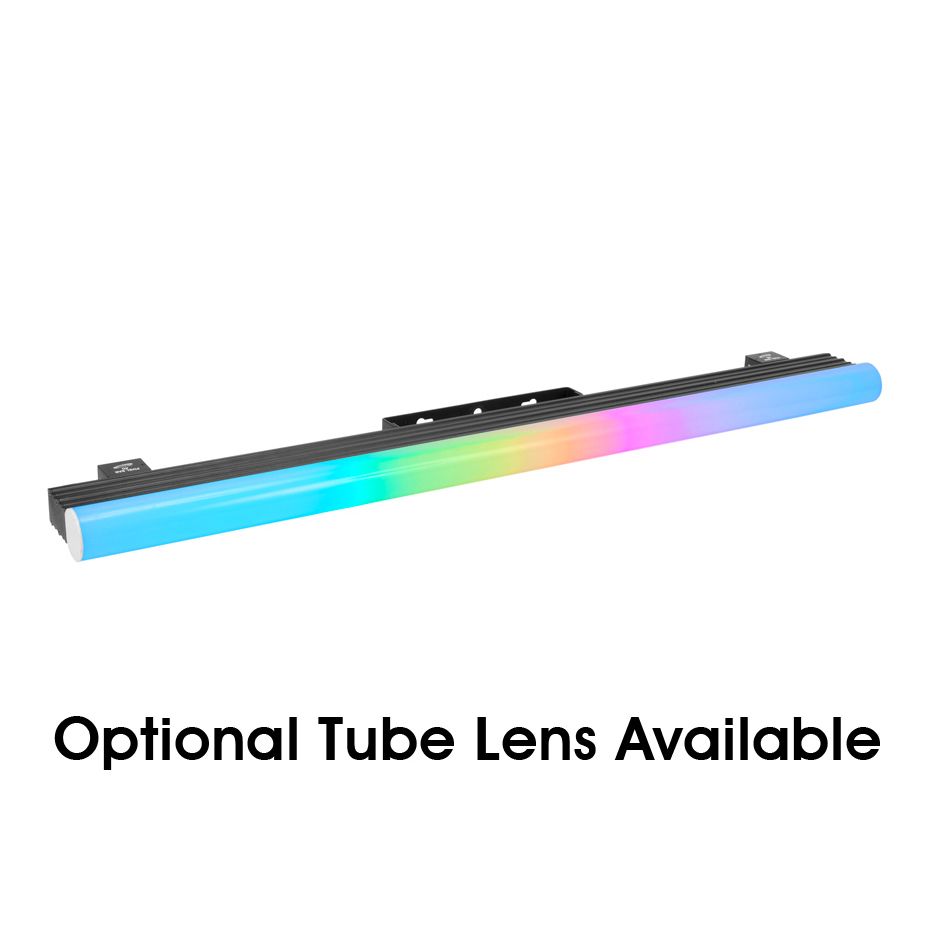

Optional Frost Tube Lens
Art-NET (DMX over Ethernet)
SOURCE
20x SMD LEDsPHOTOMETRIC DATA
82 LUX 8 FC @ 1.6’ (0.5m)COLOR
RGB Color MixingCONTROL / CONNECTIONS

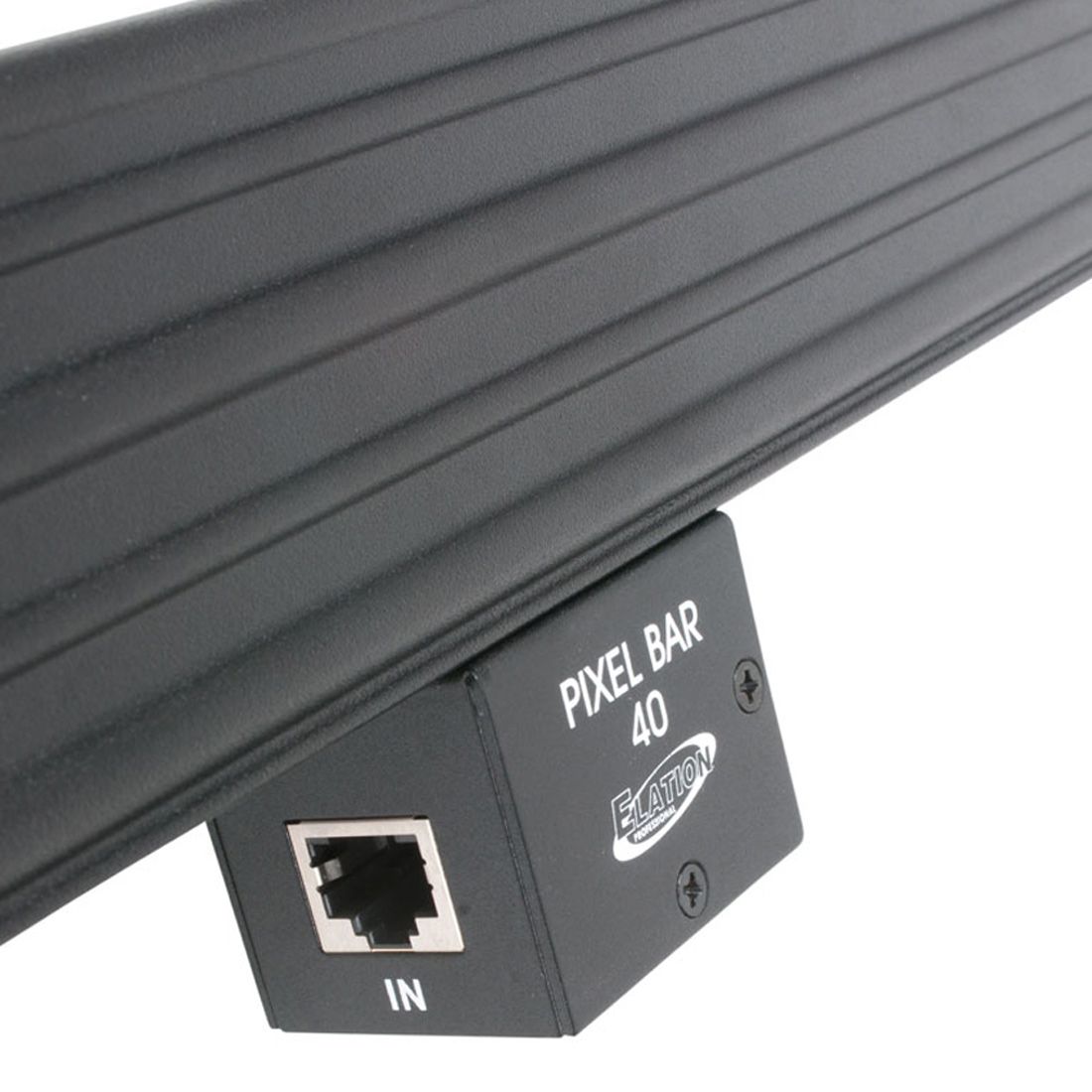

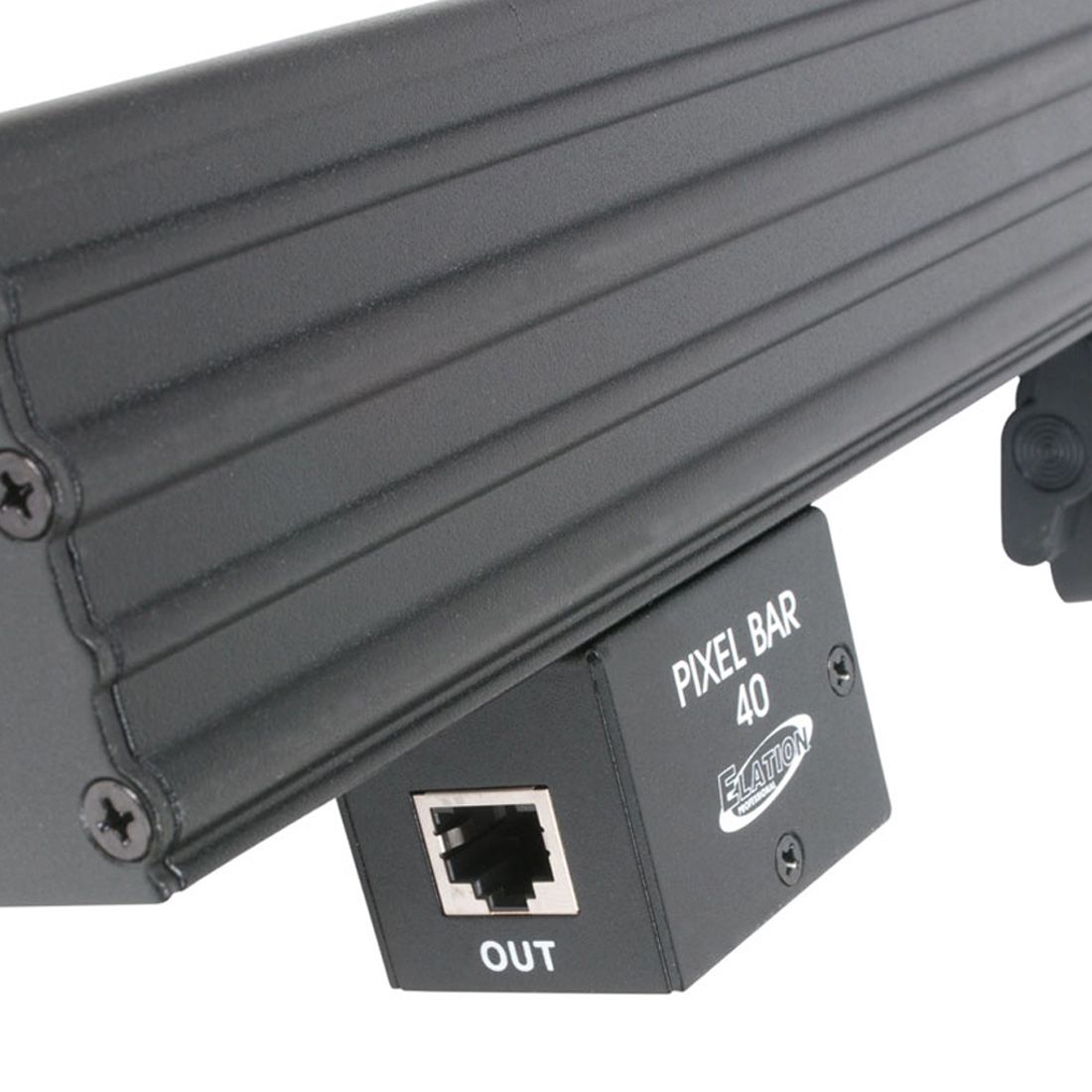

60 DMX ChannelsLocking RJ45 Ethernet Connector In/Out (Art-NET Support)
SIZE / WEIGHT
Length: 19.7” (500mm)Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 3.6 lbs. (1.63 kg)
ELECTRICAL / THERMAL
DC-24V8W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES

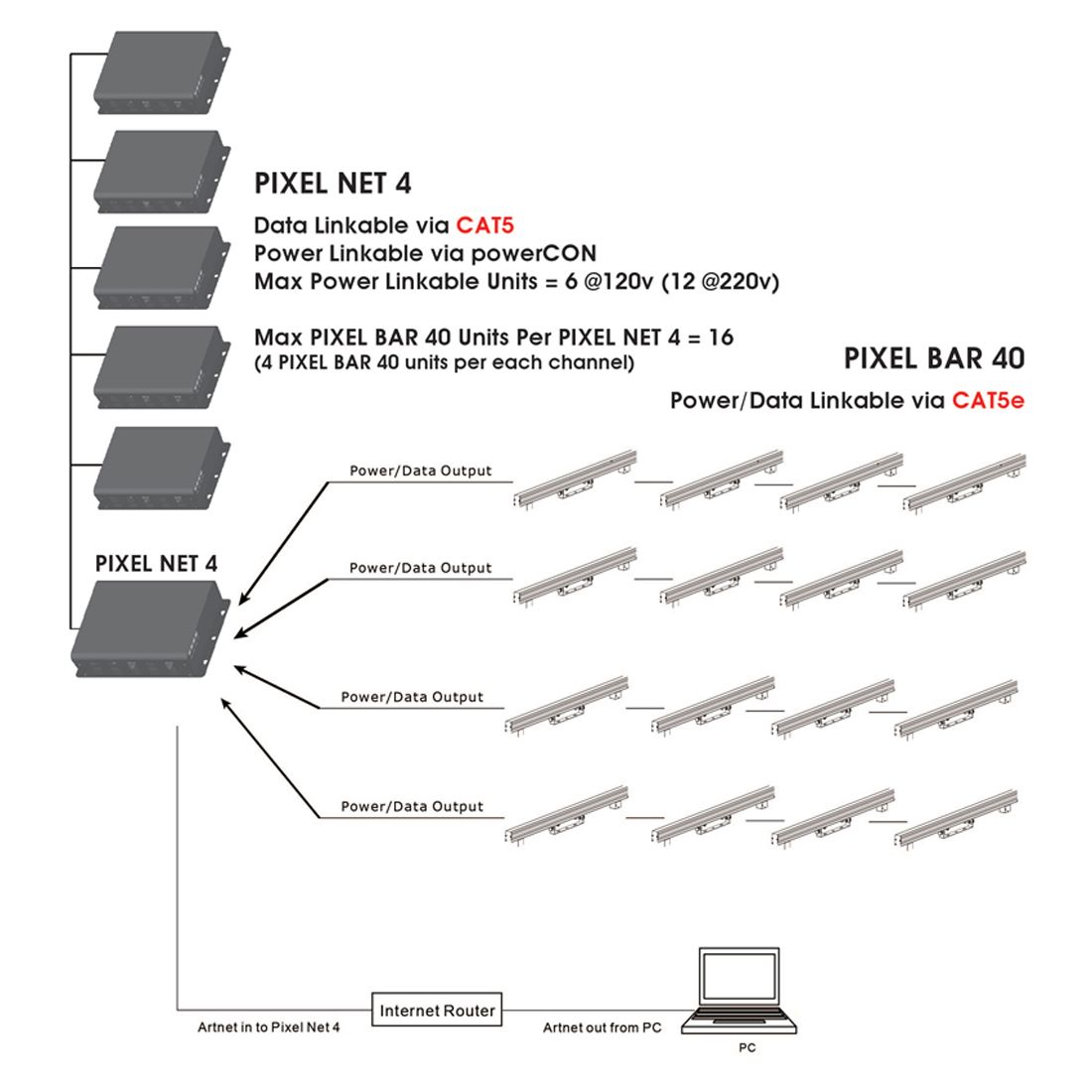

1236200041 Pixel Net 41236200055 Pixel Bar 20 Tube Lens
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
