OPTO Branch 4 - DMX Splitter

OPTO Branch 4 - DMX SplitterArchive

Code 1321000037

The OPTO BRANCH 4™ is a single rack space, 4-way distributor/booster with locking 3/5pin XLR Connector input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting and an auto switching power supply...

Code 1321000037

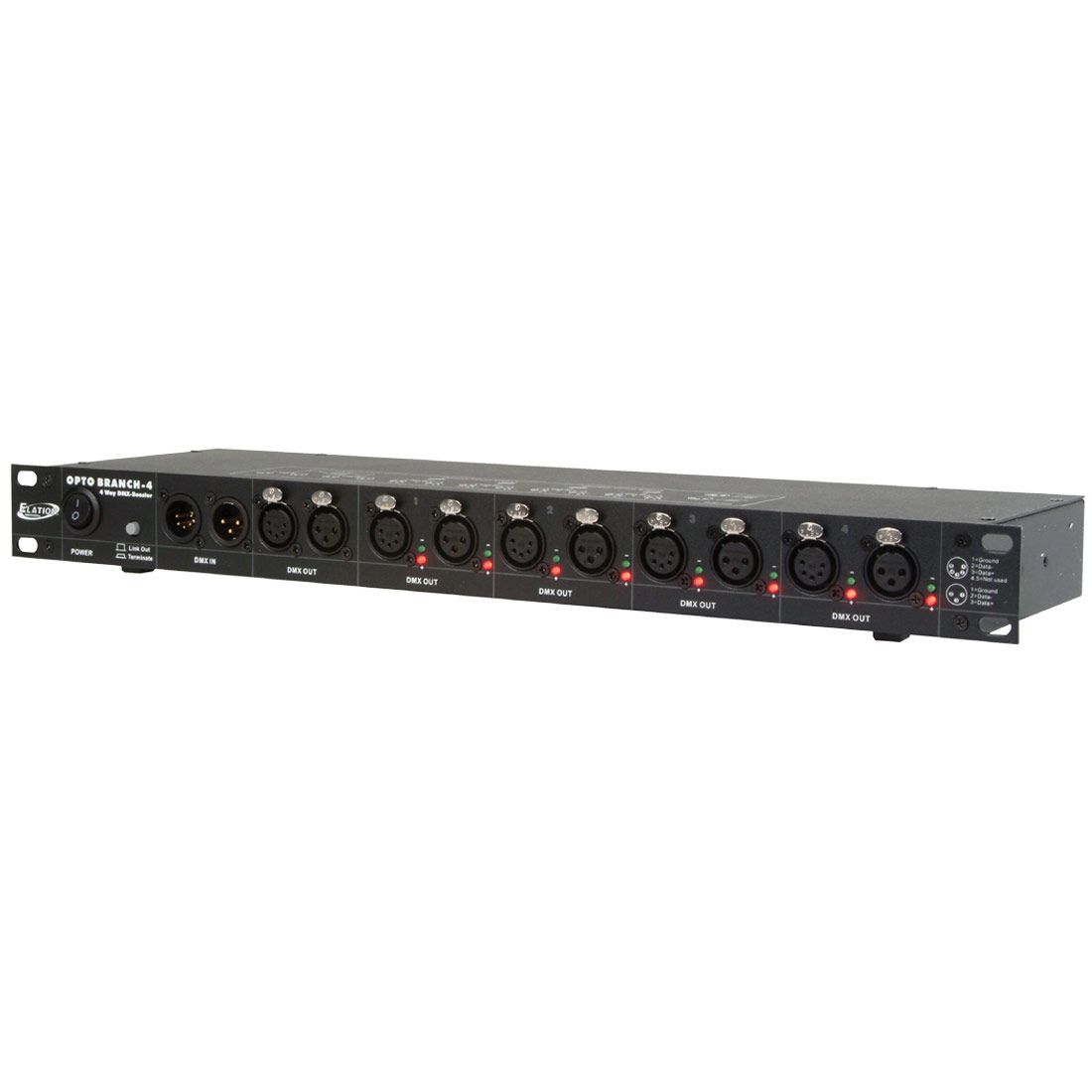

OPTO Branch 4 - DMX Splitter

The OPTO BRANCH 4™ is a single rack space, 4-way distributor/booster with locking 3/5pin XLR Connector input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting and an auto switching power supply (100-240v 50/60Hz).

Technical Data

FEATURES

4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant

Link / Terminate Button for Easy Troubleshooting

DMX Status LED Indicator

(1) 3pin + (1) 5pin Locking XLR Connector Isolated Inputs

(1) 3pin + (1) 5pin Locking XLR Connector Passive Loop Output

(4) 3pin + (4) 5pin Locking XLR Connector Isolated Outputs

Auto Switching Power Supply

SIZE / WEIGHT

19” (482mm) x 5.7” (145mm) x 1.7” (44mm)

5.3 lbs. (2.4kg)

ELECTRICAL

AC 100-240V 50/60Hz

Specifications and documentation subject to change without notice

Downloads

User Manual

OPTO Branch 4 - DMX Splitter Manual (Size: 195.4 KB)
