Opti TRI White Par

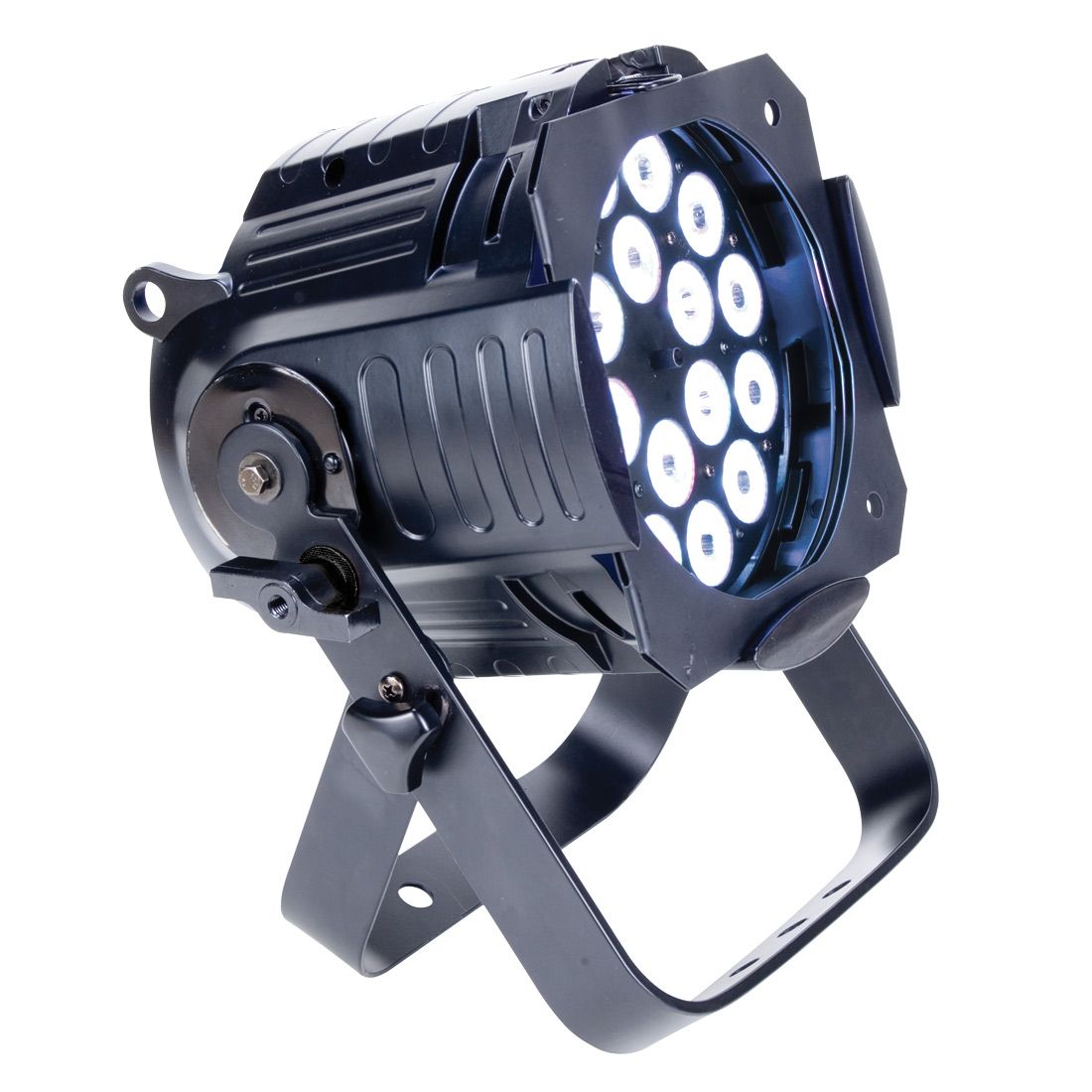

The Opti Tri White by Elation Professional is a high output LED color changer featuring full Tri Color White color mixing utilizing 18 x 9W LEDs, Cool White, Warm White and Amber with a total unit power draw at full of 160 watts. Weighing 4,8kg, the unit boasts a sturdy, high impact aluminum construction available in black casing. The Opti Tri White is fan cooled with the design of the fixture optimized to provide up to 50,000 hours estimated LED life. This unit is rated at IP 20, designed for indoor applications and multi voltage 100-240v AC with locking power in/out linking of up to 16pcs. This unit can be operated in stand alone mode, sound active mode or controlled via DMX controller. Control data input is via 3 pin XLR or 5pin DMX connector cables. Heavy duty rigging yoke with integrated floor kick stand is included and optional safety cables and data cables are available. The Opti Tri White comes fitted with a standard 20° lens kit. Optional beam angles are available using our LSF filter series in the supplied gel frame as well as an optional Barn door can be added.

Technical Data

FEATURES

Featuring TRI White Technology
Cool White, Warm White and Amber LEDs
20° Beam Angle
Gel Frame Holder Included
Flicker Free Operation for TV and FILM
Die-Cast Aluminum Body
Dual Yoke / Floor Stand
Multiple Unit Power Linking


SOURCE

(18) 9W TRI White LEDs
Seamless Variable Color Temperature From 2,400K - 6,000K
50,000 Hour Average Life


PHOTOMETRIC DATA

11,470 LUX @1M


EFFECTS

Electronic Strobe (1-18FPS)
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(4) DMX Channel Modes (4/7)
(4) Button Control Panel
LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out


SIZE / WEIGHT

Length: 278mm
Width: 220mm
Vertical Height: 358mm
Weight: 4,8kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
160W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
