Code
1323000025
CONTROL / CONNECTIONS
(1) Touch Sensitive Motorized Master Fader
(8) Touch Sensitive Motorized Playback Faders
(4) Precise Custom Weighted Aluminum Encoder Wheels with Push-In Selection
(19) Key Numeric Keypad
(26) Shortcut Keys
(4) Matrix Context Keys

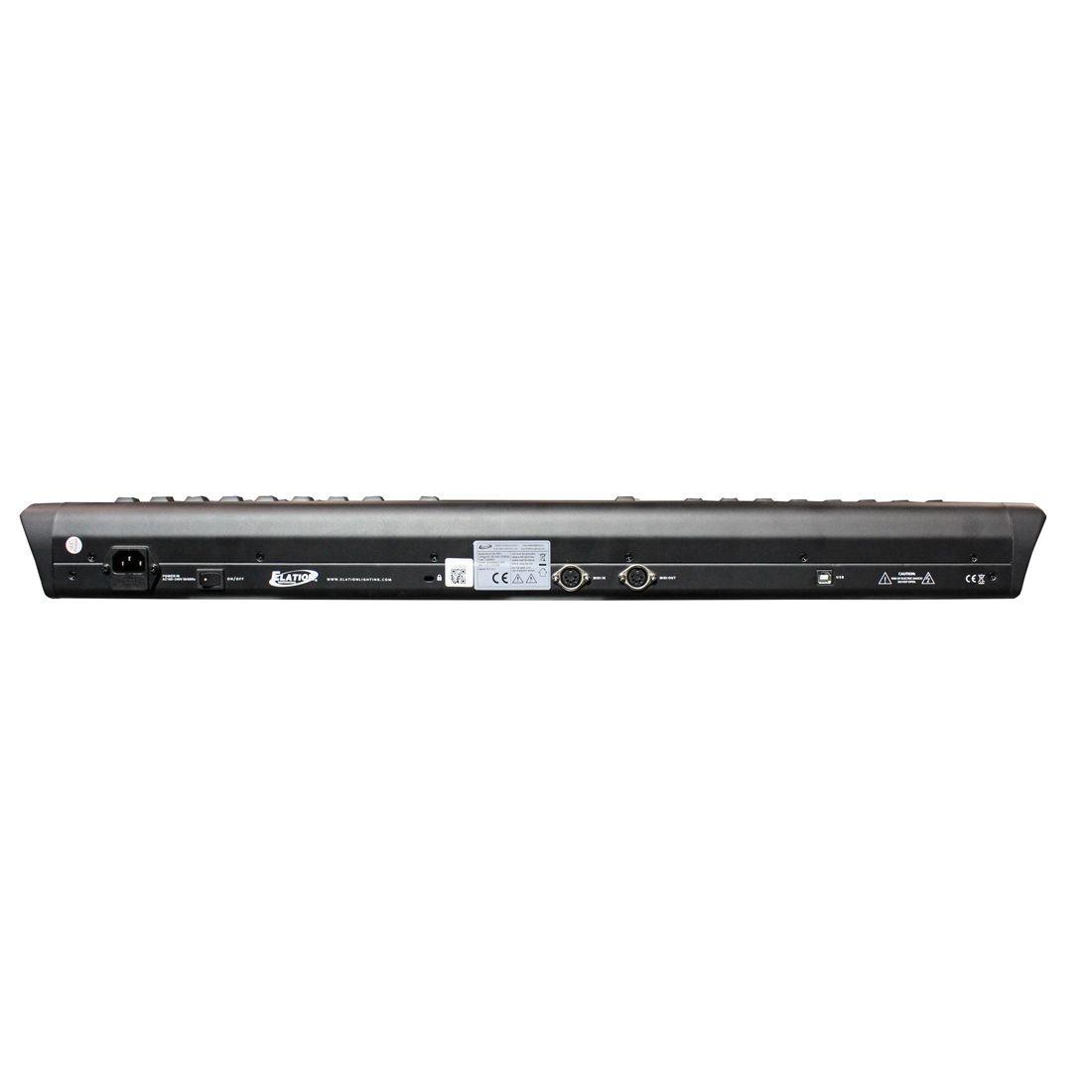

5pin MIDI In/Out Ports
USB 2.0 Type “B” Port
(2) Page Control Keys
(32) Matrix Effect Keys
Forward, Reverse, and Bump Keys above each Fader
(1) Blackout Button
SIZE / WEIGHT
Length: 30.96” (786.5mm)
Width: 13.17” (334.5mm)
Vertical Height: 3.15” (80mm)
Weight: 17 lbs. (7.7 kg)
ELECTRICAL
AC 100-240V - 50/60Hz
Internal universal auto switching power supply (100-240V).
35W Max Power Consumption
Specifications and documentation subject to change without notice
