SPECIFICATIONS

Rated Power: 1500W
Heater Power: 1350W
Over-Voltage Protection (OVP)*
DMX-Activated Sleep Mode
Max Output: 20,000 CFM* (cubic feet per minute)
Ready Time: Initial = 35 Seconds*
Fluid Capacity: 1.48 gallons (5.6 liters)
Fluid Consumption: ~0.338 oz/min (10 ml/min)*
*Values are approximate



COMPATIBLE FLUID

Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers

CONSTRUCTION

Thermally Protected Heat Exchanger

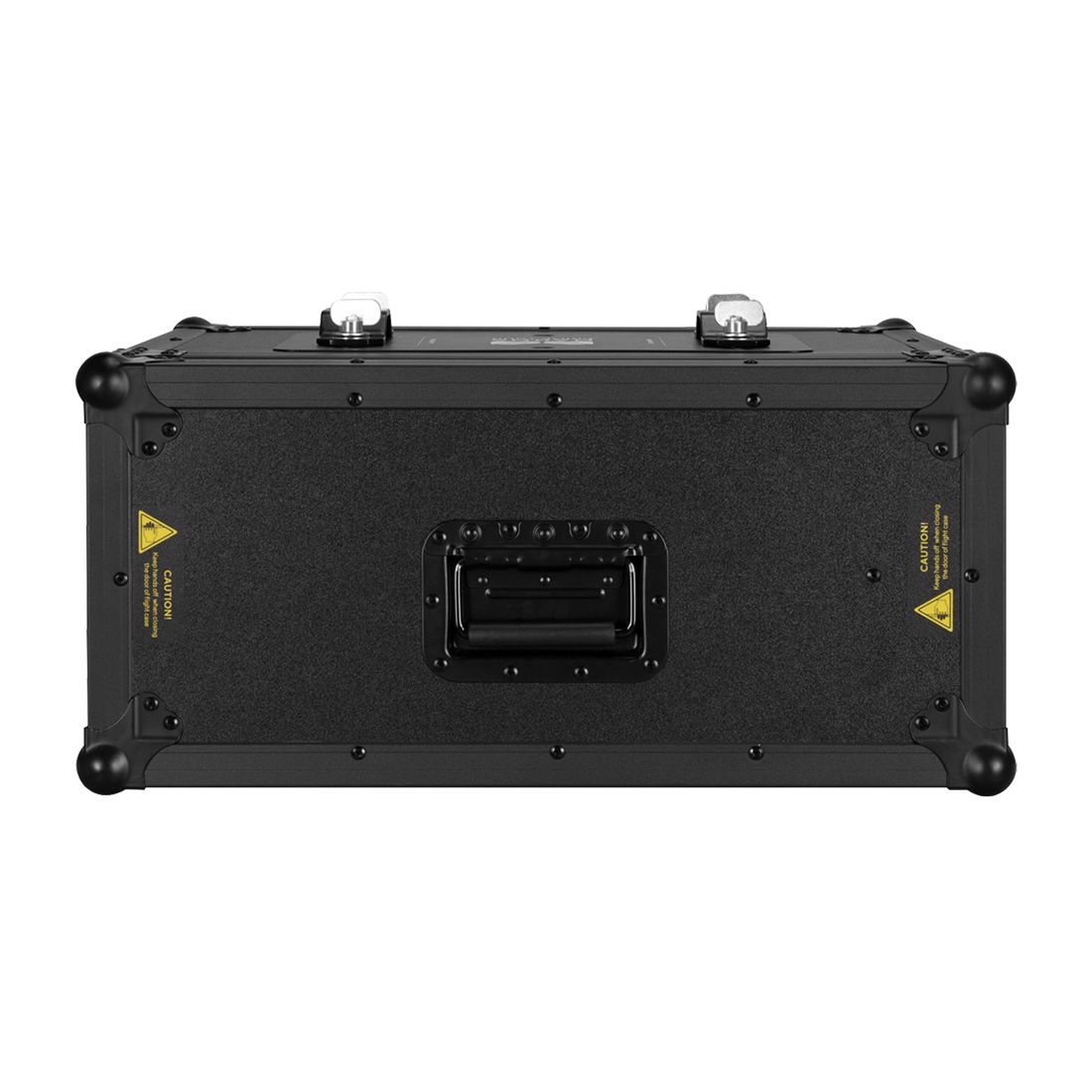

Tour Ready Road Case w/ Handle

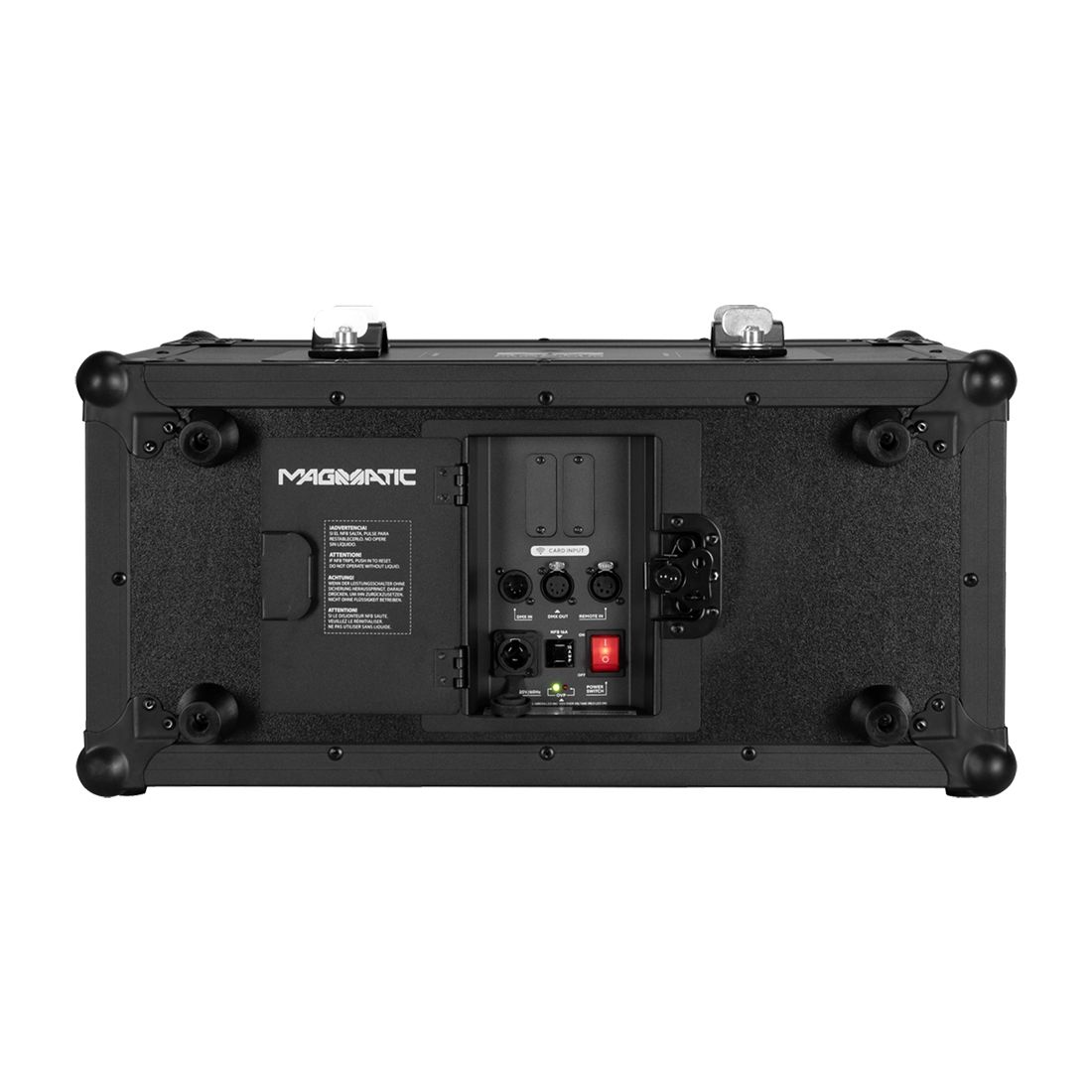

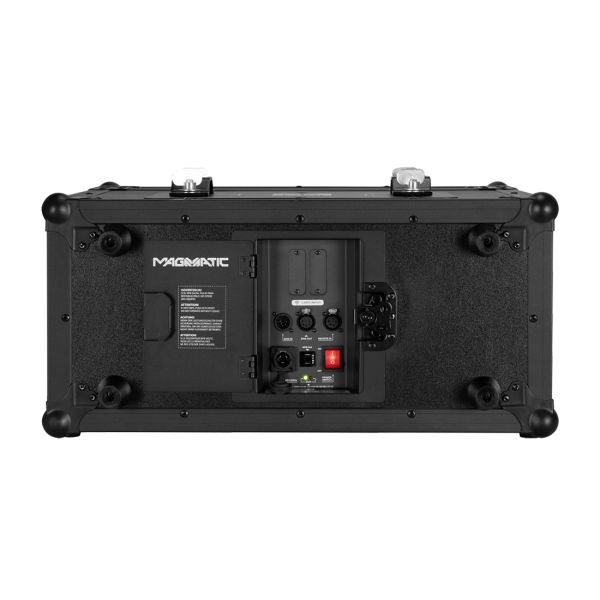

Rear Wiring for a Clean Setup

CONTROL

5 DMX Channel Modes (1 / 2/ 3 / 5/ 6)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

CONNECTIONS

Locking 5pin XLR Connector In/Out
Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 618mm (24.3 in.)
Width: 310mm (12.2 in.)
Height: 518mm (20.4 in.)
Weight: 31.5kg (69.5 lbs.)

ELECTRICAL

AC 230V 50Hz
10A @ 230VAC - 240VAC
Max Power Consumption: 1500W

THERMAL

Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)

OPTIONAL ACCESSORIES

Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers
MagFLY Card
MagRF Card



*OVP is active only during startup and does not protect against voltage spikes during normal operation.
