Code 1412000010

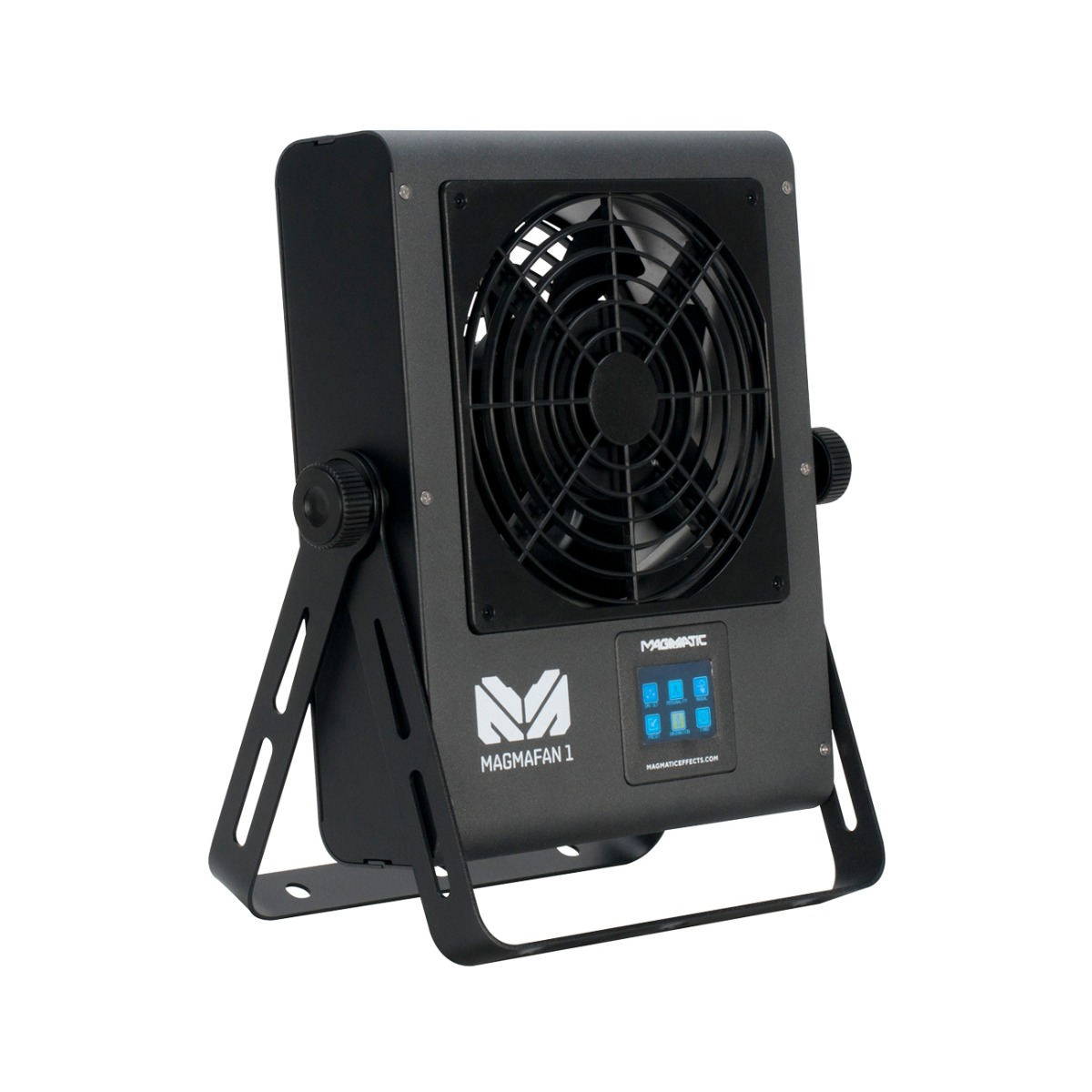

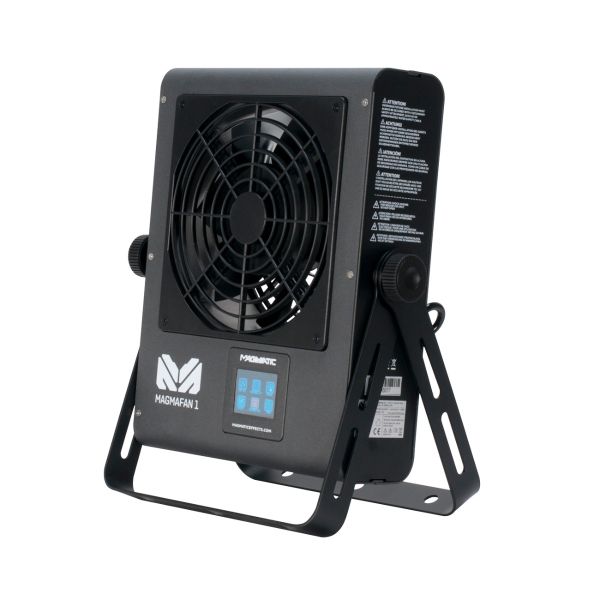

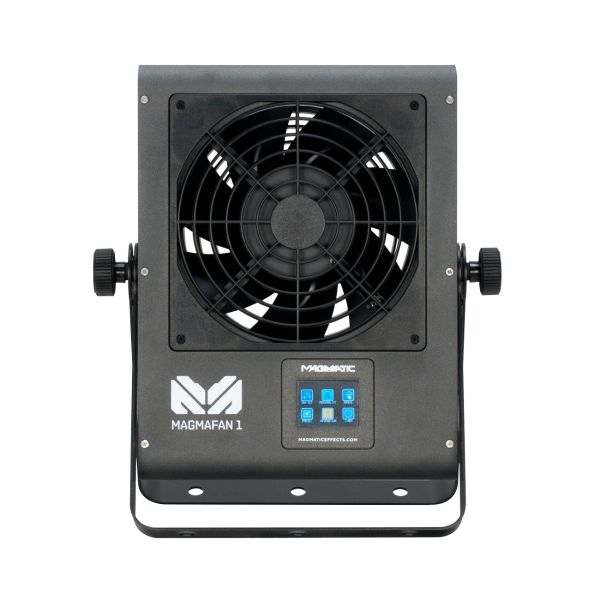

MAGMA FAN 1

MagmaFan 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.

Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine.

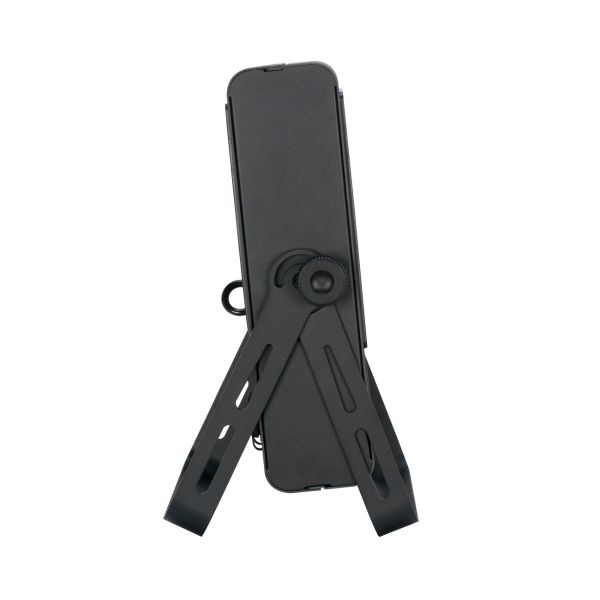

The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.

Technical Data

FEATURES

Intuitive DMX-512 and RDM control
Linear speed control
80W, low power consumption
LCD touch screen control panel
Compact durable metal housing

SPECIFICATIONS


PERFORMANCE


Rated Power: 165W
Max. fan volume: 17 m3/min (600cu ft/min.)
Fan angle: 0-360°
Fan speed range: 750-2550rpm

CONSTRUCTION


Durable aluminum housing
Compact lightweight mobile design

CONTROL


3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

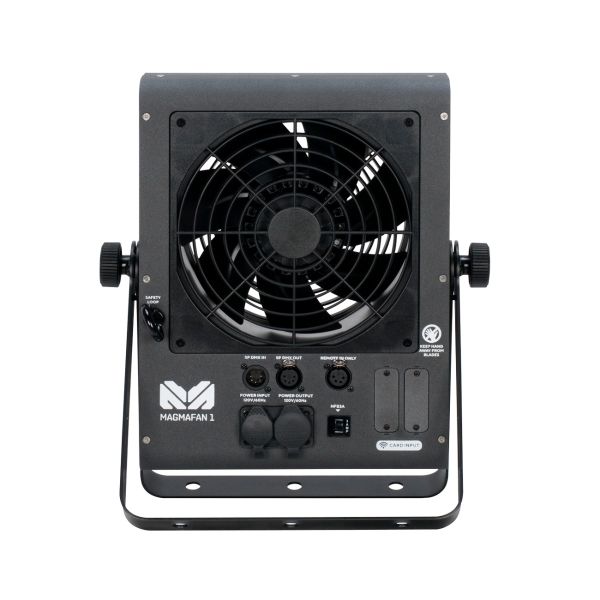

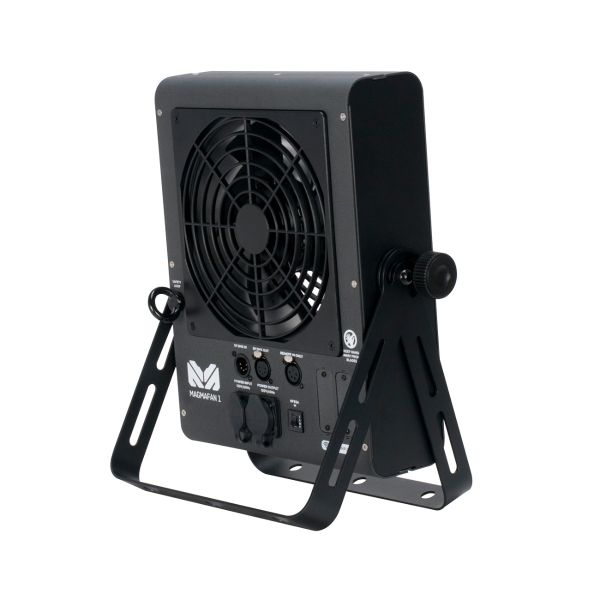

CONNECTIONS


Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT


Length: 335mm (13.2 in.)
Width: 125mm (4.9 in.)
Height: 395mm (15.6 in.)
Weight: 6.8kg (15 lbs.)

ELECTRICAL


AC 230/240V - 50Hz
2A (NFB)
Max Power Consumption: 165W

THERMAL


Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)

OPTIONAL ACCESSORIES

MagFLY Card
MagRF Card

Specifications and documentation subject to change without notice
