Code 1330000028

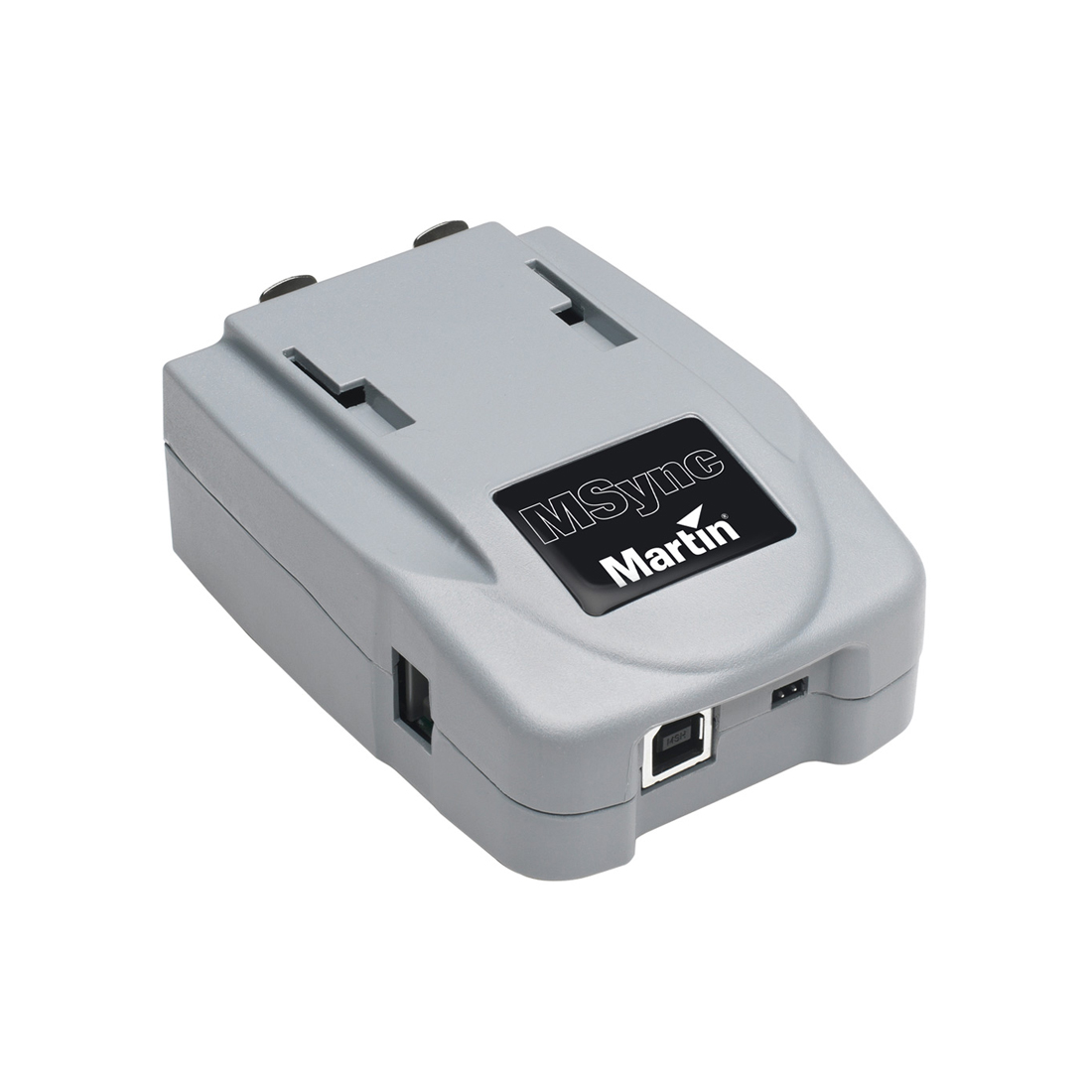

M-Sync

The M-Sync is a simple USB device that allows SMPTE timecode to be input directly into any M-Series console - M1 HD, M2GO HD, M2PC, or M-PC.

M-Sync has two 3-pin XLR connectors for timecode In/Out, supporting LTC timecode @ 24, 25, 29.97 and 30 frames per second. It can be connected to any USB port on a PC or M-Series console.

M-Sync allows the M-Series software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

Two 3-pin XLR connectors for timecode In/Out
LTC timecode set at 24, 25, and 30 frames per second
Works with M-Series software on consoles or with M-PC

Note - This product has been superceded by the NX SYNC - please click here for more details

Technical Data

FEATURES

Two 3-pin XLR connectors for timecode In/Out
Convenient, space-saving, stackable design
Easily mounts to surfaces and walls
LTC timecode @ 24, 25, 29.97 and 30 frames per second


PHYSICAL

Length: 103 mm (4.1 in.)
Width: 73 mm (2.9 in.)
Height: 42 mm (1.7 in.)
Weight: 116 g (0.3 lbs.)


CONTROL/USER INTERFACE

Configuration and management: Within M-Series™ application


TIMECODE

Compliance: SMPTE (LTC)
Frame rates: 24, 25, 29.97 and 30 frame/sec.


CONNECTIONS

Timecode In/Out: 2 x 3-pin locking XLR, 1 x male, 1 x fem.
PC/controller: USB


ELECTRICAL

USB-powered


INCLUDED ITEMS

USB cable

Specifications and documentation subject to change without notice
