Code
1226100230
![Light Shaping Filter LSF10-24 10# Picture](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/F/i/Filter_1.jpg)
![Light Shaping Filter LSF10-24 10# Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1226100230_diagram_1.jpg)
LSF FEATURES
- Effective Angular Output (light source angle) + (LSF angle)
- Temperature Range 30°C to 100°C @ 240 hrs or -40°C to 500°C
- Humidity >95% ± 5% RH @ 24 hrs

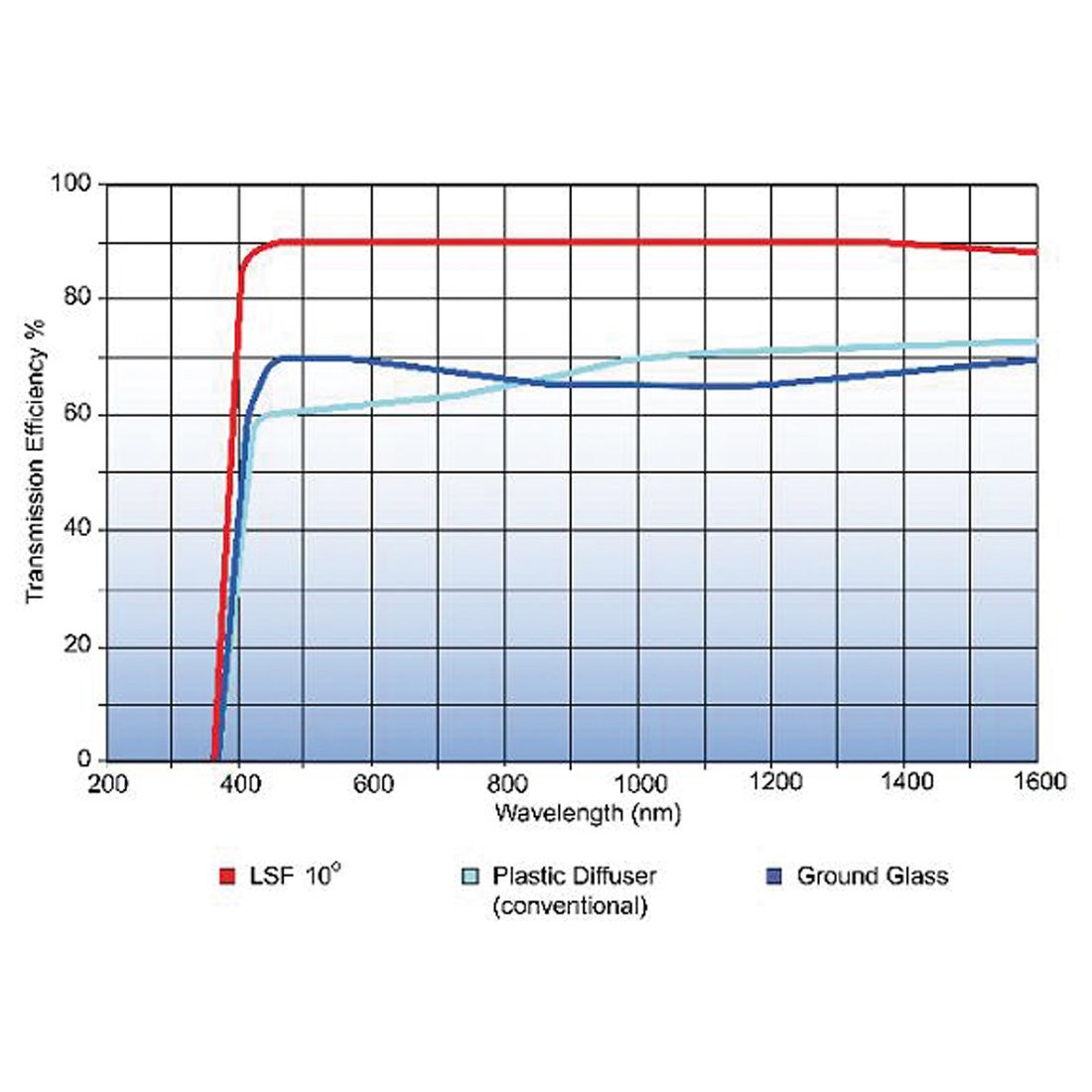

- Transmission Efficiency Circular: 0.2° to 20° = 90% 20° to 80° = 85% / Elliptical: = 85%
- Transmission 400nm to 1600nm
- Spectral Range or 200nm to 1500nm
- Brightness Uniformity =85%
- Size: 609mm x 609mm
Specifications and documentation subject to change without notice
