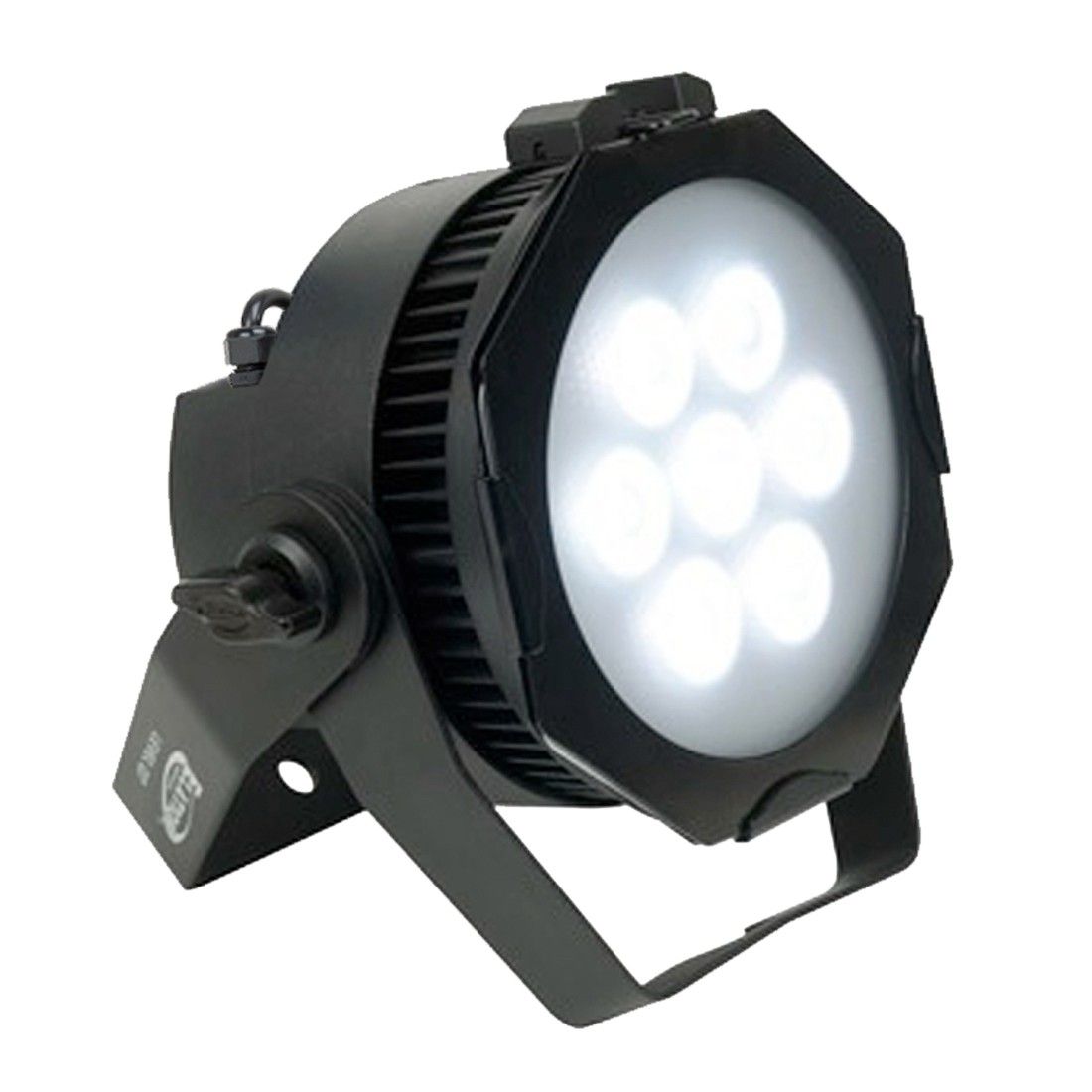

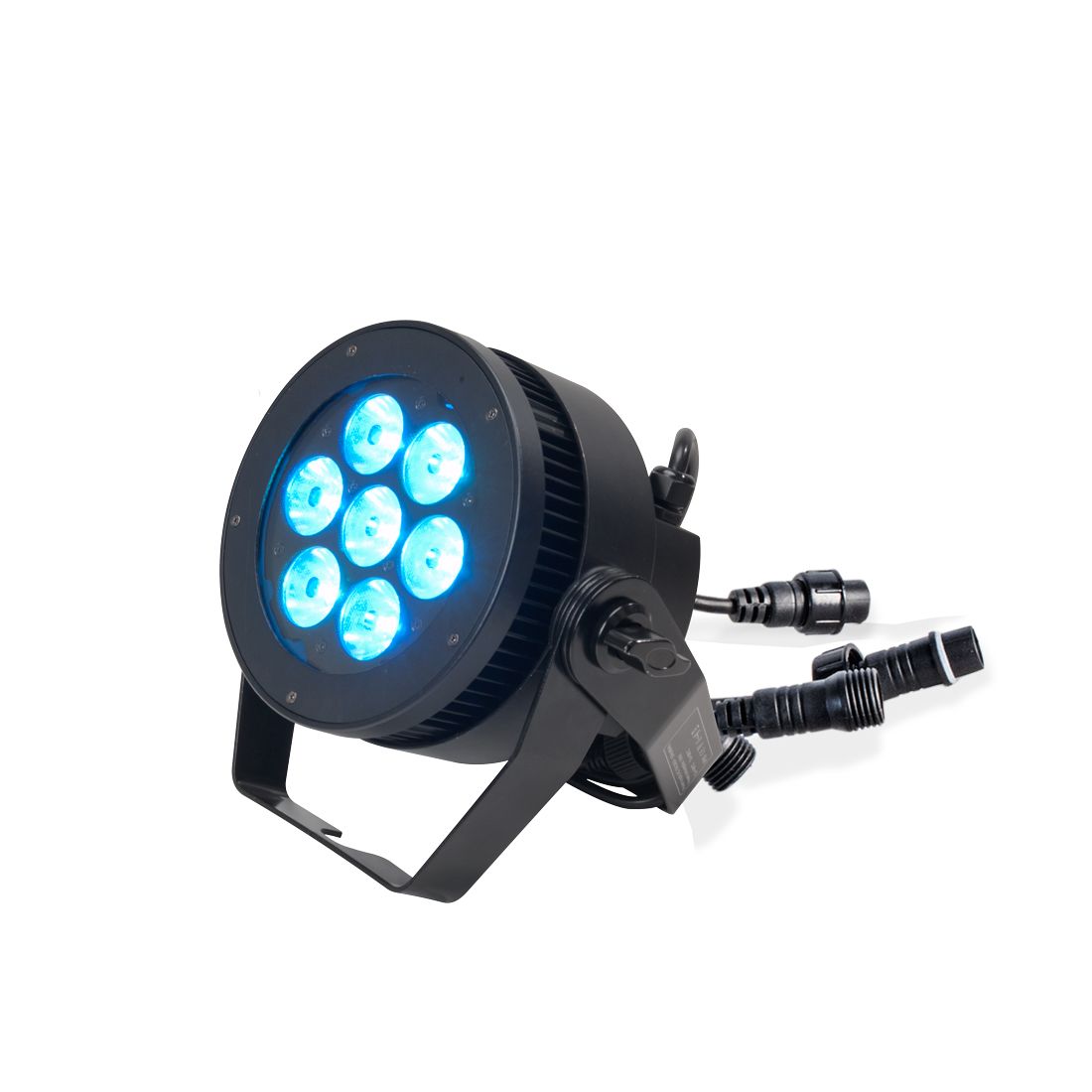

Level Q7 IP Picture
Level Q7 IP Picture 2
Level Q7 IP Picture 3
Level Q7 IP Picture 4
Level Q7 IP Picture 5
Code
1236200028
FEATURES
7° Beam 13° Field Angles
2,700K - 7,200K Color Correction
Gel Frame Holder Included
Rugged Die-Cast Aluminum Body
Rubber Padded Base with Dual Yoke / Floor Stand
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management
SOURCE
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life*
PHOTOMETRIC DATA
3,636 LUX 388 FC @ 16.4’ (5m)
EFFECTS
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
CONTROL / CONNECTIONS
(5) DMX Channel Modes (4/5/7/12/17)

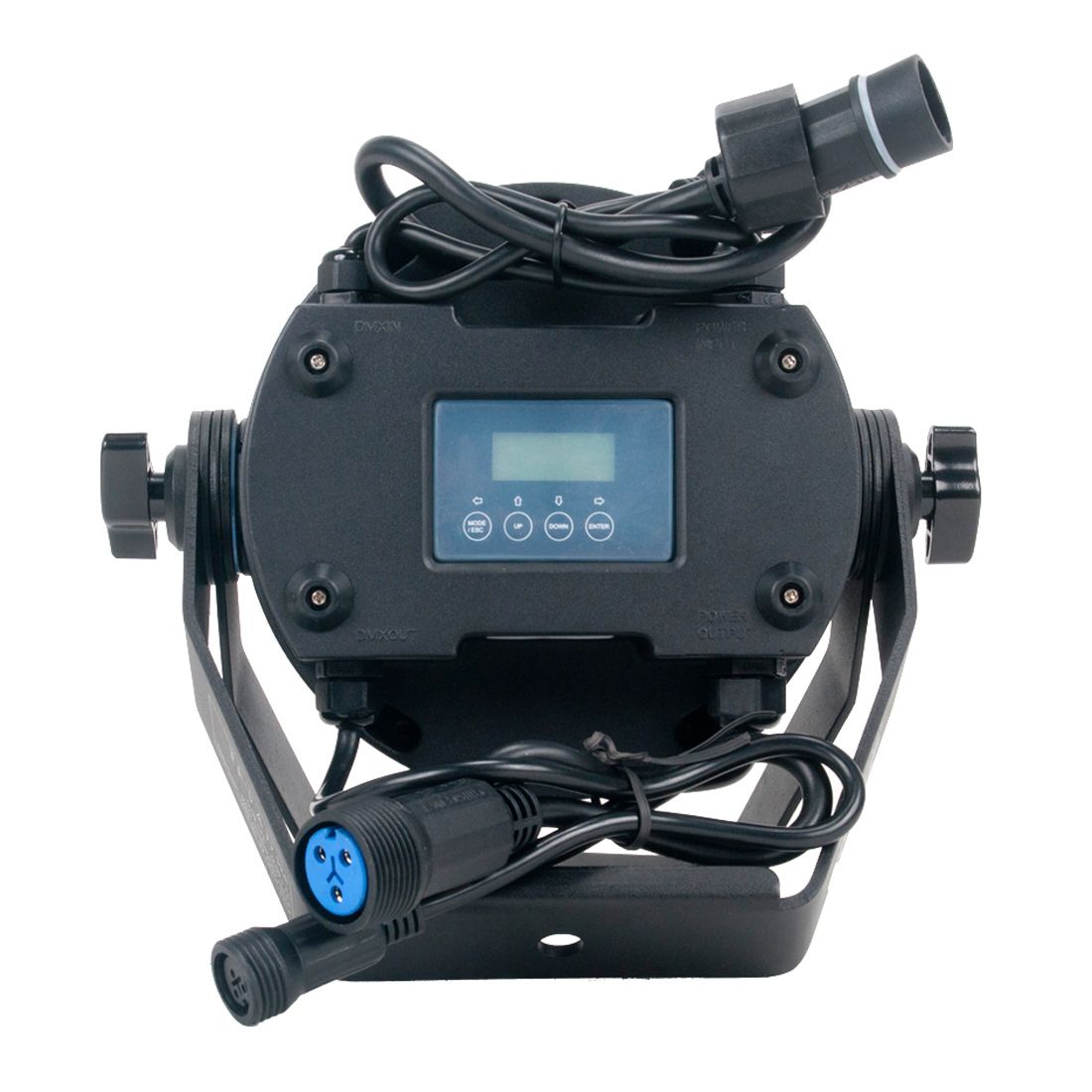

(4) Button Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out
SIZE / WEIGHT
Length: 11.0” (278.6mm)
Width: 5.5” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 9.0 lbs. (4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13°F to 113°F (-25°C to 45°C)
INCLUDED ITEMS

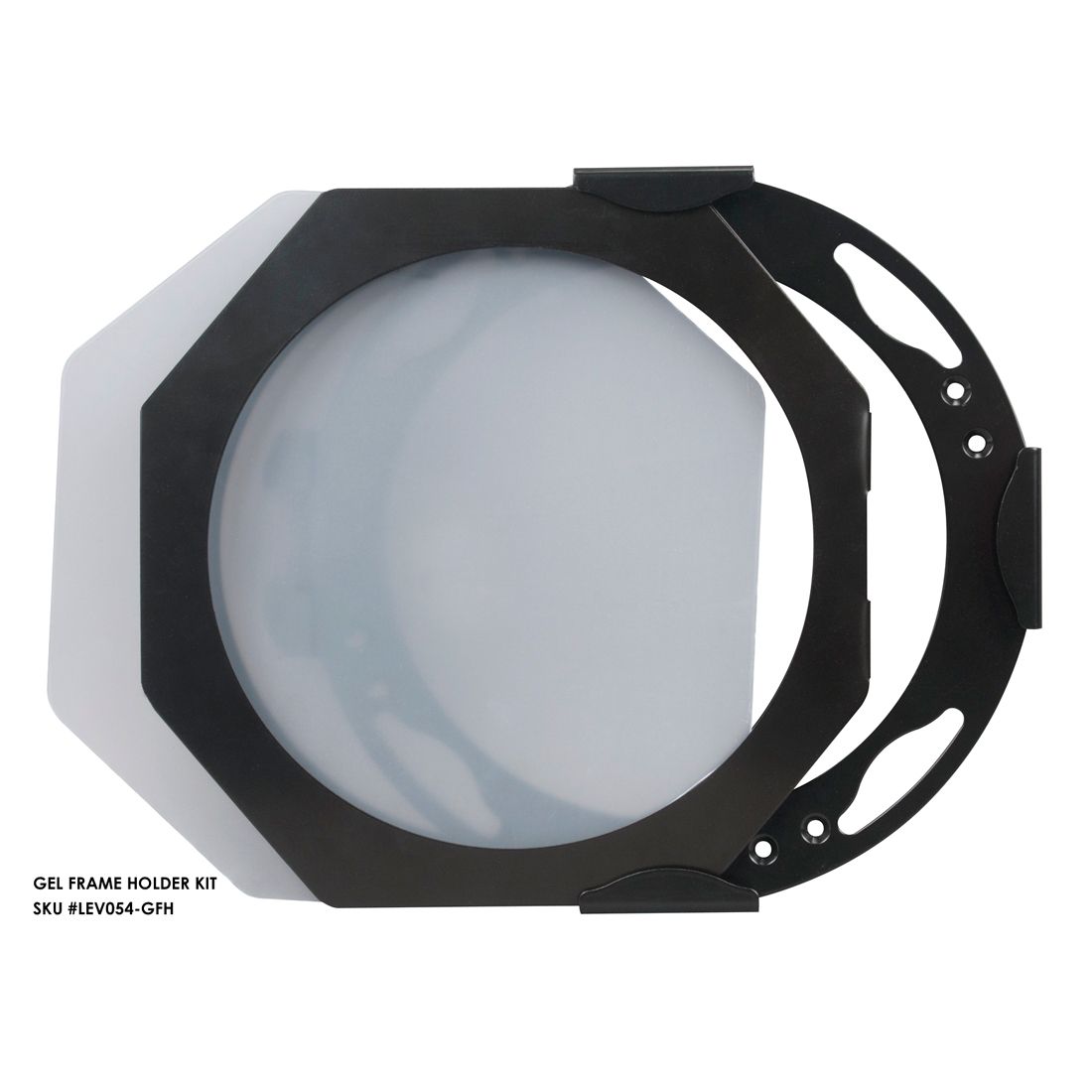

Gel Frame Holder
Filter Frame
Frost Filter
IP Power in Cable
IP 3pin DMX Cable
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Specifications and documentation subject to change without notice
