Code 1236100090

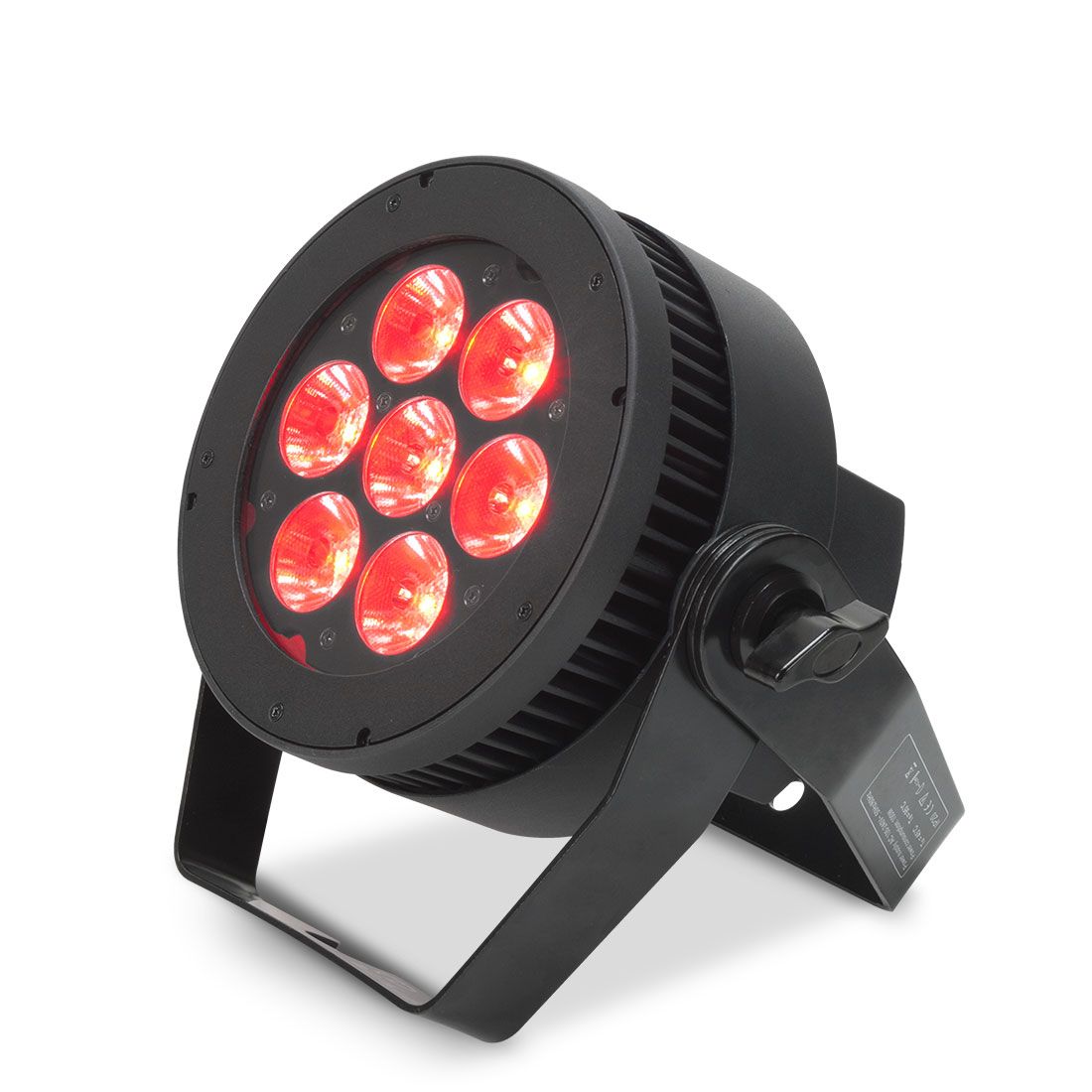

Level Q7

The Level Q7™ features (7) 15W QUAD color RGBW LEDs, 7° beam and 13° field angles, color correction (2,700K - 7,200K), strobe effects, no fans, silent operation, variable dimming curves, DMX, RDM (Remote Device Management), locking 5pin DMX in/out and locking power in/out connections, flicker free operation for TV and Film, integrated dual yoke/floor stand, LCD menu display with 4 button control panel, 127W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

7° Beam 13° Field Angles
2,700K - 7,200K Color Correction

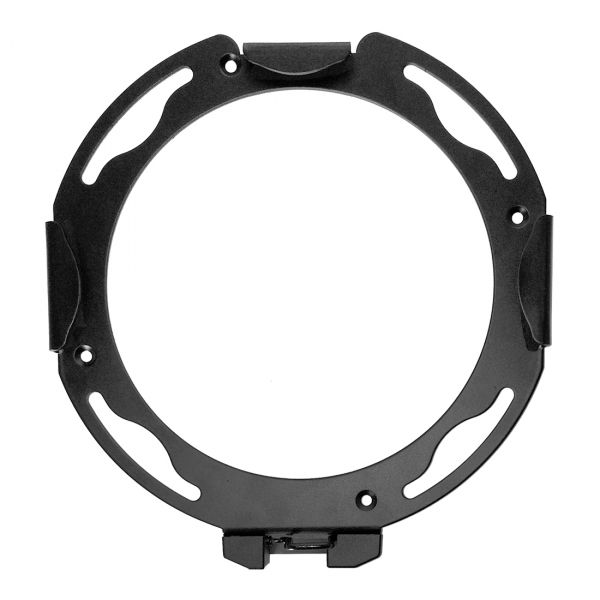

Gel Frame Holder Included
Rugged Die-Cast Aluminum Body
Rubber Padded Base with Dual Yoke / Floor Stand
Multiple Unit Power Linking
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management


SOURCE

(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life*


PHOTOMETRIC DATA

14,700 LUX 1366 FC @ 8.2’ (2.5m)


EFFECTS

Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


CONTROL / CONNECTIONS

(5) DMX Channel Modes (4/5/7/12/17)
RDM (Remote Device Management)
(4) Button Control Panel

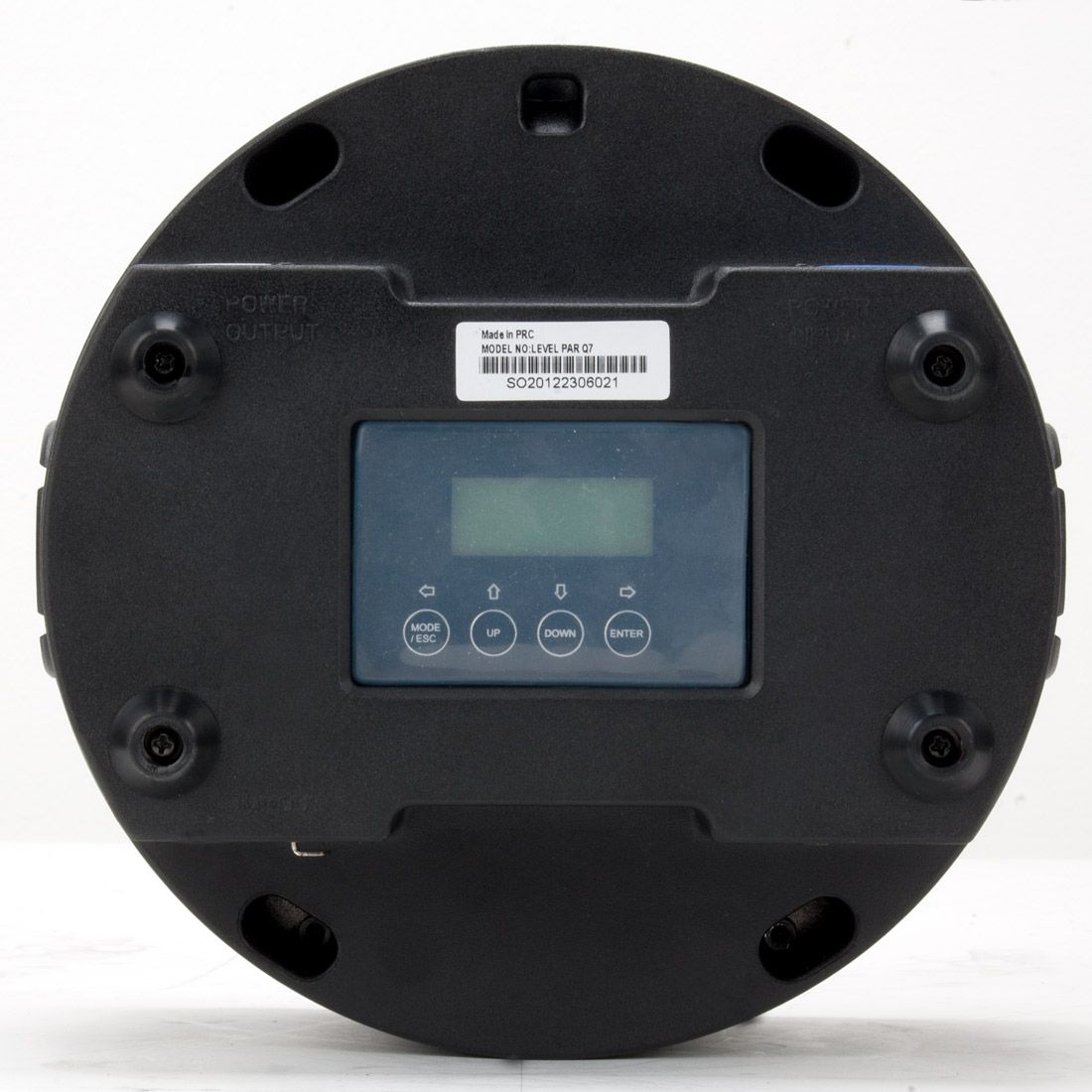

LCD Menu Display
Locking 5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 11.0” (278.6mm)
Width: 5.5” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 9.0 lbs. (4 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13°F to 113°F (-25°C to 45°C)

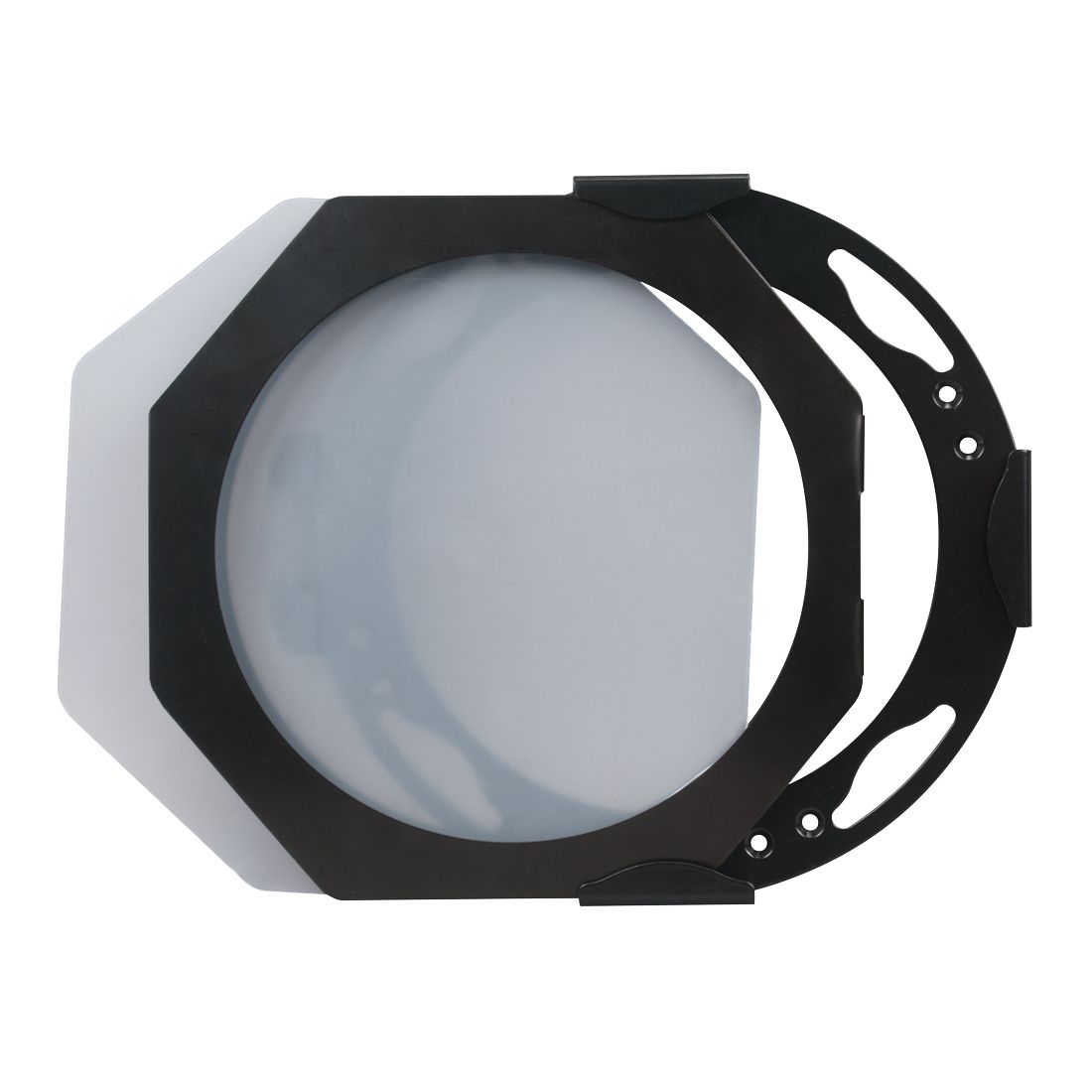

INCLUDED ITEMS

Gel Frame Holder
Filter Frame
Frost Filter

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
