Following thorough tests, lighting designer Manfred Nikitser chooses Proteus Excalibur™ and Proteus Brutus™ for annual open-air multimedia musical event.

When the director of this year's Linzer Klangwolke, Francesca Zambello, brought the internationally renowned Austrian lighting designer Manfred Nikitser onto the creative team as a specialist for the colossal lighting looks, it quickly became clear to them that the project would require lights of a special format! He found what he was looking for in the Proteus series from Elation Professional.

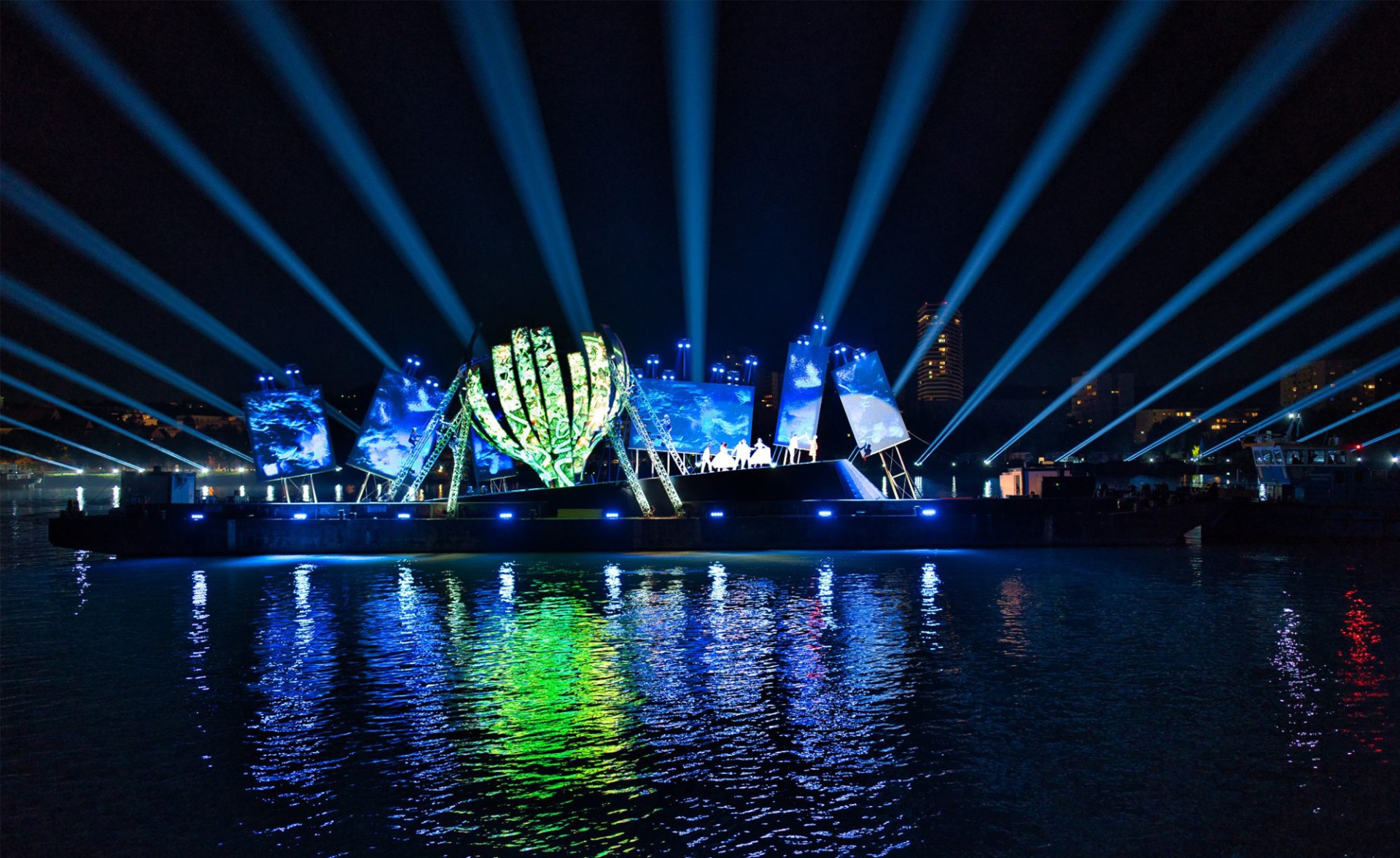

Organized by the Brucknerhaus Linz congress center, the Linzer Klangwolke (Linz Cloud of Sound) is an open-air spectacle that attracts around 100,000 spectators each year to Danube Park in the Austrian town of Linz. This year, a moving, somewhat dystopian yet hopeful piece entitled “Odyssey. A Journey Through Worlds,” was performed on September 9th. The odyssey, a little girl's journey on the river of life towards the source of renewal, literally took place on the waters of the Danube. With three floating platforms, an additional stage on land and the surrounding riverside scenery, the setting for the spectacle was extremely spacious.

“The dimensions and distances at the Linzer Klangwolke are much larger than at other shows,” confirms Manfred Nikitser. “The entire stage area is approximately 1000 x 600 meters, and the audience is also at least 150 meters away from the action on stage. I knew from the start that we would need particularly powerful beam lights for this; ultimately, I wanted to make the scene so large that the panorama of the city of Linz would also be a part of it.”

Proteus Excalibur passes the test
The designer planned to use a series of beam lights on the bank opposite the audience and, for this purpose, carried out a test setup in July with moving lights from several manufacturers.

Manfred comments, “We wanted to test under real conditions how the different lights work. I planned to have moving lights spread over a kilometer route and 500 meters away from the audience. This is anything but day-to-day business. The Proteus Excalibur proved to be by far the best solution for this purpose. The output, beam characteristics, color wheel configuration and speed immediately impressed us as an unrivaled overall package.”

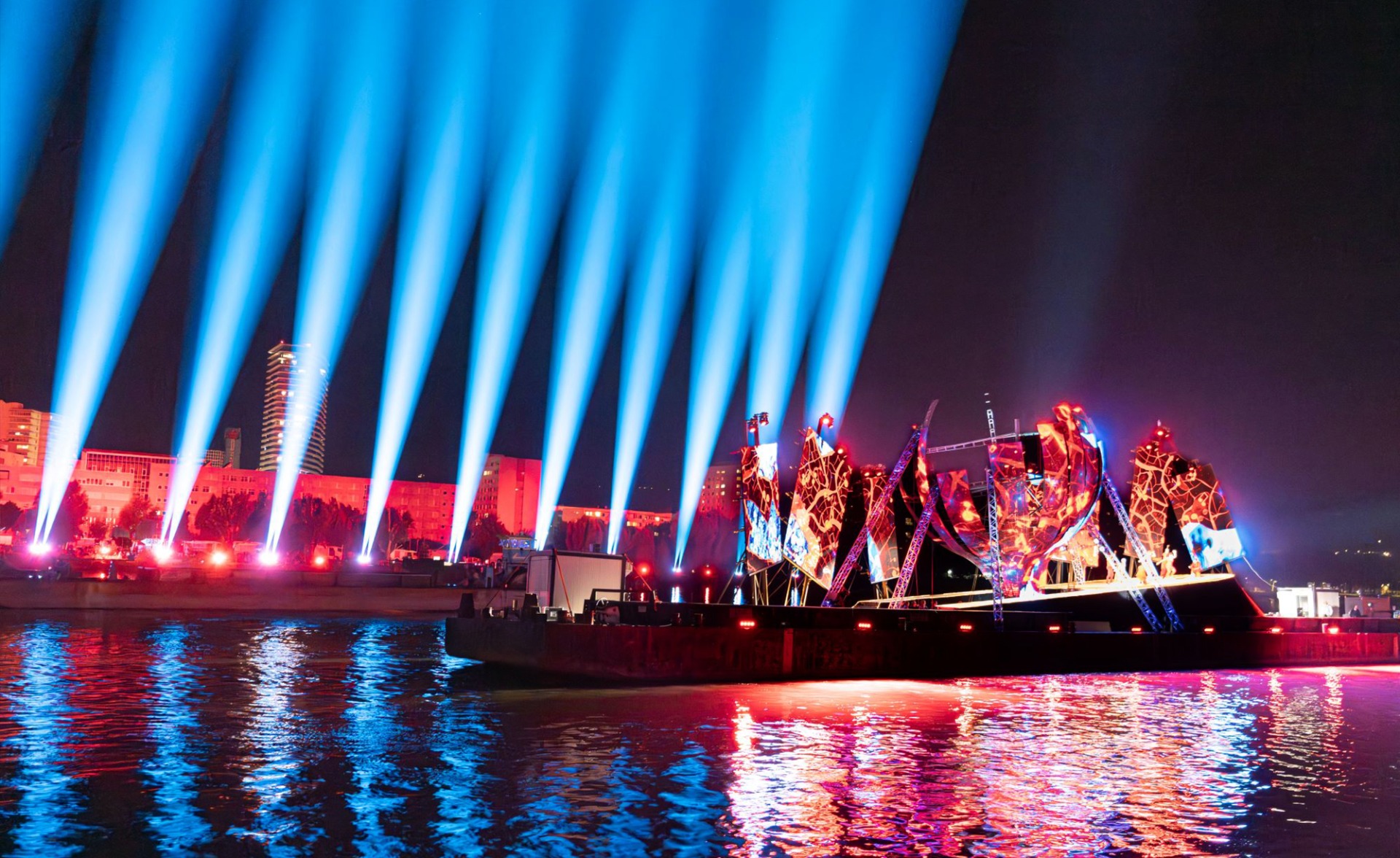

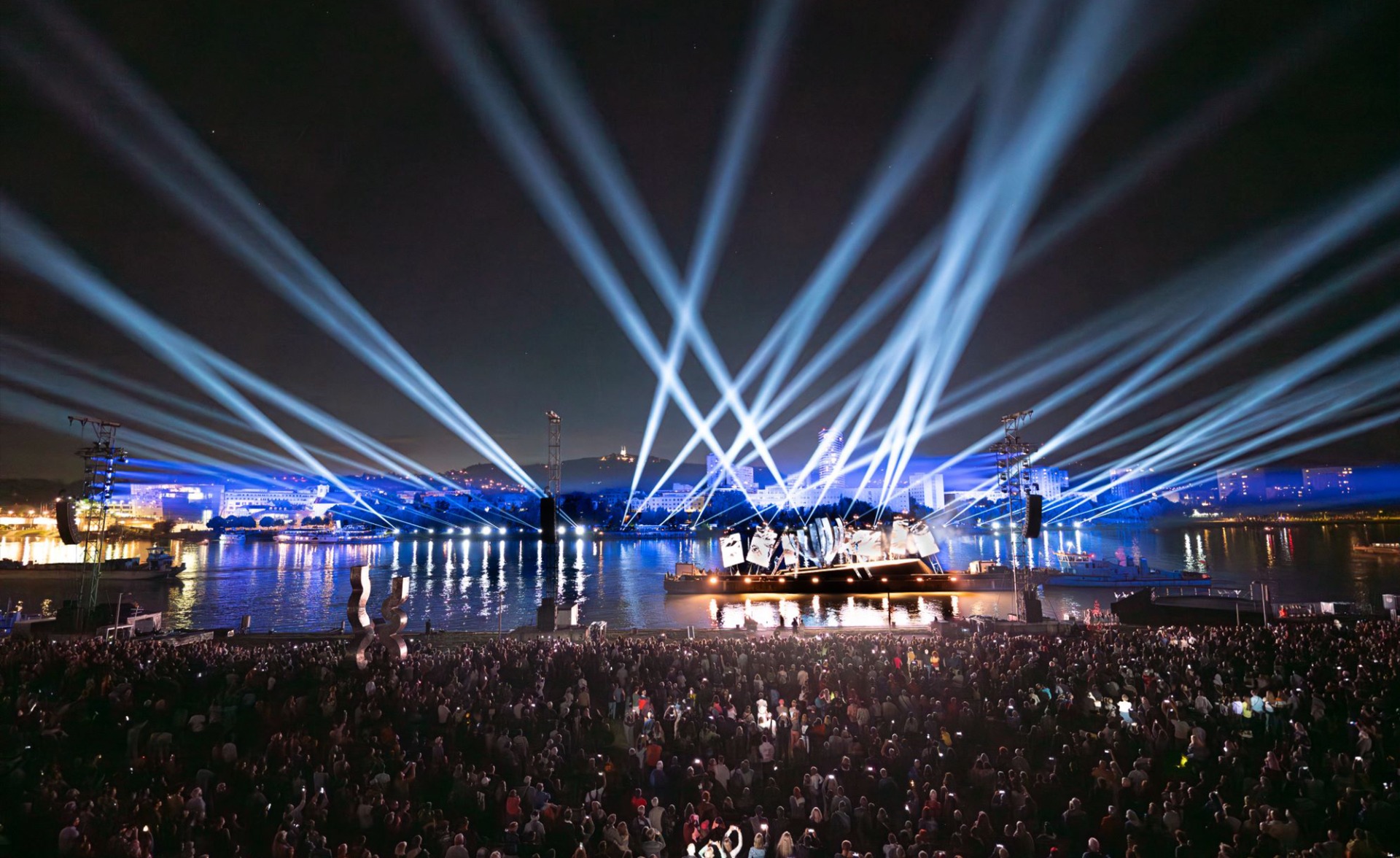

Some 40 Proteus Excaliburs were spread over a kilometer along the banks of the Danube, creating a generous visual framework for the production moving on the river. The Proteus Excalibur is a powerful beam moving head in Elation’s successful Proteus series of automated IP65 lighting fixtures. It produces up to 200,000 lux at 20 meters (7,500 lux at 100 meters) - an incredible light output from a surprisingly compact and correspondingly fast device.

Proteus Brutus brings the city skyline into the picture

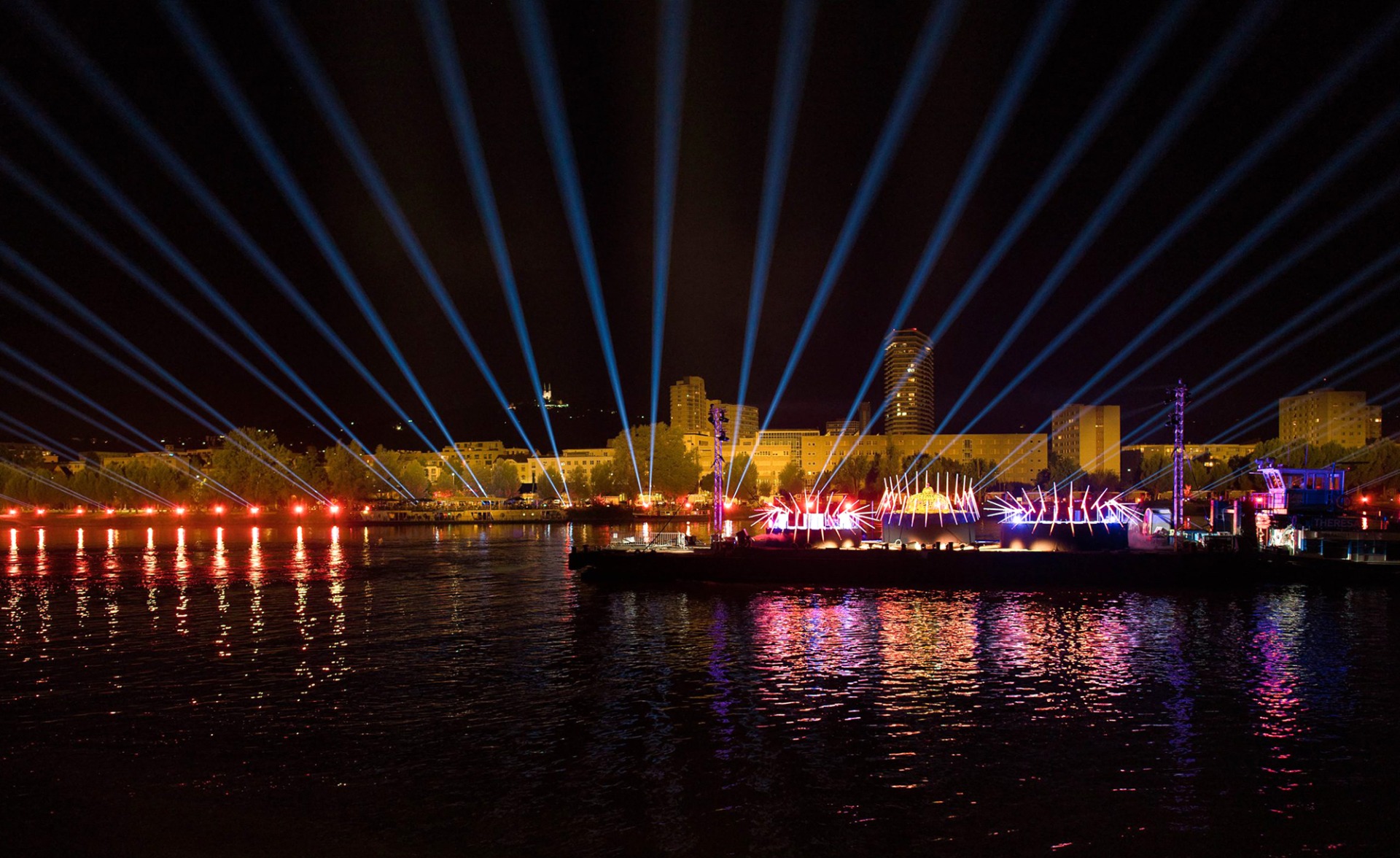

In order to illuminate the Linz skyline and include it in the production, another powerhouse lighting fixture was sought. Manfred also tested a number of possible candidates for this application in advance. “I wanted the audience to know where they are,” he emphasized. “That’s why it was important to me to make the water of the Danube and the city of Linz visible instead of just illuminating a beautiful stage in a black hole.”

Manfred had already seen the Proteus Brutus during a demo at the Elation world headquarters in California and shortly thereafter was sent a fixture to test by Marc Petzold from Elation’s German partner LMP. “Marc knows that I do a lot of large outdoor applications,” Manfred said, “including remote follows so he wanted to hear my opinion of the Brutus. At that time, I was preparing for the Klangwolke. That’s when the spotlight came along.”

Manfred and his team tested the Proteus Brutus with the pre-installed diffuser lens and were “already impressed by the output.” He continues, “I identified at least 20 different types of lights that could be considered for this purpose and made countless calculations based on the photometric data. The Proteus Brutus won the race. No other lamp can provide this brightness onto the other side of the river. The IP rating was an additional advantage that was not initially included in the specifications, but made it even easier.”

Wash beam
Ultimately, Manfred and his team took advantage of the option to remove the diffuser lens of the Brutus in order to use the fixture as a wash beam. In this way, it was possible to get even more output from the light and achieve stronger mid-air effects. In the end, 24 Proteus Brutus were placed on the public side of the Danube and projected in the opposite direction.

“There is no other IP light that, equipped with this zoom, generates nearly as much light output at such a great distance,” Manfred remarked. “To my knowledge, the Brutus is also the first wash or wash beam that has a sufficiently large lens and enough output to really be noticed in long-throw applications. The high output also helped us save on the budget, because with any other model we would have needed a lot more lighting fixtures to achieve the same result.”

With up to 75,000 lumens of light output and IP65 protection class, the Brutus is a powerful LED wash beam FX light in the Proteus series. It is based on a specially developed 1,200-watt hotspot LED engine and, thanks to its 220-millimeter front lens, delivers the power required at open-air events over long distances.

Team effort
After the performance, the press and audience agreed that this was one of the best Linzer Klangwolke events of all time, a result that can be attributed to an outstanding team effort. The international creative team came predominantly from the theater world. Director Francesca Zambello specifically brought Manfred Nikitser on board because she knew that, as a lighting designer focused on rock 'n' roll and open-air events, he would have the right vision for a project of this magnitude.

“The Linzer Klangwolke was created in close collaboration between those responsible for set, video, lighting, music, acting, dance and artistry. A good show only comes about when all elements of the production literally merge with each other. We succeeded. The team worked together wonderfully and it was a great pleasure for me and my crew to be a part of it.”

Creative team:
Director: Francesca Zambello
Dance Choreography and Assistant Director: Eric Sean Fogel
Composition: Laura Karpman
Set Design: Charles Quiggin
Lighting Design: Manfred Nikitser
Lighting Design Assistance: Marissa Munderloh
Video Content Design: S. Katy Tucker
Video Content Design Associate: Blake Manns
Costume Design: Aleš Valášek
Acrobatic Choreography THE FREAKS: O.C. Ono
Aerial Acrobatics Choreography: Lyla Goldman
Dramaturgy: Kelley Rourke

LIVA team (Linz event company):
Production Management LIVA: Wolfgang Scheibner, Alexandra Rieger, Katrin Fink (Assist.)
Design & Graphics: Lukas Eckerstorfer
Production: Mario Proksch, Roman Widmann, Team LIVA/Brucknerhaus Linz

Lighting crew:
Flo Bauer
Harald Stauber
Martin Gruber
Philipp Schindelegger
Sylvio Wachter
Andreas Wieland
Lukas Bruneder
Roland Kumpl
Rene Feizlmayer
Katharina Sperl
Lina Ciancimino
Ed Oberhumer

Photos: © EventElevator-Jan Bruhnke
