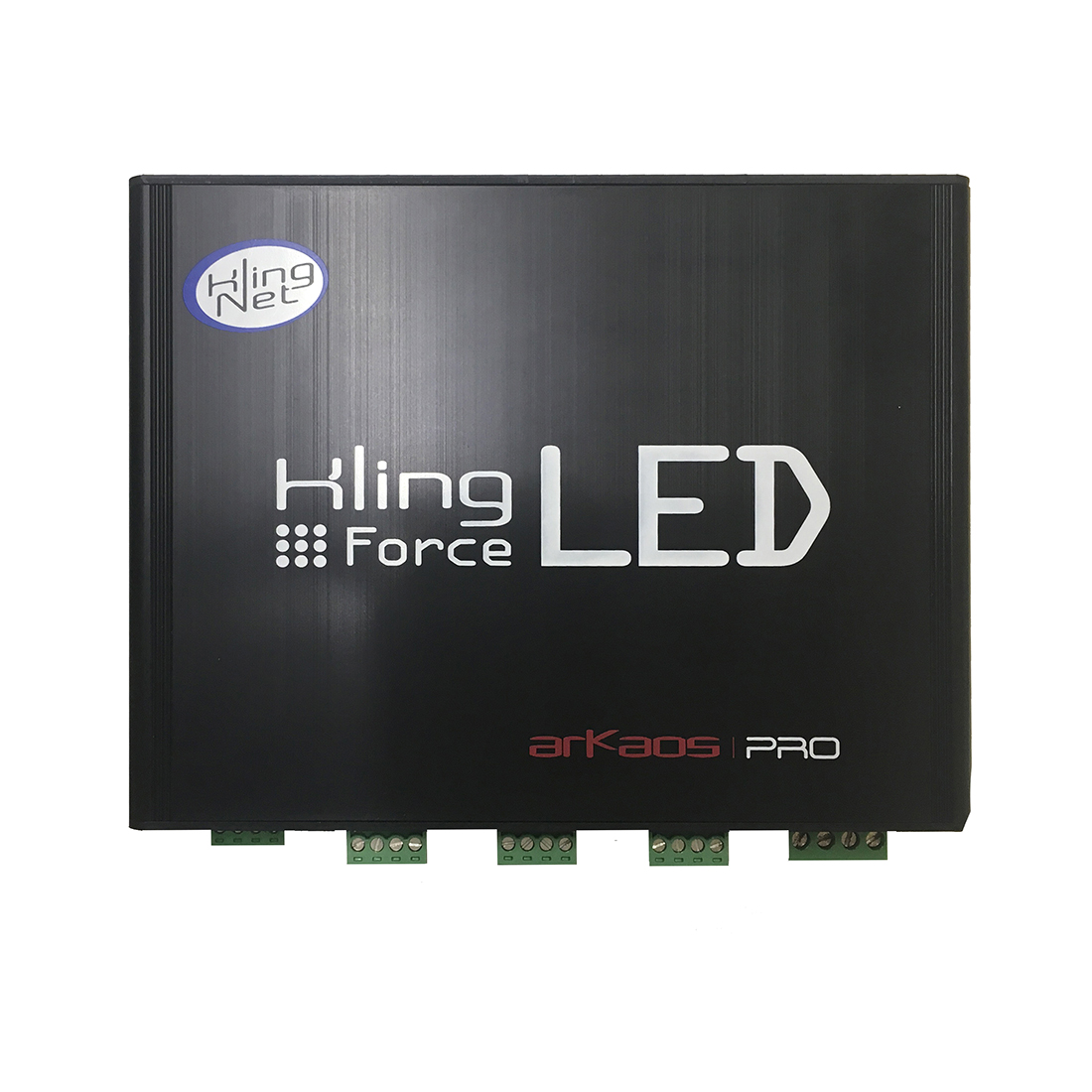

Kling Force LED

Kling-Force is the new hardware platform built by ArKaos, around the combination of a powerful processor and a hardware network switch. It creates a robust and efficient Kling-Net network. This platform is daisy chainable to distribute video over Ethernet via plug and play and no complex setup is required. ArKaos introduces this new platform with two different interfaces: Kling-Force DMX and Kling-Force LED. Kling-Force LED is an interface designed to drive LED strips. There are now many LED strips on the market with various densities, format and prices. Kling-Force LED makes it easy and affordable to drive them from an ArKaos software acting as a media server. The Kling-Force LED has 8 outputs and supports the most popular LED strips on the market. The interface also provides some electronic surge protection that will cut if the output drains too much power or if there is a faulty wiring such as a short circuit. The interface will also detect when the conditions are back to normal and will start powering again the LEDs automatically.

Technical Data

FEATURES

Powers up to 1600 (8x200) LEDs
Drives up to 4800 (8x600) LEDs if Strips Are Directly Powered
No Buttons or Display
Configuration Through KlingNET Mapper
Works with LEDMaster, MediaMaster Express and MediaMaster PRO


CONTROL/CONNECTIONS

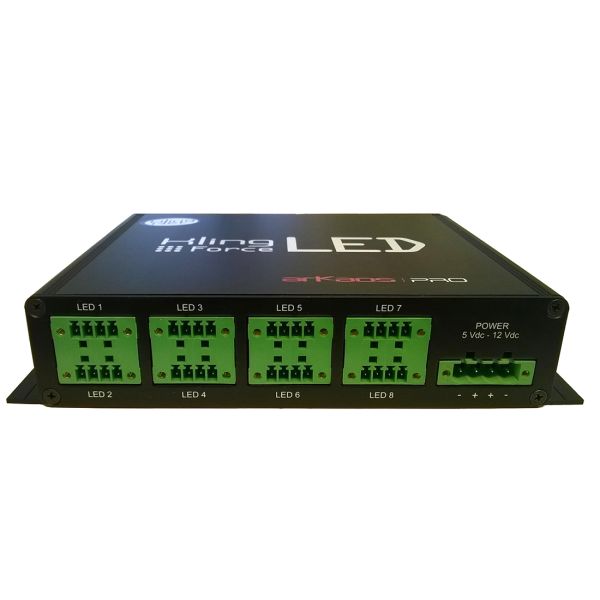

8 Outputs / Max 5A per Output
2 RJ45 Network Ports
Supported Protocols:
3 wires APA104 5V 800Khz
3 wires W2812 family 5V 800Khz
3 wires UCS2912 RGBW 5V 800Khz
3 wires TM1803 5V 400KHz
4 wires APA102C 5V
4 wires LPD6803 12V
3 wires INK1003 12V 800Khz
3 wires UCS1903 12V 800Khz
3 wires TM182 12V
No Power Supply Provided


SIZE/WEIGHT

Length: 7.48” (190 mm)
Width: 5.12” (130 mm)
Vertical Height: 1.54” (39 mm)
Weight: 1.05 lbs. (0.48 kg)


Specifications and documentation subject to change without notice
