  • KL PROFILE FC Compact
Code 1236100198

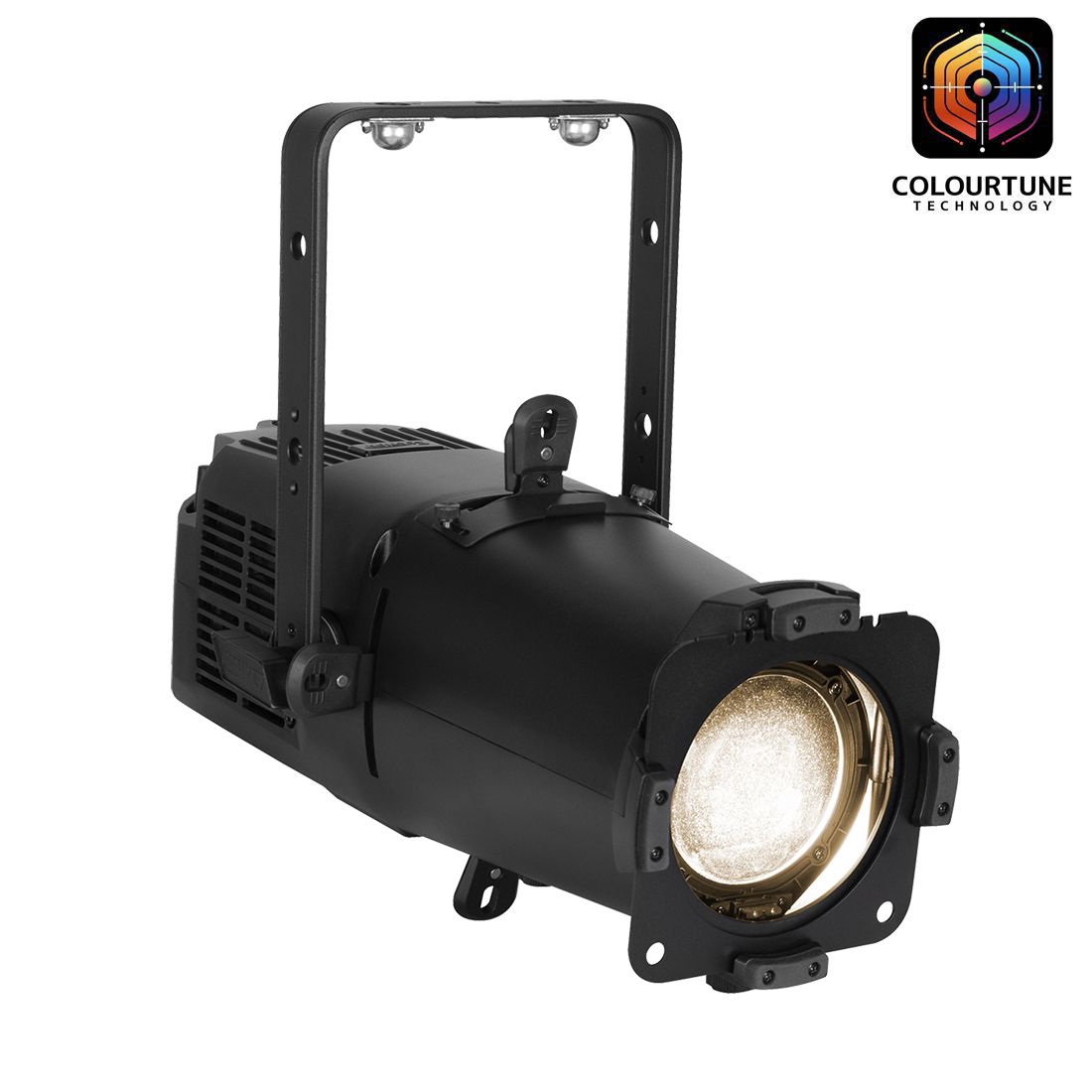

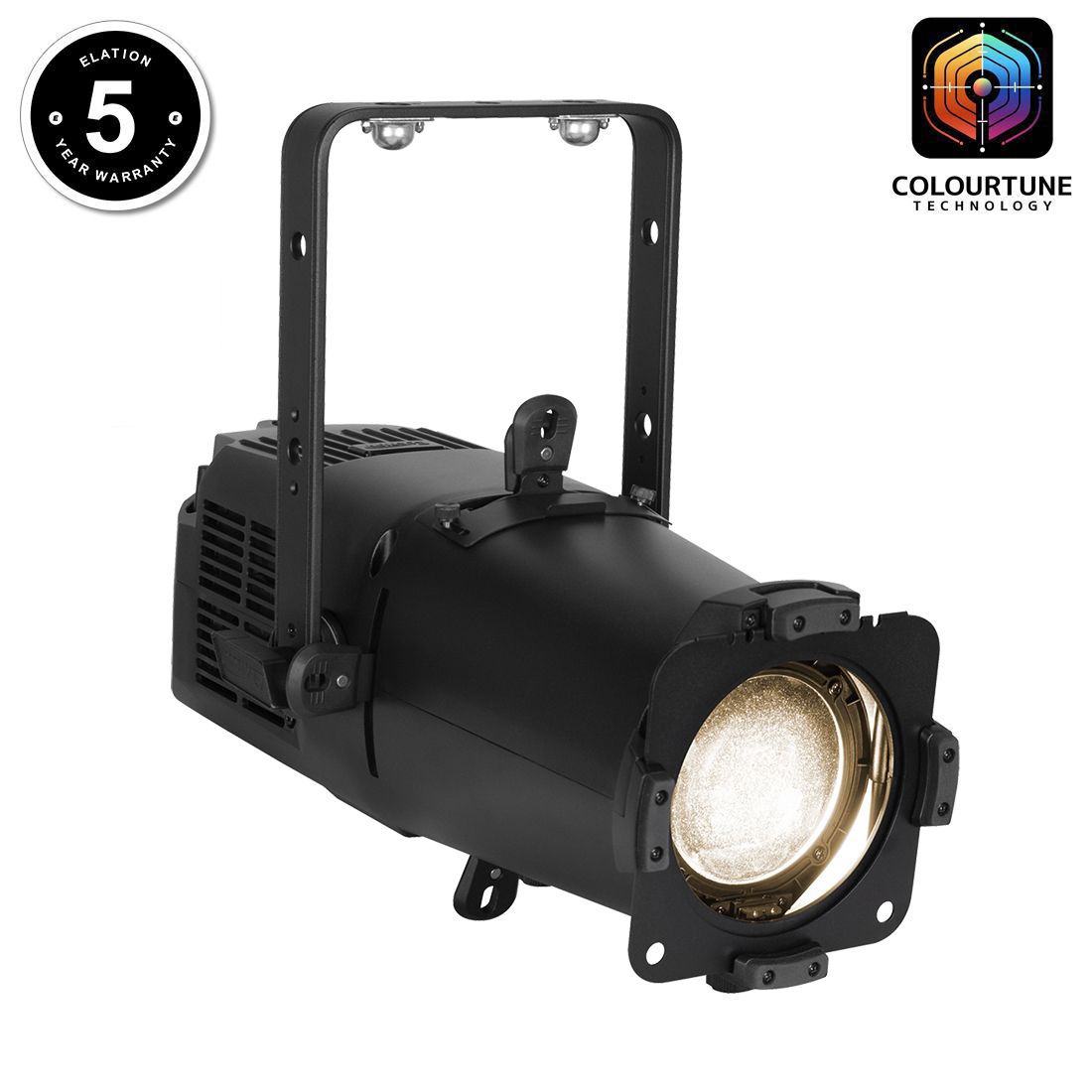

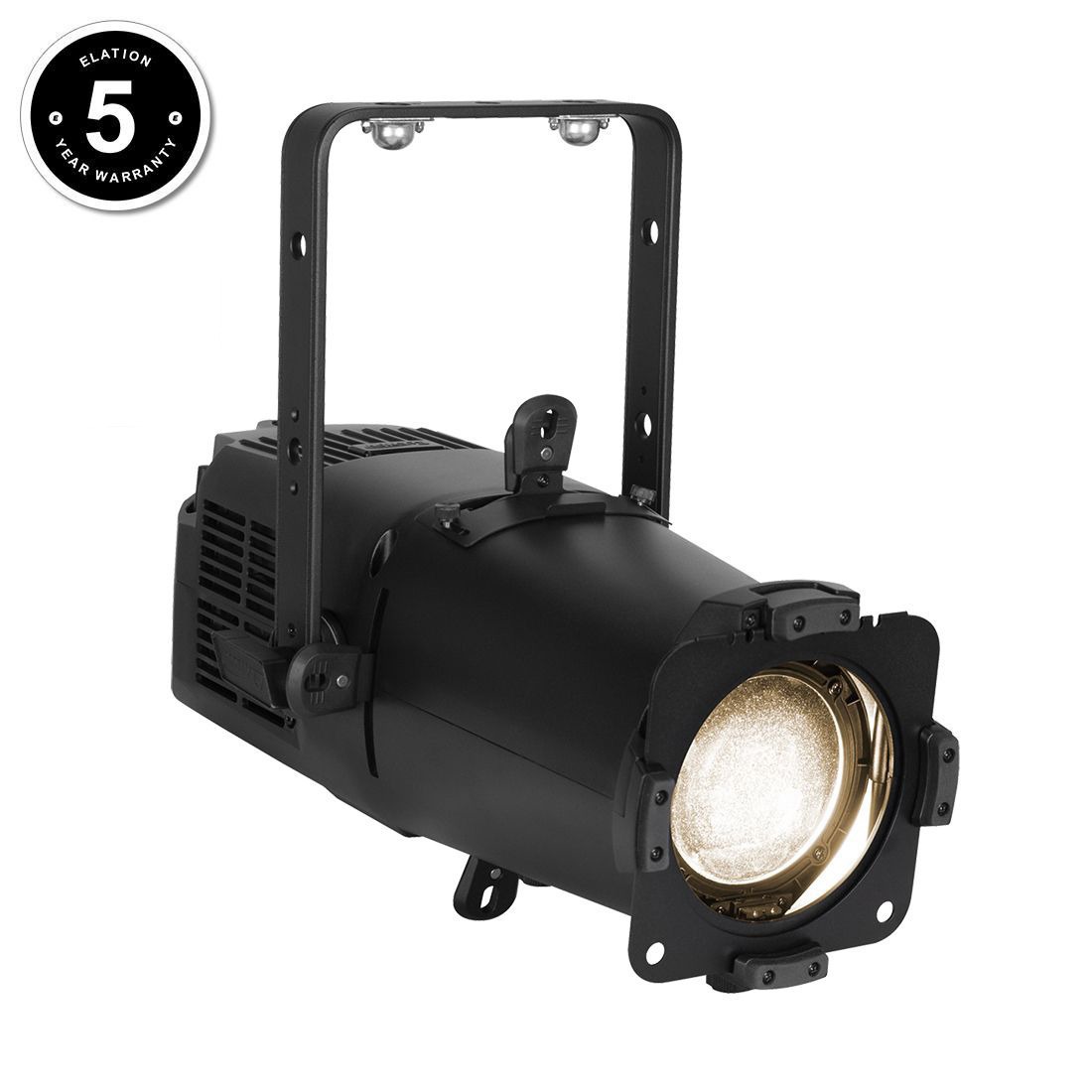

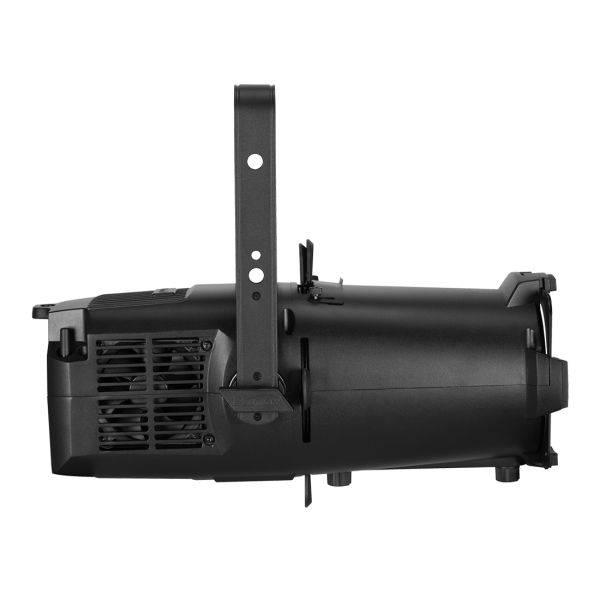

KL PROFILE FC Compact

Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality.

It's advanced optical engineering, combined with integrated 25–50-degree manual zoom and premium lens coatings, ensures sharp, flawless projections free from color shifts or aberrations, regardless of the zoom, focus, or framing position.

Powered by Elation's ColourTune Technology and boasting a CRI of 94.9 and TLCI of 95., the fixture achieves superb color accuracy with 16-bit variable CCT control. Coupled with the ultra-quiet Mute Mode for silent functionality, the KL PROFILE COMPACT redefines precision lighting for theaters, performance venues, and live events, allowing designers to perform brilliantly and broadcast their creative vision.

Technical Data

FEATURES

225W RGBMA LED Engine
ColourTune Technology Software Integration
5,880 Total Fixture Lumen Output (Sphere)
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Manual Zoom Range from 25° to 50°
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management

SOURCE

225W 6,000K RGBMA LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
5,880 (Integrating Sphere)
TBA (Goniometer)
CRI 94.9
TLCI 95
Zoom Range 25° - 50°

EFFECTS

Manual Zoom & Focus
4 Manual Framing Shutters
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

COLOR

High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS

Accepts 1x Size 'M' Gobo (Metal Gobo Holder Included)

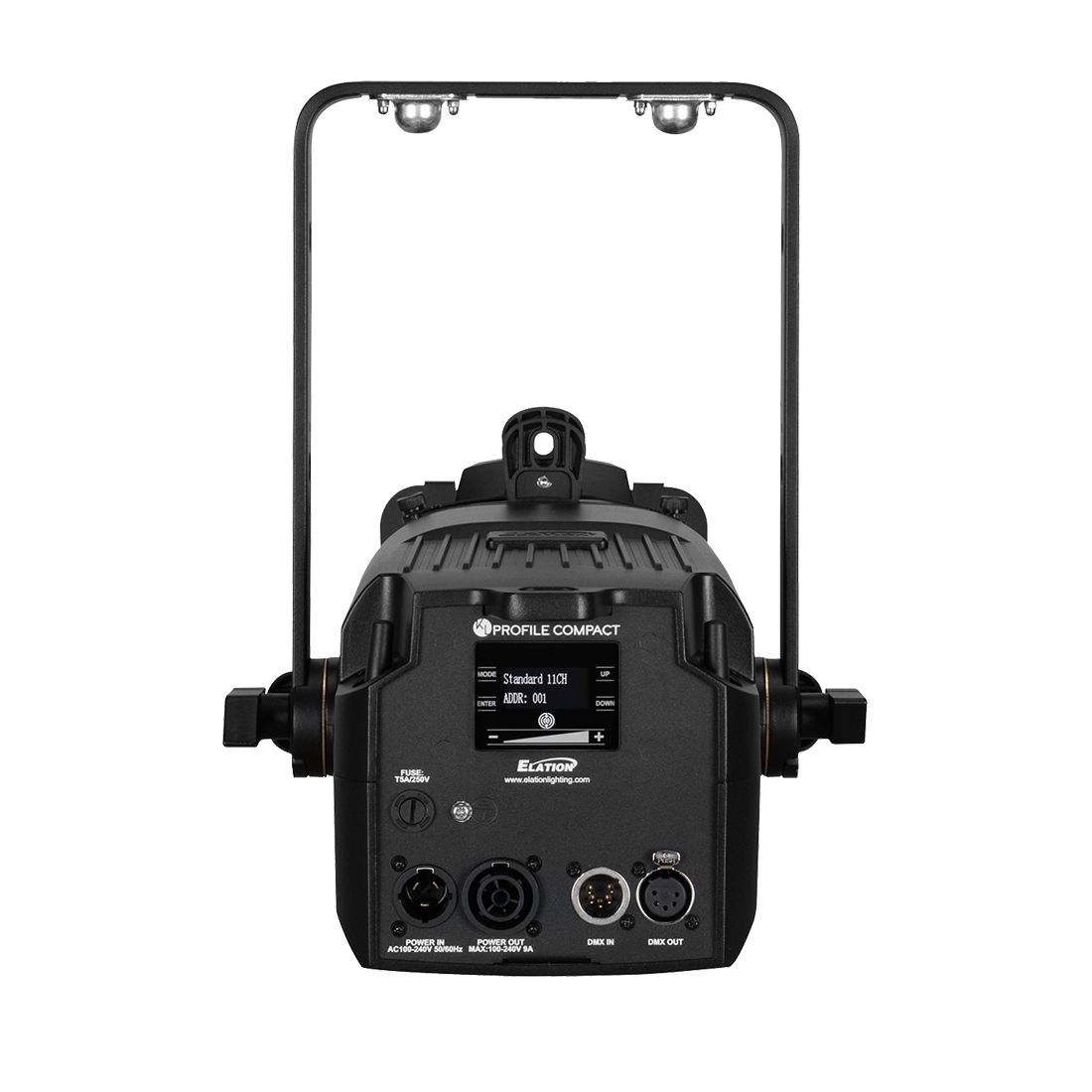

CONTROL / CONNECTIONS

10 DMX Channel Modes (1, 3, 5, 6, 7, 10, 11 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 457.2mm (18”)
Length (Yoke 0°): 539.5mm (21.2")
Width: 252mm (9.9")
Height (Fixture Body): 248mm (9.75")
Height (Yoke 90°): 392mm (15.4")
Weight: 6.5kg (14.3lb)
6.25" Front Accessory Slot

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
290W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 988.9

INCLUDED ITEMS

Gel Frame
Size 'M' Metal Gobo Holder
IP65 Locking Power Cable

OPTIONAL ACCESSORIES

Omega Bracket

FIRMWARE UPDATES

Current firmware can be found here (login required)







Specifications and documentation subject to change without notice
