  • KL PAR IP Compact
Code 1236100197

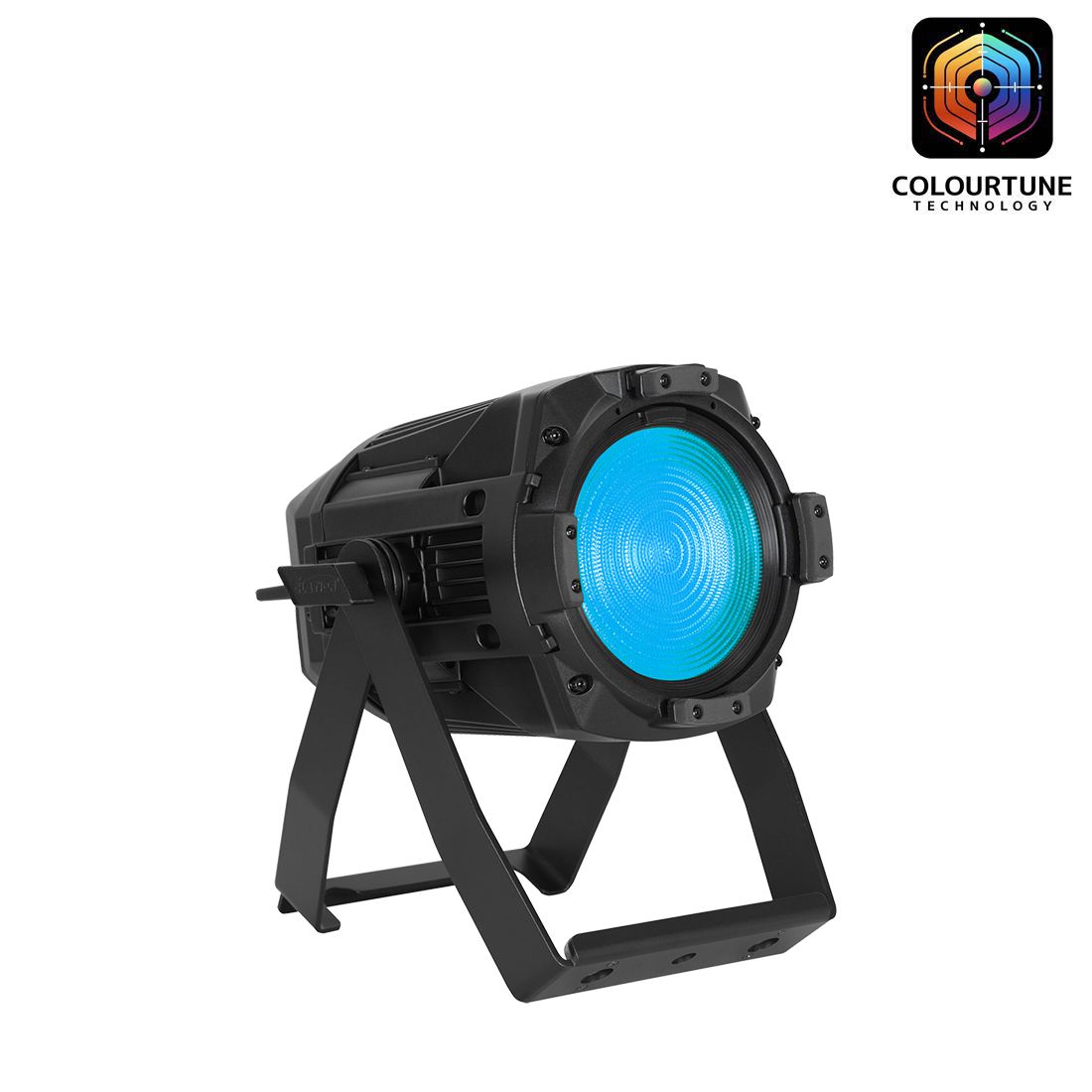

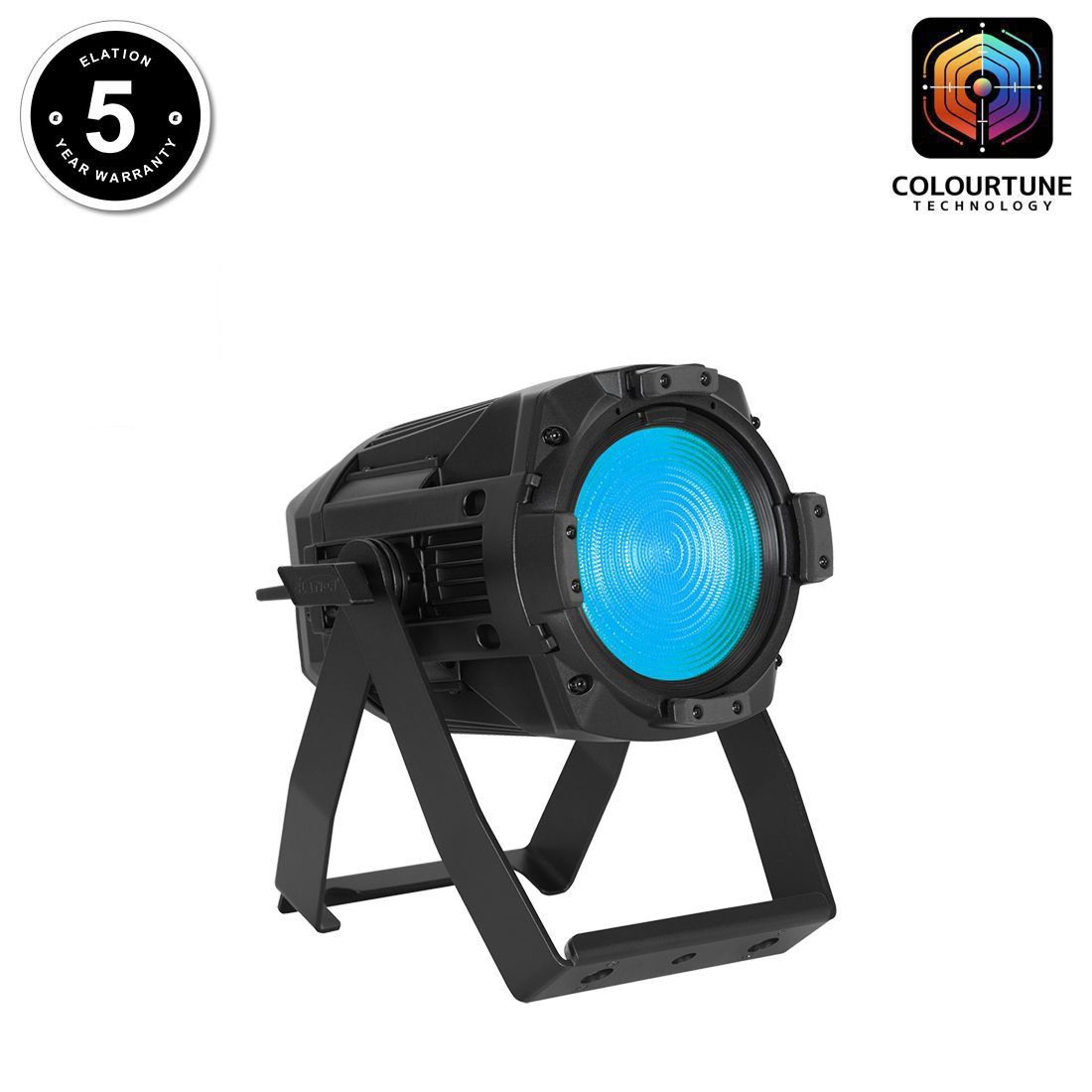

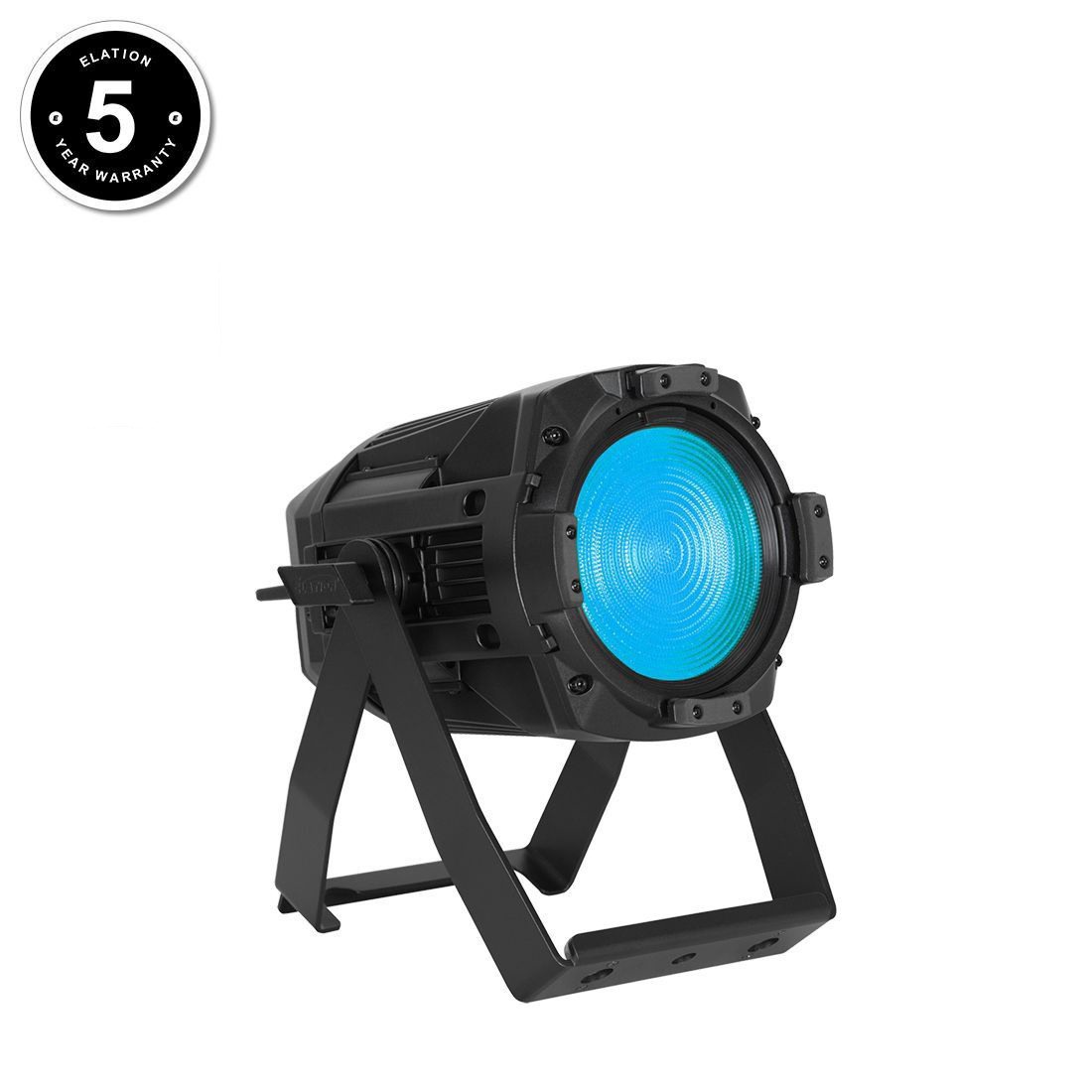

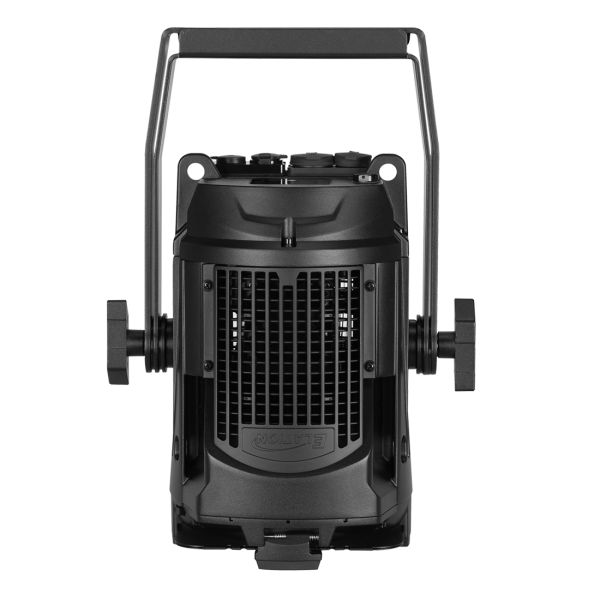

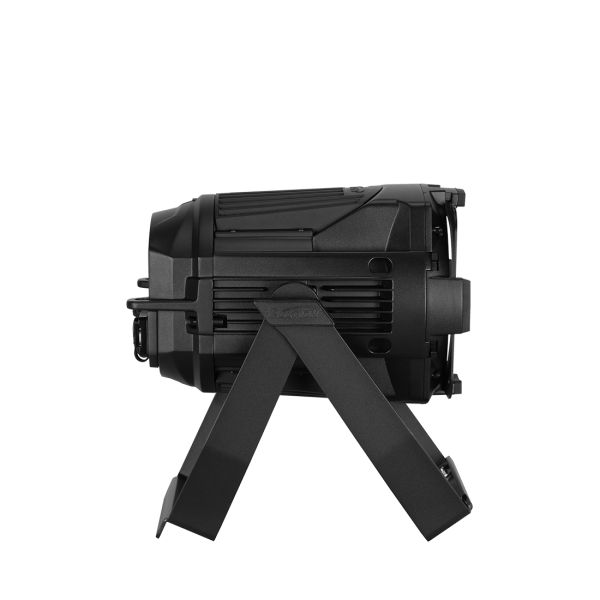

KL PAR IP Compact

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.

Its advanced ColourTune Technology delivers exceptional color accuracy (CRI 94.9, TLCI 95), 16-bit variable CCT control, and adjustable LED refresh frequency, making it perfect for film, television, and live events. With multiple lens options, DMX/RDM compatibility, and a touch bar encoder for instant adjustments, it’s ready for any production need.

Streamline your lighting setup and discover how the KL PAR IP COMPACT can elevate your next production.

Technical Data

FEATURES

150W RGBMA LED Engine
ColourTune Technology Software Integration
5,700 Total Fixture Lumen Output (Sphere)
Field Replaceable Lenses
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management
6.25" Gel Frame and Four Lenses (10°, 22°, 30°, 55°) Included
IP65 Rated

SOURCE

150W 6000K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
5,700 (Integrating Sphere)
TBA (Goniometer)
CRI 94.9
TLCI 95

INCLUDED LENSES

VNSP (10°)
NSP (22°)
MFL (30°)
WFL (55°)

EFFECTS

Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

COLOR

High Brightness and High Fidelity Output Options

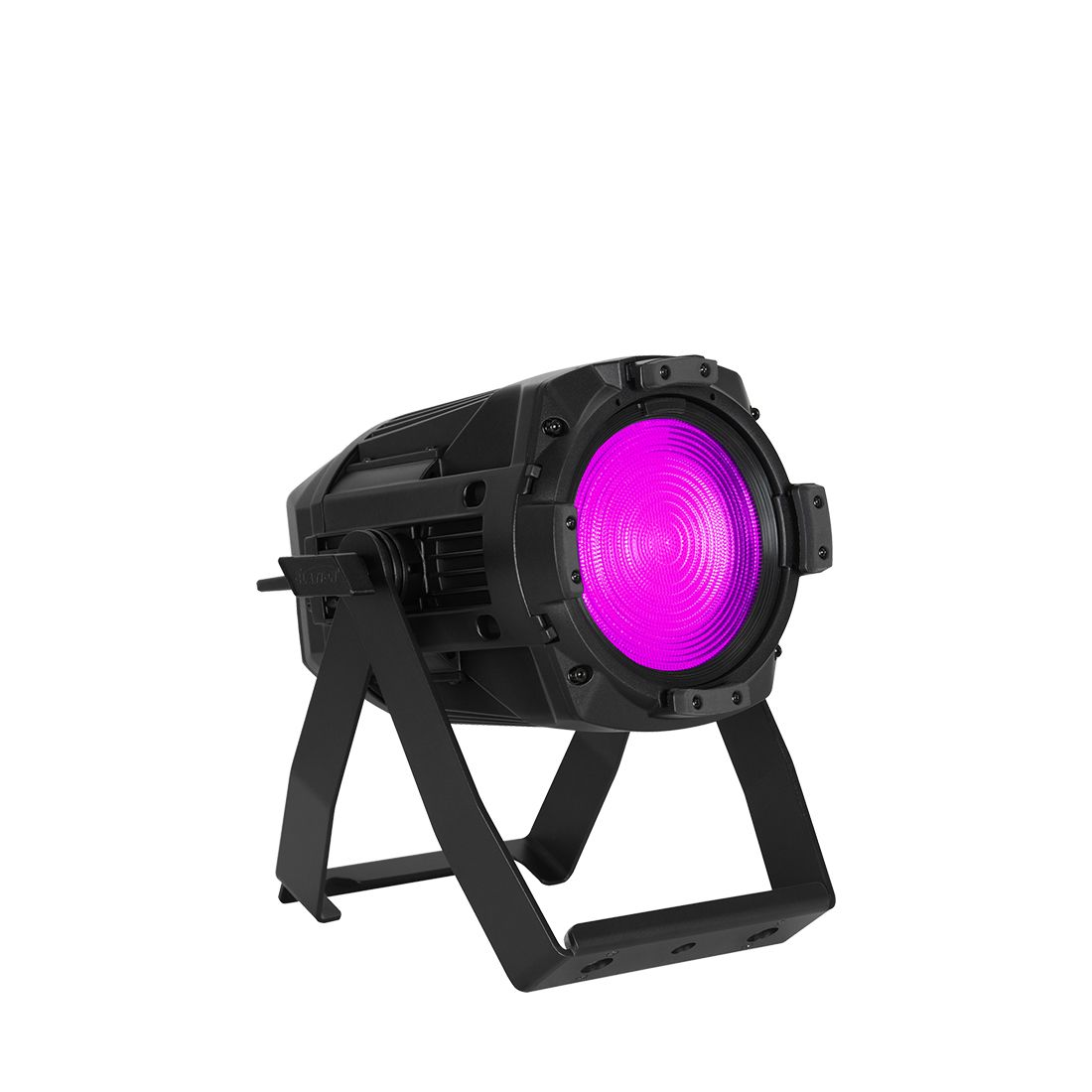

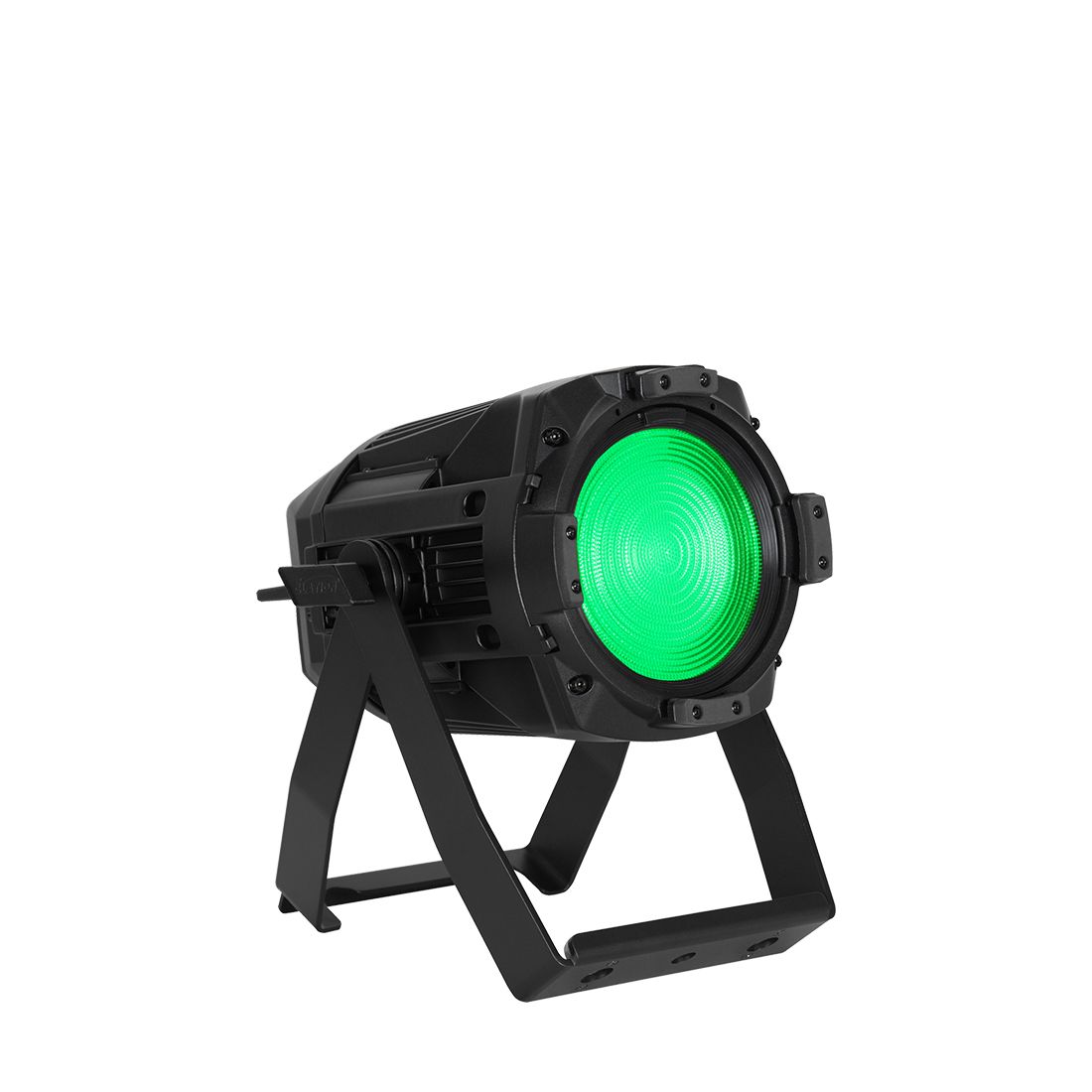

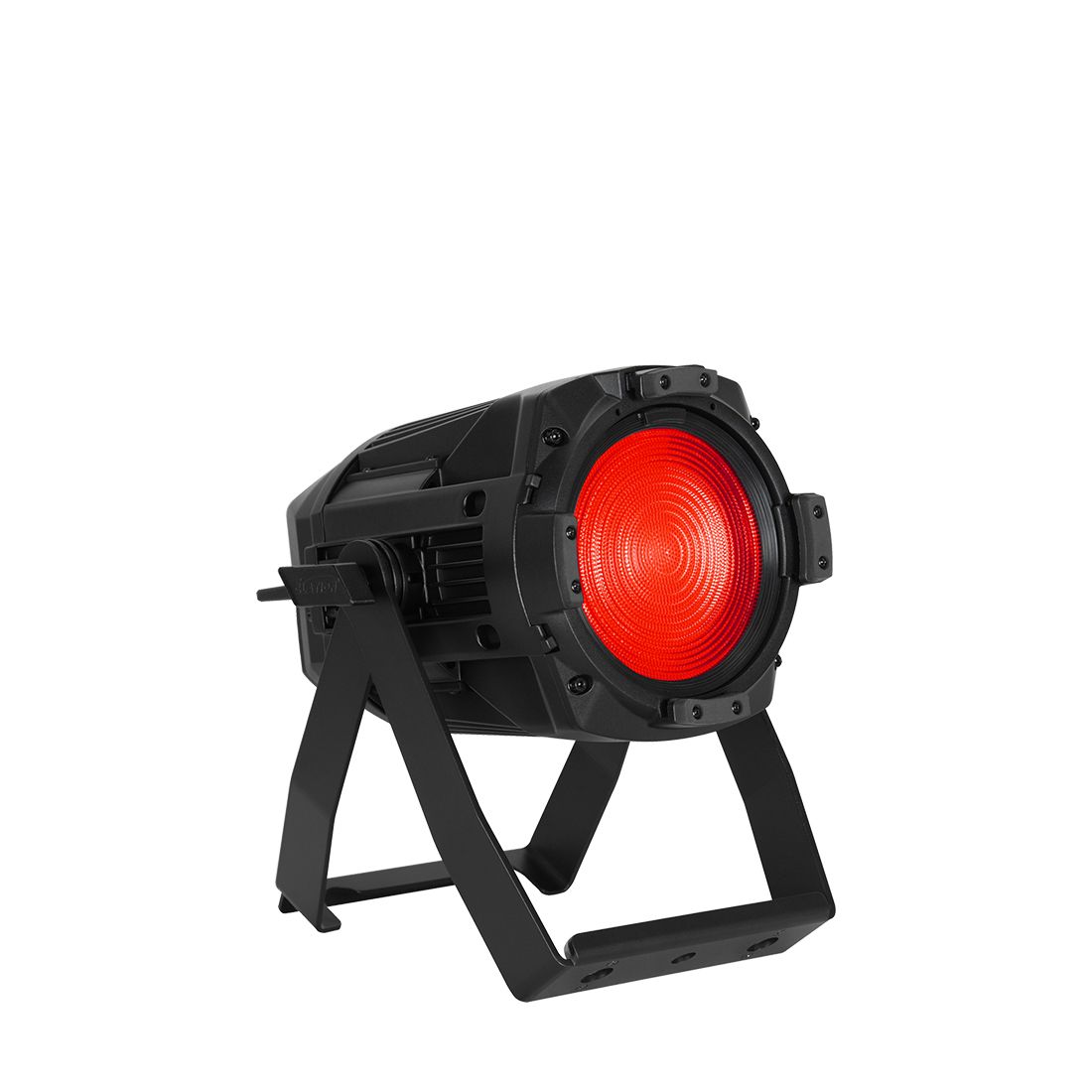

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

8 DMX Channel Modes (1, 4, 6, 10, 11, 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration

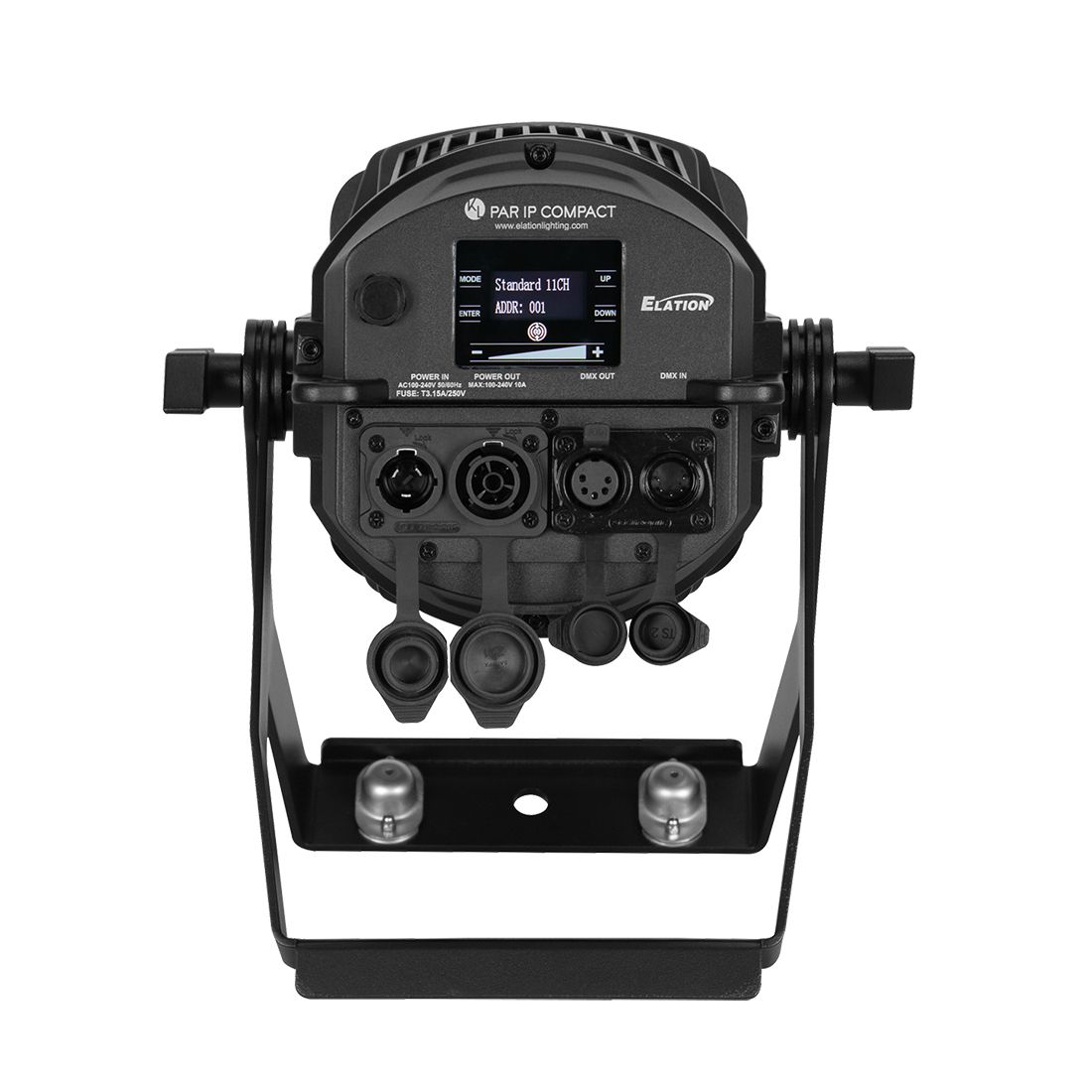

IP65 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 254mm (10”)
Length (Yoke 0°): 362mm (14.25)
Width: 236mm (9.3")
Height (Fixture Body): 183mm (7.2")
Height (Yoke 90°): 312mm (12.3")
Weight: 5.4kg (11.9 lbs)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A (6 units @115V, 12 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 682

INCLUDED ITEMS

Gel Frame
4 Lenses (10°, 22°, 30°, 55°)
IP65 Locking Power Cable

OPTIONAL ITEMS

6.25" Barndoors
Omega Bracket
1236300104 4 Wire Hardwire Installation Plate (HWP404)
1236300105 2 Wire Hardwire Installation Plate (HWP202)

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
