  • KL Fresnel 6 FC
Code 1236100185

KL Fresnel 6 FC

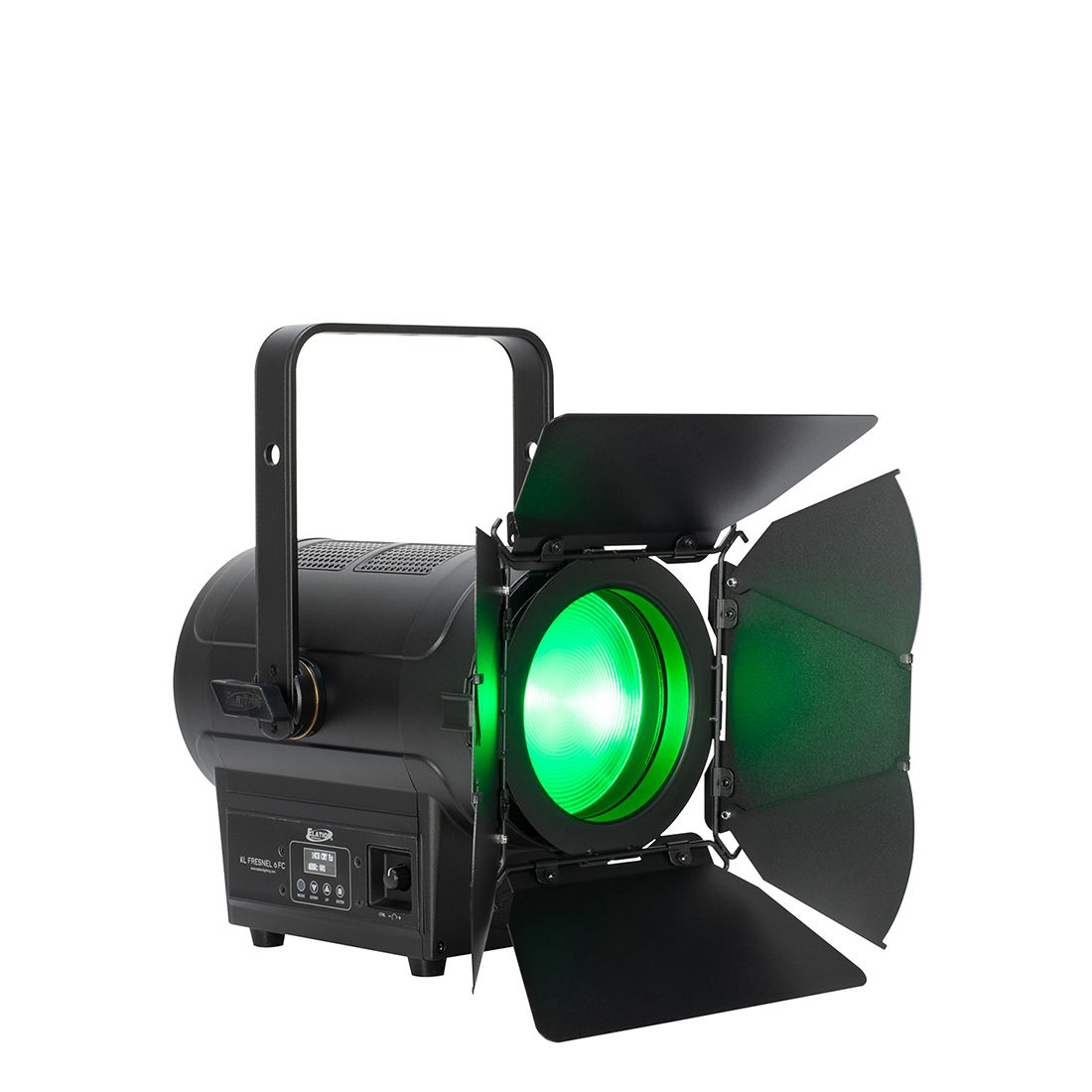

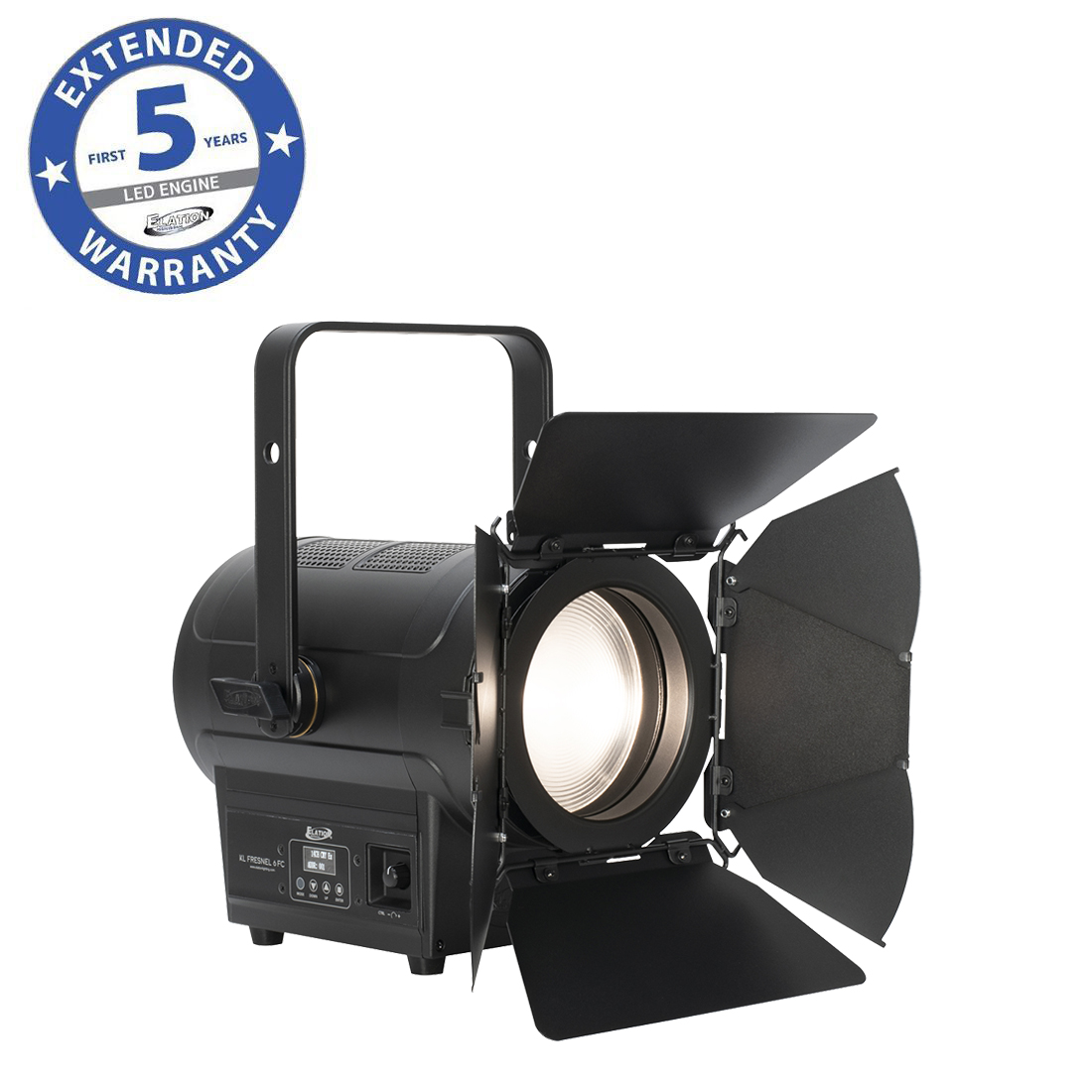

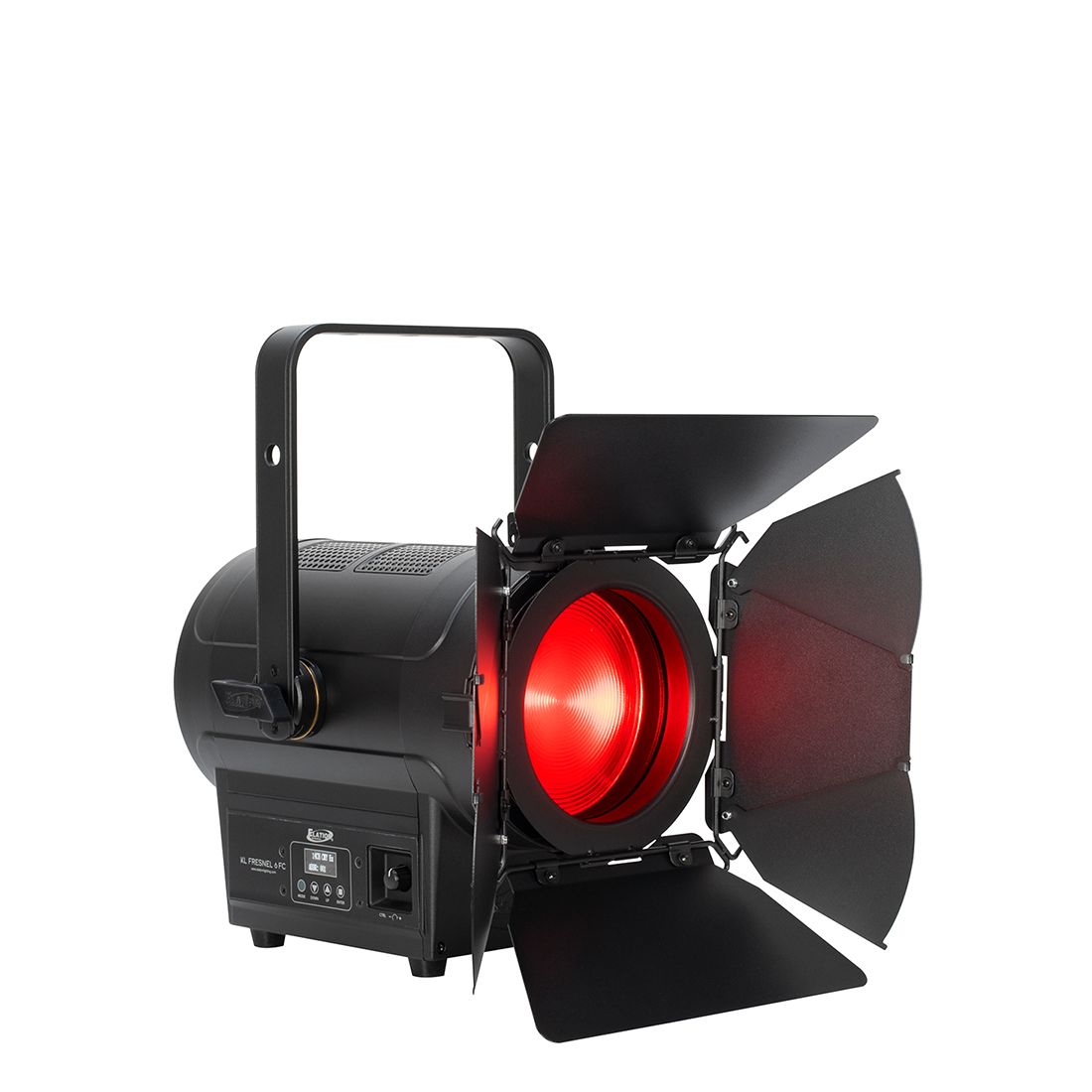

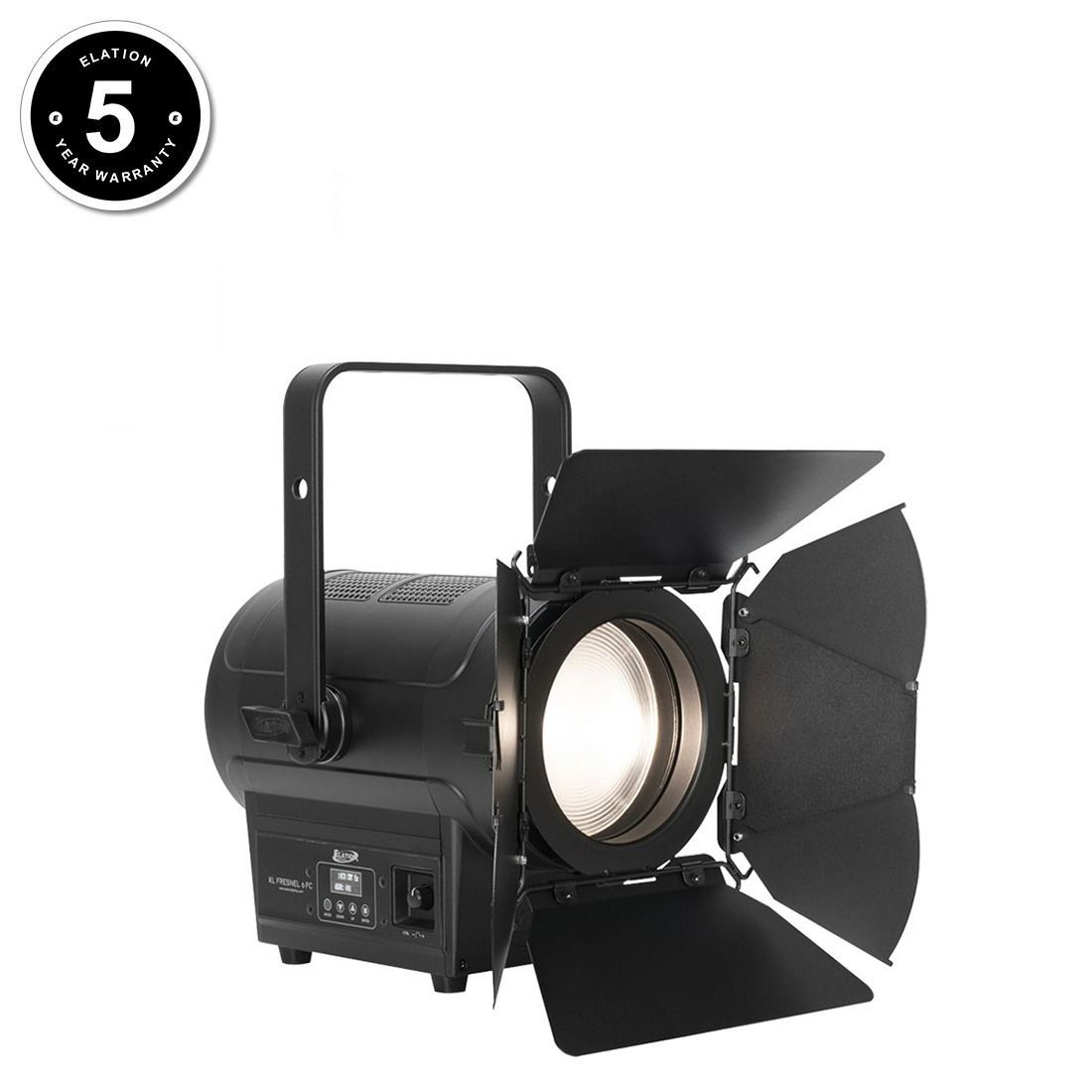

The KL Fresnel 6 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.
Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.
The KL Fresnel 6 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 7,200 field lumens with a manual Zoom range of 10° to 32°.
Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

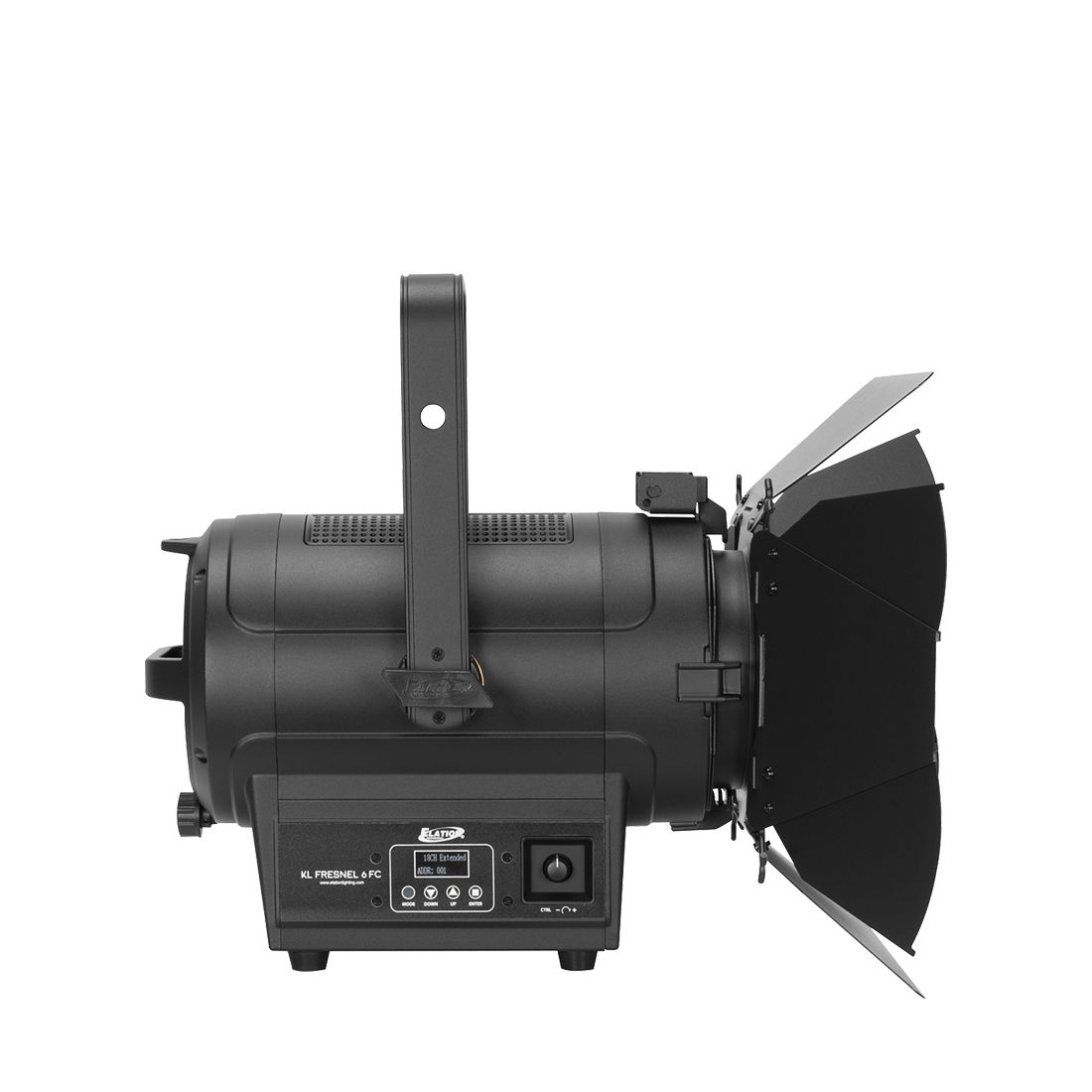

The KL Fresnel 6 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Technical Data

FEATURES

220W RGBMA LED Engine
Dynamic White + Full Spectrum Color Control
7,200 Total Fixture Lumen Output
10° to 32° Wide Manual Zoom
Stand-Alone control with Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)

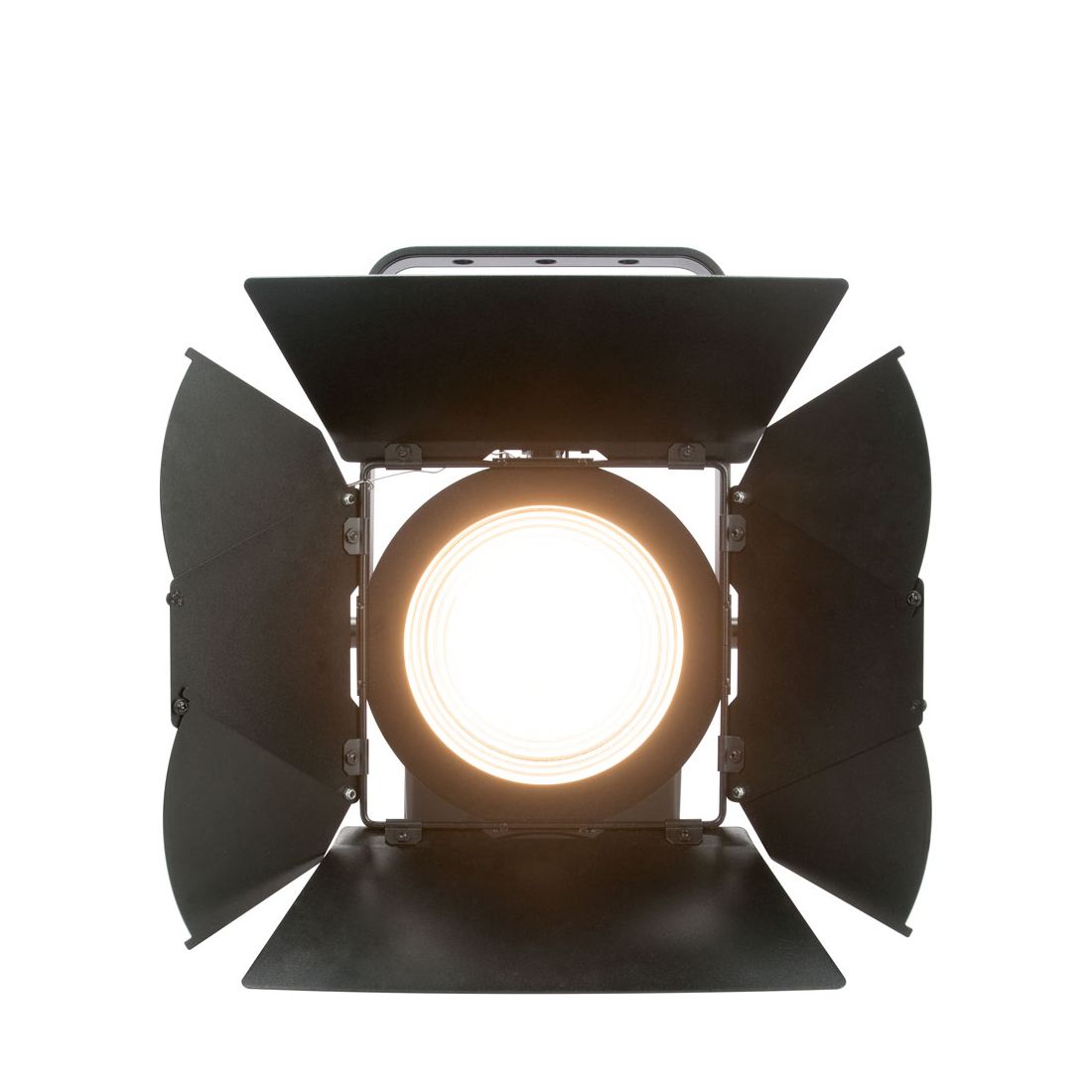

8-leaf Barn Doors, Gel Frame included

SPECIFICATIONS


SOURCE

220W 6500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA


7,200 Total Lumen Output
CRI 92.5
Zoom Range 10° - 32°
Beam Angle 9.7° - 32.2°
Field Angle 18.7° - 49.3°


EFFECTS


Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR


RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS


6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Direct Access Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)

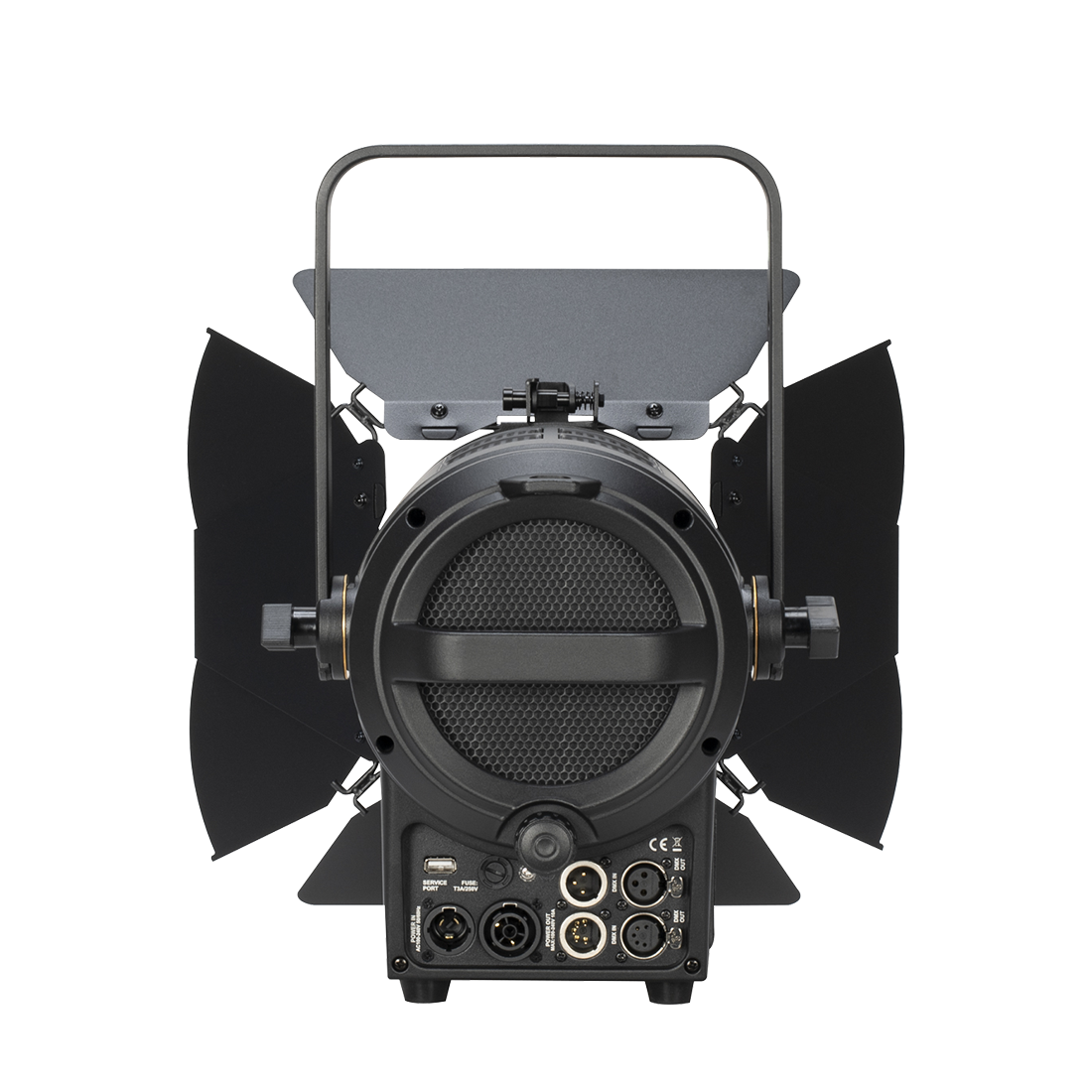

3/5pin DMX and IP65 Locking Power In/Out Connection

SIZE / WEIGHT


Length: 344mm (13.5”)
Width: 272mm (10.7”)
Vertical Height: 398mm (15.6”)
Weight: 7.3kg (16.10 lbs.)

ELECTRICAL / THERMAL


AC 100-240V - 50/60Hz
219W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Thru Capacity: 11A (5 units @110V; 12 units @240V)
BTU/hr (+/- 10%) 746.79

INCLUDED ITEMS


Gel Frame and Rotating 8-leaf Barn Doors
IP65 Locking Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice.

Specifications and documentation subject to change without notice
