  • KL Fresnel 4 FC
Code 1236100194

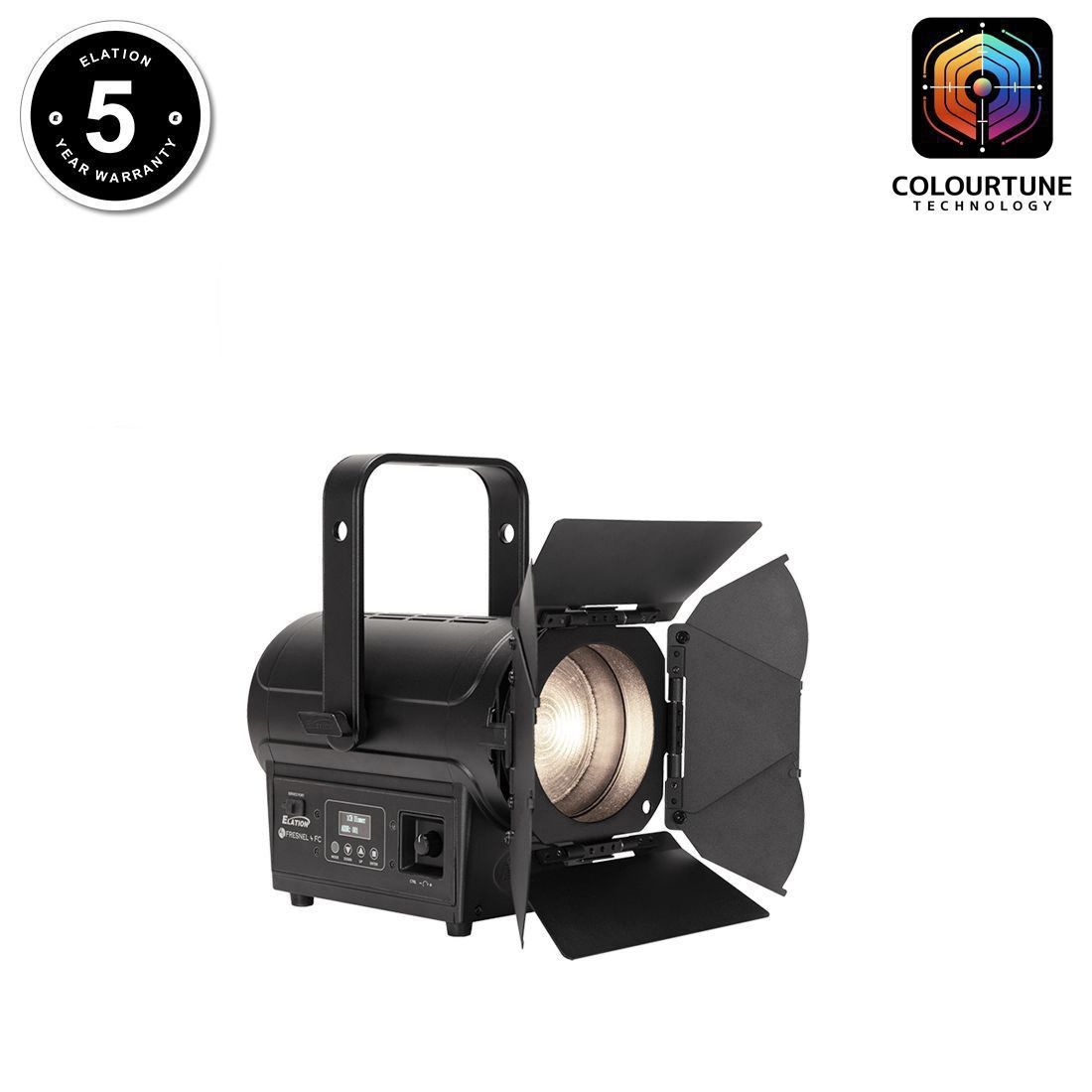

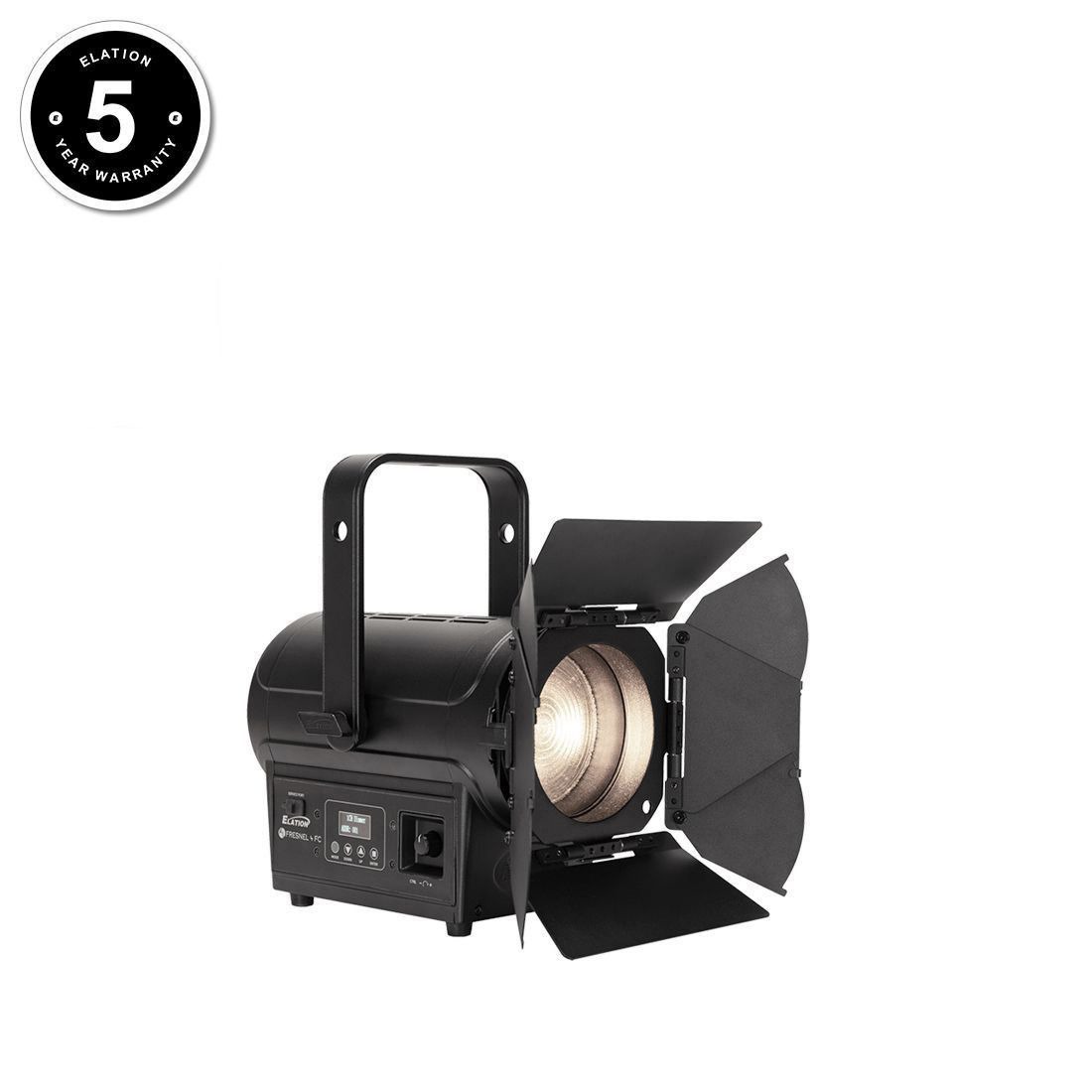

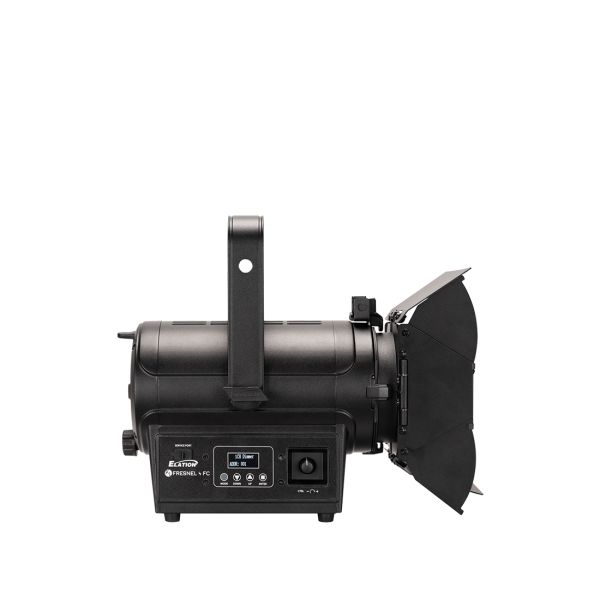

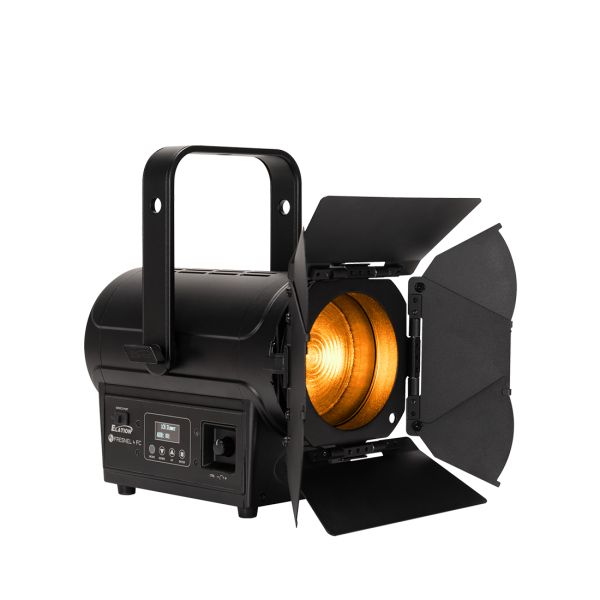

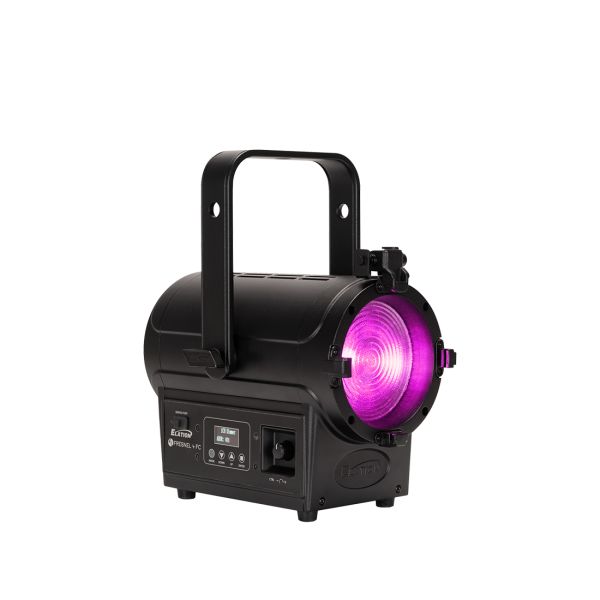

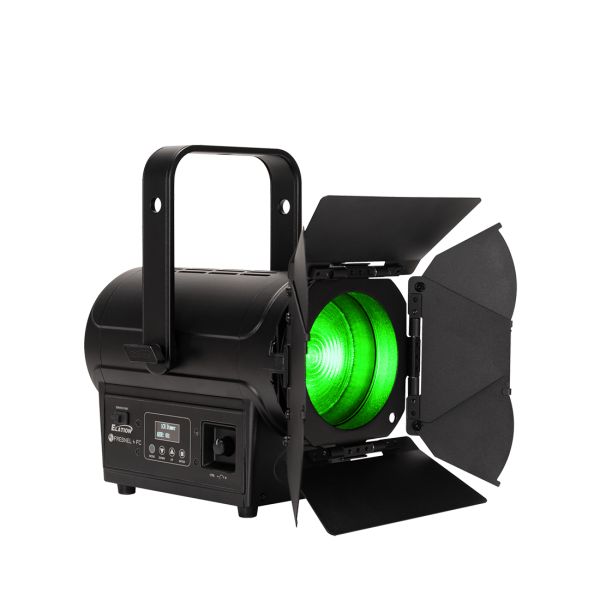

KL Fresnel 4 FC

The KL FRESNEL 4 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL FRESNEL 4 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine with a manual zoom range of 10° to 45°. The incorporation of Elation's ColourTune Technology ensures outstanding color rendering quality, precise CCT control, and Fidelity Selection Options. Remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units. The KL FRESNEL 4 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Technical Data

FEATURES

80W RGBMA LED Engine
ColourTune Technology Software Integration
2226 Total Fixture Lumen Output (Sphere)
10° to 45° Wide Manual Zoom
Stand-Alone control with Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)

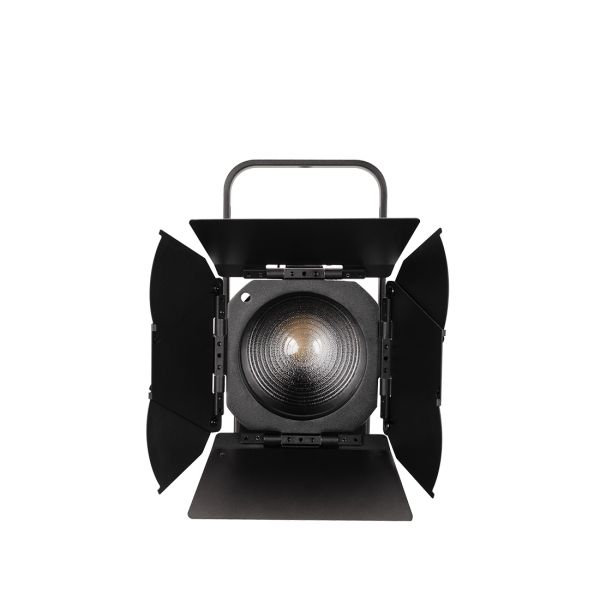

8-leaf Barn Doors and Gel Frame Included

SOURCE

80W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
2226 (Integrating Sphere)
2174 (Goniometer)
CRI 94.2
TLCI 87


Zoom Range 10° - 45°
Beam Angle 11° - 47.6°
Field Angle 21.5° - 72.8°

EFFECTS

Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

High Brightness and High Fidelity Output Options

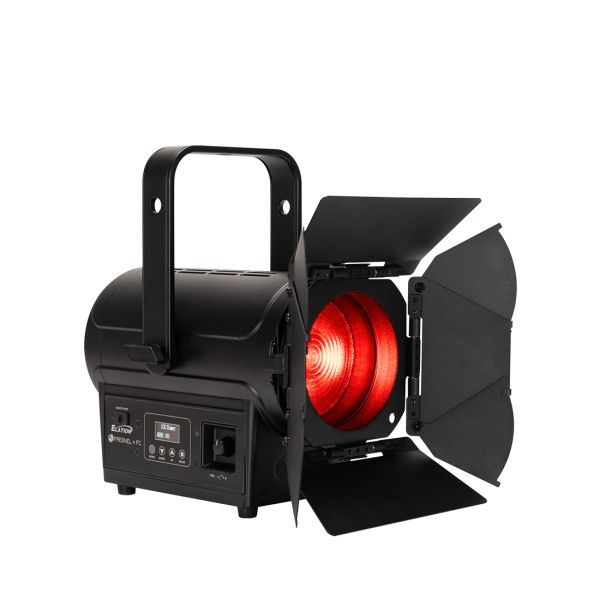

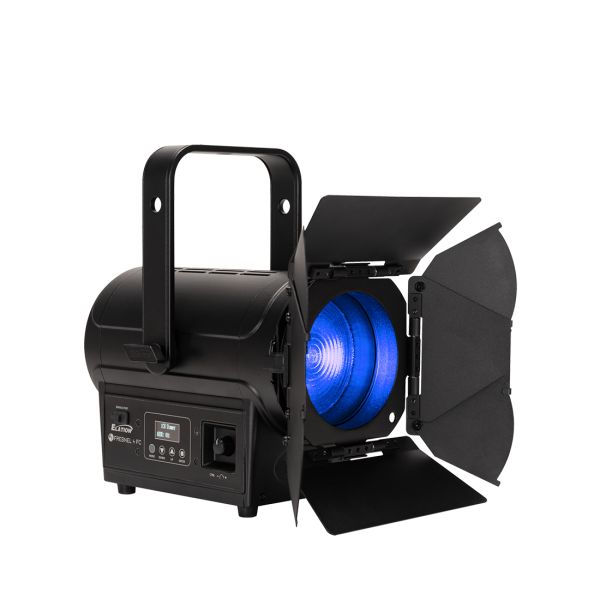

RGBMA Color Array
CMY Emulation

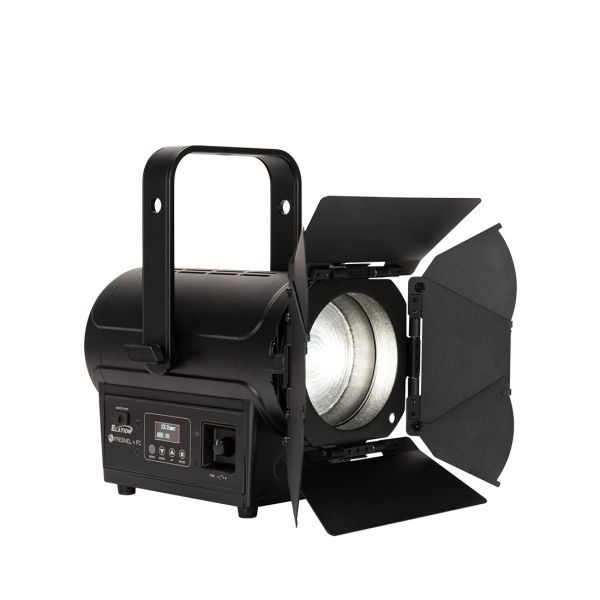

16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1, 2, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer, Color
Direct Access Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)

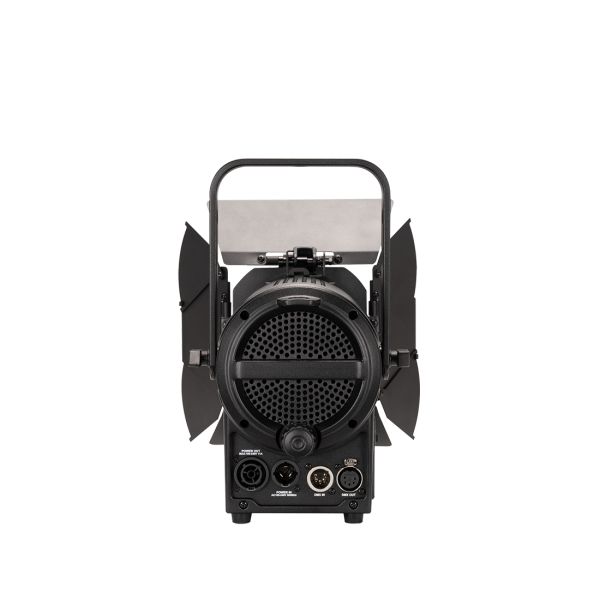

3/5pin DMX and IP65 Locking Power In/Out Connection

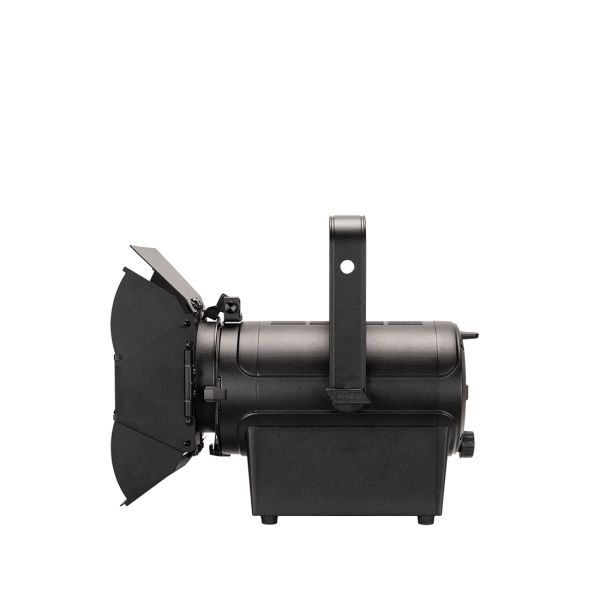

SIZE / WEIGHT

Length: 190mm (7.5”)
Width: 312.8mm (12.3”)
Vertical Height: 223mm (8.8”)
Weight: 3.71 kg (8.2 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
85W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Thru Capacity: 11A ( 14 units @110V; 31 units @240V)
BTU/hr (+/- 10%) 289.85

INCLUDED ITEMS

Gel Frame
8-leaf Barn Doors
IP65 Locking Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
