Flex Pixel WP14

Flex Pixel WP14Archive

Code 1221500022

Flex Pixel WP14

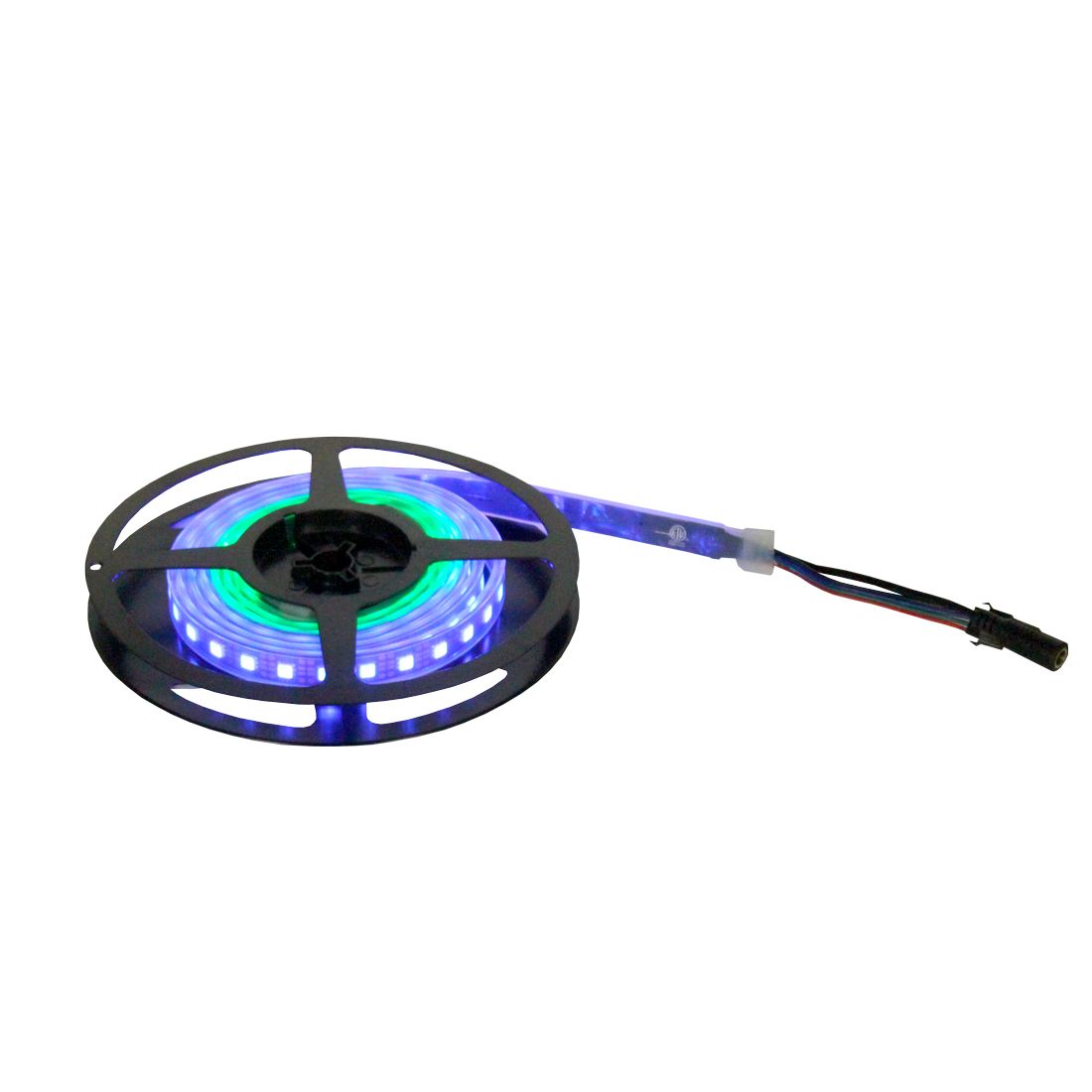

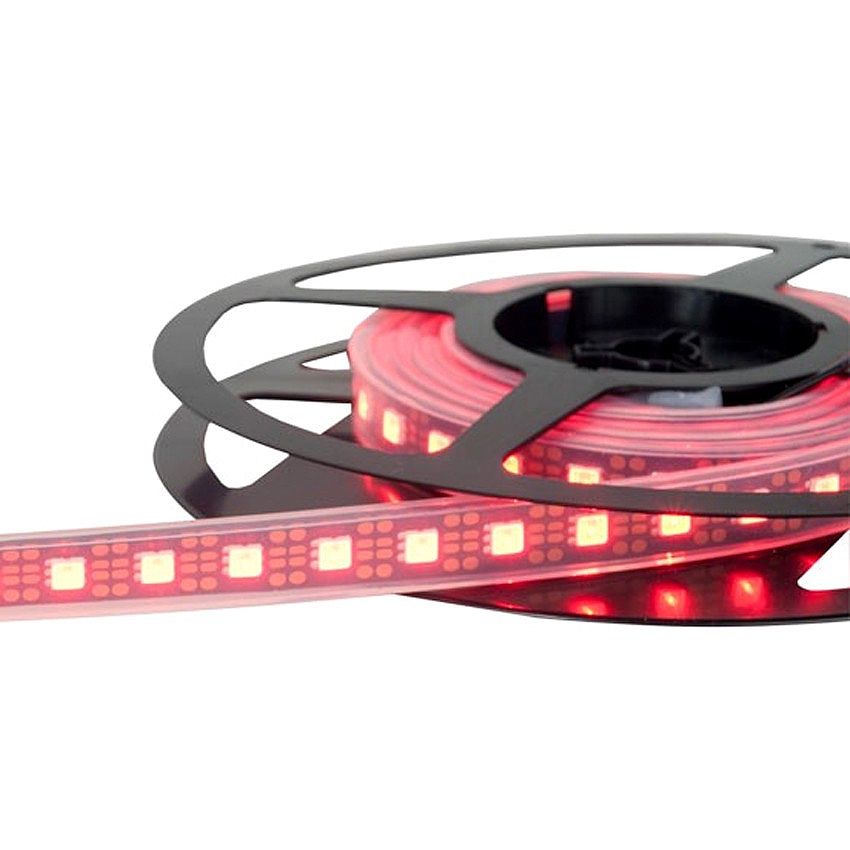

The FLEX PIXEL WP-14™ is an outdoor rated 6.6 foot (2m) flexible LED pixel tape featuring (144) RGB SMD tri-color LED pixels (432 total DMX channels) spaced on 0.55” (14mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 2” (51mm), and mountable to most surfaces using Elation’s FLEX CHANNEL™ line of aluminum mounting tracks.

Each FLEX PIXEL WP-14 tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation’s optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.

Technical Data

FEATURES

IP65 Outdoor Rated Flexible LED
Pixel Tape 6.6 foot (2m) Roll
(144) RGB Tri-Color SMD LED Pixels
(432) Total DMX Channels
Pixels Spaced on 0.55” (14mm) Centers

Cut and Extend Every 2” (51mm)
120° Viewing Angle
Over 1 Billion Color Possibilities

SOURCE

(144) RGB SMD LED Pixels

PHOTOMETRIC DATA

1,008 LUX 94 FC (per each 1m)

COLOR

Over 1 Billion Color Possibilities

CONTROL

(432) DMX Channels
ICS APA102 Protocol

SIZE / WEIGHT

Length: 6.6’ (2m) Roll
Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 0.66 lbs (0.3 kg)

ELECTRICAL / THERMAL

DC 5V
29W Max Power Consumption

Specifications and documentation subject to change without notice
