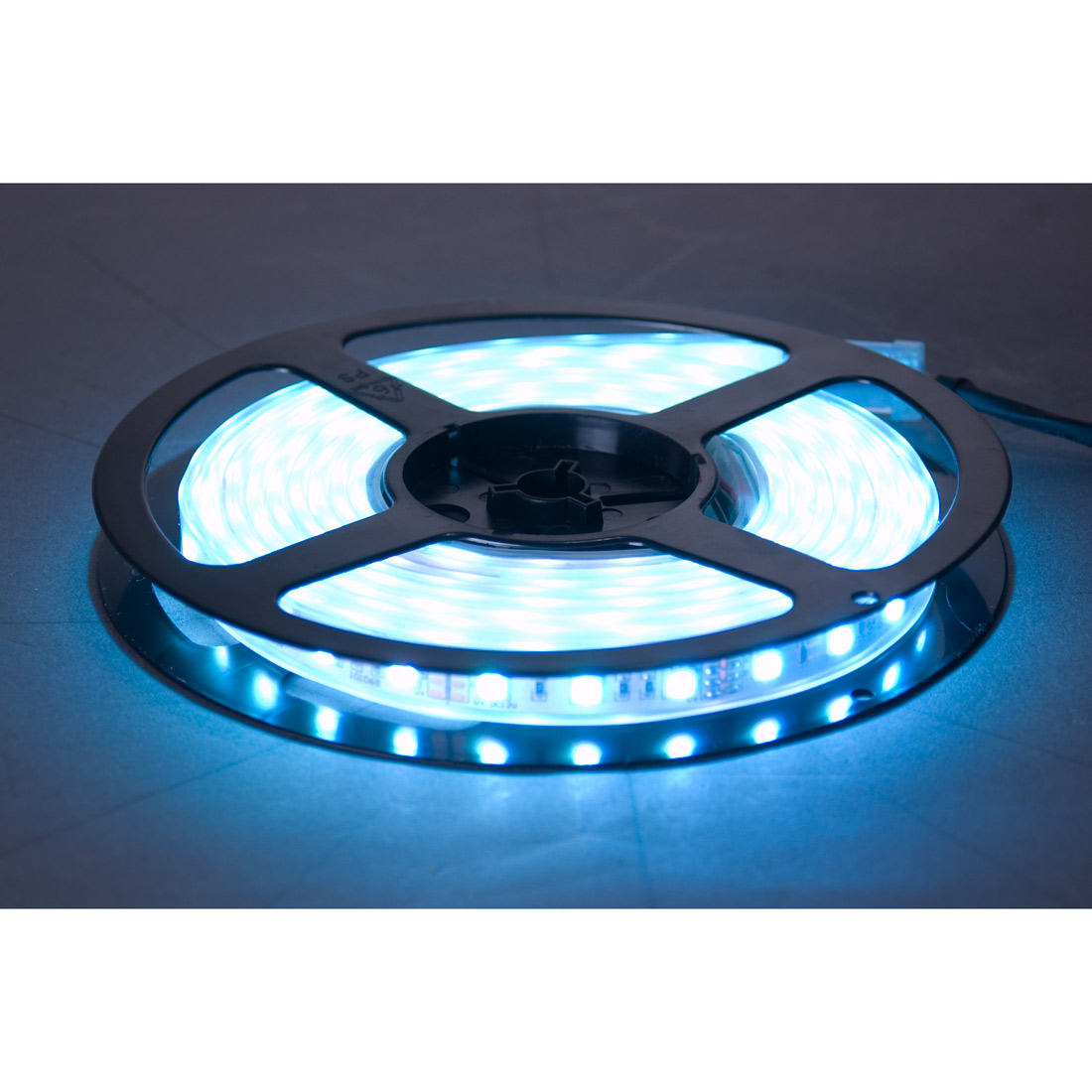

FLEX CW WP - Flexstrip LED Lite CW Picture
FLEX CW WP - Flexstrip LED Lite CW Picture 2
FLEX CW WP - Flexstrip LED Lite CW Picture 3
FLEX CW WP - Flexstrip LED Lite CW Picture 4
Code
1226300011
- 360 High Quality SMD LEDs on 6m
- 16,6mm LED pitch
- 120 degree light dispersion
- Flexible and dividable
- Can be twisted, bended, rolled, etc.
- Extreme wide temperature range
Extreme bright and flexible LED Tape, 6m long with 360 cold white SMD-LEDs
Specifications
- 6m roll, 11,5mm wide- 16,6mm space between the LEDs
- dividable each 50mm = 3 LEDs
- bright and saturated color
- Voltage: 12 V
- Beam angle: 120°
- Operating Temperature -30°C to 80°C
- Rated power: 5W/meter
- Total power consumption 6m: 29W
- Avg. Rated Life - 30,000hrs
- LED Spacing - 16.6mm (.65”)
- Dimensions - 11.5mm (.45") W x 1,5mm (.005") D
- to use the LED Tape, an optional DC power supply, e.g. Flex PSU4A, is needed.
Package contains:
- 1x 6m roll FLEX LED Tape- 1x Connector to the power supply which needs to be soldered to the FLEX Tape
Specifications and documentation subject to change without notice
