EZ6Archive

Code 1239100151

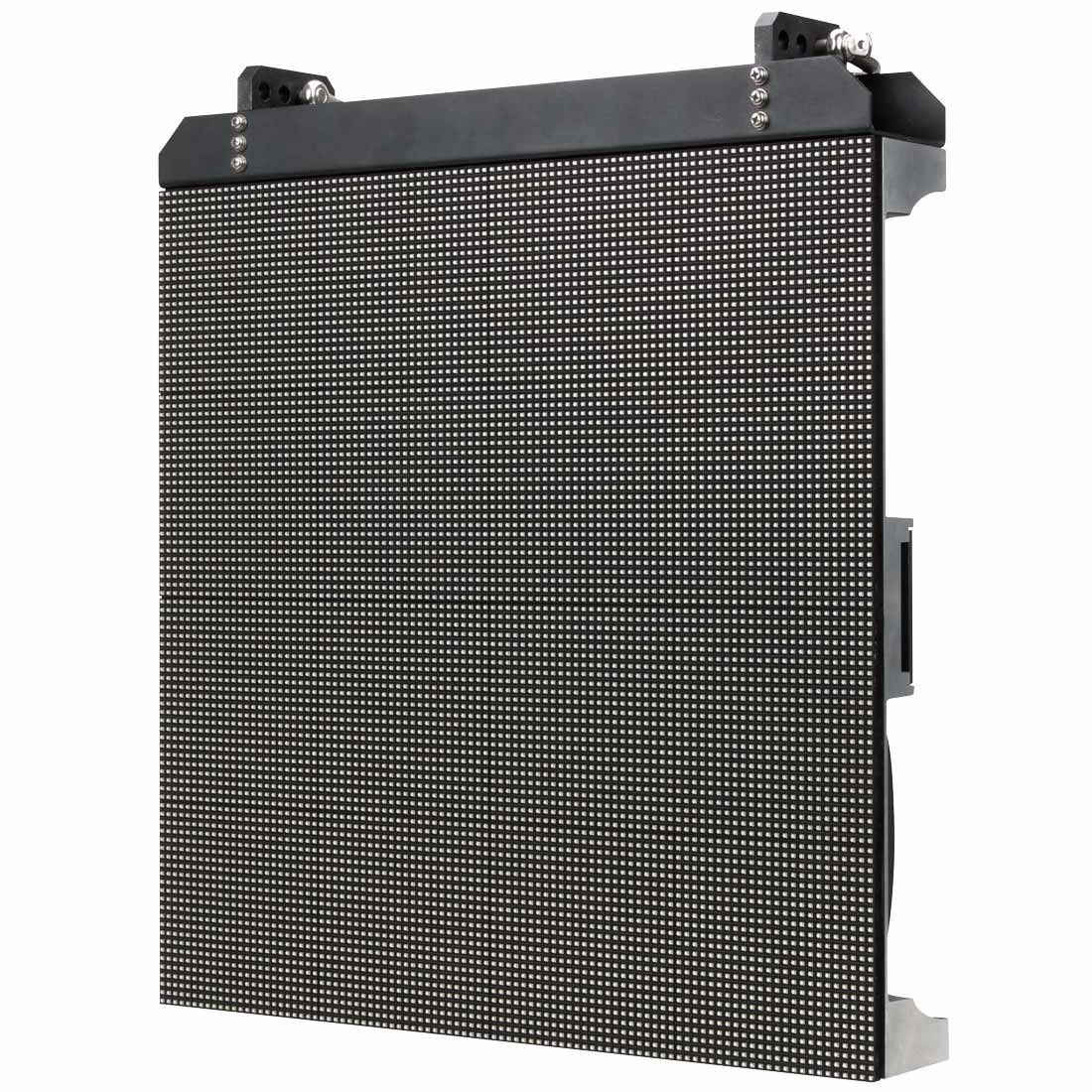

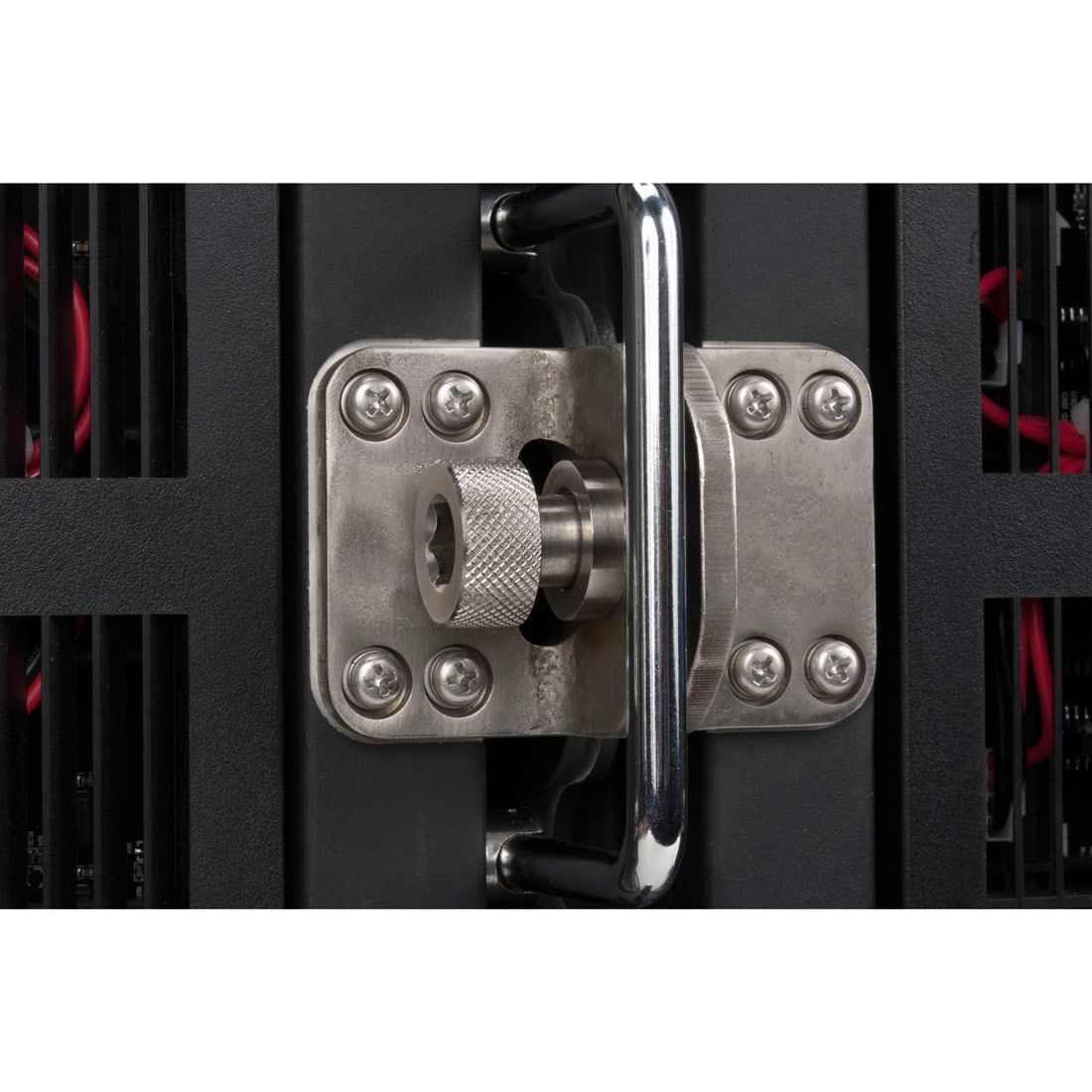

The EZ6 is a high resolution, 6mm pixel pitch LED video panel and the next breakthrough in Elation's expanding line of affordable LED displays. It is constructed of a die-cast aluminum frame with high precision CNC machining techniques. Because of its bright output and modular, light and easy-to-handle body it is ideal for permanent installations where hanging loads for screens is limited but brightness is required. The EZ6 is ideal for use in halls, theatres, stages, clubs or any indoor...

Code 1239100151

EZ6

Technical Data

HIGH RESOLUTION LED SCREEN

6MM PIXEL PITCH

1,800 NITS AFTER CALIBRATION

IDEAL FOR INDOOR PUBLIC SPACES

FANLESS DESIGN WITH GOOD HEAT DISPATION, NOISE FREE

LIGHT AND SLIM, EASY-TO-HANDLE TRANSPORT

VIEWING ANGLE 120° X 120°

FEATURES

Pixel Pitch: 6mm

Physical Density: 27,777(dots/m2)

Protection Level: IP32

Horizontal and Vertical View angle: 120°

Brightness: 1,800 NITS after calibration

Gray Scale: 14bit

Refresh rate: 960Hz

SOURCE

LED Configuration: 1R1G1B

LED Type: SMD3528 Nationstar RGB

Life Span: 50,000 Hours*

RESOLUTION

Cabinet: 96x96

SIZE / WEIGHT

Cabinet: 576x576mm

Cabinet Weight: 24 lbs. (9.8kg)

ELECTRICAL / THERMAL

AC 110-220V, 50/60Hz

203W Max Power Consumption

70W Average Power Consumption

OPTIONAL ACCESSORIES

Zeus Media Server

EZ VSC2

Nova PRO HD

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Specifications and documentation subject to change without notice
