- Absolute safe transmission by FHSS
- Multiple receivers applicable
- No configuration needed
- 16 DMX universes possible
- 700m safe transmittance
- Powersupply included
- Trussmounting clamps included

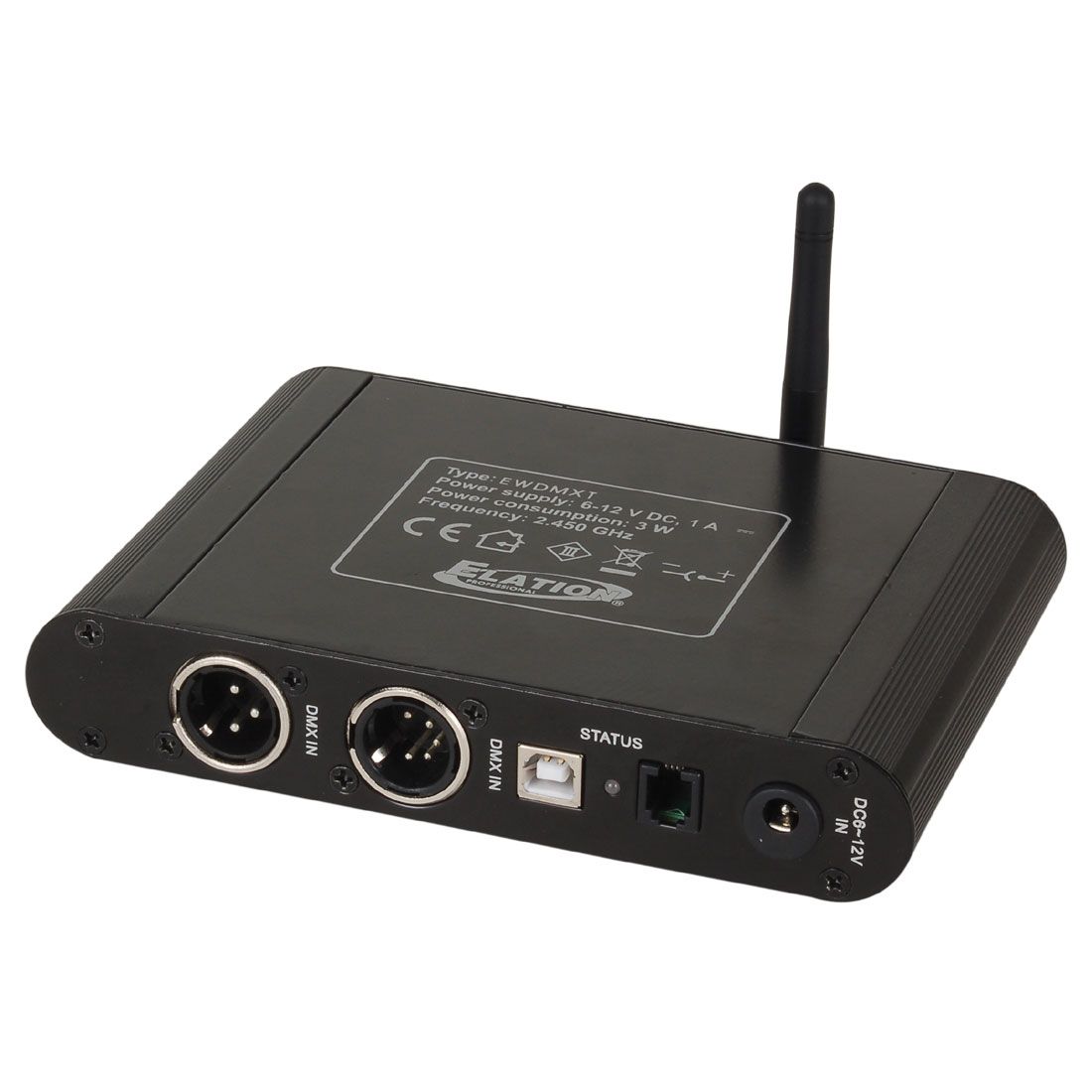

The ELATION EWDMX series is a reliable and fast wireless DMX transmitting system. Modern technology in frequency hopping (FHSS) and TDMA (Time Division Multiple Access) makes it as reliable as a cable (maybe even more reliable) while being a lot more comfortable. No complex parameter setup, only a single press of a button!

What is FHSS?

W-DMX uses Adaptive Frequency Hopping Technology (FHSS), which changes frequency 1000 times per second and jumps only to channels that are not used by other WLAN and/or any other products on the 2,45 GHz band. This together with TDMA (Time Division Multiple Access) gives the user a guarantee for a much safer technology without interference. The technology was invented by the US Army and is used in the GSM networks as well.

Specifications

- 512 USITT DMX channels per system
- System consists of 1 Transmitter & 1 Receiver
(Transmitter and Receiver sold separately)
- Multiple receivers can be used per transmitter
- 1 button programming
- Up to 16 universes (transmitters)
- Up to 700m
- FHSS Technology
- 3 & 5 pin XLR
- Dimensions: 127 x 165 x 38mm
- Weight: 0,8 kg
- Voltage: 90-250v (power supply included)

SYSTEM COMPONENTS

(Transmitter and Receiver sold separately)
- 1 EWDMX Unit
- 1 Antenna
- 1 230v power supply
- 1 brackets + safety cable
- 1 user manual

INCLUDED ACCESSORIES

(1) IP Rated Power Cable
(1) IP Rated 3pin Male DMX Input Cable
(1) Clamp Mounting Bracket & (2) Screws
(1) Safety Cable

SIZE / WEIGHT

Length: 9.4” (240mm)
Width: 6.7” (170mm)
Vertical Height: 2.2” (56.5mm)
Weight: 4.6 lbs. (2.1kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)
