- 3-1 SMD Tri-Color LED Technology
- 20mm pixel pitch

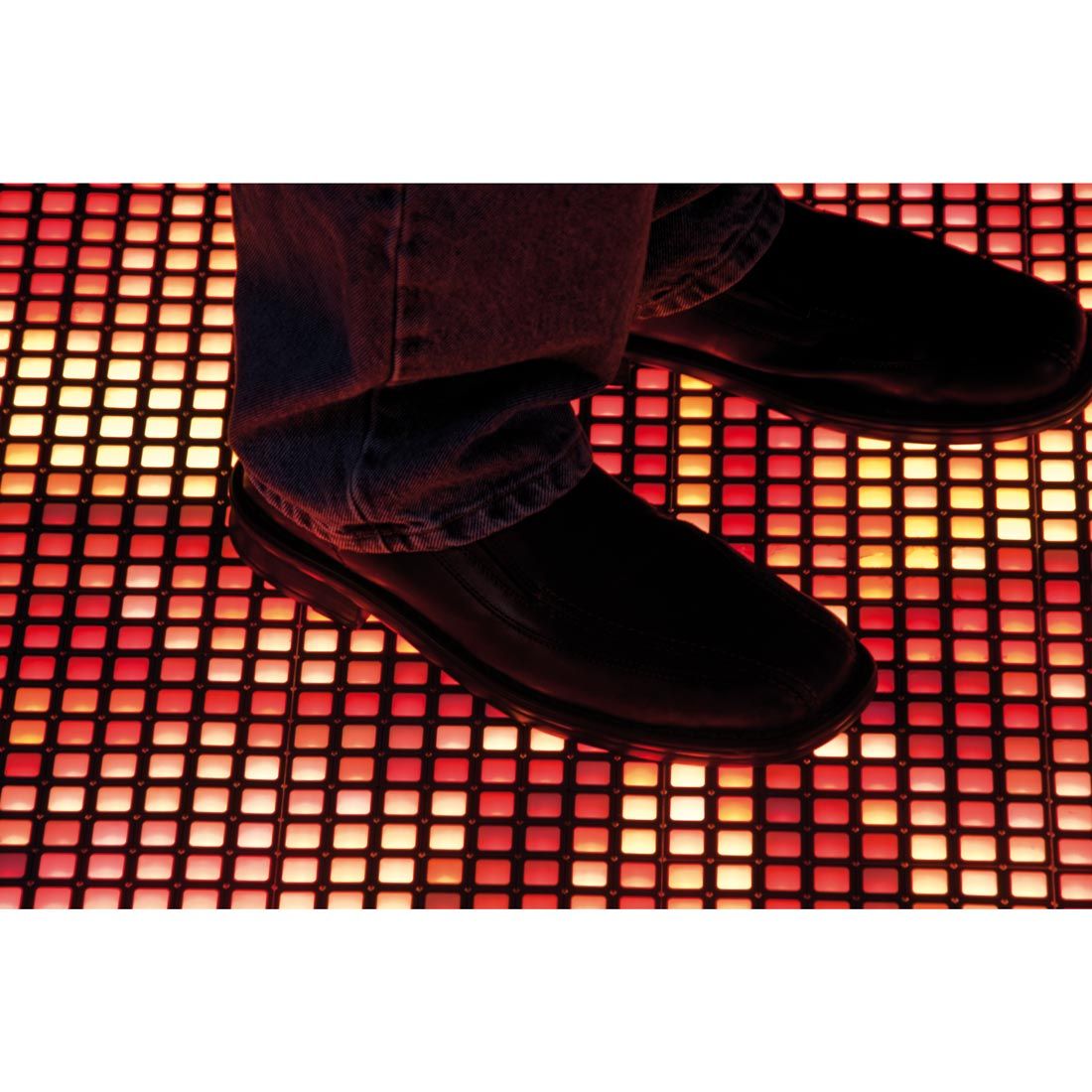

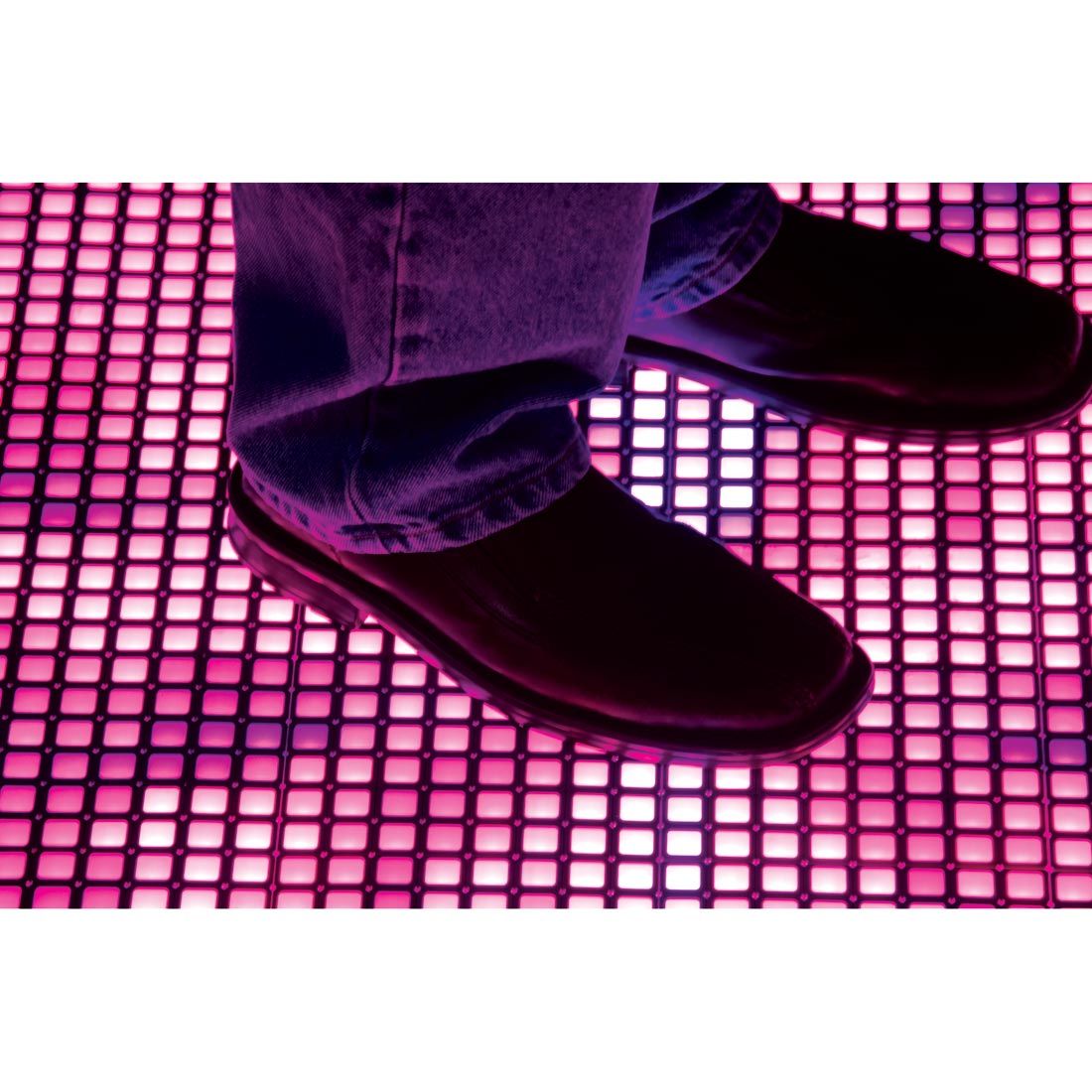

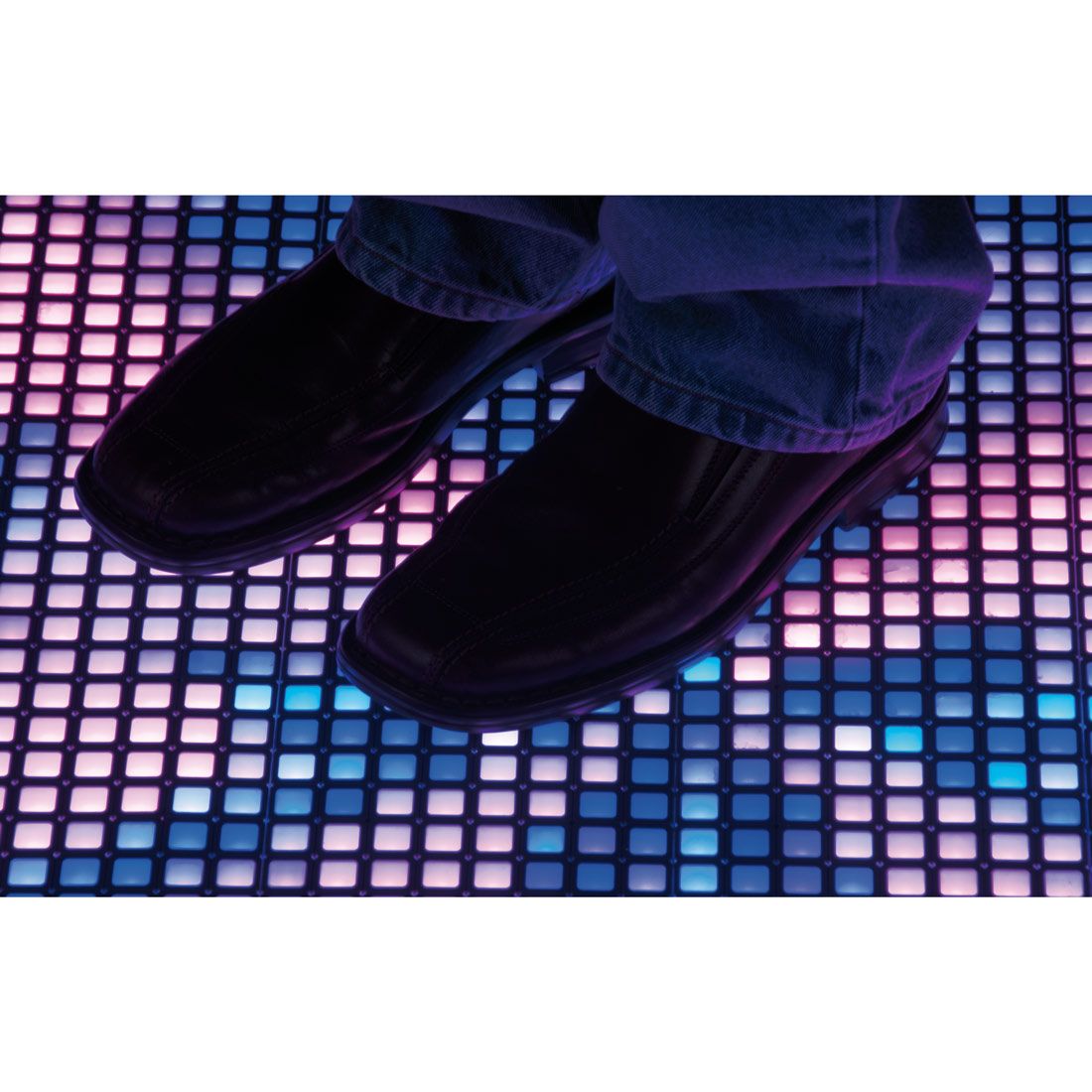

- 1,100lbs per tile section weight bearing
- Video signal supplied via Ethernet from EVLED VSC
- Power / Data Linkable
- Panel Clip lock system
- Aluminum Alloy structure

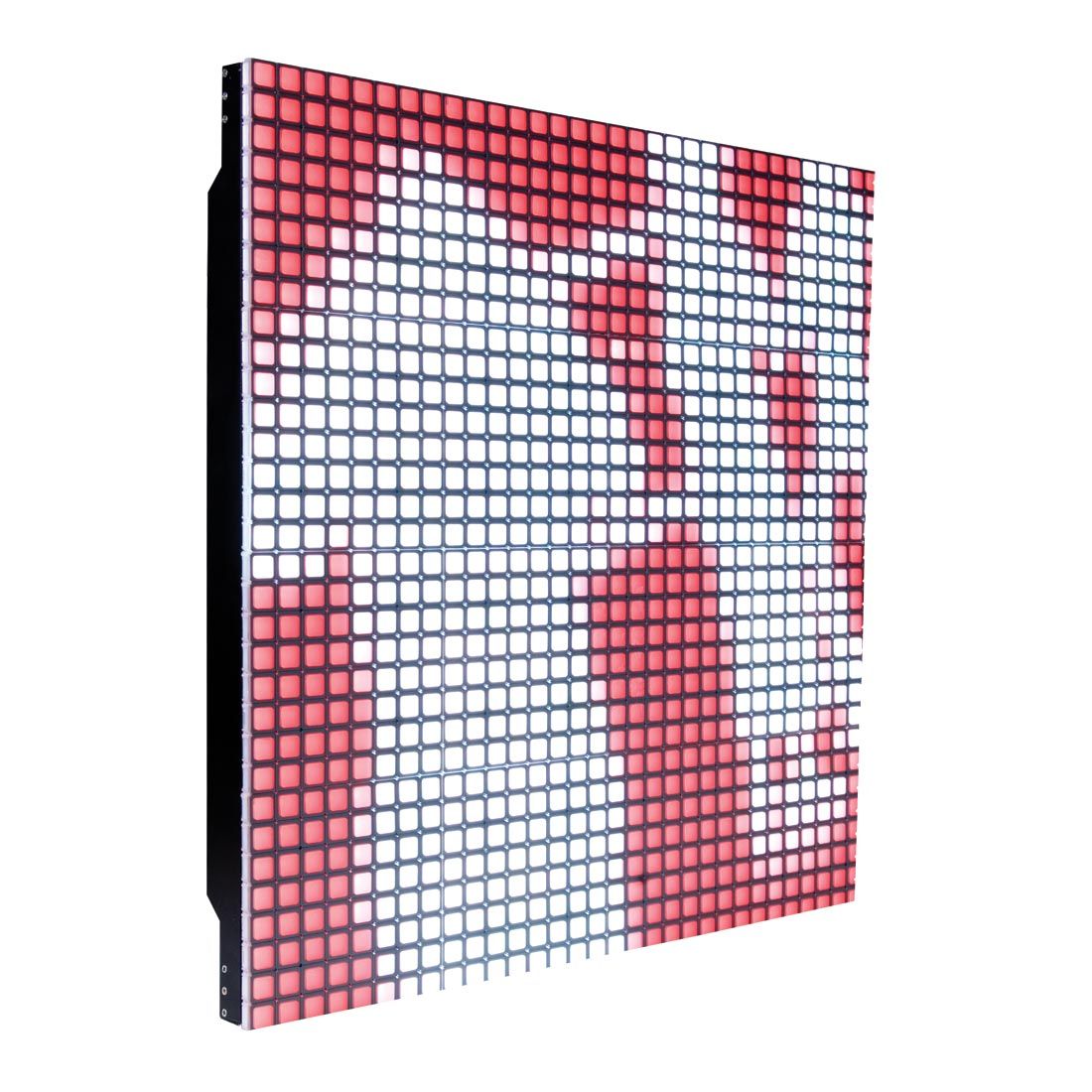

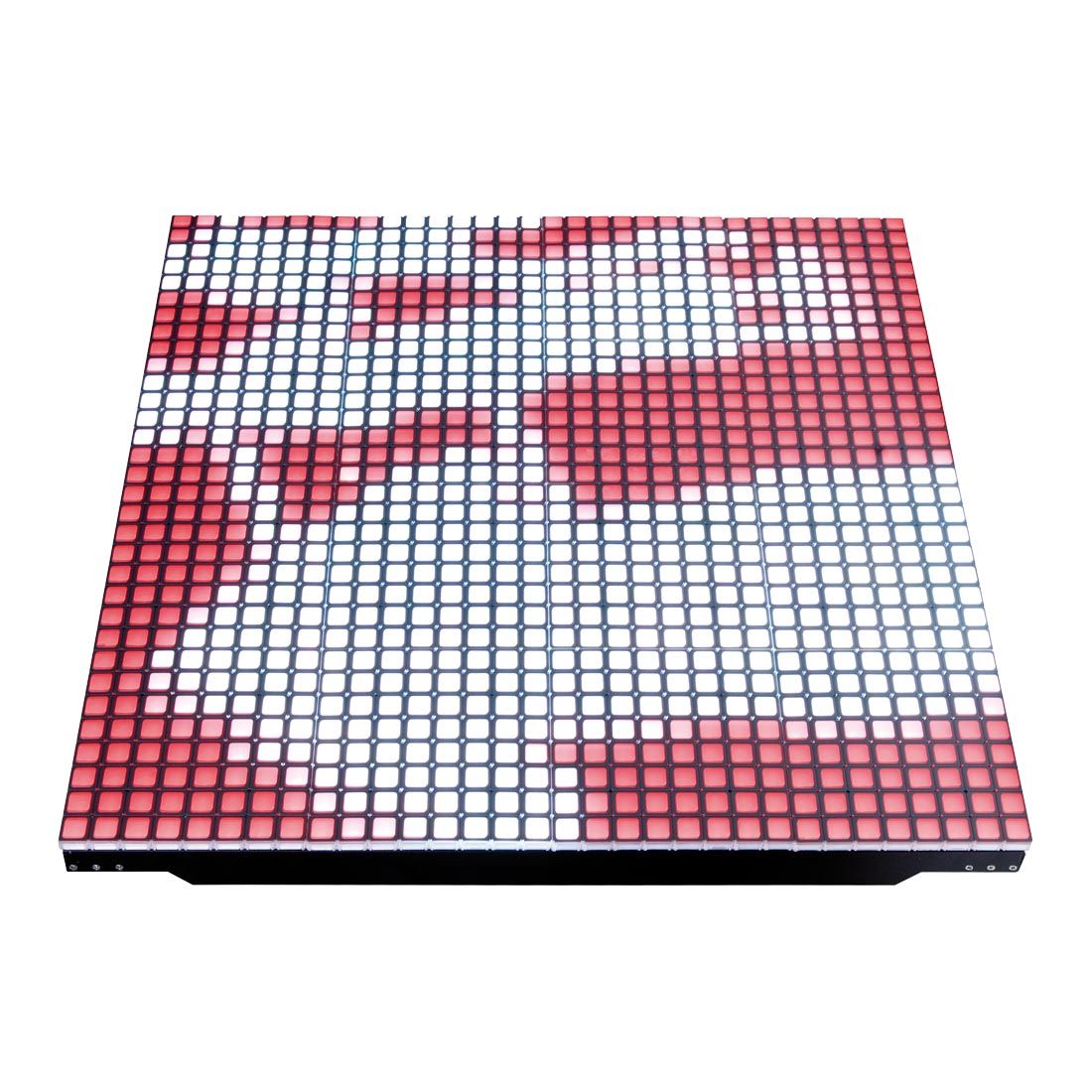

Model:    EVLED-1024SMDF
Transparency:   0%
Curtain Composition:  Al-alloy frame, rubber
   compound for weatherproof
Tile Size:   25.2 X 25.2 X 4 in/
   tile 640 X 640 X 103 mm/tile
Tile Weight:   44 lbs/tile 20 kg/tile
Tile Area:   0.4096m2 /tile
Pixel Pitch:   20 mm
Luminosity:   1500 nits
Color Temperature:  6500 k
Visual Angle:   110 / 110° (50% brightness)
Visual Range:   160 / 160°
Pixel Configuration:  1R 1G 1B (3-in-1 SMD)
Tile Resolution:  32 x 32 pixels/tile
Pixel Resolution:  2500 pixels/m2
LED Quantity:   1024 per tile (3-in-1)
Number of Colors:  14M
Processing Depth:  14 bits
Contrast Ratio:  1500:1
Life Span:   100,000 hours - LED
Frame Rate:   60Hz
Data Refresh Rate:  800Hz
Display Mode:   synchronous with video source
LED Failure Rate:  1/10000
MTBF:    >10000 hours
Drive Mode:   Static, Constant Current Drive
Power Supply:   AC 100-240V, 50Hz or 60Hz
Working Voltage:  DC 5V
Power Consumption:  750 w/m2 (max);
   400 w/m2 (average)
Ingress Protection:  IP65
Ambient Temperature:  - 20 to +50 Celsius degree
Relative Humidity:  10% to 99%
Maximum Weight Load:  1,100lbs / 500 kg
