The EVLED VSC full-color synchronous video control system is composed of a rackmount 19” Video controller or PCI Card and EVLED Playback/Setup media software running on all standard PC windows operating systems. The Signal gets captured using any DVI input, e.g. from PC graphics card output or any applicable DVI A or D signal. The video controller has two signal output ports. Each port can connect a set of EVLED panels in any configuration. A standard Ethernet cable with waterproof EVLED connectors transmits 1280 X 1024 (EVLED VSC) or 2048 X 640 (EVLED VSCII) pixels within a max. distance of 100m. The EVLED VSC software allows configuration, sizing, mapping, media playback and readout of the panel hardware sensors and values.

EVLED Video System Controller

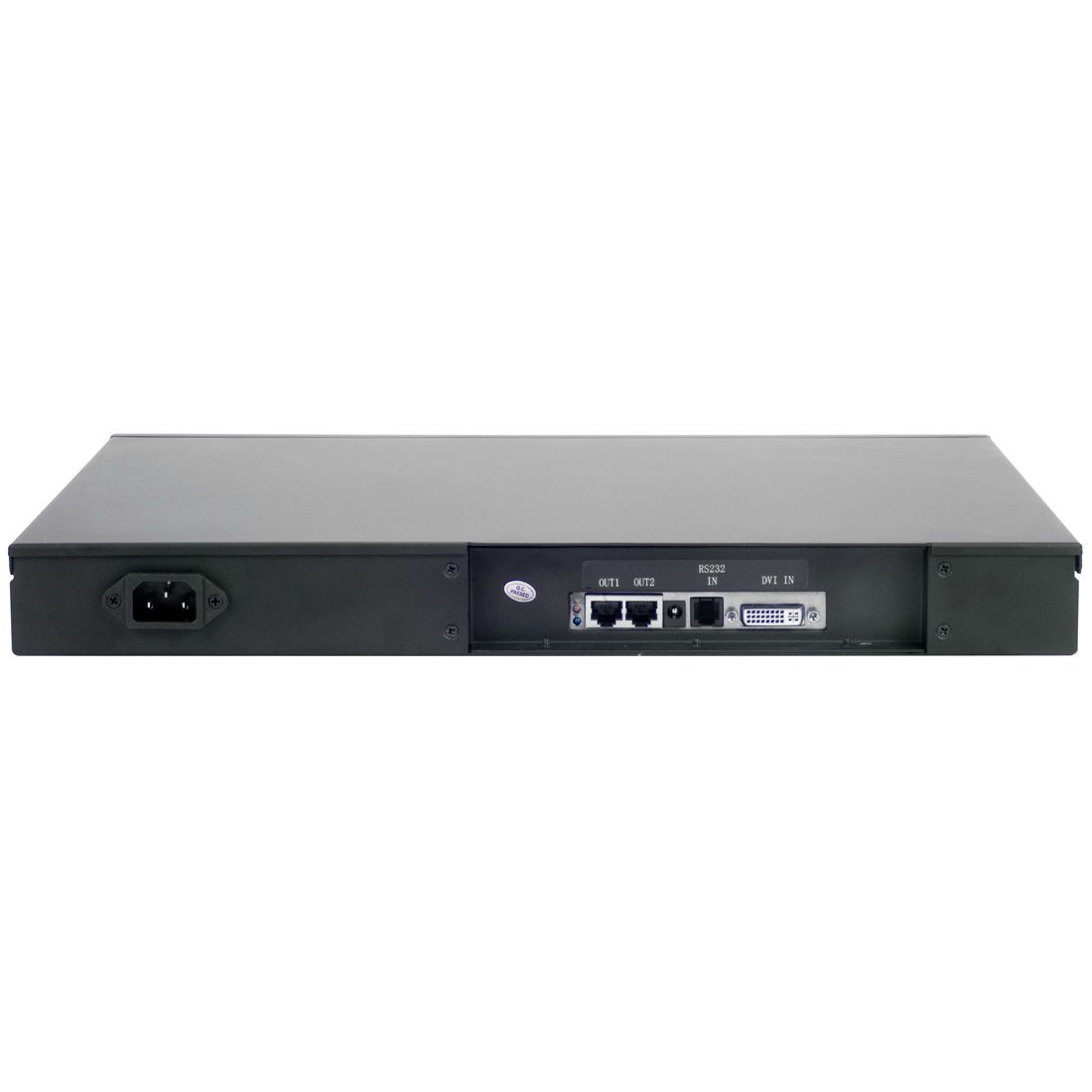

- Signal Output to Screens – 2x LAN, CAT5 / waterproof connector
- Signal Input: DVI-A/D with 640x480 to 1280x1024 input resolution
- Controller Command Communication from PC - USB / RS232
- Maximum Resolution - 1280 x 1024 pixels / 2048 X 640 (VSCII)
- Dual LAN outputs for set up of 2 separate or combined screens
- Includes VSC software for pixel mapping set up and media player
- High Frequency Refresh Rate - Selectable between 100Hz - 3,000Hz
- Grey Scale level - 0 - 66536 levels

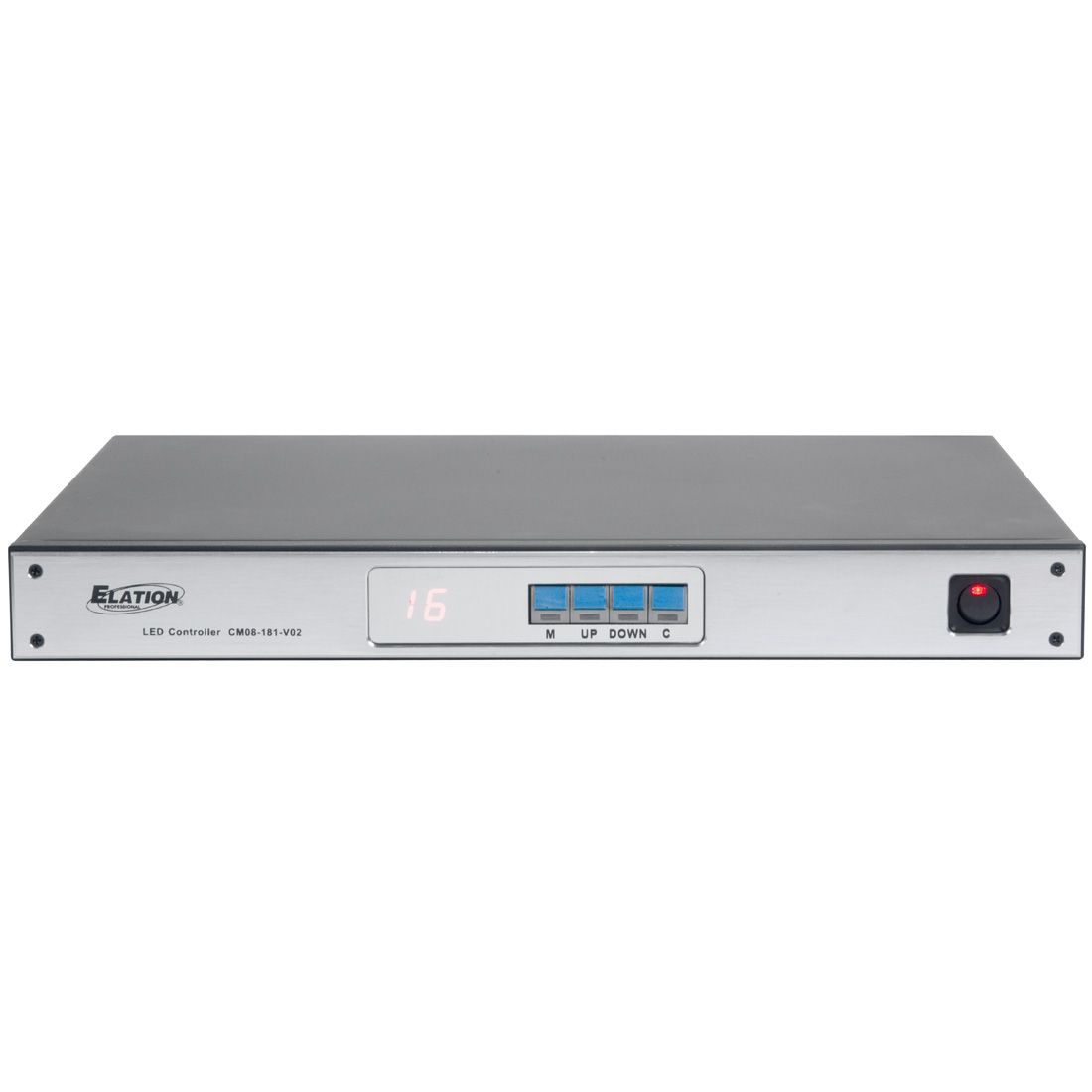

- Power switch and Up/Down buttons to control 16 preset intensity levels
- AC Input 100-240V 50/60 Hz
- Table stand or rack mounted with rack ears
- Pixel Correction - Single, 2x2, 4x4 and 8x8, Max. 6144 pixels, 256 adjustable RGB levels
- Size - 423 x 330 x 46 mm (LxWxH)
- Weight - 5.3kg

Code 1239100001 VSC: 19“/Tabletop
max. 1280x1024 pixel
Code 1239100024 VSCII: 19“/Tabletop
max. 2048x640 pixel
Code 1239100025 VSCSC: PCI Card
max. 1280x1024 pixel
Code 1239100026 VSCSCII: PCI Card
max. 1280x1024 pixel
